Stainless steel 321H Flanges are higher carbon modifications of the 321 grade. These general-purpose austenitic grade flanges are stabilized by niobium and titanium. The flanges securely seal piping modules and are stabilized against carbide precipitation. The non-magnetic flanges in the annealed condition are able to suffice in high temperatures. Their excellent welding and forming capacities allow them to be used alongside different types of piping equipment. This flange is a flange of choice in applications where the temperature exceeds 1000 degrees F.
Flanges are piping components, which are available in a range of sizes. Slip on flanges and blind flanges are some of the most used flanges in the system, which are differentiated, based on some basic features.
ASTM A182 SS 321H WNRF flanges are identified based on their long protruding head or hub. The head provides support and stability to piping components as they go through vigorous movement and pressures. These flanges are utilized in seawater applications as they can withstand constant fluctuations of pressure and temperatures, which are common in the sea. They are seen in offshore rigs, intake tanks, desalination units, intake pipelines, cooling lines, etc.

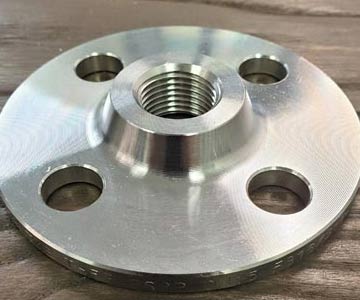

SS 321H Threaded flanges are part of pipe flanges, which can be distinguished, based on certain characteristics.
Some characteristics of the SS 321H Ring Type Joint Flanges include:
Specifications | ASTM A182 / ASME SA182 |
Size | 1/2″ (15 NB) to 48″ (1200NB) |
Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Looking for ASTM A182 F321H Long Weld Neck Flanges suppliers who offer prompt delivery in Asia? Manufacturer of stainless steel 321h flanges in India, call us for big discount and ready sizes, check latest price of stainless steel 321h flange in Mumbai
STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
Check Chemical Properties Of SS 321H Flanges and Stainless Steel ASTM A182 F321H Orifice Flanges Supplier & Manufacturers In Mumbai, India.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Ti |
SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | - | 9.00 - 12.00 | 4(C+N) – 0.70 max |
Well-known Stainless Steel 321H Flanges Manufacturer In India. For final Stainless Steel 321H Reducing Flanges Price List Please Call on +91 22 6636 3099.
Description | Per Unit (INR) |
---|---|
STAINLESS STEEL FLANGES : 321H | 2,774 |
SS FORGED FLANGES2600 BLRF WITH ID F321H | 2,146 |
FLANGE 3/4 SW 300 LBS SCH 80 MATERIAL A312 SS321H | 633 |
SS FORGED FLANGE.( GRADE F321H ) | 2,534 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Manufacturer & Supplier Of ANSI B16.5 SS 321H Slip on Flange, B16.47 F321H Blind Flanges In India
Wall Thickness Of Stainless Steel 904L Flanges | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Normal Pipe Size (NPS) | O.D. (Outside Daimeter) | Sch 10 | Sch 20 | Sch 30 | STD Wall Outside Daimeter | Sch 40 | Sch 60 | EXT Hvy Outside Daimeter | Schedule 80 | Schedule 100 | Schedule 120 | Schedule 140 | Schedule 160 | XX Hvy |
½ | 0.84 | 0.083 | ... | ... | 0.109 | 0.109 | ... | 0.147 | 0.147 | ... | ... | ... | 0.188 | 0.294 |
¾ | 1.05 | 0.083 | ... | ... | 0.113 | 0.113 | ... | 0.154 | 0.154 | ... | ... | ... | 0.219 | 0.308 |
1 | 1.315 | 0.109 | ... | ... | 0.133 | 0.133 | ... | 0.179 | 0.179 | ... | ... | ... | 0.25 | 0.358 |
1 ¼ | 1.66 | 0.109 | ... | ... | 0.14 | 0.14 | ... | 0.191 | 0.191 | ... | ... | ... | 0.25 | 0.382 |
1 ½ | 1.9 | 0.109 | ... | ... | 0.145 | 0.145 | ... | 0.2 | 0.2 | ... | ... | ... | 0.281 | 0.4 |
2 | 2.375 | 0.109 | ... | ... | 0.154 | 0.154 | ... | 0.218 | 0.218 | ... | ... | ... | 0.344 | 0.436 |
2 ½ | 2.875 | 0.12 | ... | ... | 0.203 | 0.203 | ... | 0.276 | 0.276 | ... | ... | ... | 0.375 | 0.552 |
3 | 3.5 | 0.12 | ... | ... | 0.216 | 0.216 | ... | 0.3 | 0.3 | ... | ... | ... | 0.438 | 0.6 |
3 ½ | 4 | 0.12 | ... | ... | 0.226 | 0.226 | ... | 0.318 | 0.318 | ... | ... | ... | ... | 0.636 |
4 | 4.5 | 0.12 | ... | ... | 0.237 | 0.237 | ... | 0.337 | 0.337 | ... | 0.438 | ... | 0.531 | 0.674 |
5 | 5.563 | 0.134 | ... | ... | 0.258 | 0.258 | ... | 0.375 | 0.375 | ... | 0.5 | ... | 0.625 | 0.75 |
6 | 6.625 | 0.134 | ... | ... | 0.28 | 0.28 | ... | 0.432 | 0.432 | ... | 0.562 | ... | 0.719 | 0.864 |
8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | ... |
16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | ... |
18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | ... |
20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | ... |
22 | 22 | 0.25 | ... | ... | 0.375 | ... | ... | 0.5 | ... | ... | .... | .... | .... | .... |
24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | .... |
26 | 26 | .... | .... | .... | 0.375 | .... | .... | 0.5 | .... | .... | .... | .... | .... | .... |
30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | .... | .... | 0.5 | .... | .... | .... | .... | .... | .... |
36 | 36 | 0.312 | 0.5 | 0.625 | 0.375 | 0.75 | .... | 0.5 | .... | .... | .... | .... | .... | .... |
40 | 40 | .... | .... | .... | 0.375 | .... | .... | 0.5 | .... | .... | .... | .... | .... | .... |
42 | 42 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
48 | 48 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
ASTM A182 Stainless Steel 904L Flanges | Pressure And Temperature Ratings | ||||||
Temperature °F | Class 150 As Per ASME B16.5 | Class 300 As Per ASME B16.5 | Class 400 As Per ASME B16.5 | Class 600 As Per ASME B16.5 | Class 900 As Per ASME B16.5 | Class 1500 As Per ASME B16.5 | Class 2500 As Per ASME B16.5 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Buy SS 321H flat face flanges Directly From Largest Manufacturers In Mumbai, Check Torque Chart Of SS 321H SO flanges, SS 321H weld neck flanges
Size in Inches | Size in Millimeter | Imperfections Max. Radial Projection | |
---|---|---|---|
No Deeper Than the Bottom of the Serrations, millimeter | Deeper Than the Bottom of the Serrations, millimeter | ||
1/2 | 15 | 3.0 | 1.5 |
3/4 | 20 | 3.0 | 1.5 |
1 | 25 | 3.0 | 1.5 |
1 1/4 | 32 | 3.0 | 1.5 |
1 1/2 | 40 | 3.0 | 1.5 |
2 | 50 | 3.0 | 1.5 |
2 1/2 | 65 | 3.0 | 1.5 |
3 | 80 | 4.5 | 1.5 |
3 1/2 | 90 | 6.0 | 3.0 |
4 | 100 | 6.0 | 3.0 |
5 | 125 | 6.0 | 3.0 |
6 | 150 | 6.0 | 3.0 |
8 | 200 | 8.0 | 4.5 |
10 | 250 | 8.0 | 4.5 |
12 | 300 | 8.0 | 4.5 |
14 | 350 | 8.0 | 4.5 |
16 | 400 | 10.0 | 4.5 |
18 | 450 | 12.0 | 6.0 |
20 | 500 | 12.0 | 6.0 |
24 | 600 | 12.0 | 6.0 |
Get instant delivery Of 20mm SUS 321H Nippolet Flange , Size Chart Of DIN 1.4878 Weldo Flange, SS 321H Raised Face Slip On Flanges (SORF) Manufacturer In Mumbai. India.
Normal Pipe Size | Gasket I.D. (Inside Daimeter) | Gasket O.D. (Outside Daimeter) | ||||
---|---|---|---|---|---|---|
150 LB | 300 LB | 400 LB | 600 LB | 900 LB | ||
1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
PED Certified DIN 1.4878 Threaded Flange Manufacturers in Mumbai, India, tolerance Of 321H Stainless Steel Flanges In MM.
