Stainless Steel 310 Flanges and ASTM A182 F310 Blind/ Weld Neck Flange

What is Stainless Steel 310 Flanges?

Stainless Steel 310 Flanges belong to the carbon austenitic grade. These flanges are utilized in high-temperature systems of up to 1150 degrees C. These flanges ensure a secure seal and resist corrosion and oxidation across different environments. Their high concentration of chromium and nickel allows these modules to work in carburizing and reducing sulfur atmospheres. The flanges in this grade are also preferred in cryogenic temperatures due it superior toughness and lower magnetic permeability.

DIN 1.4841 Forged Flanges Application

A DIN 1.4841 forged flange is utilized to link parts and components of machinery. These flanges have consistency in the composition as well as their structure. The flanges in this grade have several applications, which include utilization in cryogenic components, food processing, furnaces, burners, ore processing, petroleum refining, power generation, coal combustors, cement plants, thermal processing, and so on.

Comparision Between SS 310 Weld Neck Flange and A182 F310 Slip On Flange

Weld neck and slip on flanges are the most popular flanges utilized in the piping industry. These flanges can be differentiated based on some basic aspects.

A SS 310 Weld Neck Flange can be recognized by its long tapered and protruding head. An A182 F310 slip on flange has a low profile head.
Slip on flanges are slid on the pipe and welded using a fillet weld. Weld neck flanges are directly welded onto the piping component using a butt-weld.
The long neck of the weld neck flange provides support to other components through high pressures and temperatures. Slip on flanges are used in low-pressure and temperature applications.

SS Grade F310 Blind Flanges VS ASME SA182 SS 310 Pipe Flanges

SS 310 Blind Flanges are designed without a face or a bore. These flanges are utilized to seal piping ends or block them for new installation or repairs. The flanges in this grade are generally bolted and can be used for inspections and checks. The 310 blind flanges can withstand heavy pressures.
SS 310 Pipe Flanges are diversified and have over 13 types. These flanges possess a range of faces or bores, which can be welded or bolted. They can be utilized in high as well as low pressure or temperature systems.

ASTM A182 F310 Blind Flange and SS 310 Flange manufacturer in India

Table of Content

SS 310 Flange Specification
UNS S31000 Equivalent
Stainless Steel 310 Flanges Sizes
Weight of SS 310 Flanges
Stainless Steel 310 Weld Neck Flange Dimension
ASME SA182 UNS S31000 Blind Flange Pressure Rating
Stainless Steel 310 Slip On Flange Stock
Benefits of Stainless Steel 310 Blind Flange
Stainless Steel 310 Flanges Price
Stainless Steel 310 Threaded Flange Machinability
Testing and Documentation of ASTM A182 Grade F310 Lap Joint Flange
SS 310 Hardness In Hrc

SS 310 Heat Treatment
310 Stainless Steel Flange Types
Stainless Steel 310 Pipe Flange Packaging
ASTM A182 F310 Chemical Composition
SS 310 Mechanical Properties
SS 310 Density In Kg/m3
Stainless Steel 310 Melting Point
Stainless Steel 310 Forged Flange Torque Chart
310S SS Screwed Flanges Tolerance
Stainless Steel 310 Flanges Modulus Of Elasticity
Stainless Steel 310 Socket Weld Flange Coefficient Of Thermal Expansion

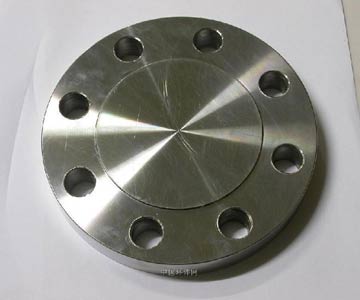

Stainless Steel 310 Blind Flange

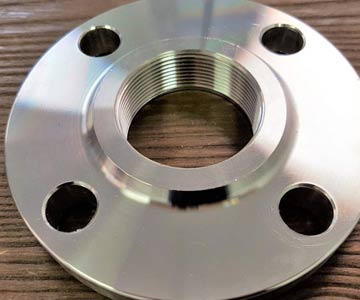

Stainless Steel 310 Threaded Flange

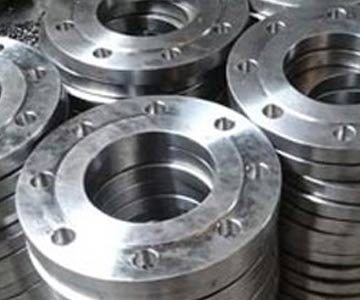

Stainless Steel 310 Pipe Flange

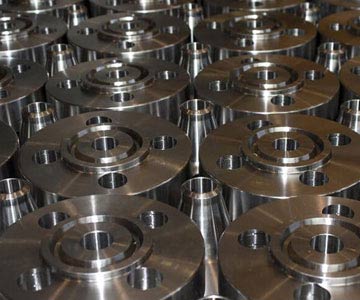

Stainless Steel 310 Forged Flange

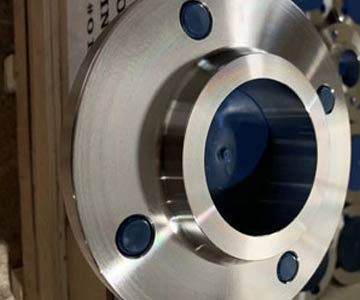

Stainless Steel 310 Socket Weld Flange

SS 310 Flange Specification

Specifications List	ASTM A182 / ASME SA182
Class / Pressure Rating	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Size Chart	1/2″ (15 NB) to 48″ (1200NB)
ASTM Standards	ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc.
Standard Flange	ANSI, ASME, BS, DIN, EN etc.

Looking for Stainless Steel 310 Flanges suppliers who offer prompt delivery in Asia? Manufacturer of SS 310 Lap Joint Flange in India, call us for big discount and ready sizes, check latest price of A182 F310 Threaded Flange in Mumbai

UNS S31000 Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Stainless Steel 310 Flanges	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	-	X15CrNi25-20
Stainless Steel 310S Flanges	1.4845	S31008	SUS 310S	310S16	20Ch23N18	-	X8CrNi25-21
Stainless Steel 310H Flanges	-	S31009	-	-	-	-	-

Manufacturer & Supplier Of ASME SA182 SS 310 Pipe Flanges, SS DIN 1.4841 Forged Flanges In India

Buy Class 300/ 600/ 900 310 Stainless Steel Weld Neck Flange from trusted manufacturers, Check Sizes of ASTM A182 F310 Slip On flange

Stainless Steel 310 Flanges Sizes

Nominal Pipe Size	Outside Diameter of Flange	Thickness of Flange	Diameter of Raised Face	Diameter of Hub at Base	Length Thru Hub			Diameter or Bore		Diameter of Hub at Bevel	Radius of Fillet	Depth of Socket
	Outside Diameter of Flange	Thickness of Flange	Diameter of Raised Face	Diameter of Hub at Base	Welding Neck	Slip-On Threaded Socket	Lap Joint	Slip-on Socket	Lap Joint	Diameter of Hub at Bevel	Radius of Fillet	Depth of Socket
	O	Q	R	X	Y	Y	Y	W	B	H	r	Z
1/2	3-1/2	7/16	1-3/8	1-3/16	1-7/8	5/8	5/8	.88	.90	.84	1/8	3/8
3/4	3-7/8	1/2	1-11/16	1-1/2	2-1/16	5/8	5/8	1.09	1.11	1.05	1/8	7/16
1	4-1/4	9/16	2	1-15/16	2-3/16	11/16	11/16	1.36	1.38	1.32	1/8	1/2
1-1/4	4-5/8	5/8	2-1/2	2-5/16	2-1/4	13/16	13/16	1.70	1.72	1.66	3/16	9/16
1-1/2	5	11/16	2-7/8	2-9/16	2-7/16	7/8	7/8	1.95	1.97	1.90	1/4	5/8
2	6	3/4	3-5/8	3-1/16	2-1/2	1	1	2.44	2.46	2.38	5/16	11/16
2-1/2	7	7/8	4-1/8	3-9/16	2-3/4	1-1/8	1-1/8	2.94	2.97	2.88	5/16	3/4
3	7-1/2	15/16	5	4-1/4	2-3/4	1-3/16	1-3/16	3.57	3.60	3.50	3/8	13/16
3-1/2	8-1/2	15/16	5-1/2	4-13/16	2-13/16	1-1/4	1-1/4	4.07	4.10	4.00	3/8	7/8
4	9	15/16	6-3/16	5-5/16	3	1-5/16	1-5/16	4.57	4.60	4.50	7/16	15/16
5	10	15/16	7.5/16	6-7/16	3-1/2	1-7/16	1-7/16	5.66	5.69	5.56	7/16	15/16
6	11	1	8-1/2	7-9/16	3-1/2	1-9/16	1-9/16	6.72	6.75	6.63	1/2	1-1/16
8	13-1/2	1-1/8	10-5/8	9-11/16	4	1-3/4	1-3/4	8.72	8.75	8.63	1/2	1-1/4
10	16	1-3/16	12-3/4	12	4	1-15/16	1-15/16	10.88	10.92	10.75	1/2	1-5/16
12	19	1-1/4	15	14-3/8	4-1/2	2-3/16	2-3/16	12.88	12.92	12.75	1/2	1-9/16
14	21	1-3/8	16-1/4	15-3/4	5	2-1/4	3-1/8	14.14	14.18	14.00	1/2	1-5/8
16	23-1/2	1-7/16	18-1/2	18	5	2-1/2	3-7/16	16.16	16.19	16.00	1/2	1-3/4
18	25	1-9/16	21	19-7/8	5-1/2	2-11/16	3-13/16	18.18	18.20	18.00	1/2	1-15/16
20	27-1/2	1-11/16	23	22	5-11/16	2-7/8	4-1/16	20.20	20.25	20.00	1/2	2-1/8
24	32	1-7/8	27-1/4	26-1/8	6	3-1/4	4-3/8	24.25	24.25	24.00	1/2	2-1/2

Buy SS WERKSTOFF NR. 1.4841 Nippo Flanges Directly From Largest Manufacturers In Mumbai, Check Weight Chart Of 310 Stainless Steel Spectacle Blind Flanges

Weight of SS 310 Flanges

Pipe Normal Diam.		O.D. Flange	Thk. Of Flange Min	Diam. of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diam. of Bolt Circle	Diam. of Bolt Holes	Number of Bolts	Diam. of Bolts (inch)	KG	LB
inch	dn	O	C	X	G	Y	T	BC	BH	BN	BD
1/2"	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2"	0.4	0.9
3/4"	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2"	0.7	1.5
1"	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2"	0.8	1.8
1-1/4"	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2"	1.2	2.6
1-1/2"	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2"	1.5	3.3
2"	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8"	2.3	5.1
2-1/2"	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8"	3.7	8.1
3"	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8"	4.1	9
3-1/2"	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8"	5.1	11.2
4"	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8"	5.9	13
5"	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4"	7	15.4
6"	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4"	8.4	18.5
8"	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4"	13	28.6
10"	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8"	18	39.5
12"	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8"	29	64
14"	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1"	39	86
16"	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1"	47	103
18"	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8"	57	126
20"	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8"	76	167
24"	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4"	97	214

Well-known Manufacturer Of SS 310 Flange in India. For final 310S Stainless Steel Screwed Flanges Price List Please Call on +91 22 6636 3099.

PED Certified Stainless Steel F310 Plate Flange Manufacturers in Mumbai, India, Dimensions Of ANSI B16.5 SS 310S Slip On Flanges In MM.

Stainless Steel 310 Weld Neck Flange Dimension

Dimensions: ANSI/ASME B16.5, B16.28, MSS-SP-43.

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129 Flange	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Exporter of BS10 Table D SA182 F310 WNRF Flanges and SS DIN 1.4841 Forged Flanges with hydrostatic test pressure

ASME SA182 UNS S31000 Blind Flange Pressure Rating

ANSI/ASME B16.34	PRESSURE RATING CHART
Temperature °F	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

Stainless Steel 310 Slip On Flange Stock

ASTM A182 Gr F310 Pipe Flanges	Stainless Steel F310 Flanges
Stainless Steel F310 Tongue & Groove Flanges	ASME SA182 F310 Reducing Flanges
Stainless Steel 310 Orifice Flanges	ASTM A182 310 SS Flat Flanges
ASTM A182 F310 Spades Ring Spacers Flanges	Stainless Steel Grade F310 Forging Facing Flanges
Stainless Steel 310 Flat Flanges	ASTM A182 Grade F310 Spades Ring Spacers Flanges
ASTM A182 F310 Forging Facing Flanges	Stainless Steel ASTM A182 F310 BLRF Flanges
Stainless Steel F310 SORF Flanges	ASTM A182 F310 RTJ Flanges
Stainless Steel 310 WNRF Flanges	ASTM A182 Grade F310 SWRF Flanges
ASTM A182 F310 Plate Flanges	Stainless Steel ASTM A182 F310 Slip On Flanges
ASTM SS F310H Weld Neck Flanges	ASTM A182 F310 Threaded Flanges

Benefits of Stainless Steel 310 Blind Flange

Good resistance to thermal fatigue.
Low magnetic permeability.
High temperature resistance.
Excellent toughness to cryogenic temperatures of -450°F.
Good ductility and weldability.
Excellent resistance to oxidation under mildly cyclic conditions.
Good resistance to sulfidation and atmospheres where sulfur dioxide gas is encountered at elevated temperatures.

Check AS/NZ 4087/ ASME B16.5 UNS S31000 Nippo Flanges and AISI 310 Stainless Steel BLRF/ Orifice Flange material Bolt Hole Orientation, check SUS 310 Long Weld Neck Flange price list

Stainless Steel 310 Flanges Price

Description	Per Unit (INR)
STAINLESS STEEL WNRF FLANGE TO ASTM A 182 GR. F 310 DIMN B 16.5, NACE MR-0175, SIZE : 1 1/2 NB x 150# x SCH 40S	4,278
STAINLESS STEEL 310 FLANGE SWRF: 1 X 150#, SCH 80S	9,226
STAINLESS STEEL FORGED FLANGES 2 300 LWNRF 16.5THK 310S	13,002
STAINLESS STEEL BLRF FLANGE TO ASTM A 182 GR. F 310 DIMN B 16.5, NACE MR-0175, SIZE : 1 1/2 NB x 150#	3,038

Stainless Steel 310 Threaded Flange Machinability

Grade	Tensile Strength(MPa) min	Yield Strength 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness - Brinell (HB)max
310	515	205	40	95-217

Testing and Documentation of ASTM A182 Grade F310 Lap Joint Flange

Mechanical Testing Such as Tensile of Area
Hardness Test
Chemical Analysis – Spectro Analysis
Positive Material Identification – PMI Testing
Flattening Test
Micro and MacroTest
Pitting Resistance Test
Flaring Test
Intergranular Corrosion (IGC) Test

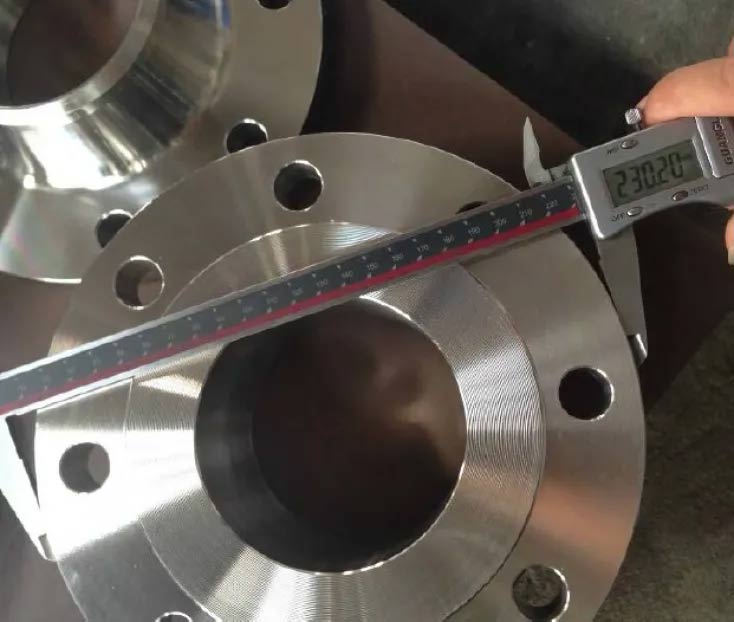

Testing and Documentation of ASTM A182 Grade F310 Flange

SS 310 Hardness In Hrc

Mechanical Properties	310/ 310S
Hardness (HV) (max)	225

SS 310 Heat Treatment

It is used at temperatures up to 1150°C in continuous service, and 1035°C in intermittent service.

310 Stainless Steel Flange Types

ASTM B 16.5 A182 So Rf 310 5 Inch Sch40s 300lb Flanges

Stainless Steel 310 Flanges

ASTM A182 F310

Stainless Steel 310 Weld Neck Flange

Stainless Steel SS A182 F310 Flanges

Stainless Steel 310 Flange

SS 310 Flange

Stainless Steel 310 Slip On Flange

ASME SA UNS S31000 Orifice Flange

Stainless Steel 310 Pipe Flange Packaging

Commercial Invoice including HS Code
Packing List including Complete Details
Certificate of Origin legalized
Material Traceability Records
Quality Assurance Plan (QAP)
Heat Treatment Charts
Material Test Certificates (MTC)
Guarantee Letter
NABL approved Laboratory Test Reports

View Chemical Properties of BS4504 PN16 ASTM A182 Grade F310 Spectacle Blind Flanges and Manufacturer of EN 1.4841 Socket Weld Flange in FF/ RF Face and RTJ Type

ASTM A182 F310 Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
Stainless Steel 310 Flanges	0.015 maximum	2.0 maximum	0.15 maximum	0.020 maximum	0.015 maximum	24.00 - 26.00	0.10 maximum	19.00 - 21.00	54.7 min
Stainless Steel 310S Flanges	0.08 maximum	2.0 maximum	1.00 maximum	0.045 maximum	0.030 maximum	24.00 - 26.00	0.75 maximum	19.00 - 21.00	53.095 min
Stainless Steel 310H Flanges	0.04 – 0.10	2.0 maximum	1.00 maximum	0.045 maximum	0.030 maximum	24.00 - 26.00	-	19.00 - 21.00	53.885 min

Get instant delivery Of 20mm SS UNS S31000 Ring Type Joint Flanges , Mechanical Composition Of 310 stainless steel Flanges, Stainless Steel DIN 1.4845 Orifice Flange Manufacturer In Mumbai. India.

SS 310 Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1402 °C (2555 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40 %

Stainless Steel 310 Forged Flange Torque Chart

Size in Inches	Size in Millimeter	Imperfections Max. Radial Projection
Size in Inches	Size in Millimeter	No Deeper Than the Bottom of the Serrations, millimeter	Deeper Than the Bottom of the Serrations, millimeter
1/2	15	3.0	1.5
3/4	20	3.0	1.5
1	25	3.0	1.5
1 1/4	32	3.0	1.5
1 1/2	40	3.0	1.5
2	50	3.0	1.5
2 1/2	65	3.0	1.5
3	80	4.5	1.5
3 1/2	90	6.0	3.0
4	100	6.0	3.0
5	125	6.0	3.0
6	150	6.0	3.0
8	200	8.0	4.5
10	250	8.0	4.5
12	300	8.0	4.5
14	350	8.0	4.5
16	400	10.0	4.5
18	450	12.0	6.0
20	500	12.0	6.0
24	600	12.0	6.0

Check Desnity and Melting Point Of SS GOST 20Ch25N20S2 Socket Weld Flanges and Stainless steel 310 WNRF Flanges Supplier & Manufacturers In Mumbai, India.

SS 310 Density In Kg/m3

Grade	Density (kg/m3)
310/S	7750

Stainless Steel 310 Melting Point

Property	Minimum Value (S.I.)	Units (Imp.)
Melting Point	1673	°F

310S SS Screwed Flanges Tolerance

Inside Dia (I.D.)	10Inch and smaller: ±1/32Inch (0.8 Milimeter) 12Inch thru 18Inch : +1/8Inch (3.2 Milimeter) 20Inch and larger: -1/16Inch (1.6 Milimeter)
Eccentricity of bolt circle with respect to facing	2 1/2Inch and smaller ±1/32Inch (0.8 Milimeter) maximum 3Inch and larger ±1/16Inch (1.6 Milimeter) maximum
Thickness	18Inch and smaller: ±1/8Inch (3.2 Milimeter), -0Inch 20Inch and larger: ±3/16Inch (4.8 Milimeter), -0Inch
O.D. (Outside Diameter)	When O.D. (Outside Diameter) is 24Inch or less: ±1/16Inch (1.6 millimeter) When O.D. (Outside Diameter) is over 24Inch : ±1/8Inch (3.2 millimeter)
Dia. of contact face	1/16Inch raised face: ±1/32Inch (0.8 Milimeter) 1/4Inch RF (Raised Face), T/G (Tongue & Groove), (male & female), (m/f): ±1/64Inch (0.4 millimeter)
Length of hub	10Inch and smaller: ±1/16Inch (1.6 Milimeter) 12Inch and larger: ±1/8Inch (3.2 Milimeter)
Dia. of hub at base	When hub base is 24Inch or smaller: ±1/16Inch (1.6 millimeter) When hub base is over 24Inch : ±1/8Inch (3.2 millimeter)
Dia. of hub at point of welding	5Inch and smaller: +3/32Inch (2.4 Milimeter), -1/32Inch (0.8 Milimeter) 6Inch and larger: +5/32Inch (4.0 Milimeter), -1/32 (0.8 Milimeter)
Drilling	Circle Bolts: ±1/16Inch (1.6 Milimeter) Bolts hole spacing: ±1/32Inch (0.8 Milimeter)

Stainless Steel 310 Flanges Modulus Of Elasticity

Property	310
Modulus of Elasticity, psi	29.0 x 106

Stainless Steel 310 Socket Weld Flange Coefficient Of Thermal Expansion

Property	310
Coefficient of Thermal Expansion, 68-212˚F, /˚F	8.8 x 10-6
Thermal Conductivity, Btu/ft hr ˚F	8.0

Stainless Steel 310 Flanges
