Stainless Steel 304L Pipe


Stainless Steel 304L Pipe

What Is Stainless Steel 304L Pipe?

Stainless steel 304L Pipe is a lower carbon component of the 304 grade. The lower carbon concentration in the pipe allows for easy welding operations without the risks of localized corrosion. The high-temperature and pressure-resistant pipes are able to manage good performance at temperatures of -180 degrees C. Apart from this, the pipes within this range are highly resistant against corrosion in an array of environments.

SS 304L Pipe Vs Stainless Steel 304L Tube

The pipes and tubes of the 304L grade are distinguished from each other based on key characteristics.

  • Measurement- A Stainless Steel 304L Tube is ordered or classified based on its outside diameter and wall thickness. A SS 304L pipe is classified on its nominal pipe size or schedule number.
  • Tolerances- Tubes have stringent tolerances and specifications compared to pipes.
  • Rigidity-Pipes within this range are rigid and require special equipment to be shaped correctly. Tubes can be bent and shaped by coiling and other simple procedures.
  • Applications- Pipes are generally used in the transportation of fluids and gases. Tubes are preferred in applications that require precise outside diameter, like medical devices.

Type 304L SMLS Tubing Seawater Application

304L SMLS Tubing is an excellent choice for corrosion resistance. The molecular composition embedded in the module protects it from all kinds of environmental damage and intergranular corrosion. The content makes it highly resistant in oxidizing systems where nickel content protects it against corrosion. The items in this grade have one major problem that is they don’t perform well in chloride environments especially seawater. In seawater, these components are prone to corrosion and are not preferred in seawater applications. The 316 grade with 2% of molybdenum is a better choice in marine applications.

Difference UNS S30403 Welded Pipe And DIN 1.4306 Welded Pipe

The 304L grade is equivalent to the UNS S30403 and DIN 1.4306 Welded Pipes. These welded pipes are the lower carbon version of the 18/8 module. The welded pipes are manufactured by welding pieces of sheet or strips together either longitudinally or vertically. These items possess excellent machinability and formability.

Can SS 304L Tubes Be Heat Treated?

The 304L tubes are a versatile module that are ideal for different welding procedures at temperatures up to 800 degrees F. The tubes within this grade cannot be hardened by heat treatment. However, cold working is generally performed to increase the hardness and tensile strength within the component. The tubes are annealed in a range between 1850 to 2050 degrees F and cooled rapidly utilizing water or air. The range to relieve stress in these components is between 400 to 750 degrees F.

ASTM A312 Tp304L ERW Pipe and UNS S30403 Tube Supplier In India

Stainless Steel 304L Pipe

Stainless Steel 304L Pipe

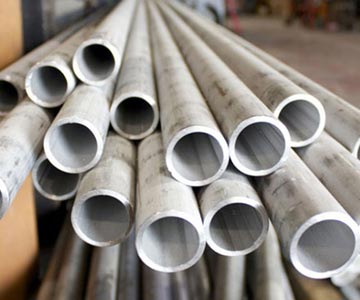

ASTM A312 Tp304L ERW Pipe

ASTM A312 Tp304L ERW Pipe


Check SS 304L Pipe Size Chart And Type 304L Smls Tubing Composition, Also View Aisi 304L Tube Price List and Tolerance Chart


Stainless Steel 304L Pipe Chemical Composition

GradeCMnSiPSCrMoNiN
304Lmin.18.08.0
max.0.032.01.000.0450.0320.012.0

Stainless Steel 304L Tube Sizes

Wall ThicknessStainless Steel Stainless Steel 304L Tube Sizes ( O.D.)
.0101/16" , 1/8" , 3/16"
.0201/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.0121/8"
.0161/8" , 3/16"
.0281/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.0351/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.0493/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.0651/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.0831/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.0951/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.1091/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.1201/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.1253/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.1341"
.2503"
.3753 1/2"

SS 304 Pipe Thickness Tolerance

Stainless Steel 304L Pipe ODASTM A312 TP304L Pipe Tolerance
4 to 35mm+/- 0.08mm
35 to 38mm+/- 0.15mm
38 to 60mm+/- 0.20mm
60 and above+/- 0.25mm

ASTM A269 Tp304L Tubing Stockist In Mumbai, Buy Grade 304L Welded Pipe At Best Price In India

304L Stainless Steel Pipe Price

DescriptionPer Unit (INR)
STAINLESS STEEL WELDED PIPES GRADE 304L EX-STOCK (SIZE:6M-6.1M)115
STAINLESS STEEL SEAMLESS PIPES GRADE TP 304L109
STAINLESS STEEL HOT FINISHED SEAMLESS PIPES GRADE 304L139
STAINLESS STEEL ERW PIPES GRADE ASTM A312 TP 304L MIXED SIZE111

ASME SA 213 Tp 304L Mechanical Properties

GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B) maxBrinell (HB) max
304L4851704092201

Stainless Steel 304l Pipe Manufacturers in India, Suppliers Of Astm A312 Tp304l Erw Pipe In Mumbai, One Stop Shop For All Uns S30403 Tube.

SS 304L Physical Properties

GradeDensity (kg/m3)Elastic Modulus (GPa)Mean Coefficient of Thermal Expansion (m/m/0C)Thermal Conductivity (W/m.K)Specific Heat 0-1000C (J/kg.K)Electrical Resistivity (n.m)
0-1000C0-3150C0-5380Cat 1000Cat 5000C
304L800019317.217.818.416.221.5500720

UNS S30403 Equivalent

GradeUNS NoOld BritishEuronormSwedish SSJapanese JIS
BSEnNoName
304LS30403304S1158E1.4307X5CrNi18-102332SUS 304L
Gr. 304L Boiler Tubes And Heat Exchanger Supplier, Your Need For Sus 304L Coiled Tubing Of Standard Length And Diameter Ends Here, We Provide The Best Quality 304S11 Thick and Thin Wall Pipe

ASTM A312 Tp304L ERW Pipe End

There are 3 most common SS 304L Pipe Ends

  • Plain Ends (PE)
  • Threaded Ends (TE)
  • Beveled Ends (BE)

SP Metals is an ISO certified SS 304l Pipe Suppliers in India & Type 304l Smls Tubing and Stainless Steel 304L Seamless Pipe Stockist in Mumbai.

Stainless Steel 304L Seamless Pipe Finish

Surface FinishInternal Surface(ID)External Surface(OD)
Roughness Average(RA)Roughness Average(RA)
μ inchμmμ inchμm
APAnnealed & PickledNot definedNot defined40 or Not defined1.0 or Not defined
BABeight Annealed40,32,25,201.0,0.8,0.6,0.5320.8
MPMechanical Polish40,32,25,201.0,0.8,0.6,0.5320.8
EPElectro Polish15,10,7,50.38,0.25,0.20;0.13320.8

304L Stainless Steel Tubing Specification

Specifications ChartASTM A 358 ASME SA 358/ ASTM A 312 ASME SA 312
SS Pipes1/2″ NB – 16″ NB
DimensionsASTM, ASME and API
ERW Pipes1/2 – 24″ NB
Dual certified supplier Dual certified SS 304L Pipe suppliers in India, accordance to certify ASME SA312 and ASTM A312 American specifications
Size Chart1/8 TO 30″NB IN
EFW Pipes6 – 100″ NB
Material Test Certificate (MTC) provided by SS 304 Welded Pipe suppliers

ISO 14001:2015, PED, ISO 9001:2005, Ultrasonic Testing (UT), NDE, EIL, Radiographic Testing (RT), IBR,

Specialized inLarge Dia. Size
Schedule ChartSCH60, SCH80, SCH20, SCH40, STD, SCH80, SCH30, XS, SCH140, SCH120, SCH160, XXS Supplier
LengthDouble Random, Single Random, Cut Length.
TypeERW / Seamless / Fabricated / Welded / LSAW Pipes
Supplier of SS 304L Pipes offer various shapesSemi-oval, Rectangle, Oval, Round, Semi-Round, Hollow, Elliptical, Triangle, Square, Hollow, Rhomboid, Semi-Rhomboid
EndBeveled End, Plain End, Treaded
Marking
  • Nominal Pipe Sizes
  • Specification
  • Manufacturing Method (Welded / Seamless)
  • Grade
  • Pipe Schedule or Wall Thickness
  • Supplier / Manufacturer’s Name or Custom Logo - on request
  • Heat Number
FormSquare, Round, Hydraulic, Rectangular Etc
304L Stainless Steel Pipe Suppliers in India

Get 2 Inch Aisi 304l Tube at best prices, check Weight Chart Of Astm A269 Tp304l Tubing, Grade 304l Welded Pipe Suppliers In Mumbai. India.

Application of ASTM A312 Tp304L ERW Pipe

  • Trailers
  • Heat Exchangers
  • Food processing equipment
  • Kitchen benches, sinks, troughs, equipment and appliances
  • construction materials
  • Threaded fasteners
  • Chemical containers, including for transport
  • Automotive trim
  • Architectural applications
  • Railway cars

ASTM A269 TP304L Stainless Steel Pipes

Stainless Steel 304L Seamless Pipe
Stainless Steel 304L Seamless Pipe
Stainless Steel 304L ERW Pipe
Stainless Steel 304L ERW Pipe
Stainless Steel 304L Welded Pipe
Stainless Steel 304L Welded Pipe
Jindal Ss 304L Pipe
Jindal Ss 304L Pipes
Stainless Steel 304L Seamless Tube
Stainless Steel 304L Seamless Tube
Stainless Steel 304L Tube
Stainless Steel 304L Tube
Stainless Steel Rectangle Pipe/tube Price Aisi 304L
Stainless Steel Rectangle Pipes/tube Price Aisi 304L
Stainless Steel 304L Tubing
Stainless Steel 304L Tubing
ASTM A312 Tp 304L
ASTM A312 Tp 304L
ASME SA 213 Tp 304L
ASME SA 213 Tp 304L
304L Welded Stainless Steel Tube
304L Welded Stainless Steel Tube
Buy Din 1.4306 Square Pipe and SS 304L Tube As Per International Standards

DIN 1.4306 Tube Standards

  • ASTM A271 TP 304L
    ASME SA271 Grade 304L
  • ASTM A312 TP 304L
    ASME SA312 Grade 304L
  • ASTM A358 TP 304L
    ASME SA358 Grade 304L
  • ASTM A376 TP 304L
    ASME SA376 Grade 304L
  • ASTM A409 TP 304L
    ASME SA409 Grade 304L
  • ASTM A430 TP 304L
    ASME SA430 Grade 304L
  • ASTM A632 TP 304L
    ASME SA632 Grade 304L
  • ASTM A778 TP 304L
    ASME SA778 Grade 304L
  • ASTM A813 TP 304L
    ASME SA813 Grade 304L
  • ASTM A814 TP 304L
    ASME SA814 Grade 304L
  • ASTM A826 TP 304L
    ASME SA826 Grade 304L
  • ASTM A851 TP 304L
    ASME SA851 Grade 304L

Stainless Steel 304L Pipe Processing

Structural Cutting

Products cut include pipes, tube, tubing, Square pipes, Rectangular pipes, round pipes Thickness range is 1/16" to 28" diameter

Tubular Cutting

Products cut include Ornamental Tube, Tubing and Hollow Bar. Thickness range is 1/16" to 28" diameter

Production Cutting

Steel Tubes Indiacan provide production cutting for product diameters up to 4". We utilize Amada Production Equipment to achieve these precision cuts with tight tolerances.

Structural Polishing

Products polished included all tubular products, with OD & ID polishing available

Stock Range of ASTM A312 UNS S30403 Pipe

Outside Diamter, OD (in Milimeter)

Wall Thickness, WT (in Milimeter)

6 – 630

0.5-30

12.7* 12.7 to 300* 300

0.5-30

10*20 to 100*200

0.5-30

6 to 630

0.5-30

12.7 to 250

0.5-30

16 to 85

0.5-3.0

13 to 85

0.5-2.0

20 to 200

0.5-2.0

22*0.7 to 108*2.0

0.5-2.0

12.5 to 203.2

1.0 – 5

0.28 to 10

0.08 – 1.2

6 to 430

0.8 – 30

NB SizesSch 5Sch 10Sch 40Sch 80Sch 160
1/8"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"
5"
6"

SP Metals is an ISO certified Sus 304l Coiled Tubing Supplier in India & 304s11 Thick And Thin Wall Pipe distributor in Mumbai

Hsn Code SS 304L Pipe

HSN CODEPRODUCT DESCRIPTION
7306Other tubes, Tubes and hollow profiles (for example, open seam or welded, riveted or similarly closed), of iron or steel
73064000Other welded of circular cross-section of stainless steel
7304SS 304 Tubes, SS 304 Seamless Tubes and hollow profiles, SS 304 seamless, of iron (other than cast iron) or steel
7304LSS 304L Tubes, SS 304L Seamless Tubes and hollow profiles, SS 304L seamless, of iron (other than cast iron) or steel
730411 / 7304L11Of stainless steel:
73041110 / 7304L1110Tubes and Tubes
7306110Line Tube of a kind used for oil or gas Tubelines:
73061100Welded of stainless steel

304L SS Seamless Tube Testing

  • Radiography test
  • Pitting resistance test
  • Hydrostatic test
  • IGC and PMI test
  • Chemical/Mechanical test
  • Flattening/flaring test

Stainless Steel 304L ERW Pipe Range

Product DescriptionOutside Diamter, OD (in milimeter)Wall Thickness, WT (in milimeter)
Round Pipe6 – 630 milimeter0.5-30 milimeter
Square Pipe12.7 * 12.7 milimeter to 300 milimeter* 300 milimeter0.5 -30 milimeter
Rectangular Pipe 10*20 to 100*200 milimeter0.5 -30 milimeter
Colour Coated Pipe6 to 630 milimeter0.5 -30 milimeter
Electropolished Pipes12.7 to 250 milimeter0.5-30 milimeter
Slot Round Pipe12.7 to 76.2 milimeter0.5 -2.0 milimeter

We are Largest Stainless Steel 304L Pipe Suppliers in India. Check Density of Stainless Steel 304L Seamless Pipe, Stainless Steel 304L Tubing and Stainless Steel 304L Seamless Tube

SS 304L Density In Kg/m3

ElementSS 304L
Density8

Stainless Steel 304L Melting Point

ElementSS 304L
Melting Point1400 ℃

Schedule Chart Of UNS S30403 ERW Pipe

Nominal Pipe Size (NPS)Outside Diameter (Mm)SCH 0SSTD SCH 40SXS SCH 80SSCH 120SCH 160XXS
1/8"10.291.73
0.37
2.41
0.48
1/4"13.721.65
0.48
2.24
0.64
3.02
0.81
3/8"17.151.65
0.64
2.31
0.86
3.20
1.12
1/2"21.342.11
1.01
2.77
1.29
3.73
1.64
4.76
1.98
7.47
2.65
3/4"26.672.11
1.30
2.87
1.71
3.91
2.23
5.56
2.94
7.82
3.69
1"33.402.77
2.12
3.38
2.54
4.55
3.28
6.35
4.30
9.09
5.75
1 1/4"42.162.77
2.73
3.56
3.43
4.85
3.53
6.35
5.69
9.70
7.88
1 1/2"48.262.77
3.15
3.68
3.11
5.08
5.49
7.14
7.34
10.16
9.69
2"60.332.77
3.98
3.91
5.52
5.54
7.59
8.74
11.28
11.07
13.65
2 1/2"73.033.05
5.34
5.16
8.76
7.01
11.58
9.53
15.14
3"88.903.05
6.54
5.49
11.45
7.62
15.50
11.13
21.65
15.24
28.09
3 1/2"101.603.05
7.52
5.74
13.77
8.08
18.90
4"114.303.05
8.48
6.02
16.31
8.56
22.65
11.13
28.32
13.49
34.02
17.12
41.63
5"141.603.40
11.74
6.55
22.10
9.52
31.41
15.88
49.83
6"168.263.40
14.04
7.11
28.68
10.97
43.19
14.27
54.20
18.26
68.56
21.95
80.36
8"219.083.76
20.25
8.18
43.16
12.70
65.59
23.01
112.90
18.26
90.44
10"273.054.19
28.20
9.27
61.20
12.70
81.55
28.58
174.82
12"323.854.57
36.53
9.53
74.92
12.70
97.46

Stainless Steel 304L Tubing Packaging

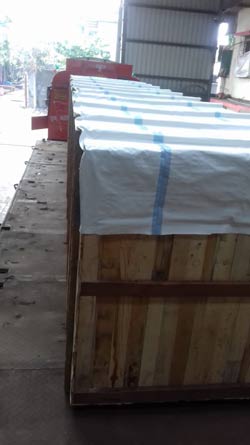

Stainless Steel 304L Tube Packaging

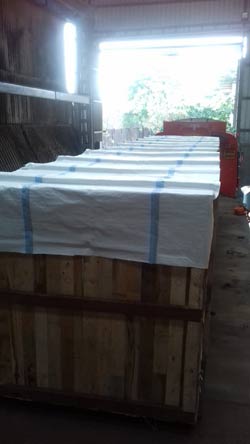

Stainless Steel 304L Tubing Packaging

Stainless Steel 304L Pipe Sizes

  • Size: 6NB - 1200NB
  • OD: 1/8" - 12" NPS
  • Thickness : 0.6 - 12.7 mm
  • Length: Single, Double Random & Cut Length

304L Stainless Steel Pipe Stock List

DescriptionDFARSManufacture MethodSchedulePipe SizeSpecification
W 304/304L A-312 1/8 SCH 40YesWELDED & DRAWN400.125ASTM A312 ASME SA312
W 304/304L A-312 1/4 SCH 80YesWELDED & DRAWN800.25ASTM A312 ASME SA312
SMLS 304/L A-312 1/4 SCH 80YesSEAMLESS & DRAWN800.25ASME SA312
W 304/304L A-312 1/4 SCH 40YesWELDED & DRAWN400.25ASTM A312 ASME SA312
SMLS 304/L A-312 1/4 SCH 40YesSEAMLESS & DRAWN400.25ASME SA312
W 304/304L A-312 1/4 SCH 10YesWELDED & DRAWN100.25ASTM A312 ASME SA312
W 304/304L A-312 3/8 SCH 80YesWELDED & DRAWN800.375ASTM A312 ASME SA312
SMLS 304/L A-312 3/8 SCH 80YesSEAMLESS & DRAWN800.375ASME SA312
W 304/304L A-312 3/8 SCH 40YesWELDED & DRAWN400.375ASTM A312 ASME SA312
SMLS 304/L A-312 3/8 SCH 40YesSEAMLESS & DRAWN400.375ASME SA312

Stainless Steel 304L Pipe And Tube Stock

Stainless Steel 304L Tube
Stainless Steel 304L Tube
SS 304L Pipe
SS 304L Pipe
SS 304L Tube
SS 304L Tube
ASTM A312 UNS S30403 ERW Pipe
ASTM A312 UNS S30403 ERW Pipe
ASME SA312 UNS S30403 Welded Tubes
ASME SA312 UNS S30403 Welded Tubes
SS 304L Tubing
SS 304L Tubing
Tp304L Hexagonal Pipe
Tp304L Hexagonal Pipe
304L Stainless Steel Pipe
304L Stainless Steel Pipe
ASTM A312 Tp304L Hollow Pipe
ASTM A312 Tp304L Hollow Pipe
SA 312 Tp 304L Round Pipe
SA 312 Tp 304L Round Pipe
A312 304L EFW Pipe
A312 304L EFW Pipe
ASTM A312 304L Seamless Tubes
ASTM A312 304L Seamless Tubes
A312 Tp 304L Square Pipe
A312 Tp 304L Square Pipe
304L Stainless Steel Tubing
304L Stainless Steel Tubing
Tp 304L Stainless Steel
Tp 304L Stainless Steel
SA 213 Tp 304L Electropolish Tube
SA 213 Tp 304L Electropolish Tube
ASTM A269 Tp304L Welded Pipes
ASTM A269 Tp304L Welded Pipes
SA312 Tp 304 Rectangular Tubes
SA312 Tp 304 Rectangular Tubes
SA 312 304L Heat exchager Tube
SA 312 304L Heat exchager Tube
304 Welded Pipe
304 Welded Pipe
304L Seamless Stainless Steel Pipe
304L Seamless Stainless Steel Pipe

Value Added Processing Services of 304L SS Electropolished Pipe

  • 100% X-Ray Welding
  • Special Testing Requirements – Destructive Testing, Non Destructive Testing etc.
  • Heat Treatment, Annealing, Pickling
  • Beveling
  • Ultrasonic Testing
  • Polishing
  • Cold Drawing Services

A Global supplier

Wide Stock Of 304L stainless steel pipe Supply In The Following Countries

Stainless Steel 304L Pipe Supplier in India

Stainless Steel 304L Pipe Supplier in India

ASTM A312 SS 304L Tube

ASTM A312 SS 304L Tube


France, Indonesia, Los Alamos -Mexico, Thailand, Czechia, Denmark Poland, Dammam -KSA, United Kingdom (UK), Malaysia, United States, Bangladesh, Sweden, New Zealand, Singapore, Japan, Italy, Philippines, Belgium, Portugal, Brazil, Jordan, Ellington -United States, Tehran -Iran, Russia, Qatar, South Korea, Spain, Egypt, Turkey, Taiwan, Singapore, Oman, Peru, Jakarta, Netherlands

SA312 TP 304L Stainless Steel Seamless Pipes

SA312 TP 304L Stainless Steel Seamless Pipes

Hong Kong, Saudi Arabia (KSA), South Africa, Austria, NY 12203 (USA), Germany, Vietnam, Romania, China, Europe, Nigeria, Kuwait, Malaysia, Norway, Malaysia, Chile, Jakarta -Indonesia, Kuala Lumpur, Morocco, Istanbul- Turkey, USA, Argentina, Finland, Dubai, Bahrain, Iran, Greece, Australia, Colombia, Mexico, Canada, United Arab Emirates (UAE), Dubai- UAE, South Africa
