What Is Stainless Steel 321H Pipe?

Stainless steel 321H Pipe is an austenitic compound that is stabilized utilizing titanium or niobium. The grade is a higher carbon modification of the 321 grade of stainless steel. The pipes in this range can withstand higher temperatures ranging up to 1500 degrees F due to their elevated carbon levels. These pipes also offer better tolerances against creep-rupture while resisting intergranular corrosion. The pipes can be readily welded similar to the 321-grade, making use of standard welding procedures.

DIN 1.4878 ERW Tube Vs SS S32109 Seamless Pipe

ERW and seamless components are amongst the important processes used in manufacturing piping equipment. Both these modules can be differentiated based on some basic features.

The manufacturing process- Din 1.4878 ERW Tube is rolled and then welded longitudinally in place. A SS S32109 Seamless Pipe is an extruded metal that is produced by passing steel billets.
Working pressures- Seamless pipes have 20% extra working pressure in comparison to an erw tube.
Strength- Seamless products are generally stronger in comparison to Erw components.
Sizes- ERW tubes are available in an array of sizes, while seamless pipes are available in sizes up to 36 NM.

SS 321H Tube Features

Some of the important features of 321H tubes

Superior oxidation resistance in temperatures up to 816 degrees C.
Excellent performance in low temperatures.
Resistant to various forms of corrosive media.
Welded with ease making use of standard welding procedures.
Enhanced tolerance to intergranular corrosion after welding.
Ductile and possess enhanced formability.

ASTM A312 TP 321H Material Application

Astm A312 Tp 321H has many features that make it highly versatile and used in a range of industries and critical applications. This include

Chemical and petrochemical processing
Pharmaceutical production
Aircraft exhaust stacks and manifolds
Jet engine parts
Welding equipment
Waste treatment
Furnaces, burner pipes
High-temperature mineral processing
Equipment for food processing systems
Expansion joints

What Is Grade 321H Boiler Tubes?

Grade 321H boiler tubes are modules that are located on the interior of boilers to heat water and produce steam. There are two types of boilers namely water and fire tube boilers. Manufactured using seamless tubes, the boilers in this grade are able to tolerate rising temperatures and pressures due to their superior composition and tolerances.

SS 321H Pipe Heat Treatment

Grade 321 pipe cannot be treated and hardened by heat treatment. The only procedure to harden these components is through the cold-rolling prices. Pipes within the grade are annealed at high temperatures and quickly quenched with water. This process allows the pipe to possess superior hardness and excellent corrosion resistance properties.

Difference Between SS 321H Welded Pipe And AISI 321H Seamless Tubing

Industrial applications have evolved with time and so have the manufacturing procedures. However, seamless and welded piping equipment is still predominant in the industry. Both these procedures have properties that set them apart from each other. The major difference between these components is the manufacturing process. The AISI 321H Seamless Tubing is pierced by hot billets, and the extruded metal is shaped. In the SS 321H Welded Pipe the metal is rolled and then welded in place. Seamless tubes can be produced in square, rectangular and circular shapes, while welded pipes are always round in shape. Apart from this seamless, tubing can work with higher pressures compared to its welded counterpart.

Table of Content

Stainless Steel 321H Pipe Sizes
SS 321H Tube Packaging
SS 321H Chemical Composition
Stainless Steel 321H Seamless Pipe Properties
ASTM A312 Tp 321H Stainless Steel Pipe Specification
Physical Properties of Stainless Steel 321H Welded Pipe
SS 321H Tubing Equivalent
Stainless Steel 321H Tubing Length
SUS 321H Rectangular Pipe Grade

SS 321H Tube Types
Stainless Steel 321H Pipe Price
Tolerance of 321H Stainless Steel Boiler Tubes
Weight Chart of Stainless Steel 321H ERW Pipe
ASME SA 213 Tp 321H EFW Tube Sizes
Stainless Steel 321H Tube Testing
Aisi 321H Smls Pipe Finish
ASTM A312 Tp 321H Density
Stainless Steel 321H Seamless Tube Melting Point

Stainless Steel 321H Pipe

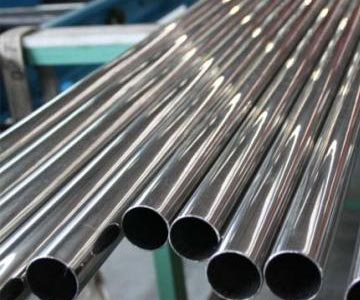

DIN 1.4878 ERW Tube

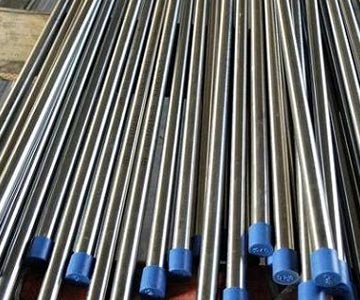

UNS S32109 Seamless Pipe

UNS S32109 Seamless Pipe Supplier In India Also Check Our Size Range Available In Stock Of DIN 1.4878 ERW Tube

Stainless Steel 321H Pipe Sizes

316 Stainless Steel Pipes OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

SS 321H Tube Packaging

Bundles (hexagonal)
Wooden Boxes
Crates (steel/wooden)
Special crates for U-Bend tubes with each radius separated
Packaging for SS 321 ASTM A312 Seamless Pipe as per customer's requirements

SS 321H Chemical Composition

Grade		C	Mn	Si	P	S	Cr	N	Ni	TI
321H	Min	0.04	-	-	-	-	17.0	-	9.00	4(C+N)
321H	max	0.08	2.00	0.75	0.045	0.030	19.0	0.10	12.00	0.70 max

ASTM A312 Tp 321H material Manufacturer In Mumbai, 321H Stainless Steel Pipe Available According To International Standards And Specifications, View Its Mechanical Properties

Stainless Steel 321H Seamless Pipe Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
321H	515	205	40%	95	217

ASTM A312 Tp 321H Stainless Steel Pipe Specification

Dimensions	ASTM, ASME and API
Standard	ASTM A312 / ASME SA312
Size	1/8″NB TO 30″NB IN
Specialized in	Large Diameter Size
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS Supplier
Form	Round, Square, Rectangular, Hydraulic Etc
Dual certified supplier	Dual certified SS 321H Seamless Pipe suppliers in India, accordance to certify ASME SA312 and ASTM A312 American specifications
Type	Seamless / ERW / Welded / Fabricated / LSAW Pipes
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Threaded
321H Stainless Steel Pipe Suppliers in India

Physical Properties of Stainless Steel 321H Welded Pipe

Element	SS 321H
Density	8.0 g/cm3
Melting Point	1454 °C (2650 °F)
Tensile Strength	Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000 , MPa – 205
Elongation	35 %
Hardness (Brinell)	217

Wide Stock of SS 321H Welded Pipe, Find your properties and Length in our online inventory and save upto 15%

SS 321H Tubing Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
SS 321H	1.4878	S32109	-	-	-	-	-

Stainless Steel 321H Tubing Length

Single random pipe length is usually 18 - 25 feet plain end or 18 - 22 feet threaded and coupled pipes.

SUS 321H Rectangular Pipe Grade

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
Grade	UNS No	BS	En	No	Name	Swedish SS	Japanese JIS
321H	S32109	321S51	-	1.4878	X6CrNiTi18-10	-	SUS 321H

We are Largest Stainless Steel 321H Pipe Suppliers in India. Check Available Stock of Stainless Steel 321H Seamless Pipe, Stainless Steel 321H Tubing and Stainless Steel 321H Seamless Tube

SS 321H Tube Types

Stainless Steel 321H Welded Pipe

Stainless Steel 321H Tube

ASME SA 213 Tp 321H

Stainless Steel 321H ERW Pipe

ASTM A312 Tp 321H

Stainless Steel 321H Seamless Pipe

SS 321H Pipe

SS 321H Tube

Stainless Steel 321H Seamless Tube

O.d. 18 Inch Welded Stainless Steel Pipe

AISI 321H Square Pipe

Stainless Steel 321H Tubing

We provide Multiple Payment Options Of ASME SA 213 TP 321H Material, Contact US Today For Buy SS 321H Erw Tubing, Suppliers Of SUS 321H Pipes In India.

SS 321H Tube In India, Call For Small Piece Of AISI 321H Square Pipes To Test Before Buying

Stainless Steel 321H Pipe Price

Description	Per Unit (INR)
STAINLESS STEEL WELDED PIPES GRADE 321H	111
STAINLESS STEEL SEAMLESS PIPES ASTM A312 GRADE TP 321H	205

Tolerance of 321H Stainless Steel Boiler Tubes

Stainless Steel 321h Pipes OD	ASTM A312 TP321H Pipes Tolerance
4 to 35mm	+/- 0.08mm
35 to 38mm	+/- 0.15mm
38 to 60mm	+/- 0.20mm
60 and above	+/- 0.25mm

Weight Chart of Stainless Steel 321H ERW Pipe

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

We Keep Bulk Stock Of SS 321H Pipe At Our Stockyard, Buy Grade 321H Heat Exchanger and Boiler Tubes In Mumbai

ASME SA 213 Tp 321H EFW Tube Sizes

Wall Thickness	Stainless Steel 316 Tube Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

Stainless Steel 321H Tube Testing

Radiography test
Pitting resistance test
Hydrostatic test
IGC and PMI test
Chemical/Mechanical test
Flattening/flaring test

Aisi 321H Smls Pipe Finish

Surface Finish		Internal Surface(ID)		Exterbal Surface(OD)
		Roughness Average(RA)		Roughness Average(RA)
		μ inch	μm	μ inch	μm
AP	Annealed & Pickled	Not defined	Not defined	40 or Not defined	1.0 or Not defined
BA	Beight Annealed	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
MP	Mechanical Polish	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
EP	Electro Polish	15,10,7,5	0.38,0.25,0.20;0.13	32	0.8

ASTM A312 Tp 321H Density

Element	SS 321H
Density	8.0 g/cm3

Stainless Steel 321H Seamless Tube Melting Point

Element	SS 321H
Melting Point	1457 °C (2650 °F)
