Inconel 600 Pipe


Inconel 600 Pipe

What Is Inconel 600 Pipe?

An Inconel 600 Pipe is a nickel-chromium alloy, which is a solution-hardened component. These pipe are known for their superior oxidation resistance properties at higher temperatures in the range of up to 2000 degrees F. The high nickel content gives them high tolerance in reducing conditions and in cryogenic temperatures. The pipes within this grade show high corrosion resistance in an array of organic and inorganic modules allowing them to possess enhanced tolerance to chloride-iron stress in alkaline systems.

Nickel Alloy 600 Seamless Tube Vs Asme Sb 167 Uns N06600 Welded Pipe

Seamless and welded components have been utilized in the piping industries for centuries and continue to date. Both these production processes have distinct features, which set them apart.

  • The manufacturing process- Alloy 600 Seamless Tube are manufactured by passing hot steel billets through metal and shaping them. In the Uns N06600, welded pipe metal is rolled and then welded in place.
  • Strength- Seamless tubes possess considerable strength in comparison to standard welded pipes.
  • Pressure ratings- Seamless tubes have 20% extra working pressure compared to their counterpart.
  • Price- Welded pipes are cost-effective in comparison to seamless tubes.

Inconel 600 Tubes Uses

Some of the importance of the Inconel 600 Tubes include

  • Food processing systems
  • Nuclear engineering
  • Pulp and paper industry
  • Aerospace and aviation
  • Chemical processing and refining
  • Gas turbine components, including jet engines
  • Heat treatment of modules
  • Phenol condensers
  • Ethylene dichloride crackers
  • Electronic parts
  • Gasoline stabilizer production
  • Titanium dioxide
  • Soap manufacturing
  • Truck and barge liners

Difference Between Ams 5580 Alloy 600 Pipe And Din 2.4816 Tubes

The names of tubes and pipe are used interchangeably in the piping industry, however; both these components have some features that differentiate them from each other.

  • Shape- An AMS 5580 Pipe is always round in shape. Din 2.4816 tubes can be shaped either circular, rectangular, or round.
  • Classification- Pipe are identified based on their schedules and nominal diameters. Tubes are classified following their wall thickness and outer diameters.
  • Strength-Tubes are stronger compared to a pipe and perform well in high-strength applications.
  • Metal types- Tubes can be hot, and cold rolled but, pipe can only be cold rolled. However, both these components can be galvanized.

Alloy 600 Tubing Features

Some of the important features of 600 tubings include

  • Superior creep-rupture strength
  • Excellent corrosion resistance in a range of corrosive systems.
  • Resistance to oxidation up to 1800 degrees F
  • Non-magnetic
  • Tolerant to chloride ion stress-induced corrosion
  • Highly resistant to seawater pitting and cervical corrosion.
  • Exception strength due to the nickel-chromium base.

Alloy 600 Pipe Heat Resistance

Alloy 600 Pipes have excellent heat resistance and can suffice in harsh environments. The pipe within this range can withstand temperatures from cryogenic to extreme high temperatures. Their resistance in extreme temperatures allow them to be utilized in heaters, evaporator tubes, heat treatment systems, furnaces, high combustion jet engines, etc.

ASTM B167 UNS N06600 Tubing and Nickel Alloy 600 Seamless Tube Supplier in India

Specification Chart of Inconel 600 Tube

Standard SpecificationsASTM B167 ASME SB 167 / 9 / ASTM B517 ASME SB 517/ ASTM B829 ASME SB 82
Size15" to 150" NB Inch
DimensionsASME, ASTM and API
Seamless SizesWall Thikness: 0.5mm to 20mm
Size: 4mm to 219mm
Material Test Certificate (MTC) provided by Inconel 600 Pipe suppliers

ISO 14001:2015, PED, ISO 9001:2005, Ultrasonic Testing (UT), NDE, EIL, Radiographic Testing (RT), IBR,

Welded Sizes5.0 to 1219.2 mm
EFW Sizes5.0 to 1219.2 mm
Schedule RangeSCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS SS 304 Pipe supplier
Available TypeWelded / ERW / Seamless / LSAW/ Fabricated Pipe
Supplier of inconel 600 Pipe offer various shapesSemi-Round, Semi-oval, Oval, Rectangle, Elliptical, Square, Semi-Rhomboid, Hollow, Hollow, Rhomboid, Triangle, Round
FormHydraulic, Round Form Etc
LengthDouble Random, Cut Length & Single Random
EndBeveled End, Plain End, Theaded
Marking
  • Nominal Pipes Sizes
  • Specification
  • Manufacturing Method (Welded / Seamless)
  • Grade
  • Pipes Sch or Wall Thickness
  • Manufacturer’s / Supplier Name or Custom Logo - on request
  • Heat Number

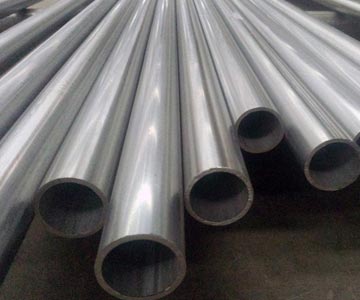

Inconel 600 Pipe

Inconel 600 Pipe

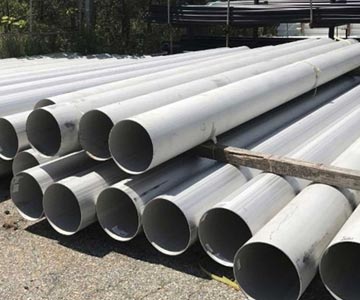

Alloy 600 Seamless Pipe

Alloy 600 Seamless Pipe

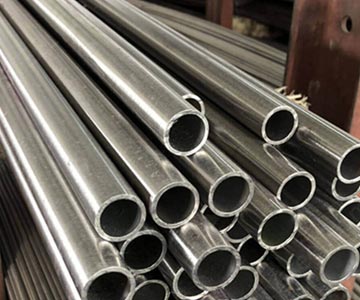

Inconel 600 Tube

Inconel 600 Tube

Alloy 600 Seamless Pipe Heat Treatment

Annealing at 1010°C for 15 minutes softens Inconel 600. Solution heat treatment is done at 1090 – 1150°C to dissolve carbides. Care should be taken with heat treatment as it affects corrosion resistance and high temperature properties.

Looking For BS 3072 Inconel 600 Pipes Manufacturers In India? Buy Alloy 625 Tubing Online And Save Cost, Check asme sb 167 uns N06600 Welded Pipe Weight And Schedule Chart

We are one of the top Inconel 600 Pipe suppliers in India. Our products, including the Nickel Alloy Seamless and Welded Tubing, are known for their dimensional accuracy and quality.

Searching Inconel 600 Pipe Manufacturer In India? Contact US Today For Buy Alloy 600 ERW and Seamless Tubes

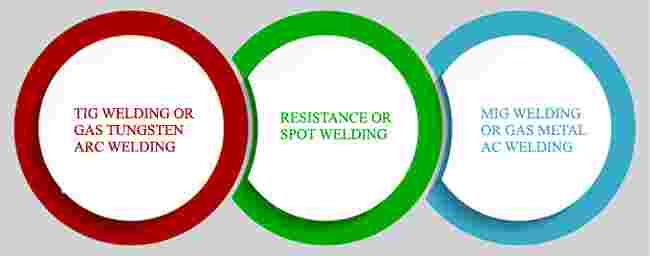

Alloy 600 Tubing Welding Methods

Inconel 600 Pipe process

SP Metals is an ISO certified Inconel 600 Pipe Suppliers in India & Alloy 600 Pipe Stockist in Mumbai.

Equivalent of Alloy 600 Welded Pipe

GradeEuronormOld BritishUNS NoJapanese JISGOST
NoAFNORBSEn
alloy 6002.4816NC15FE11MNA 13NiCr15FeN06600NCF 600МНЖМц 28-2,5-1,5

Inconel 600 Pipe Price

DescriptionPrice in IndiaPrice in USDPrice in Saudi Riyal
ASME SB466 alloy nickel alloy 600 UNS NO6600 DIN W.NR.2.4816 2'' sch10 Seamless75.01 - 7501.26US $1.00-$100.00 / Piece3.75 - 375.09
seamless steel pipe INCONEL ALLOY 600 pipe75.01 - 2175.36US $1.00-$29.00 / Kilogram3.75 - 108.78
INCONEL Alloy 600 Tube1350.23 - 1845.31US $18.00-$24.60 / Kilogram67.52 - 92.27
Cold drawn 50mm inconel 600 alloy seamless steel pipe90.02 - 225.04US $1.20-$3.00 / Kilogram4.50 - 11.25

We Can Supply Inconel 600 Tubing With Customized Thicknesses And Sizes, View AMS 5580 Alloy 600 Pipe Size Chart

Inconel 600 Pipes Chemical Composition

GradeCMnSiFeSCrCuNi
600min.6.014.072.0
max.0.151.00.510.00.01517.00.5

Alloy 600 Seamless Pipe Density

Density : 8,470 kg/m³ @ 20°C

Melting Point : 1354-1413°C

Mechanical Properties of ASME SB 167 UNS N06600 Round Pipe

GradeElongation (% in 50mm) minStrength of Yield 0.2% Proof (MPa) minimumStrength of Tensile (MPa) minimumHardness
Rockwell B (HR B) maximumBrinell (HB) maximum
60040Psi – 45,000 , MPa – 310Psi – 95,000 , MPa -655

SP Metals is a Inconel 600 Tube Suppliers In India. Stockist of offering in all Ratings up to 2500#, built a distribution network with more then 65 countries globally

UNS N06600 Welded Pipe Testing

  • Positive Material Identification – PMI Testing
  • Hardness Test
  • Mechanical Testing Such as Tensile of Area
  • Chemical Analysis – Spectro Analysis
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Micro and MacroTest
  • Flaring Test
  • Flattening Test
Inconel 600 Pipe Testing

SP Metals is an Inconel 600 tube suppliers of seamless and welded tubes. Buy all sizes online at low cost.

Inconel 600 Alloy Pipes Certificate

  • Raw Materials Certificate
    • EN 10204/3.1B
    • Third Party Inspection Report
    • 100% Radiography Test Report
    Stockist Of DIN 2.4816 Tubes and nickel 600 Erw Pipes As Per The Requirements Of Customers

    Various Types of UNS N06600 Tubing

    ASTM B167 UNS N06600 Tubing
    ASTM B167 UNS N06600 Tubing
    Alloy 600 Seamless Tube
    Alloy 600 Seamless Tube
    Inconel 600 Seamless Pipe
    Inconel 600 Seamless Pipe
    Inconel 600 Welded Pipe
    Inconel 600 Welded Pipe
    Inconel 600 Erw Pipe
    Inconel 600 Erw Pipe
    Alloy Inconel 600 Steel Pipe Tube
    Alloy Inconel 600 Steel Pipe Tube
    Exhaust Inconel 600 Pipe
    Exhaust Inconel 600 Pipe
    Inconel 600 Pipes, Size/diameter: 3 Inch
    Inconel 600 Pipes, Size/diameter: 3 Inch
    Alloy 600 Pipe
    Alloy 600 Pipe
    Inconel 600 Seamless Tubes
    Inconel 600 Seamless Tubes
    Uns N06600 Ns3102 2.4816 600 Nickel Alloy Pipe
    Uns N06600 Ns3102 2.4816 600 Nickel Alloy Pipe

    Inconel 600 Welded Pipe Packaging

    • Pipe up to 3” OD will be supplied in bundles.
    • Over 3” OD will be supplied loose.
    • Inconel 600 Seamless Pipe may be furnished bare or coated and with capped ends.

    ASTM B167 UNS N06600 Tubing Documentation

    • Fumigation Certificates
    • Packing List including gross weight, net weight and number of Marks boxes, and Numbers
    • Commercial Invoice which includes HS Code
    • Certificate of Origin attested / legalized by Chamber of Embassy or Commerce
    • Raw Material Test Reports
    • Welding Procedure Procedure/Specification Qualification Record, PQR/WPS
    • Heat Treatment Charts
    • Quality Assurance Plan (QAP)

    Inconel 600 Tube Manufacturers in India, Suppliers Of Alloy 600 Seamless Pipe In Mumbai, One Stop Shop For All alloy 600 tube.

    Application of Alloy 600 ERW Pipe

    • Gas Processing
    • Power Generation
    • Off-Shore Oil Drilling Companies
    • Petrochemicals
    • Pharmaceuticals
    • Specialty Chemicals
    • Chemical Equipment
    • Pharmaceutical Equipment
    • Condensers
    • Pulp and Paper Industry
    • Heat Exchangers
    • Sea Water Equipment
    Inconel 600 Pipe Uses
    ASTM B444 Inconel 600 Pipe4 inch Nickel WERKSTOFF NR. 2.4816 Pipe
    600 Inconel ERW PipeSchedule 5S Inconel Pipe
    Inconel WERKSTOFF NR. 2.4816 Seamless Pipe600 Inconel Thick Wall Pipe
    Nickel Alloy 600 Hollow Pipe600 Alloy Electropolished Pipe
    Nickel WERKSTOFF NR. 2.4816 Welded PipeASME SB444 Inconel 600 Large Pipe
    Inconel SMLS PipeInconel 600 UNS N06600 Polished Pipe
    Nickel Alloy 600 CDW PipeCold Drawn 600 Inconel Seamless Pipe
    ASME SB444 Inconel 600 EFW PipeSchedule 40 Inconel Alloy 600 Pipe
    Alloy 600 UNS N06600 Round PipeAlloy 600 Exhaust Pipe
    Capillary ASTM B444 Inconel 600 Thin PipeHigh pressure UNS N06600 Pipe
    ASTM B444 600 Inconel Custom PipeASTM B444 Inconel 600 Capillary Pipe

    Inconel 600 Tubing Length

    • Length: Single Cut, Double Random Cut And Cut Length
    • Thickness : 0.40 - 12.70 millimeter
    • Outside Diameter: 3.00 - 219.10 millimeter
    • Size: 1/2" Outside Diameter - 12" Outside Diameter

    UNS N06600 Material Outside Diameter

    • Length: up to 26 Met. (Meters)
    • Thickness : 0.8 - 12.7 millimeter
    • Outside Diameter: 6.35 to 114.3 millimeter O.D
    • Size: 1/2 Inch To 12 Inch Outside Diameter, Guage: 25 To 10 SWG

    Alloy 600 Tube Tolerance

    NPSInconel 600 Pipe TubeOD Tolerance
    +
    milimeterinchmilimeterinch
    > 1 1 /2~40.81/32(0.031)0.81/32(0.031)
    1/8~1 1 /20.41/64(0.015)0.81/32(0.031)
    > 8~182.43/32(0.093)0.81/32(0.031)
    > 4~81.61/16(0.062)0.81/32(0.031)
    > 26~3445/32(0.156)0.81/32(0.031)
    > 18~263.21/8(0.125)0.81/32(0.031)
    > 34~484.83/16(0.187)0.81/32(0.031)

    Manufacturer & supplier of ASME SB167 Inconel 600 heat exchanger tube, welded tubing, rectangular tube, check online inventory

    Inconel 600 seamless tubing Supplier

    • ASTM B167 pipe
    • ASTM B167 UNS N06600
    • Inconel 600 seamless pipe
    • Alloy 600 pipe
    • Inconel 600 welded pipe
    • ASME SB167 UNS N06600
    • Inconel 600 square pipe
    • Alloy 600 rectangular pipe
    • Inconel 600 erw pipe
    • ASTM B167 UNS N06600 pipe
    • Inconel 600 tubing
    • ASTM B167 UNS N06600 Tube
    • Alloy 600 Tube
    • Alloy 600 tubing
    • Inconel 600 seamless Tube
    • Inconel 600 seamless tubing
    • Alloy 600 seamless Tube
    • Alloy 600 seamless tubing
    • Inconel 600 annealed Tubes
    • Nickel Alloy 600 welded Tube
    • Alloy 600 redrawn Tube

    Alloy 600 Seamless Tube Physical Properties

    PropertyMetric Units
    Electrical Resistivity103 micro-ohm . m @ 20°C
    Specific Heat444 J/kg . °C @ 20°C
    Mean Coefficient of Expansion10.4 x 10-6 / °C @ 20°C
    Thermal Conductivity14.9 W / m . °C @ 20°C
    Curie Temperature-192°C
    Modulus of Elasticity
    Tension214 GPa @ 20°C
    Torsion80.8 GPa @ 20°C
    Poisson’s Ratio0.324 @ 20°C
    Relative Permeability1.010 @ 200 Oe
    Get Inconel 600 Smls Pipe In India As Per ASTM B167/ B829/ B517 and ASTM B751 Specification

    Nickel 600 Pipe Astm Standards

    ASTM SPECIFICATIONDESCRIPTION
    ASME SB163 Standard Spec for Nickel Alloy Condenser and Heat-Exchanger Tubes and Seamless Nickel
    ASME SB165Standard Spec for Nickel-Copper Alloy() N04400)* Smls Tube and Pipe
    ASME SB167Standard Spec for Nickel-Chromium-Cobalt-Molybdenum Alloy, Nickel-Chromium-Iron Alloys (UNS N06617),and Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Smls Tube and Pipe
    ASME SB407Standard Spec for Nickel-Iron-Chromium Smls Tube and Pipe
    ASME SB423Standard Spec for Nickel-Iron-Chromium-Molybdenum-Copper Alloy (UNS N08825, N08221, and N06845) Smls Tube and Pipe
    ASME SB444Standard Spec for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06852 and UNS N06625) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Pipe and Tube
    ASME SB622Standard Spec for Nickel-Cobalt Alloy and Seamless Nickel Tube and Pipe
    ASME SB668UNS N08028 smls Tube and Pipe
    ASME SB690Standard Spec for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08367 and UNS N08366) smls Tube and Pipe
    ASME SB729Standard Spec for seamless UNS N08026, UNS N08020 and UNS N08024 nickel tube and Pipe

    UNS NO:

    N06600

    Specifications:

    ASTM B829, ASTM B167, ASTM B517, ASTM B163, ASTM B751, ASTM B775, ASTM B516, AMS 5580

    International Spec:

    (NA14) BS 3072-3076

    A Global supplier
