Carbon Steel Pipe Fittings Manufacturer in India


Carbon Steel Pipe Fittings

What is Carbon Steel Pipe Fittings?

Carbon Steel Pipe Fittings are structures having higher carbon concentrations. The higher carbon content gives these fittings superior strength and performance. These fittings play a critical role in influencing the flow characteristics in an array of piping modules. The fittings within this grade possess superior corrosion and oxidation resistance. Carbon pipe fittings can be availed with low, medium, high, and ultra-high carbon content. The higher the content of carbon the, greater will be the strengths and tolerances of these fittings.

Difference Between ASTM A234 WPB Elbow and Carbon steel Tee

ASTM A234 WPB elbow and Carbon steel Tee is a fitting of choice within this grade due to their robust nature and versatility. Both these fittings can be distinguished based on certain key features.

  • ASTM A234 WPB elbow is designed with two openings, while a carbon steel Tee is a three-branched port module.
  • Elbows play a critical role in changing the direction of flow. Tees have three channels that distribute the flow of fluids or gases evenly across these three outlets.
  • Tees create different behaviors in the flow, which are not suitable for the optimum flow of fluids. Elbows exhibit optimum and consistent behavior.
  • Elbows are a preferred choice in making turns over tees.

A420 Grade WPl6 Stub End vs ASTM A860 WPHY 42 Reducer

Pipe fittings are unique components that influence the characteristics of gaseous and fluid flow across the system.

  • A420 Grade wpl6 stub end is accompanied by a backing flange. These components have a distinct square-cut coupled with a flared end. The modules are fast-flanged piping joints. They can only fit piping modules of similar sizes.
  • ASTM A860 WPHY 42 Reducer is designed to join piping modules of dissimilar diameters in the piping system.

MSS-SP-75 WPHY 60 Pipe Cap Oil and Gas Application

MSS-SP-75 WPHY 60 pipe cap is a pipe fitting that is employed to close hydraulic systems in piping modules. The modules in this grade possess superior tolerances and resistances. They are widely employed in protecting the pipe during storage and movement. They are utilized in the oil and gas industry due to their superior tolerances to corrosion and high temperatures. The modules are generally seen in oil and gas supply lines, processing equipment, water supply lines on the rigs or pressure vessels.

ASME SA 234 Gr WPB Pipe Elbow Features

Some of the features of ASME SA 234 Gr WPB Pipe Elbow include:

  • Outstanding ability to change the direction of fluid or gaseous flow in the system
  • Moderate to high-pressure tolerances to different service requirements
  • Easily wieldable
  • Superior strength and tolerances across corrosive media
  • Excellent strength in oxidizing environments

What Use of ASME SA 234 Gr WPB Pipe Tee?

ASME SA 234 Gr WPB Pipe Tee is employed in piping systems to change the direction of flow in fluids and gases across different piping systems. These fittings are widely used in plumping systems for transportation of potable water, cooling tanks, petrochemical systems, chemical processing, manufacturing units, oil and gas refining and production, and so on.

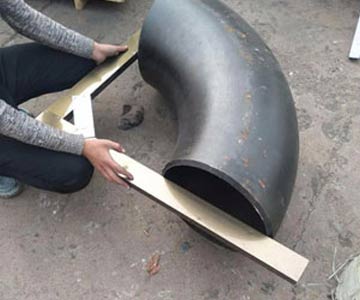

ASTM A234 WPB Elbow

ASTM A234 WPB Elbow

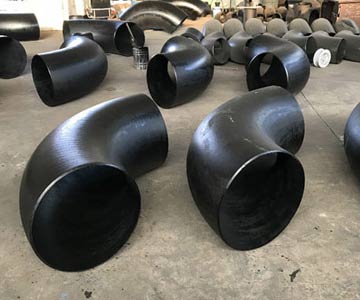

ASTM A420 WPL6 Buttweld Pipe Fittings

ASTM A420 WPL6 Buttweld Pipe Fittings

Carbon Steel Fittings

Carbon Steel Fittings

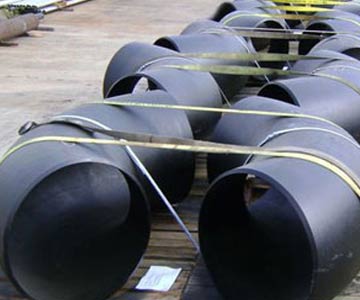

ASTM A420 Wpl6 Pipe Fittings

ASTM A420 Wpl6 Pipe Fittings

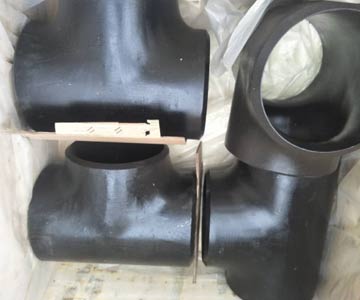

Carbon Steel Tee

Carbon Steel Tee

Carbon Steel Elbow

Carbon Steel Elbow

ASTM A234 WPB Elbow, Tee, Reducer and Pipe Cap Price List in India

Carbon Steel Pipe Fittings Price List In India

DescriptionPrice in USPrice in India
carbon steel pipe fittings/elbowUS $0.50-$0.56 / Piece37.12 - 41.57
Carbon Steel ASME B16.9 Pipe Fitting Seamless Straight/Reducing Tee SCH40US $2.30-$2.60 / Piece170.73 - 193.00
ASTM A234 WPB Carbon steel pipe fittings eccentric reducerUS $3.50-$4.20 / Piece259.81 - 311.77
Carbon Steel ASME B16.9 A234 WPB pipe fitting teeUS $2.50-$20.00 / Piece185.58 - 1484.62
DN32 1-1/4" SCH40 Carbon Steel ASTM A234 WPB Long Radius 90D Elbows Carbon SteelUS $8.77-$10.77 / Piece651.01 - 799.47
Carbon Steel 90 Degree Elbow 45 Degree Elbow A234/A420 Wpi B16.9US $1.00-$50.00 / Piece74.23 - 3711.55
Forged Carbon Seamless Steel Pipe FittingsUS $0.20-$10.00 / Piece14.85 -742.31

CS Fittings


ASTM A420 WPL6 Buttweld Pipe Fittings Dimensions, Specifications, Mechanical Properties, Pressure Rating and Weight Chart

Cs Pipe Fittings Dimensions

Nom. Pipe SizeASTM A420 Carbon Steel 90° ElbowsASTM A420 Carbon Steel 45° ElbowsASTM A420 Carbon Steel 180° Return Long Radius
Long RadiusShort Radius3RLong Radius3RSTDXS
STDXSSCH. 160XXSSTDXSSTDXSSTDXSSTDXS
½.18.25.09.19.35
¾.19.25.09.19.40.65
1.40.50.60.75.250.25.31.751.00
.60.901.001.38.40.38.501.251.75
.901.151.801.50.56.75.40.691.882.39
21.602.203.253.501.001.503.004.00.811.191.52.13.234.40
3.254.005.137.002.132.806.008.001.752.133.004.006.508.00
35.006.508.5011.03.004.2510.013.02.633.505.007.0010.2513.00
6.758.3516.04.506.0013.018.03.504.507.009.0013.0016.75
49.0013.518.020.06.258.5018.025.04.506.109.0013.018.525.0
515.022.032.036.09.6014.029.043.07.5010.715.022.030.044.0
624.535.057.065.018.023.045.070.012.017.523.035.050.070.0
850.071.012011834.047.590.014023.035.045.070.095.0142
1088.010726058.070.015921843.053.080.0109117215
1212516045080.010423331062.084.0117155230320
1416020557210514029840080.0100149200325400
16206276132174390520100135195260412550
18260340167219495660126167248330510690
20320420210275610810160206305405640830
223945207359801972603684907871040
2446060029839287511702383004385858901200
2655072910301370275365515685
3073497513701830367488685915
3610621412197026305317069851315

Carbon Steel Fittings Material Specification

SpecificationsASTM A234/ ASME SA234
Bending RadiusRadius=1 D, 1.5D, 2D, 3 D, 5D, 6D, 8 D, 10D
Size RangeSeamless Butt-Weld Fitting: From 1/2″ - 10″
Welded ButtWeld Fitting: From 1/2″ - 48″
Specialized manufacturer ofTees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap
DimensionASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10
Size Ranges½” NB to 24″ NB in Schedule 10s, 40s, 80s, 160s, XXS.
TypesWelded | Seamless | Fabricated
Origin of CS Fittings manufacturersKorean, Indian, Japanese, Russian, European
Process of ManufacturingPush, Press, Cast, Forge.
Thickness of FittingSCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75
Carbon Steel Pipe Fittings Manufacturers In India

ASTM A234 Wpb Elbow Mechanical Behaviour

PropertiesImperialMetric
Tensile strength86300 psi595 MPa
Modulus of elasticity29000 ksi200 GPa
Yield strength37700 psi260 MPa
Poisson’s ratio0.27-0.300.27-0.30
Hardness, Rockwell B8585
Elongation at break (in 50 mm)55%55%

Get instant delivery Of Astm A420 Wpl6 Carbon Steel Weld Fittings, Weight Chart Of A420 Grade Wpl6 Stub End, Carbon Steel Pipe Fittings Manufacturer in India

Carbon Steel Pipe Cap Pressure Rating

Pressure-Temperature ratings for ASME B16.9 Carbon Steel Buttweld Pipe Fittings (psig)
Temperature RatingsPressure Class
150300
1/4 - 1 Inches1 1/4 - 2 Inches2 1/2 - 3 Inches
(oF)(oC)
-20 to 150-29 to 66300200015001000
2009326517851350910
25012122515751200825
30014918513601050735
3501771501150900650
400204-935750560
450232-725600475
500260-510450385
550288-300300300

Low Temperature Carbon Steel Fittings Supplier Like A420 Grade Wpl6 Stub End, Long Radius Elbow, S/r Elbow, Ltcs Tee, Pipe Reducer And Tube Bends

Carbon Steel Buttweld Fittings Manufacturers in India, Suppliers Of Astm A234 Wpb Elbow In Mumbai, One Stop Shop For All Carbon Steel Tee.

Carbon Steel Reducer Chemical Composition

ElementContent (%)
Iron, FeBalance
Carbon, C0.03
Chromium, Cr18-20
Nickel, Ni11-15
Manganese, Mn2
Molybdenum, Mo3-4
Phosphorous, P0.045
Silicon, Si1
Sulfur, S0.03
AISI
OR SAE
CMNP MAXS MAX
1005*.06 max.35 max.040.050
1006*.08 max.25/.40 max.040.050
1008.10 max.30/.50 max.040.050
1010.08/.13 max.30/.60 max.040.050
1011*.08/.13 max.60/.90 max.040.050
1012.10/.15 max.30/.60 max.040.050
1013*.11/.16.50/.80.040.050
1015.13/.18.30/.60.040.050
1016.13/.18.60/.90.040.050
1017.15/.20.30/.60.040.050
1018.15/.20.60/.90.040.050
1019.15/.20.70/1.00.040.050
1020.18/.23.30/.60.040.050
1021.18/.23.60/.90.040.050
1022.18/.23.70/1.00.040.050
1023.20/.25.30/.60.040.050
1025.22/.28.30/.60.040.050
1026.22/.28.60/.90.040.050
1029.25/.31.60/.90.040.050
1030.28/.34.60/.90.040.050
1035.32/.38.60/.90.040.050
1037.32/.38.70/1.00.040.050
1038.35/.42.60/.90.040.050
1039.37/.44.70/1.00.040.050
1040.37/.44.60/.90.040.050
1042.40/.47.60/.90.040.050
1043.40/.47.70/1.00.040.050
1044.43/.50.30/.60.040.050
1045.43/.50.60/.90.040.050
1046.43/.50.70/1.00.040.050
1049.46/.53.60/.90.040.050
1050.48/.55.60/.90.040.050
1053.48/.55.70/1.00.040.050
1055.50/.60.60/.90.040.050
1059*.55/.65.50/.80.040.050
1060.55/.65.60/.90.040.050
1064*.60/.70.50/.80.040.050
1065*.60/.70.60/.90.040.050
1069*.65/.75.40/.70.040.050
1070.65/.75.60/.90.040.050
1074*.70/.80.50/.80.040.050
1075*.70/.80.40/.70.040.050
1078.72/.85.30/.60.040.050
1080.75/.88.60/.90.040.050
1084.80/.93.60/.90.040.050
1085*.80/.93.70/1.00.040.050
1086*.80/.93.30/.50.040.050
1090.85/.98.60/.90.040.050
1095.90/1.03.30/.50.040.050
Buy Online 1/2 " Nb To 48 Inch Nb Asme Sa 234 Grade Wpb Elbow In Schedule 10s, Sch 40s, 80 And Upto Sch 160 According To Asme B16.9 At Best Price In Mumbai

CS Pipe Fittings Schedule Chart

CS Pipe Fittings Schedule Chart

SP Metals is an ISO certified Carbon Steel Reducer in India & Carbon Steel Pipe Cap Stockist in Mumbai.

Sizes Chart Of ASTM A420 Wpl6 Buttweld Pipe Fittings

ProductsSizes
CS Stub Ends1/2" NB to 14" NB
CS Cups1/2" NB to 14" NB
CS Socket WeldUpto 2" NB
CS Tees1" NB to 14" NB
CS NipplesUpto 4"
CS CouplingsUpto 4"NB
CS Reducers1" NB to 14" NB
CS Elbow1/2" NB to 14" NB

Carbon Steel Pipe ASTM Standards

Carbon Steel (B/W) Fittings
Materials
Size Chart
Schedule & Swg.
Specification Chart
Carbon steel Piping materials
Carbon STeel
15
to
500 Nominal Bore
Schedule 40
to
Schedule XXs
A234 WPB Buttweld
Seamless
ANSI B16.9
CS Bend (Short & Short)
CS Elbow ( 90o,180o, 45o)
CS Tee (UnEqual & equal)
CS Reducer (Concentric & Eccentric)
CS CAP
CS Stubend (Short & Long)
CS Nipple (Barrel)
200
to
600 Nominal Bore
Schedule 10
to
schedule 80s
A234 WPW Buttweld
Welded
ANSI B16.9
Low Temp Carbon Steel
15 NB
to
300 NB
Sch. 5
to
Sch. 80s
A403 B/W
ANSI B16.9
200 NB
to
600 NB
Sch. 10
to
Sch. 80s
A420 WPL 6 B/W
Welded
ANSI B16.9

ASTM A860 Wphy 65 Fittings Types

Carbon Steel Pipe Fitting - Long Radius Elbow 90
Carbon Steel Pipe Fitting - Long Radius Elbow 90
Carbon Steel 90° Short Radius Elbow
Carbon Steel 90° Short Radius Elbow
ASME B16.9 CS 45° Long Radius Elbow
ASME B16.9 CS 45° Long Radius Elbow
ASTM A234 Wpb 45° Short Radius Elbow
ASTM A234 Wpb 45° Short Radius Elbow
CS 180° Long Radius Elbow
CS 180° Long Radius Elbow
Carbon Steel 180° Short Radius Elbow
Carbon Steel 180° Short Radius Elbow
Carbon Steel 1d Elbow
Carbon Steel 1d Elbow
ASTM A420 Wpl6 1.5d Elbow
ASTM A420 Wpl6 1.5d Elbow
Ansi B16.9 CS 3d Elbow
Ansi B16.9 CS 3d Elbow
ASTM A420 Carbon Steel 5d Elbow
ASTM A420 Carbon Steel 5d Elbow
A420 Grade Wpl6 10d Elbow
A420 Grade Wpl6 10d Elbow
Seamless Buttwelding 45° Elbows
CS Seamless Buttwelding 45° Elbows
Carbon Steel 90° Elbows
Carbon Steel 90° Elbows
Carbon Steel Weld Elbows
Carbon Steel Weld Elbows
CS Seamless Buttwelding 180° Returns
CS Seamless Buttwelding 180° Returns
Carbon Steel Straight Tee
Carbon Steel Straight Tee
CS Straight Cross
CS Straight Cross
ASTM A234 Reducing Outlet Tee
ASTM A234 Reducing Outlet Tee
CS Buttweld Fittings
CS Buttweld Fittings
CS Reducing Outlet Cross
CS Reducing Outlet Cross
A234 Wpb Carbon Steel Equal Tee
A234 Wpb Carbon Steel Equal Tee
Carbon Steel Reducing Tee
Carbon Steel Reducing Tee
CS Equal Cross
CS Equal Cross
ASME Sa 234 Grade Wpb Carbon Steel Reducing Cross
ASME Sa 234 Grade Wpb Carbon Steel Reducing Cross
Carbon Steel Reducers
Carbon Steel Reducer
Carbon Steel Concentric Reducer
Carbon Steel Concentric Reducer
Mss-sp-75 Wphy 60 Carbon Steel Eccentric Reducer
Mss-sp-75 Wphy 60 Carbon Steel Eccentric Reducer
Carbon Steel Stub End
Carbon Steel Stub End
Carbon Steel Lap Joint Stub Ends
Carbon Steel Lap Joint Stub Ends
ASME Sa 234 CS Long Stubend
ASME Sa 234 CS Long Stubend
CS Short Stubend
CS Short Stubend
Carbon Steel Pipe Cap
Carbon Steel Pipe Cap
ASTM A860 Wphy 42 Carbon Steel End Cap
ASTM A860 Wphy 42 Carbon Steel End Cap
Carbon Steel Collar
Carbon Steel Collar
Carbon Steel Swage Nipple
Carbon Steel Swage Nipple
Carbon Steel Pipe Nipples
Carbon Steel Pipe Nipples
ASTM A860 Wphy 52 Barrel Nipple
ASTM A860 Wphy 52 Barrel Nipple
CS Reducing Nipple
CS Reducing Nipple
Carbon Steel Bend
Carbon Steel Bend
Carbon Steel Long Radius Bend
Carbon Steel Long Radius Bend
Carbon Steel Pipe Fittings
Carbon Steel Pipe Fittings
Carbon Steel Buttweld Fittings
Carbon Steel Buttweld Fittings
CS Pipe Fittings
CS Pipe Fittings

Yield Chart Of ASME B16.9 Carbon Steel Buttweld Pipe Fittings

PropertiesMetricImperial
Tensile strength, ultimate635 MPa92100 psi
Tensile strength, yield490 MPa71100 psi
Modulus of elasticity0.27-0.300.27-0.30
Bulk modulus (typical for steel)140 GPa20300 ksi
Shear modulus (typical for steel)80 GPa11600 ksi
Poissons ratio (typical for steel)0.27-0.300.27-0.30
Elongation at break (in 50 mm)10%10%
Reduction of area45%45%
Hardness, Brinell187187
Hardness, Knoop (converted from Brinell hardness)209209
Hardness, Rockwell B (converted from Brinell hardness)9090
Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only)1010
Hardness, Vickers (converted from Brinell hardness)196196
Machinability (based on AISI 1212 steel. as 100 machinability)6060
Ibr And Eil Approved Manufacturer Of Astm A860 Wphy 42/ 52 / 60 / 65 / 70 Fittings | Custom Sizes In Mss-sp-75 Wphy 60 Weldolet/ Outlet Fittings, Branch Fittings And Cs Weld Fittings

Packaging Of Carbon Steel Elbow

Carbon steel Pipe Fittings Packaging
Packaging Of Carbon Steel Elbow

Prestige quality Cs Fittings Suppliers In Uae offer in EN, DIN, ISO, BS, JIS or ANSI standard.

ASTM A420 Wpl6 Pipe Fittings Features

  • High tensile strength
  • Good load bearing capacity
  • Excellent versatility and weldability

Carbon Steel Buttweld Fittings Application

  • Petrochemicals
  • Gas Processing
  • Chemical Equipment
  • Off-Shore Oil Drilling Companies
  • Pharmaceutical Equipment
  • Pulp & Paper Industry
  • Sea Water Equipment
  • Power Generation

ASME Sa234 Wpb Long Radius Elbow Density

Physical PropertiesMetricImperial
Density7.87 g/cc0.284 lb/in3

Carbon Steel Pipe Fittings Grades

MaterialFitting
CSA234 Gr WPA
A234 Gr WPB
A234 Gr WPC
CS
Alloy
High-Temp
A234 Gr WP1
A234 Gr WP11
A234 Gr WP12
A234 Gr WP22
A234 Gr WP5
A234 Gr WP9
CS
Alloy
Low-Temp
A420 Gr WPL6
A420 Gr WPL3

Carbon Steel Tube Bends Stock

ASTM A234 WPB Pipe FittingsCarbon Steel Buttweld Pipe Fittings
ASME Sa 105 Pipe ElbowASTM A234 WPB Buttweld Tee
ASTM A234 WPB Seamless Pipe FittingsASTM A234 WPB Welded Pipe Fittings
Carbon Steel Butt weld FittingsASTM A234 WPB Pipe End Cap
Carbon Steel StubendsCarbon Steel Fittings
ASTM A234 WPB CS Pipe TeeCarbon Steel Cross
CS Buttweld ReducerASTM A234 WPB Pipe Fittings
ASTM A234 WPB ASME Sa 105 45deg.ElbowASTM A234 WPB 90deg. LR Elbow
ANSI B16.9 Carbon Steel Buttweld FittingCS End Pipe Cap
Carbon Steel Buttweld Reducing NippleASTM A234 WPB Short Radius Elbow

Carbon Steel Fittings Equivalent Length

Sch 40 steel pipe with an (I.D.) of 0.172 ft & 52.5 millimeter then the Length of Equivalent the globe valve in terms of the steel pipe is 320 x 0.172 = 55 ft & 320 x 52.5 = 16800 millimeter.

Ltcs Tee Test Certificate

Ltcs Tee Test Certificate

ASTM A420 Wpl6 Pipe Reducer Services

  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test
  • Micro and MacroTest
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
Carbon Steel Fittings Services

Carbon Steel Fittings Hs Code

HSN CodeProduct Description
7307Tube or pipe fittings (for example, couplings, elbows, sleeves), of iron or steel
730791Flanges:
73079190Other
730799Other:
73079990Other
730793Butt welding fittings:
73079390Other

A Global supplier

We supply ASTM A234 WPB Elbow in below countries

Carbon Steel Pipe Fittings Manufacturer in India

Carbon Steel Pipe Fittings Manufacturer in India

Carbon Steel Elbow

Carbon Steel Elbow


Dubai- UAE, Australia, South Africa, Bahrain, United Arab Emirates (UAE), Jakarta, Hong Kong, France, Ellington -United States, Belgium, Turkey, China, Taiwan, Egypt, Qatar, Mexico, Singapore, Vietnam, Kuwait, Indonesia, Nigeria, Netherlands, Brazil, Japan, Canada, Malaysia, USA, Iran, Peru, Portugal, Chile, Malaysia, Romania, Norway, Dubai, Germany, Poland, Europe, South Korea, Oman

ASTM A420 WPL6 Buttweld Pipe Fittings

ASTM A420 WPL6 Buttweld Pipe Fittings

Sweden, Dammam -KSA, Czechia, South Africa, Denmark Malaysia, Greece, Tehran -Iran, Istanbul- Turkey, New Zealand, Kuala Lumpur, United States, Austria, Morocco, Colombia, Singapore, Argentina, Saudi Arabia (KSA), Thailand, Bangladesh, Jakarta -Indonesia, Philippines, Russia, Los Alamos -Mexico, NY 12203 (USA), United Kingdom (UK), Jordan, Italy, Finland, Spain
