Alloy Steel Plates


Alloy Steel Plates

What Is Alloy Steel Plates?

Alloy Steel Plates are components, which are composed of a range of alloys. The number of alloys determine the overall strength and performance of these plates. Having common alloys of iron and carbon, these plates provide excellent strength and stability to different applications. Alloy steel plates are designed in sizes over 6mm and offer corrosion and oxidation resistance as per their chemical make-up.

AISI 4140 Plate Vs AISI 4130 Sheet

Plates and sheets are versatile components that can be differentiated on different parameters.

  • AISI 4140 Plate is designed in sizes above 6mm. AISI 4130 sheet is designed in sizes below 6mm.
  • Plates are utilized in building applications requiring high strength and durability. Sheets are utilized to build applications requiring low levels of durability and stability.
  • AISI 4130 sheets offer superior machinability than 4140 plates.
  • AISI 4140 plates have a higher carbon content than their counterpart.
  • After annealing 4130 sheets, they become less strong while 4140 plates become ductile.
  • AISI 4140 plates have superior mechanical properties compared to AISI 4130 sheets.

16mo3 Sheet Oil And Gas Application

16mo3 Sheet is a component that is designated for utilization in elevated pressure systems. The molybdenum grade within these sheets gives the component superior resistance against corrosive media, which is common in oil and gas applications. These sheets of sizes below 6mm are seen in boiler tubes, pressure vessels that are common in the oil and gas industry.

ASTM A387 Grade 11 Class 2 Plate

ASTM A387 Grade 11 Class 2 plate is a chromium molybdenum plate that is designed for high-temperature systems. The exceptional concentration gives the components within this grade superior resistance against corrosion and oxidation. The plates possess excellent strength coupled with superior mechanical properties. These components are widely seen across pressure vessel plates, boiler components that are subjected to elevated temperature systems.

Comparision Between SA 387 Gr 12 Cl 2 Foil And ASTM A387 Grade 5 Strip

SA 387 Gr 12 Cl 2 foil and ASTM A387 Grade 5 strip are amongst the thinnest metal modules in this range. Their functionality and gauge thickness are important parameters utilized in differentiating them.

  • SA 387 Gr 12 Cl 2 foil is designed with a thickness of less than 0.2mm. These foils are used to wrap different items providing them with protection against corrosion and damage.
  • ASTM A387 Grade 5 strip is produced with thicknesses between 0.2mm to 0.5mm. These components play an important feature in different welding procedures.

Astm A514 Grade B Shim Sheet Features

Some of the features of Astm A514 Grade B shim sheet include:

  • Employed to fill spaces and gaps in metal components.
  • Provide stability and rigidity to different equipment in the system
  • Designed with thicknesses above 0.020mm
  • Rugged construction with a compact design
  • Easy to install
  • Ability to withstand heavy loads and torsion

Gr. 9 Alloy Steel Coil Characteristics


Some basic characteristics of the Gr. 9 Alloy Steel Coil are:
  • Superior corrosion and oxidation resistance
  • High strength and toughness
  • Easily rolled or wound after rolling process
  • Can be transported easily for processing
  • Available in thickness between 1.2mm to 20mm, having a width of above 600mm
  • Ability to be cut or sheared into different metal components.

AISI 4140 Plate and 16mo3 Plate Supplier in Mumbai


Alloy Steel Plate


Alloy Steel Plate Material Specification

SpecificationsASTM A387 / ASME SA387
Thickness1mm-300mm
Width
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4050mm etc
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm, 15000mm etc
Surface2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching Manufacturer and Supplier
FinishHot rolled plate (HR), Cold rolled sheet (CR)
FormFoils, Coils, Rolls, Shim Sheet, Plain Sheet, Strip Manufacturer and Supplier

ONGC Approved AISI 4130 Plate Supplier In India. Also Check 10CRMO910 Sheet Chemical Properties

16mo3 Plate Chemical Composition

GradesCMnPSSICrMo
ASTM A387 Grade 50.15 max0.3 – 0.60.0350.030.5 max4.00 – 6.000.45 – 0.65
ASTM A387 Grade 90.15 max0.30 – 0.60.030.031.0 max8.0 – 10.00.9 – 1.1
ASTM A387 Grade 110.05 – 0.170.4 – 0.650.0350.0350.5 – 0.801.0 – 1.50.45 – 0.65
ASTM A387 Grade 120.05 – 0.170.4 – 0.650.0350.0350.15 – 0.40.8 – 1.150.45 – 0.6
ASTM A387 Grade 220.05 – 0.150.3 – 0.60.0350.0350.5 max2.0 – 2.50.9 – 1.1

SP Metals is an ISO certified Alloy Steel Plates Suppliers in India & AISI 4140 Plate distributor in Mumbai

Aisi 4140 Plate Mechanical Properties

Tensile StrengthYield StrengthElongationin 200mm (%)Elongation in 50mm (%)
70-90 ksi, 485-620 MPa45 Ksi, 310 MPa1822

Stockist Of Astm A387 Grade 11 Class 2 Plate In India | Also Check Sa 387 Gr 12 Cl 2 Equivalent Material

Astm A387 Grade 5 Equivalent

USAUSAEUROPEANGERMANYUK (BRITISH STANDARD)FRANCERUSSIA
ASTMASMEEN 10028DINBSAFNOR 36206GOST
A 387 5SA 387 5X12CrMo5------15KH5M
A 387 9SA 387 9---------
A 387 11SA 387 1113CrMoSi5-5---621B
A 387 12SA 387 1213CrMo4-513CrMo44620B15CD2.0512KHM
A 387 22SA 387 2210/11CrMo9-1010CrMo9-10622-515B12CD9-1010KH2M
A 387 91SA 387 9110CrMoVNb9-1---

SP Metals is an ISO certified AISI 4140 Plate Suppliers in India & ASME SA387 Steel Plates Stockist in Mumbai.

Chrome Moly Plates Fabrication Process

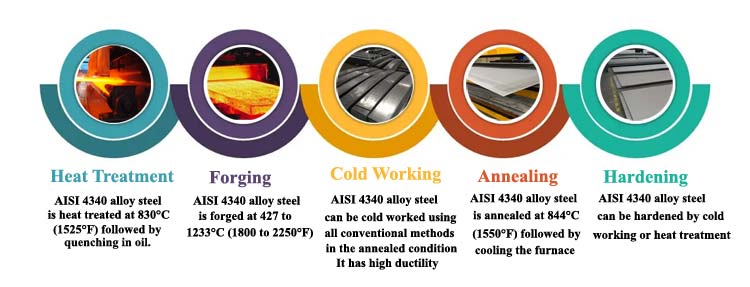

Alloy Steel Plate Fabrication

Alloy Steel Plates Grades

  • ASTM A387 Grade 5
  • ASTM A387 Grade 9
  • ASTM A387 Grade 11
  • ASTM A387 Grade 12
  • ASTM A387 Grade 22

Testing And Documentation Of Astm A514 Plate

The Metallurgical Tests Are-

  • Positive material identifications
  • Chemical composition analysis
  • Micro/ macro test
  • Ultrasonic test
  • Radiography
  • Pitting corrosion test
  • Intergranular corrosion test

The Destructive Tests Are-

  • Tensile test
  • Hardness test
  • Hydro testing
  • Thermal performance test
  • Mechanical properties testing
  • Flattening test
  • Flaring test

Check Price List Of Astm A514 Grade B Plate And Aisi 4130 Sheet In India

Alloy Steel Plate Price Per Kg

DescriptionPrice in IndiaPrice in Us
astm a537 mild class 1 2 astm a514 grade b steel plate37.13 - 51.98US $0.50-$0.70 / Kilogram
aisi 4130 4340 alloy steel sheet211.63 - 221.29US $2.85-$2.98 / Kilogram
hot rolled steel plate Steel/Alloy Steel Plate/Coil/Strip/Sheet742.57 - 965.34US $10.00-$13.00 / Kilogram
ASME SA 387 GRADE 5 Class 1 chrome moly alloy steel plate211.63 - 222.77US $2.85-$3 / Kilogram

Prestige quality Alloy Steel coil Supplier in India offer in EN, DIN, ISO, BS, JIS or ANSI standard.

ASME SA387 Steel Plates Dimension

AS Plate Imperial Dimensions

Plate Surface finishGauge (in)Width (max in)
2B – Cold rolled, heat treated, pickled, skin passed Plate10–2472*
2D – Cold rolled, heat treated, pickled plate12–2460
BA Mexinox only18–2848
Polished plate (not brushed)11–2460
Temper rolled plate Mexinox only13–2948

Alloy Steel Plate Metric Dimensions

Plate Surface finishThickness (mm)Width (max mm)
2B – Cold rolled, heat treated, pickled, skin passed plate0.25–8.02032
2D – Cold rolled, heat treated, pickled plate0.4–6.351524
2E – Cold rolled, heat treated, mechanically descaled plate0.4–8.02032
2R – Cold rolled, bright annealed plate0.25–3.51524
2H – Work hardened plate0.4–6.351524
Polished, brushed plate0.5–4.01524

Aisi 4130 Plate Packaging

  • Packaging
  • Carton boxes
  • Wooden crates/pallets/boxes

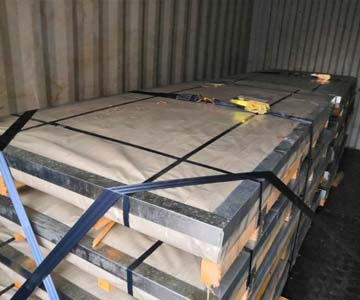

AS Plate packaging

Alloy Steel Plate Weight Calculator

ThicknessPlate Weight per Unit AreaDensity
3/16 inches0.06000 lbs/in²42.184176 kg/m²0.315 lbs/in³8.72 g/cm³
1/4 inches0.08 lbs/in²56.245568 kg/m²0.315 lbs/in³8.72 g/cm³
3/8 inches0.121 lbs/in²85.0714216 kg/m²0.315 lbs/in³8.72 g/cm³
1/2 inches0.161 lbs/in²113.1942056 kg/m²0.315 lbs/in³8.72 g/cm³
5/8 inches0.196 lbs/in²137.8016416 kg/m²0.315 lbs/in³8.72 g/cm³
3/4 inches0.235 lbs/in²165.221356 kg/m²0.315 lbs/in³8.72 g/cm³
7/8 inches0.274 lbs/in²192.6410704 kg/m²0.315 lbs/in³8.72 g/cm³
1 inches0.313 lbs/in²220.0607848 kg/m²0.315 lbs/in³8.72 g/cm³
1 1/4 inches0.391 lbs/in²274.9002136 kg/m²0.315 lbs/in³8.72 g/cm³
1 1/2 inches0.47 lbs/in²330.442712 kg/m²0.315 lbs/in³8.72 g/cm³
1 3/4 inches0.549 lbs/in²385.9852104 kg/m²0.315 lbs/in³8.72 g/cm³
2 inches0.627 lbs/in²440.8246392 kg/m²0.315 lbs/in³8.72 g/cm³
2 1/4 inches0.705 lbs/in²495.664068 kg/m²0.315 lbs/in³8.72 g/cm³
2 1/2 inches0.784 lbs/in²551.2065664 kg/m²0.315 lbs/in³8.72 g/cm³
2 3/4 inches0.862 lbs/in²606.0459952 kg/m²0.315 lbs/in³8.72 g/cm³
3 inches0.941 lbs/in²661.5884936 kg/m²0.315 lbs/in³8.72 g/cm³
Buy Quenched And Tempered Alloy Steel Plate For Structural Use At Best Price | View En 10028-2 P265gh Material Price Per Kg In Mumbai

Uses Of En 10028-2 P265gh Plate

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Alloy Steel Plate Manufacturers in India, Suppliers Of 13CRMO45 Sheet In Mumbai, One Stop Shop For All 16mo3 plate.

Gr. 9 Alloy Steel Plate Hs Code

HS CodeDescription
72254020Alloy Steel Hot Rolled Sheet and Plate

Test Certificate Of Alloy Steel Strip

  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc
Alloy Steel Plate Test

Get instant delivery Of 2 Inch Chrome Moly Plates, Weight Chart Of en 10028-2 p265gh plate, Alloy Steel Sheet Suppliers In Mumbai, India.

Types Of Alloy Steel Sheet

Chrome Moly Plates
Chrome Moly Plates
Astm A514 Plate
Astm A514 Plate
En 10028-2 P265gh Plate
En 10028-2 P265gh Plate
16mo3 Sheet
16mo3 Sheet
13crmo45 Sheet
13crmo45 Sheet
10crmo910 Sheet
10crmo910 Sheet
AISI 4130 Plate
AISI 4130 Plate
AISI 4140 Plate
AISI 4140 Plate
ASME SA387 Steel Plates
ASME SA387 Steel Plates
ASME SA 387 Grade 5 Class 1 Plates
ASME SA 387 Grade 5 Class 1 Plates
ASME SA 387 Grade 9 Class 1 Plates
ASME SA 387 Grade 9 Class 1 Plates
ASME SA 387 Grade 11 Class 1 Plates
ASME SA 387 Grade 11 Class 1 Plates
Alloy Steel Strip
Alloy Steel Strip
ASME SA 387 Grade 12 Class 1 Plates
ASME SA 387 Grade 12 Class 1 Plates
ASME SA 387 Grade 22 Class 1 Plates
ASME SA 387 Grade 22 Class 1 Plates
ASME SA 387 Grade 91 Class 1 Plates
ASME SA 387 Grade 91 Class 1 Plates
ASME SA 387 Grade 5 Class 2 Plates
ASME SA 387 Grade 5 Class 2 Plates
Alloy Steel Foil
Alloy Steel Foil
ASME SA 387 Grade 9 Class 2 Plates
ASME SA 387 Grade 9 Class 2 Plates
ASME SA 387 Grade 11 Class 2 Plates
ASME SA 387 Grade 11 Class 2 Plates
ASME SA 387 Grade 12 Class 2 Plates
ASME SA 387 Grade 12 Class 2 Plates
ASME SA 387 Grade 22 Class 2 Plates
ASME SA 387 Grade 22 Class 2 Plates
Alloy Steel Shim Sheet
Alloy Steel Shim Sheet
ASME SA 387 Grade 91 Class 2 Plates
ASME SA 387 Grade 91 Class 2 Plates
Alloy Steel Plates
Alloy Steel Plates
Alloy Steel Sheet
Alloy Steel Sheet
Alloy Steel Coil
Alloy Steel Coil
Explore Sizes, Thickness In Our Ready Stock Of Astm A387 Grade 5/ Gr. 9 And Alloy Steel Grade 22 Class 1/ Cl 2

Alloy Checker Plate Sizes

Size (in inches)Size (in mm)
.125"3.18mm
.134"3.40mm
.156"3.96mm
.187"4.75mm
.250"6.35mm
.312"7.92mm
.375"9.53mm
.500"12.7mm
.600"15.9mm
.750"19.1mm
.875"22.2mm
1"25.4mm
1.125"28.6mm
1.250"31.8mm
1.500"38.1mm
1.750"44.5mm
2"50.8mm
2.500"63.5mm
3"76.2mm

ASME SA 387 Grade 5 Class 1 Plates Thickness

Item
Dimension thickness is in inches
0.025"4"0.75"
0.032"3.5"0.875"
0.036"0.109"1"
0.04"0.125"1.125"
0.05"0.16"1.25"
0.063"0.19"1.5"
0.071"0.25"1.75"
0.08"0.3125"2"
0.09"0.375"2.5"
0.095"0.5"3"
0.1"0.625"

Alloy Steel Sheet For Sale

4140 Alloy Steel Plate 4130 Alloy Steel Plate Chromoly Steel Plate
4130 Steel Plate Chrome Steel Tube 4140 Steel Plates
4130 Chromoly Steel Plate 4150 Steel Plate Chrome Steel Plate
Chromoly Steel Plate 4340 Steel PlateAlloy Steel Sheet
4140 Steel Sheet 4130 Steel Plates 4140 Plate
Chromoly Steel Sheet Alloy Steel Plate 4340 Steel Plate
Astm A514 Steel PlateChrome Moly Steel Platesen 10028-2 p265gh Steel plate
16MO3 Alloy Steel Sheet13CRMO45 Steel Sheet10CRMO910 Steel Sheet
ASME SA387 Steel PlatesASME SA 387 GRADE 5 Class 1 Cold Drown PlatesASME SA 387 GRADE 9 Class 1 Chequered Plates
ASME SA 387 GRADE 11 Class 1 #4 Finish SheetASME SA 387 GRADE 12 Class 1 Hot Rolled PlatesASME SA 387 GRADE 22 Class 1 clad plate
ASME SA 387 GRADE 91 Class 1 Shim SheetsASME SA 387 GRADE 5 Class 2 SheetsASME SA 387 GRADE 9 Class 2 Plate
ASME SA 387 GRADE 11 Class 2 PlateASME SA 387 GRADE 12 Class 2 SheetsASME SA 387 GRADE 22 Class 2 2B Finish Plate
ASME SA 387 GRADE 91 Class 2 HR PlatesAlloy STeel SheetAlloy STeel Coil

Benefits Of ASME SA 387 Grade 11 Class 1 Sheet

  • High Strength & Efficiency
  • High Performance
  • Longer Life Span
  • Flawless Finish
  • Durable
  • Corrosion Resistant Body
  • High Temperature Resistant Body
  • Good Weldability

ASME SA 387 Grade 12 Class 2 Plate Temperature Limit

ASTM A387 Alloy Steel Sheet is applied in the temperature range between 316℃ to 593℃. The elevated temperature properties of it are still of particular interest, even with the current trend towards applications with high CVN toughness requirements.

Alloy Steel Shim Sheet Service

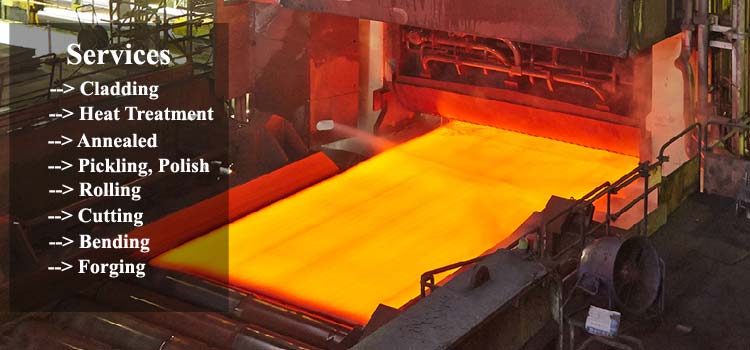

AS Plate Services

Grade 22 Class 1 Plate Welding Material

Welding of such material is done at the raised temperatures. The Alloy Steels Plates Manufacturer preheat temperature and interpass temperature is kept within the extend of 400-550 F. Beneath these said Properties and Welding Procedure the welding was done.

SA 387 Strip Laser Cutting

  • Steel thickness under 1.0mm, tolerances is +/- 0.12 mm.
  • From 1.0 mm to 3.0 mm, tolerances allowed +/- 0.15 mm.
  • From 3.0 mm to 6.0 mm, +/- 0.20 mm.
  • 6.0 mm to 15.0 mm, laser cutting tolerances at +/- 0.25 mm.
  • Up 15.0 mm to 20.0 mm, laser cut tolerances at +/- 0.75 mm.

Alloy Steel Coil Thermal Properties

PropertiesMetricImperial
Thermal expansion co-efficient (20°C/68°F, specimen oil hardened, 600°C (1110°F) temper12.3 µm/m°C6.83 µin/in°F
Thermal conductivity (typical steel)44.5 W/mK309 BTU in/hr.ft².°F

Alloy Steel Sheet Standard

  • ASTM A387 / ASME SA387
  • ASTM A829 / A829M
  • ASTM A514 / A514M
  • ASTM A202/A202M
  • ASTM A633 / A633M
  • ASTM A506 / ASME SA506
  • ASTM A517 / A517M

A Global supplier

Oldest AISI 4140 Plate Suppliers, Frequent Delivery In The Following Countries

Alloy Steel Plates Suppliers in India

Alloy Steel Plates Suppliers in India

16mo3 plate

16mo3 plate


Singapore, Germany, Italy, United Arab Emirates (UAE), Australia, Norway, Kuwait, South Africa, Czechia, Indonesia, Kuala Lumpur, Egypt, Brazil, United States, Bahrain, Netherlands, Morocco, New Zealand, South Korea, Spain, Philippines, Belgium, Peru, Iran, Japan, Thailand, Vietnam, Jordan, Russia, Singapore, Poland, Bangladesh, Dammam -KSA, Malaysia, Jakarta, Turkey, Dubai- UAE

ASTM A387 Grade 11 class 2 Plate

ASTM A387 Grade 11 class 2 Plate


Argentina, Dubai, Portugal, Qatar, NY 12203 (USA), Mexico, Chile, Istanbul- Turkey, Oman, China, United Kingdom (UK), Nigeria, Tehran -Iran, Saudi Arabia (KSA), Europe, South Africa, Jakarta -Indonesia, Sweden, Malaysia, Los Alamos -Mexico, Romania, Malaysia, Taiwan, Finland, Hong Kong, Canada, Ellington -United States, Denmark Austria, USA, Colombia, Greece, France
