Stainless Steel 304L Round Bar


Stainless Steel 304L Round Bar

What is Stainless Steel 304L Round Bar?

Stainless Steel 304L Round Bar is an austenitic low carbon version of the 304 grade. The round bars within this range have a uniform cross-section, which is smaller than its length. The lower carbon grade modules can be easily welded, eliminating the fears of localized corrosion and the requirement of post-weld treatment. These bars can withstand a range of reducing media while working in temperatures up to -180 degrees C. These robust round bars can provide support to different applications across corrosive and stress-induced environments.

ASTM A276 Grade 304L Rod Application

ASTM A276 Grade 304L Rod is a long module having a circular cross-section. These rods have countless uses from, holding objects to building ladder rungs. These aesthetically appealing rods last longer when exposed to salts and reducing acids due to their superior chemical composition. They are widely seen in food processing, aerospace, wastewater treatment, structural applications in the automotive sector, architectural and construction systems from building bridges to parking garages. Apart from this, they are also a feature in pharmaceutical industries and chemical processing systems

Difference Between 304L Stainless Steel Flat Bar and ASME SA276 grade 304L Square Bar

304L Stainless Steel Flat Bar and ASME SA276 grade 304L square bar can be both characterized as identical components with the same properties. The major differentiating factors between both of these components are their sizes of width and thickness.

  • 304L Stainless Steel flat bar is designed with a rectangular cross-section. An ASME SA276 grade 304L square bar is designed with a square cross-section with all sides being equal.
  • A square bar is designed with greater thickness than a standard flat bar.

ASTM A479 UNS S30403 Hex Bar Vs WNR 1.4306 Threaded Bar

Hexagonal and threaded bars are two unique bars within this grade, which can be characterized based on different parameters.

  • ASTM A479 UNS S30403 Hex Bar has a six-sided cross-section. WNR 1.4306 threaded bar generally possesses a 4-sided cross-sectional area.
  • Threaded bars have threads, which correspond directly to threads of the other modules. Hexagonal bars are generally welded on the corresponding module.
  • Threaded bars allow the user to dismantle the component. Hexagonal bars cannot be easily dismantled once they are fitted using a weld.

SS 304L Round Bar


Specification Chart Of Stainless Steel 304L Round Bar

ASTM StandardASTM A276 /ASME SA276, ASTM A479/ASME SA479
Dimensions of rodEN, AISI, JIS, BS, DIN, ASTM, ASME
Dual certified Manufacturers Dual certified SS 304L Round Bar Manufacturers in India, accordance to certify ASME SA276 and ASTM A276 American specifications
Size of Round Bars
range of Outside Diameter : 4mm to 500mm
Sizes and Schedules of Flat Bars
Size: 1/2” to 10” , thickness range: 2mm to 150mm,
Sizes Available in Hex Bars18mm – 57mm (11/16" to 2-3/4″)
Bright Bars Size Chart In Mm
range of Outside Diameter : 4mm to 100mm
Marking
  • Nominal Pipe Sizes
  • Specification
  • Grade
  • Supplier / Manufacturer’s Name or Custom Logo - on request
  • Heat Number
Square Bars Size Range
18mm – 47mm (11/16" to 1-3/4″)
Length of round bar1 to 6 Meters Long or Above than it
Available FinishesRough, BA Finish, Polished, NO.4 Finish, Black, Matt Finish, Bright, Turned
Form of round barHex (A/F), Square, Ingot, Rectangle,Forging, Billet, Round

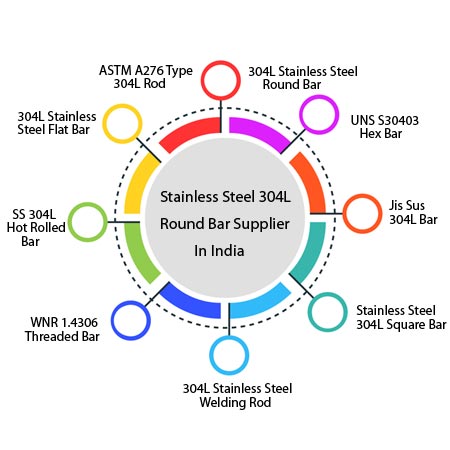

Stainless Steel 304L Round Bar Suppliers in India

Brushed ASTM A276 Grade 304L Rod, Check UNS S30403 Hex/Flat Bar Sizes

Stainless Steel 304L Hex Bar Size

Wt per Foot of hex barSize in InchesWt per Inch
0.01801/4″2.160
0.01043/16″1.248
0.06003/8″4.920
0.02905/16″3.480
0.07401/2″8.880
0.05607/16″6.72
1.1505/8″13.80
0.09309/16″11.16
1.6603/4″19.92
1.39011/16″16.68
2.3007/8″27.60
2.60015/16″31.20
1.95013/16″23.40
3.301-1/16″39.60
2.901″34.80
4.6001-1/4″55.20
3.7001-1/8″44.40
5.6001-3/8″67.20
5.1001-5/16″61.20
6.6001-1/2″79.20
6.1001-7/16″73.20
26.533″318.36
9.0301-3/4″108.36
7.8001-5/8″93.60
18.422-1/2″221.04
11.802″141.60
10.04001-7/8″124.80
16.9202-3/8″203.04
14.9202-1/4″179.04

Size Chart of Stainless Steel 304L Flat Bar

metric weights and sizes
Colour Codebar Size(meters) LengthKilogram per Meter
Blue13 x 36.00.031
Blue10 x 30.024
Blue16 x 30.038
Orange13 x 50.046
Red16 x 81.03
Orange16 x 50.064
Orange20 x 50.081
Blue20 x 30.048
Yellow20 x 101.61
White20 x 60.097
Orange25 x 51.01
Blue25 x 30.060
Red25 x 81.61
White25 x 61.21
Pink25 x 122.41
Yellow25 x 102.01
Orange32 x 51.29
Blue32 x 30.077
Red32 x 82.06
White32 x 61.55
Pink32 x 123.09
Yellow32 x 102.58
Blue40 x 30.097
White40 x 61.93
Orange40 x 51.61
Yellow40 x 103.22
Red40 x 82.58
Grey40 x 165.15
Pink40 x 123.86
Blue50 x 31.21
Green40 x 206.14
White50 x 62.41
Orange50 x 52.01
Yellow50 x 104.02
Red50 x 83.22
Grey50 x 166.44
Pink50 x 124.83
Purple50 x 2510.01
Green50 x 208.05
Orange65 x 52.62
Blue65 x 31.57
Red65 x 84.18
White65 x 63.14
Pink65 x 126.28
Yellow65 x 105.23
Green65 x 2010.05
Grey65 x 168.37
Orange75 x 53.02
White75 x 63.62
Purple65 x 2513.1
Yellow75 x 106.04
Red75 x 84.83
Grey75 x 169.66
Pink75 x 127.24
Purple75 x 2515.1
Green75 x 2012.1
Orange90 x 53.62
Yellow75 x 4024.1
White90 x 64.35
Red90 x 85.79
Yellow90 x 107.24
Pink90 x 128.69
Orange100 x 54.02
White100 x 64.83
Red100 x 86.44
Yellow100 x 108.05
Pink100 x 129.66
Grey100 x 1612.9
Green100 x 2016.1
Purple100 x 2520.01
Green100 x 5040.02
White110 x 65.31
Red110 x 87.08
Yellow110 x 108.85
Pink110 x 1210.06
Orange130 x 55.23
White130 x 66.28
Red130 x 88.37
Yellow130 x 1010.05
Pink130 x 1212.6
Grey130 x 1616.7
Green130 x 2020.09
Purple130 x 2526.2
Orange150 x 56.04
White150 x 67.24
Red150 x 89.66
Yellow150 x 1012.1
Pink150 x 1214.5
Grey150 x 1619.3
Green150 x 2024.1
Purple150 x 2530.01
Green150 x 5060.04
Orange180 x 57.24
White180 x 68.69
Yellow180 x 1014.5
Pink180 x 1217.4
Grey180 x 1623.2
Green180 x 2029.0
Purple180 x 2536.2
White200 x 69.66
Red200 x 812.9
Yellow200 x 1016.1
Pink200 x 1219.3
Grey200 x 1625.7
Green200 x 2032.2
Purple200 x 2540.03
White250 x 612.1
Red250 x 816.1
Yellow250 x 1020.01
Pink250 x 1224.1
Grey250 x 1632.2
Green250 x 2040.02
Purple250 x 2550.03
White300 x 614.5
Red300 x 819.3
Yellow300 x 1024.1
Pink300 x 1229.0
Grey300 x 1638.6
Green300 x 2048.3
Purple300 x 2560.04

Looking for Stainless Steel 304L Round Bar suppliers who offer prompt delivery in Asia? Manufacturer of 304L Stainless Steel Flat Bar in India, call us for big discount and ready sizes, check latest price of ASTM A276 Type 304L Rod in Mumbai

Check Price list of 304L Stainless Steel Flat Bar, Polished ASME SA 479 Type 304L Forged Bar, View SGS Test 2B surface SS 304L Round Bar Manufacturer India

ASTM A276 Type 304L Rod Price

DescriptionPrice in USPrice in India
Aisi Ss 304l Stainless Steel Round BarsUS $1499-$1799 / Ton111533.84 - 133855.49
304L stainless steel bright hex barUS $1200-$1500 / Ton89286.60 - 111608.25
304L stainless steel round bar / stainless steel rodUS $1.50-$3.50 / Kilogram111.61 - 260.42
304l ss Hot Selling 40mm astm stainless steel half round bar US $1319-$2030 / Ton98140.85 - 151043.17
304l Stainless Steel Angle BarUS $30.00-$50.00 / Kilogram2232.16 - 3720.28

Well-known Manufacturer Of Stainless Steel 304L Rod in India. For final Stainless Steel 304L Square Bar Price List Please Call on +91 22 6636 3099.

Stainless Steel 304L Rod Surface Finish

CDCold drawnPPolished
BDBright drawnSRESlit rolled edge
CGCentreless groundHFHot finished
CFCold finishedHRAPHot rolled annealed and pickled
P&TPeeled and turnedRTRough turned/peeled
STSmooth turnedPRPeeled and reeled

Length Of 304L Stainless Steel Welding Rod

  • Metric system: standard length is 9 - 12 metres
  • USA : 40 feet

Tolerance Chart Of Jis Sus 304L Bar

Shape / SectionSize, diameter or width across flatsPermitted variation
mmmm
Round≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
+ 0 to - 0.070
+ 0 to - 0.085
+ 0 to - 0.100
+ 0 to - 0.120
+ 0 to - 0.140
Flat (thickness)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.250
+ 0 to - 0.350
Flat (width)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.190
+ 0 to - 0.220
+ 0 to - 0.350
+ 0 to - 1.00
+ 1.00 to - 1.00
Square and
hexagon
≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105
+ 0 to - 0.090
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.250

Manufacturer & Supplier Of 304L Stainless Steel Round Bar, UNS S30403 Hex Bar In India

Check Global sales network For 304L Stainless Steel Square Bar in Mumbai, View available sizes of Hot Rolled SS 304L Bar

Stainless Steel 304L Rod Sizes

US BarMetricJapaneseCanadian/ASTM
Diameter(Inch) Bar SizeDiameter (millimeter) Bar SizeDiameter (millimeter)Round Bar SizeDiameter (millimeter2)Bar Size
0.250#2556610010M
0.375#35.55.5101020015M
0.500#466131330020M
0.625#577161650025M
0.750#688191970030M
0.875#7992222100035M
1.000#810102525150045M
1.125#911112929250055M
1.250#1012123232
1.375#1114143535
1.500#1216163838
1.625#1318184141
1.750#1420204444
1.875#1522224848
2.000#1625255151
2.250#1828285757
3232
3636
4040
4444
5050

Buy 304L Stainless Steel Welding Rod Directly From Largest Manufacturers In Mumbai, Check Length and Weight Chart Of Jis Sus 304L Bar Stock

View SS 304L Bright Bars Weight Chart, Stainless Steel 304L Rods, Heavy Duty DIN 1.4306 Bar Dimension

WNR 1.4306 Threaded Bar Standards

Specifications:ASTM A479, ASTM A276, ASTM A182
International Specifications:Euronorm: X6CrNi08-10 Werstoff# 1.4306

Stainless Steel 304L Round Bar Sizerange

Range of Outside Diameter :4mm to 500mm

Delievery State Of Stainless Steel 304L Shaft

Delivery State ChoiceSurface Condition
ForgedBlack
Polished
Hot RolledBlack
Polished
Bright
Pickled
Cold DrawnPolished
Bright
Note:
1. If you require different deliver state than the above listed, kindly confirm with us.
2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated he

ASTM A479 UNS S30403 Polished Bar Condition

ANNAnnealed
H&THardened and tempered.
PHPrecipitation hardened.

Various Types Of 304L Stainless Steel Rod

Stainless Steel 304L Round Bar
Stainless Steel 304L Round Bar
Stainless Steel 304L Bright Bar
Stainless Steel 304L Bright Bar
SS 304L Hex Bar
SS 304L Hex Bar
Stainless Steel 304L Rod
Stainless Steel 304L Rod
ASTM A276 Grade 304L Stainless Steel Round Bar
ASTM A276 Grade 304L Stainless Steel Round Bar
ASTM A276 Type 304L Rod
ASTM A276 Type 304L Rod
Aisi 304L Stainless Steel Rod
Aisi 304L Stainless Steel Rod
ASTM A276 Grade 304L
ASTM A276 Grade 304L
ASTM A479 Type 304L Bar
ASTM A479 Type 304L Bar
Stainless Steel 304L Hex Bar
Stainless Steel 304L Hex Bar
Stainless Steel 304L Shaft
Stainless Steel 304L Shaft
Hot Rolled 304L Stainless Rod
Hot Rolled 304L Stainless Rod
Stainless Steel 304L Flat Bar
Stainless Steel 304L Flat Bar
Stainless Steel 304L Square Bar
Stainless Steel 304L Square Bar

Stainless Steel 304L Square Bar Size Chart

Size in milimeterAverage Weight
KG/FTKG/MTR
12 x 120.0301.010
10 x 100.0200.080
16 x 160.0602.000
14 x 140.0501.050
20 x 201.0003.014
17 x 170.0692.027
32 x 322.0408.000
63 x 639.05031.020
25 x 251.0504.090
42 X 424.02213.085
40 x 403.08012.060
53 X 536.07222.005
50 x 506.00019.060
56 x 567.05024.060

Sizes of ASTM A276 Type 304L Hollow Bar

Size in Mmkg per meterSize In MMkg per meter
20*20*2.01.1225*25*2.01.43
25*25*1.51.0620*20*2.51.35
25*25*2.51.7430*30*2.52.14
30*30*2.01.6825*25*3.02.04
30*30*3.02.5140*40*1.51.81
40*40*2.02.3150*50*1.52.28
40*40*3.03.4540*40*4.04.46
40*40*5.05.4040*40*2.52.92
50*50*2.02.9350*50*2.53.71
50*50*3.04.3960*60*3.05.34
50*50*5.06.9750*50*4.05.72
60*60*4.06.9760*60*5.08.54
60*60*6.09.4580*80*3.07.22
70*70*3.67.4670*70*5.010.11
70*70*6.312.5090*90*5.013.30
75*75*3.07.0780*80*5.011.70
80*80*3.68.5970*70*3.06.28
80*80*6.013.9090*90*3.08.01
90*90*3.69.7270*70*815.30
90*90*6.015.76100*100*4.012.00
100*100*3.08.9690*90*8.020.40
100*100*5.014.80120*120*6.322.30
100*100*6.016.19120*120*1034.20
100*100*1027.90120*120*518.00
120*120*6.021.30100*100*5.014.80
120*120*8.027.90100*100*8.022.90
120*120*1235.8120*120*12.541.60
140*140*5.021.10140*140*6.326.30
140*140*832.90140*140*1040.40
140*140*12.549.50150*150*5.022.70
150*150*6.328.30150*150*8.035.40
150*150*1043.60180*180*1053.00
150*150*1666.40180*180*6.334.20
180*180*527.40150*150*1666.40
180*180*843.00150*150*12.553.40
180*180*12.565.20200*200*635.8
200*200*530.50180*180*1681.40
200*200*6.338.2250*250*860.50
200*200*1059.30250*250*12.592.60
200*200*1691.50250*250*6.348.10
200*200*848.00250*250*1075.00
200*200*12.573.00250*250*16117.00
300*300*6.357.90400*400*16192
300*300*1057.90350*350*12.5132.00
300*300*12.5112.00300*300*16142.00
350*350*885.70350*350*10106.00
300*300*890.70350*350*16167.00
400*400*10122.00400*400*12141.00
400*400*12.5152.00300*300*873.10

Testing And Documnetation Of ASTM A479 Type 304L Bar

  • Positive material recognition
  • Chemical examination
  • Radiographic Test
  • Buckling & Crushing test
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Pitting Corrosion Test
  • Eddy Current test

SS 304L Round Bar Testing

Chemical Properties Of SS 304L Bars

GradeCMnSiPSCrMoNiN
SS 304L0.035 max2 max1.0 max0.045 max0.030 max18 – 208 – 13

Weight Calculation Of DIN 1.4306 Bars

  • ROUND – dia.mm2 x 0.006165 = Weight in kilograms per metre
  • ROUND – dia.mm2 x 0.004143 = Weight in lbs. per foot
  • HEXAGON – size mm2 x 0.006798 = Weight in kilograms per metre
  • HEXAGON – size mm2 x 0.00457 = Weight in lbs. per foot
  • SQUARE – Size mm2 x 0.000785 = Weight in kilograms per metre
  • SQUARE – Size mm2 x 0.00527 = Weight in lbs. per foot
  • Feet to metres x 0.3048
  • Metres to feet x 3.2809
  • U.K. tons per sq. inch (tons f/in2) x 15.4443 = Mega Pascals (MPa)
  • Mega Pascals (MPa) x 0.64749 = U.K. tons f per square inch
  • Newton per sq. milimeter (N/mm2) x 0.064749 = U.K. tons per sq. inch

PED Certified WNR 1.4306 Cold Rolled Round Bars Manufacturers in Mumbai, India, Dimensions Of 304L Stainless Steel Rod In MM.

Finding the best quality and reasonable Cold Rolled SUS 304L Round Bar in India, Check A479 Grade 304L Rod Dimension Chart

ASTM A276 Grade 304L Bar Dimension

Diameter or
Width
(milimeter)
Sectional Arearound bars Weight per meterPerimeter
Round
(centimeter²)
Square
(centimeter²)
Round
(kilogram)
Square
(kilogram)
Round
(centimeter)
Square
(centimeter)
5.00.200.250.150.201.572.0
5.50.240.300.190.241.782.2
6.00.280.360.220.281.882.4
7.00.380.490.300.382.202.8
8.00.500.640.390.502.513.2
9.00.640.810.500.642.833.6
100.791.000.630.733.144.0
110.951.210.750.953.464.4
121.131.440.891.133.774.8
141.541.961.211.544.405.6
162.012.561.582.015.036.4
182.543.242.002.545.657.2
203.144.002.473.146.288.0
223.804.842.983.806.918.8
254.916.253.854.917.8510.0
286.167.844.836.158.8011.2
328.0410.246.318.0410.0512.8
3610.1812.967.9910.1711.3114.4
4012.5716.009.8612.5612.5716.0
4515.9020.2512.4915.9014.1418.0
5019.6425.0015.4119.6215.7120.0
5624.6331.3619.3424.6217.5922.4
6331.1736.6924.4731.1619.7925.2
7139.5950.4131.0839.5722.3128.4
8050.2764.0039.4650.2425.1332.0

Check properties Of Stainless Steel 304L Round Bar and 304L Stainless Steel Round Bars Supplier & Manufacturers In Mumbai, India.

ASTM A276 Type 304L Forged Bar Mechanical Composition

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31400 °C (2550 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %

AISI 304L Hot Rolled Bar Processing

SS 304L Round Bar Processing

Equivalent Of Stainless Steel 304L Bright Bar

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 304L1.4306/1.4307S30403SUS 304L3304S1103Х18Н11Z3CN18‐10X2CrNi18-9 / X2CrNi19-11

Get instant delivery Of 20mm ASTM A479 UNS S30403 Cold Rolled Round Bar , Dimension Chart Of ASTM A276 Type 304L Hollow Bar, 304L Stainless Steel Rod Manufacturer In Mumbai. India.

Application Of WNR 1.4306 Square Bar

  • Aircraft parts, exhaust manifolds
  • Bearings
  • Valves
  • Instruments
  • Mining machinery
  • Screw machine products
  • Food processing equipment

SS 304L Round Bar Uses

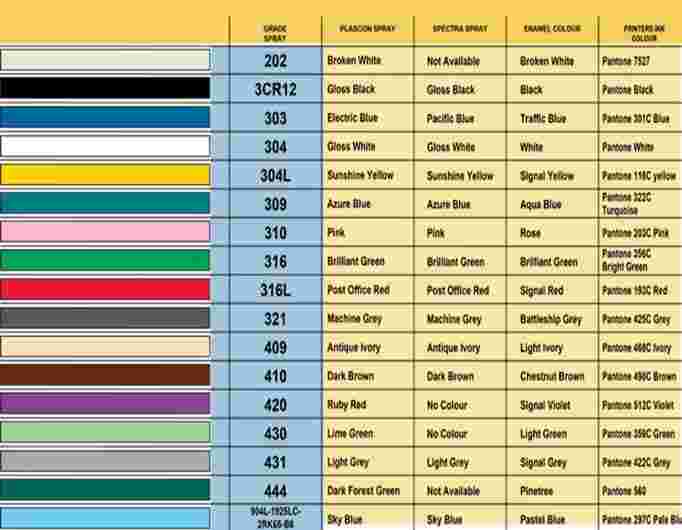

SS 304L Round Bar Colorcode

Color Code of AISI 304L Rod

A Global supplier

80% repeat orders from below countries

Stainless Steel 304L Round Bar Suppliers In India

Stainless Steel 304L Round Bar Suppliers In India

UNS S30403 Rod

UNS S30403 Rod


Canada, Saudi Arabia (KSA), Malaysia, United Arab Emirates (UAE), Iran, Oman, Taiwan, Belgium, Norway, United States, Austria, Jordan, Dammam -KSA, Germany, Finland, Nigeria, Japan, South Africa, Czechia, Philippines, Bahrain, Malaysia, Greece, United Kingdom (UK), Jakarta, Peru, Bangladesh, Tehran -Iran, Colombia, Malaysia, South Korea, Istanbul- Turkey, Dubai, Netherlands, Poland

ASTM A479 GR 304L Hex Bar

ASTM A479 GR 304L Hex Bar


South Africa, Chile, Turkey, Dubai- UAE, Russia, Singapore, Australia, USA, Morocco, Romania, Sweden, Brazil, Italy, Kuwait, Ellington -United States, Vietnam, Kuala Lumpur, China, Indonesia, New Zealand, Singapore, Argentina, Portugal, Jakarta -Indonesia, Los Alamos -Mexico, NY 12203 (USA), Thailand, Mexico, Europe, Qatar, Spain, France, Egypt, Denmark Hong Kong
