Stainless Steel 904L Round Bar
What is Stainless Steel 904L Round Bar?

Stainless Steel 904L Round Bar is a super austenitic non-stabilized grade. These round bars have a uniform circular cross-section and perform well in a range of stress-induced environments. The low carbon round bars have moderate to high corrosion resistances. The superior consecration of chromium and nickel alongside copper and molybdenum gives these bars enhanced resistance against crevice corrosion and stress corrosion cracking. The low carbon concentration allows these bars to be welded easily. Apart from this, these round bars possess exceptional toughness and formability across different environments.

Comparision Between SS 904L Square Bar and ASTM B649 Type 904L Rod

Bars and rods are versatile components across the metal industry. SS 904L square bar and ASTM B649 type 904L rod can be differentiated based on their shapes and basic features.

  • A 904L square bar is a component designed with a square cross-section. The 4-sides of these modules are perfectly equal. ASTM B649 type 904L rod is designed with a circular cross-section. It can be made into a square-cross section by welding it in place.
  • Square bars can exhibit distinct openings in the module. A rod is a long robust module designed without any openings.
SS 904L Tig Rod Oil and Gas Application

SS 904L Tig rod makes use of tungsten gas to aid its welding procedure. These rods have a uniform cross-section and possess superior corrosion and oxidation resistance properties which are a top need in oil and gas systems. These rods are employed as structural support systems in infrastructure in rigs and pressure vessels. Apart from this, they are employed across refining and processing systems within this industry.

ASTM B649 UNS N08904 Hex Bar vs DIN 1.4539 Threaded Rod

Bars and rods are used interchangeably in the metal industry however, both these modules can be differentiated based on certain features.

  • ASTM B649 UNS N08904 Hex Bar is a structure designed with a six-sided polygonal cross-section. DIN 1.4539 threaded rod is designed with a square or circular cross-section.
  • Hex bars are generally welded on different metal components. A threaded rod has threads that correspond directly to the module and doesn’t require welding.
  • Threaded bars can be easily dismantled. Hex bars offer good mobility in the system, but they cannot be easily dismantled easily once they are welded in place.
SS 904L Round Bar Features

SS 904L Round Bars are metal components that have a uniform cross-section that is smaller than its length. Some of the features of these bars include:

  • Superior corrosion resistance properties
  • Excellent resistance against sulphuric, phosphoric acids
  • Good strength and toughness
  • Enhanced resistance against crevice and stress corrosion cracking
  • Tolerant to temperatures up to 400 degrees C
  • Outstanding weldability using standard shop welding procedures
  • Non-magnetic
Table of Content

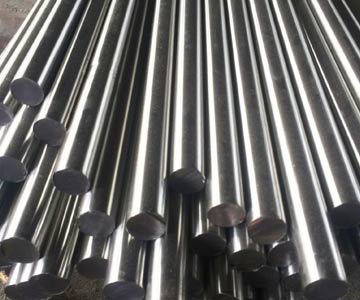

Stainless Steel 904L Round Bar

Stainless Steel 904L Round Bar

Stainless Steel 904L Square Bar

Stainless Steel 904L Square Bar

ASTM B649 Type 904L Rod

ASTM B649 Type 904L Rod

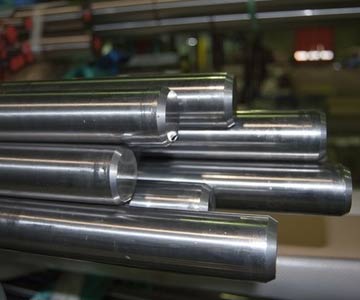

SS 904L Round Bar

SS 904L Round Bar

Ask For ASTM A479 A276 UNS N08904 Rod, DIN 1.4539 Hex Bar Dimension

Stainless Steel 904L Hex Bar Size Chart
Wt per Foot of hex barSize in InchesWt per Inch
0.01801/4″2.160
0.01043/16″1.248
0.06003/8″4.920
0.02905/16″3.480
0.07401/2″8.880
0.05607/16″6.72
1.1505/8″13.80
0.09309/16″11.16
1.6603/4″19.92
1.39011/16″16.68
2.3007/8″27.60
2.60015/16″31.20
1.95013/16″23.40
3.301-1/16″39.60
2.901″34.80
4.6001-1/4″55.20
3.7001-1/8″44.40
5.6001-3/8″67.20
5.1001-5/16″61.20
6.6001-1/2″79.20
6.1001-7/16″73.20
26.533″318.36
9.0301-3/4″108.36
7.8001-5/8″93.60
18.422-1/2″221.04
11.802″141.60
10.04001-7/8″124.80
16.9202-3/8″203.04
14.9202-1/4″179.04
Stainless Steel 904L Round Bar Specification Table
DimensionsJIS, EN, DIN, ASME, AISI, ASTM, BS
Size4 to 500 milimeter
Dual certified Manufacturers Dual certified Stainless Steel 904L Round Bar Manufacturer in India, accordance to certify ASME SA276 and ASTM A276 American specifications
Length of SS 904L BarCustom Cut Length, 1 to 6 Meter
FromHex, Forging, Round, Rectangle, Etc Ingot, Billet, Square
FinishMatt Finish, Black, Bright Polished, Rough Turned, BA Finish, No 4 Finish
Bright Bar SizesOuter Dia: 4 to 100 milimeter
Marking
  • Nominal Pipe Sizes
  • Specification
  • Manufacturing Method (Welded / Seamless)
  • Grade
  • Pipe Schedule or Wall Thickness
  • Supplier / Manufacturer’s Name or Custom Logo - on request
  • Heat Number
Hex Bar Sizes18milimeter – 57milimeter (11/16 to 2-3/4 inch)
SpecificationsASME SB 649, ASTM B 649 / ASTM A276 WS 1.4539, UNS N08904, AFNOR Z2CNDU 25-20
Square Bar Sizes18milimeter – 47milimeter (11/16 to 1-3/4 inch)
Flat Bar Sizes1/2 to 10 inch in thickness range of 2milimeter to 150milimeter
Section3.0 to 12.0mm thickness
Angle bars Size3*20*20~12*100*100milimeter
Hollow Bar Size32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size1/2″ to 495 milimeterDiameter
SurfaceBright, Cold Drawn, Sand Blasting Finished, Hairline, Polished HR Pickled
Conditionannealed, Hardened & tempered
Price TermsFOB, Ex-Works, CIF, CFR, CNF
Stainless Steel 904L Round Bar Manufacturers in India

SGS Test 2B surface Stainless Steel 904L Bar, WERKSTOFF NR. 1.4539 Round Bars, 904L SS Forged Bars available in a wide range of grades and shapes

SS 904L Tig Rod Finish
Peeled and turnedP&TRough turned/peeledRT
Cold drawnCDPolishedP
Centreless groundCGHot finishedHF
Bright drawnBDSlit rolled edgeSRE
Cold finishedCFHot rolled annealed and pickledHRAP
Smooth turnedSTPeeled and reeledPR

Looking for Stainless Steel 904L Round Bar Supplier who offer prompt delivery in Asia? Manufacturer of 904L Stainless Steel Bar in India, call us for big discount and ready sizes, check latest price of ASME Sa 276 UNS N08904 Rod in Mumbai

Tolerance Chart Of DIN 1.4539 Welding Rod
Shape / SectionSize, diameter or width across flatsPermitted variation
mmmm
Round≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100		+ 0 to - 0.070
+ 0 to - 0.085
+ 0 to - 0.100
+ 0 to - 0.120
+ 0 to - 0.140
Flat (thickness)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80		+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.250
+ 0 to - 0.350
Flat (width)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320		+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.190
+ 0 to - 0.220
+ 0 to - 0.350
+ 0 to - 1.00
+ 1.00 to - 1.00
Square and
hexagon		≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105		+ 0 to - 0.090
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.250
ASME Sb649 SS 904L Round Bar Sizes
US BarMetricJapaneseCanadian/ASTM
Diameter(Inch) Bar SizeDiameter (millimeter) Bar SizeDiameter (millimeter)Round Bar SizeDiameter (millimeter2)Bar Size
0.250#2556610010M
0.375#35.55.5101020015M
0.500#466131330020M
0.625#577161650025M
0.750#688191970030M
0.875#7992222100035M
1.000#810102525150045M
1.125#911112929250055M
1.250#1012123232
1.375#1114143535
1.500#1216163838
1.625#1318184141
1.750#1420204444
1.875#1522224848
2.000#1625255151
2.250#1828285757
3232
3636
4040
4444
5050

Manufacturer & Supplier Of Stainless Steel 904L Round Bar, 904L Stainless Steel Round Bar In India

Stainless Steel 904L Bright Bar Length
  • Metric system: standard length is 9 - 12 metres
  • USA : 40 feet
Weight Chart Of 904L Steel Cold Finished Bars
Round Bar bar Sizekilogram / Meterkilogram / FootSizekilogram / Meterkilogram / FootSizekilogram / Meterkilogram / Foot
1/8"0.0620.01922 millimeter2.9790.9083 to 1/4"41.99612.800
3 millimeter0.0550.01720 millimeter2.4700.7533"35.76210.900
4 millimeter0.0980.03024 millimeter3.5431.0803 to 3/4"55.78017.001
5/32"0.0950.0297/8"3.0380.9263 to 1/2"48.77214.850
5 millimeter0.1540.0471"3.9701.2104 to 1/4"72.24921.908
3/16"0.1410.04325 millimeter3.8711.1804"63.34019.306
6 millimeter0.2230.06827 millimeter4.4901.3684 to 3/4"90.24927.366
7/32"0.1900.05826 millimeter4.1701.2714 to 1/2"80.34024.4487
7 millimeter0.2980.09130 millimeter5.5481.6915 to 1/2"121.00036.690
1/4"0.2490.0761 to 1/8"5.0331.5345"99.94030.461
8 millimeter0.3980.12032 millimeter6.3141.8946 to 1/2"167.63051.093
5/16"0.3870.1181 to 1/4"6.3491.9246"143.90043.860
3/8"0.5570.17035 millimeter7.5532.3907 to 1/2"225.00068.226
9 millimeter0.4980.1521 to 3/8"7.5502.3037"196.00059.432
11 millimeter0.7480.22838 millimeter8.9032.79210"397.140121.048
10 millimeter0.6200.18936 millimeter7.9992.4388"254.5577.586
12 millimeter0.8890.27140 millimeter9.8723.009
7/16"0.7610.2321 to 1/2"8.9512.715
13 millimeter1.0430.3181 to 3/4"12.1793.712
1/2"0.9940.3031 to 5/8"10.4493.200
9/16"1.2560.3831 to 7/8"13.9774.260
14 millimeter1.2070.36845 millimeter12.5553.807
5/8"1.5510.47350 millimeter15.4144.698
15 millimeter1.3910.42448 millimeter14.2054.330
17 millimeter1.7910.5432 to 1/8"17.9635.475
16 millimeter1.5780.4812"15.9064.848
18 millimeter2.0010.61060 millimeter22.2056.768
11/16"1.8800.5732 to 1/4"20.1286.135
3/4"2.2370.6822 to 3/8"22.4356.838
2 to 1/2"24.8567.576
2 to 5/8"27.4098.354
2 to 3/4"30.0839.169

Well-known Manufacturer Of ASTM A479 SS 904L Hex Bar in India. For final SS 904L Bar Price List Please Call on +91 22 6636 3099.

SS DIN 1.4539 Bars Condition
ANNAnnealed
H&THardened and tempered.
PHPrecipitation hardened.
ASTM A276 Grade 904L Round Bar Stock
WNR 1.4539 Square Bar904L Stainless Steel Triangle Bar
ASME SB649 904L Flat BarASME SB649 SS 904L Hex Bar
904L SS Polished Round BarStainless Steel 904L T-Bar
BS 904S13 Angle BarKS STS 317J5L Forged Bar
SS 904L Hollow BarUNS N08904 Hot Rolled Round Bar
904L SS Cold Drawn Bar904L SS Hot Rolled Bar
904L Precistion Ground BarASTM B649 904L SS Threaded Bar
ASTM B649 SS 904L RodsDIN 1.4539 SS Half Round Bar
EN X1NiCrMoCu25-20-5 Bright / Polish BarAFNOR Z2 NCDU 25-20 Black Bar
Equivalent Of Stainless Steel 904L Shaft
STANDARDWERKSTOFF NR.UNSJISBSKSAFNOREN
SS 904L1.4539N08904SUS 904L904S13STS 317J5LZ2 NCDU 25-20X1NiCrMoCu25-20-5
Mechanical Composition Of ASME Sb649 904L SS Bar
DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
7.95 g/cm31350 °C (2460 °F)Psi – 71000 , MPa – 490Psi – 32000 , MPa – 22035 %
904L Steel Bar Chemical Behaviour
GradeMnCSiSPCrNiMoCu
SS 904L2.00 max0.020 max1.00 max0.030 max0.040 max19.00 – 23.0023.00 – 28.004.00 – 5.00 max1.00 – 2.00

Buy SS 904L Round Bar Directly From Largest Manufacturers In Mumbai, Check Length and Weight Chart Of 904L SS Bar Stock

What Are The Different Type Sus 904L Stainless Steel Black Bars?
ASTM A276 Grade 904L
ASTM A276 Grade 904L
Rectangular SS Rod 904L
Rectangular SS Rod 904L
SS 904L Bars
SS 904L Bars
Stainless Steel 904L Rod
Stainless Steel 904L Rod
904L Solid Round 20mm 17-4ph Stainless Steel Bar
904L Solid Round 20mm 17-4ph Stainless Steel Bar
Stainless Steel 904L Bright Bar
Stainless Steel 904L Bright Bar
Stainless Steel 904L Hex Bar
Stainless Steel 904L Hex Bar
Stainless Steel 904L Shaft
Stainless Steel 904L Shaft
Stainless Steel 904L Flat Bar
Stainless Steel 904L Flat Bar
SS Werkstoff Nr. 1.4539 Cold Rolled Round Bar Testing
  • Micro Test
  • Macro Test
  • Flaring Test
  • Chemical Test
  • It is like PMI Test
  • IGC test and hardness Test
  • Mechanical test and flattening Test

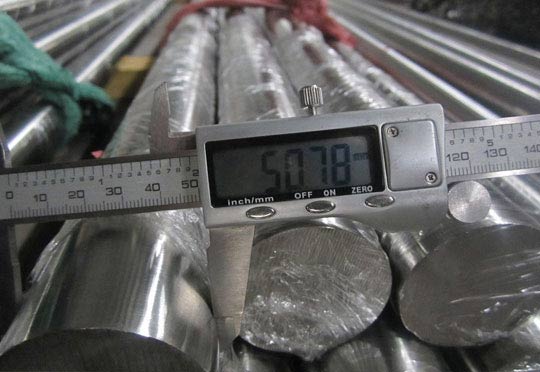

SS 904L Bar Testing

Manufacturers of Hot Rolled SS 904L Hollow Bar Mumbai, View ASTM A479 Stainless Steel 904L Flat Bar Dimension, black surface SUS 904L Rod Stock

Stainless Steel 904L Square Bar Sizes
Size in milimeterAverage Weight
KG/FTKG/MTR
12 x 120.0301.010
10 x 100.0200.080
16 x 160.0602.000
14 x 140.0501.050
20 x 201.0003.014
17 x 170.0692.027
32 x 322.0408.000
63 x 639.05031.020
25 x 251.0504.090
42 X 424.02213.085
40 x 403.08012.060
53 X 536.07222.005
50 x 506.00019.060
56 x 567.05024.060
904L Round Bar Packaging
    904L Round Bar Packaging

  • Bundles (hexagonal)
  • Wooden Boxes
  • Crates (steel/wooden)
  • Packaging for Rod as per customer’s requirements
Stainless Steel 904L Rods, 904L SS Polished Bar, Hot Rolled /Cold Drawn ASTM A276 SS 904L Threaded Bar Physical Properties, Global Suppliers of Stainless Steel 904L Flat Bar
Physical Properties Of Stainless Steel 904L Rod
Grade904L
Density
(kg/m3)		7900
Elastic Modulus
(GPa)		190


Mean Co-eff of Thermal Expansion (µm/m/°C)		0-100°C15
0-315°C
0-538°C
Thermal Conductivity
(W/m.K)		At 20°C11.5
At 500°C
Specific Heat 0-100°C
(J/kg.K)		500
Elec Resistivity
(nΩ.m)		952
Uses Of ASTM B649 Stainless Steel 904L Bars
  • Chemical Industries
  • Thermal & Nuclear Power Plants
  • Fertilizer Plant
  • Aerospace
  • Food & Dairy Plants
  • Paper Industries
  • Oil & Gas Exploration
  • Desalination Plant
  • Pharmaceutical Plant

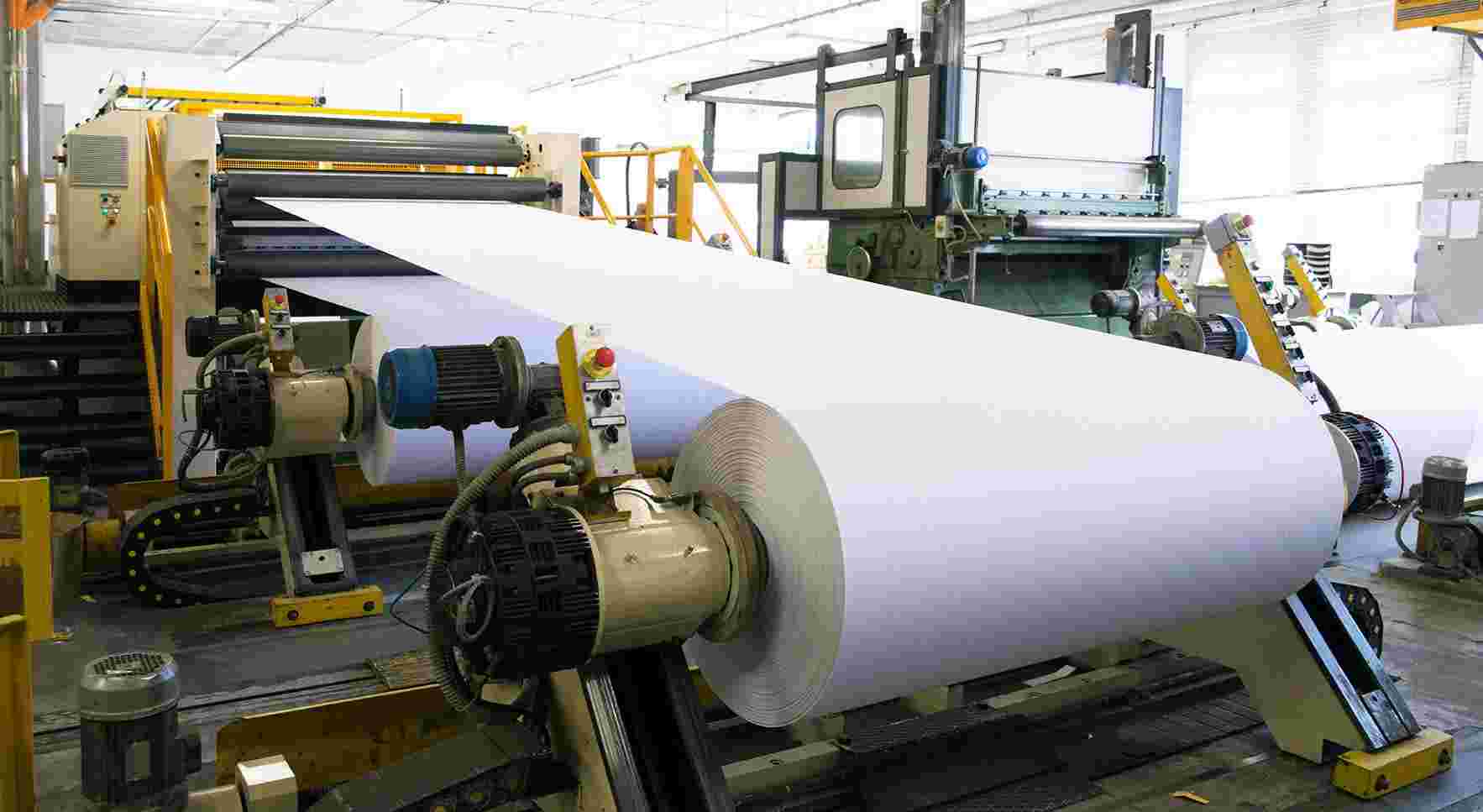

SS 904L Bar Uses
Whether you're looking for ASTM A276 904L Stainless Steel Rectangular Bar, SS 904L Round Bar Suppliers will help you find EN X1NiCrMoCu25-20-5 Bright Bar at great price, Check the current price before you buy BS 904S13 Rod in India
ASTM B649 Type 904L Rod Price
DescriptionPrice in USPrice in India
Rectangular SS Rod 904LUS $1.45-$7.50 / Kilogram107.89 - 558.04
904l Stainless Rod Square BarUS $500.00-$650.00 / Ton37202.75 - 48363.58
SS 904L Bright BarUS $3.10-$3.80 / Kilogram230.66 - 282.74
hot rolled cold rolled round ss 904l stainless steel barUS $1050-$1170 / Ton78125.78 - 87054.43
Hot rolled Mirror Polish SS Rod 904LUS $800.00-$2800 / Ton59524.40 - 208335.40
904L SS Threaded Bars Dimension
Diameter or
Width
(milimeter)		Sectional Arearound bars Weight per meterPerimeter
Round
(centimeter²)		Square
(centimeter²)		Round
(kilogram)		Square
(kilogram)		Round
(centimeter)		Square
(centimeter)
5.00.200.250.150.201.572.0
5.50.240.300.190.241.782.2
6.00.280.360.220.281.882.4
7.00.380.490.300.382.202.8
8.00.500.640.390.502.513.2
9.00.640.810.500.642.833.6
100.791.000.630.733.144.0
110.951.210.750.953.464.4
121.131.440.891.133.774.8
141.541.961.211.544.405.6
162.012.561.582.015.036.4
182.543.242.002.545.657.2
203.144.002.473.146.288.0
223.804.842.983.806.918.8
254.916.253.854.917.8510.0
286.167.844.836.158.8011.2
328.0410.246.318.0410.0512.8
3610.1812.967.9910.1711.3114.4
4012.5716.009.8612.5612.5716.0
4515.9020.2512.4915.9014.1418.0
5019.6425.0015.4119.6215.7120.0
5624.6331.3619.3424.6217.5922.4
6331.1736.6924.4731.1619.7925.2
7139.5950.4131.0839.5722.3128.4
8050.2764.0039.4650.2425.1332.0
Sizes Of 904L Stainless Steel Hollow Bars
Size in Mmkg per meterSize In MMkg per meter
20*20*2.01.1225*25*2.01.43
25*25*1.51.0620*20*2.51.35
25*25*2.51.7430*30*2.52.14
30*30*2.01.6825*25*3.02.04
30*30*3.02.5140*40*1.51.81
40*40*2.02.3150*50*1.52.28
40*40*3.03.4540*40*4.04.46
40*40*5.05.4040*40*2.52.92
50*50*2.02.9350*50*2.53.71
50*50*3.04.3960*60*3.05.34
50*50*5.06.9750*50*4.05.72
60*60*4.06.9760*60*5.08.54
60*60*6.09.4580*80*3.07.22
70*70*3.67.4670*70*5.010.11
70*70*6.312.5090*90*5.013.30
75*75*3.07.0780*80*5.011.70
80*80*3.68.5970*70*3.06.28
80*80*6.013.9090*90*3.08.01
90*90*3.69.7270*70*815.30
90*90*6.015.76100*100*4.012.00
100*100*3.08.9690*90*8.020.40
100*100*5.014.80120*120*6.322.30
100*100*6.016.19120*120*1034.20
100*100*1027.90120*120*518.00
120*120*6.021.30100*100*5.014.80
120*120*8.027.90100*100*8.022.90
120*120*1235.8120*120*12.541.60
140*140*5.021.10140*140*6.326.30
140*140*832.90140*140*1040.40
140*140*12.549.50150*150*5.022.70
150*150*6.328.30150*150*8.035.40
150*150*1043.60180*180*1053.00
150*150*1666.40180*180*6.334.20
180*180*527.40150*150*1666.40
180*180*843.00150*150*12.553.40
180*180*12.565.20200*200*635.8
200*200*530.50180*180*1681.40
200*200*6.338.2250*250*860.50
200*200*1059.30250*250*12.592.60
200*200*1691.50250*250*6.348.10
200*200*848.00250*250*1075.00
200*200*12.573.00250*250*16117.00
300*300*6.357.90400*400*16192
300*300*1057.90350*350*12.5132.00
300*300*12.5112.00300*300*16142.00
350*350*885.70350*350*10106.00
300*300*890.70350*350*16167.00
400*400*10122.00400*400*12141.00
400*400*12.5152.00300*300*873.10

Other Products

A Global supplier

Refer Our 904L SS Round Bar Supplied To Asian Countries And Other Continents Of World

Stainless Steel 904L Round Bar Manufacturers in India

Stainless Steel 904L Round Bar Manufacturers in India

ASTM B649 Uns N08904 Hex Bar

ASTM B649 Uns N08904 Hex Bar


Bahrain, Turkey, Brazil, Kuala Lumpur, Australia, Malaysia, Austria, France, Dammam -KSA, Taiwan, Canada, Ellington -United States, Thailand, Bangladesh, Singapore, Malaysia, Saudi Arabia (KSA), Jakarta -Indonesia, Istanbul- Turkey, Portugal, Qatar, Iran, Jordan, Vietnam, China, Egypt, South Africa, Poland, Italy, United Kingdom (UK), NY 12203 (USA), Russia, Germany, Argentina

904L Stainless Steel Round Bar

904L Stainless Steel Round Bar


South Korea, South Africa, Philippines, Japan, Jakarta, Mexico, Norway, Romania, Indonesia, Czechia, Oman, Singapore, New Zealand, Hong Kong, Los Alamos -Mexico, Chile, Kuwait, Morocco, Europe, United Arab Emirates (UAE), Peru, United States, Denmark Greece, Dubai, Tehran -Iran, Nigeria, Finland, Sweden, USA, Colombia, Belgium, Netherlands, Malaysia, Spain, Dubai- UAE

X
