A 316L is a low-carbon austenitic stainless steel grade. The Stainless Steel 316L Pipe is designed with a superior content of chromium, molybdenum, and nickel. This allows the pipes to work well in a corrosive and reducing environment. The ASTM A312 TP316L Seamless Pipe doesn’t possess any seams or welds and is produced via an extrusion process. This allows the pipes to showcase superior strength allowing them to carry heavy loads and pressurized media in the system. The SS 316L Erw Pipe is formed by cold rolling the steel and welding it across a longitudinal seam. These pipes are heated at a high frequency allowing them to form a strong bond. The SA312 Tp 316L material has a density of 8000 kg/m3 and has a minimum tensile strength of 485mpa with a minimum yield strength of 170mpa. These fixtures have a hardness of 217 max Brinell and can be elongated by 40% in the system.
The SA 312 TP316L Tube possesses higher strength and working capacity than pipes. These tubes have excellent weldability and can be welded following standard fusion welding procedures due to the lower content of carbon. An Aisi 316L Tube can be solution treated at temperatures between 1010 to 1120 degrees C followed by rapid cooling. These tubes cannot be hardened following any thermal treatment. The ASTM A269 Tp316L Boiler Tube is designed to work in low and high-temperature services. These tubes can handle and process volatile fluids and gases effectively for long periods. They are utilized in heating water to eventually release steam. A 316L Stainless Steel Exhaust Tube possesses superior strength and helps in improving the performance of the module. These efficiency of this grade allows them to be used in different applications. They can be availed in different sizes and shapes as per requirements.

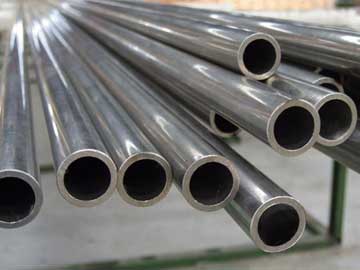

Stainless Steel 316L Pipe

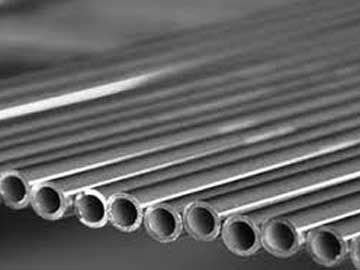

Stainless Steel 316L Tube
Table of Content
- Stainless Steel 316L Pipe Specification
- ASTM A312 Gr Tp316L Stainless Steel Pipe Price
- Stainless Steel 316L Tube Types
- SS 316L Erw Pipe Schedule Chart
- ASTM A312 316L Stainless Steel Seamless Pipe Chemical Composition
- SS Grade F316L Tubes Mechanical Properties
- Stainless Steel DIN 1.4436 Welded Tubes Equivalent
- Sa312 Tp316L SS Tubing Size
- ASTM A312 TP316L Stainless Steel Tube Physical Properties
- SS 316L Pipe Inventory
PED Certified Stainless Steel 316L Pipes Supplier in Mumbai, India, Dimensions Of ASTM A312 TP316L Welded Pipes In MM.
Stainless Steel 316L Pipe Specification
| 316L Stainless Pipes Specifications | ASTM A 312 / ASTM A 358, ASME SA 312 / SA 358 |
|---|---|
| Size | 1/8″NB TO 30″NB IN |
| Dimensions | ASME, ASTM, and API |
| Specialized in | Large Diameter Size |
| Pipes Size | 1/2″ upto 16″ NB |
| Schedule | SCH20 to XXS |
| ERW Pipes Size | 1/2″upto 24″ NB |
| Type | Fabricated / ERW / Seamless / Welded / LSAW Pipes |
| Length | Double Random, Cut Length and Single Random |
| Form | Square, Hydraulic, Round, Rectangular Etc |
| EFW Pipes Size | 6″ upto 100″ NB |
| End | Beveled End, Plain End, Treaded |
ASTM A312 Gr Tp316L Stainless Steel Pipe Price
| Products | Nominal Pipe Size | Overall Length | Price |
|---|---|---|---|
| SS SEAMILESS PIPES GRADE TP316L SIZE : 273 MM OD X 8.7 MM THK X ABOVE 5000 MM LENGTH | 3/4 in | 10 ft | $88.23 |
| SS SEAMLESS PIPES ASTM A312 GRADE TP316L SIZE (33.4MM OD X 4.55MM THK X 5.2-5.8M LENGTH) | 1-1/4 in | 10 ft | $158.76 |
| SS WELDED PIPES GRADE 316 L OTHER,WELDED,OF CIRCULAR CROSS-SECTION, OF STAINLESS TUBES/PIPES | 2 in | 10 ft | $217.09 |
| DEFECTIVE SS SEAMLESS PIPES/TUBE BRIGHT ANNEALED A269 316L GRADE | 2-1/2 in | 10 ft | $257.94 |
| U CIRCULAR TUBE 50.8 S.S316L /SATIN FINISH L=1890 (2 PCS) MADE OF SS | 4 in | 10 ft | $414.58 |
Stainless Steel 316L Tube Types

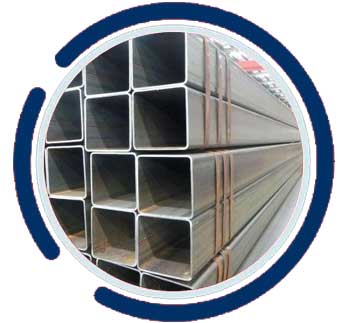

316 Stainless Square Tube

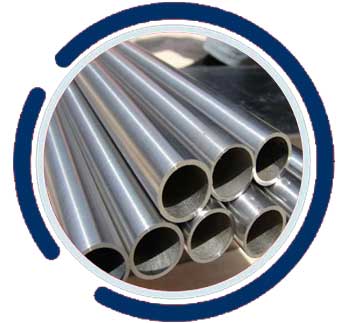

SS 316L Seamless Pipe

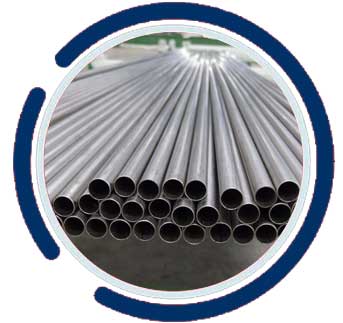

SS 316L Erw Pipe

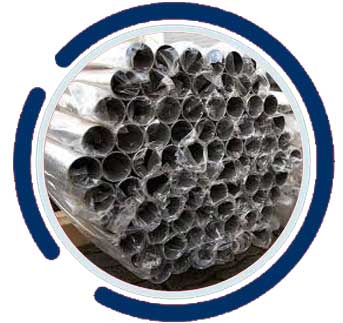

SS GOST 03Ch17N14M3 Round Pipe

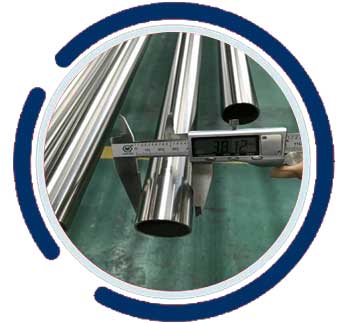

316L Stainless Schedule 80 Pipe

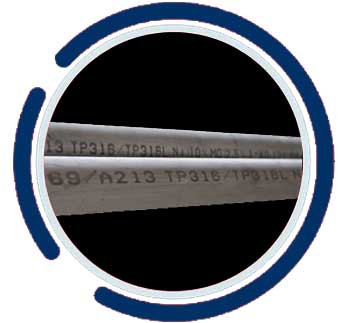

DIN 1.4436 Welded Tubes

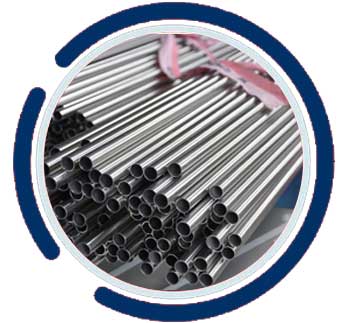

SS UNS S31603 Hollow Tube

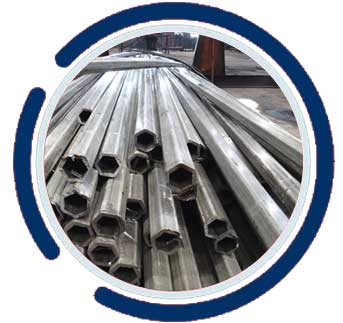

316L SS Hexagonal Pipe

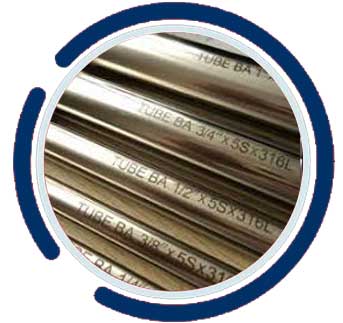

316L Stainless Steel Exhaust Tube
SS 316L Erw Pipe Schedule Chart
| 3 1/2" IPS( 4.000"O. D.) | 1/8" IPS(.405"O. D.) |
|---|---|
| SCH 10, 40, 80, 160, XXH | SCH 40, 80 |
| 4" IPS(4.500"O. D.) | 1/4" IPS(.540"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 40, 80 |
| 5" IPS( 5.563"O. D.) | 3/8" IPS(.675"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 40, 80 |
| 6" IPS(6.625"O. D.) | 1/2" IPS(.840"O. D.) |
| SCH 5, 10, 40, 80, 120, 160, XXH | SCH 5, 10, 40, 80, 160, XXH |
| 8 ” IPS(8.625"O. D.) | 3/4" IPS(1.050"O. D.) |
| SCH 5, 10, 40, 80, 120, 160, XXH | SCH 10, 40, 80, 160, XXH |
| 10" IPS(10.750"O. D.) | 1" IPS:(1.315′O. D.) |
| SCH 10, 20, 40, 80 (.500), TRUE 80(.500) | SCH 5, 10, 40, 80, 160, XXH |
| 12" IPS(12.750"O. D.) | 1-1/4" IPS(1.660"O. D.) |
| SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) | SCH 10, 40, 80, 160, XXH |
| 14" IPS(14.000"O. D.) | 1-1/2" IPS(1.900"O. D.) |
| SCH10 (.188), SCH40 (.375) | SCH 10, 40, 80, 160, XXH |
| 16" IPS(16.000"O. D.) | 2" IPS(2.375"O. D.) |
| SCH10(.188), SCH40(.375) | SCH 10, 40, 80, 160, XXH |
| 18" IPS (18.000"O. D.) | 2 1/2" IPS(2.875"O. D.) |
| SCH-40 (.375) | SCH 10, 40, 80, 160, XXH |
| 3" IPS( 3.500"O. D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
316L Stainless Steel Seamless Pipes Supplier in India, Check SS 316L Erw Pipes Chemical Composition, One Stop Shop For All SS UNS S31603 Hollow Pipes.
ASTM A312 316L Stainless Steel Seamless Pipe Chemical Composition
| Si | C | Cr | Mn | Ni | P | Mo | S |
|---|---|---|---|---|---|---|---|
| 1.00 | .035 | 16.0-18.0 | 2.00 | 10.0-14.0 | .045 | 2.0-3.0 | .030 |
Suppliers Of SS GOST 03Ch17N14M3 Round Pipes In Mumbai, SS Grade F316L Tubes Mechanical Properties, 316L Stainless Steel Schedule 80 Pipes Stockist.
SS Grade F316L Tubes Mechanical Properties
| Grade | Ultimate/Min | Yield/Min | Elongation/Min | ||
|---|---|---|---|---|---|
| MPA | KSI | KSI | MPA | % | |
| 316L | 485 | 70 | 25 | 170 | 35 |
Stainless Steel DIN 1.4436 Welded Tubes Equivalent
| EN/BS | UNS | ISO | JIS | GB | EN/DIN | EN/NF | GOST |
|---|---|---|---|---|---|---|---|
| 316S13 | S31603 | 19 | SUS316L | 00Cr17Ni14Mo2 | X2CrNiMo18-14-3 | X2CrNiMo17-12-2 | 03KH17H14M2 |
Sa312 Tp316L SS Pipe Size
| Pipe WT mm |
OD mm |
Sch | in. | Kg/m |
|---|---|---|---|---|
| 1.65 | 13.72 | 10S | 1/4 | 0.50 |
| 2.24 | 13.72 | 40S | 1/4 | 0.64 |
| 3.02 | 13.72 | 80S | 1/4 | 0.81 |
| 1.65 | 17.15 | 10S | 3/8 | 0.64 |
| 2.31 | 17.15 | 40S | 3/8 | 0.86 |
| 3.20 | 17.15 | 80S | 3/8 | 1.12 |
| 2.11 | 21.34 | 10S | 1/2 | 1.02 |
| 2.77 | 21.34 | 40S | 1/2 | 1.29 |
| 3.73 | 21.34 | 80S | 1/2 | 1.65 |
| 2.11 | 26.67 | 10S | 3/4 | 1.30 |
| 2.87 | 26.67 | 40S | 3/4 | 1.71 |
| 3.91 | 26.67 | 80S | 3/4 | 2.23 |
| 2.77 | 33.40 | 10S | 1 | 2.13 |
| 3.38 | 33.40 | 40S | 1 | 2.54 |
| 4.55 | 33.40 | 80S | 1 | 3.29 |
| 6.352) | 33.40 | 160 | 1 | 4.30 |
| 2.77 | 42.16 | 10S | 1¼ | 2.73 |
| 3.56 | 42.16 | 40S | 1¼ | 3.44 |
| 4.85 | 42.16 | 80S | 1¼ | 4.53 |
| 6.352) | 42.16 | 160 | 1¼ | 5.69 |
| 2.77 | 48.26 | 10S | 1½ | 3.16 |
| 3.68 | 48.26 | 40S | 1½ | 4.11 |
| 5.08 | 48.26 | 80S | 1½ | 5.49 |
| 2.77 | 60.33 | 10S | 2 | 3.99 |
| 3.91 | 60.33 | 40S | 2 | 5.52 |
| 5.54 | 60.33 | 80S | 2 | 7.60 |
| 8.742) | 60.33 | 160 | 2 | 11.29 |
| 3.05 | 73.03 | 10S | 2½ | 5.35 |
| 5.16 | 73.03 | 40S | 2½ | 8.77 |
| 7.01 | 73.03 | 80S | 2½ | 11.59 |
| 3.05 | 88.90 | 10S | 3 | 6.56 |
| 5.49 | 88.90 | 40S | 3 | 11.47 |
| 7.62 | 88.90 | 80S | 3 | 15.51 |
| 11.132) | 88.90 | 160 | 3 | 21.67 |
| 3.05 | 101.60 | 10S | 3½ | 7.53 |
| 5.74 | 101.60 | 40S | 3½ | 13.78 |
| 8.08 | 101.60 | 80S | 3½ | 18.92 |
| 3.05 | 114.30 | 10S | 4 | 8.50 |
| 6.02 | 114.30 | 40S | 4 | 16.32 |
| 8.56 | 114.30 | 80S | 4 | 22.67 |
| 13.492) | 114.30 | 160 | 4 | 34.05 |
| 6.55 | 141.30 | 40S | 5 | 22.10 |
| 9.53 | 141.30 | 80S | 5 | 31.44 |
| 15.882) | 141.30 | 160 | 5 | 49.87 |
| 3.4 | 168.28 | 10S | 6 | 14.04 |
| 7.11 | 168.28 | 40S | 6 | 28.69 |
| 10.97 | 168.28 | 80S | 6 | 43.21 |
| 14.27 | 168.28 | 120 | 6 | 54.75 |
| 18.262) | 168.28 | 160 | 6 | 68.59 |
| 8.18 | 219.08 | 40S | 8 | 43.20 |
| 12.7 | 219.08 | 80S | 8 | 65.63 |
| 18.23 | 219.08 | 120 | 8 | 91.30 |
| 23.012) | 219.08 | 160 | 8 | 112.97 |
ASME SA312 SS 316L EFW Pipes Manufacturer in India, Suppliers Of SS DIN 1.4436 Square Pipes In Mumbai, One Stop Shop For All SS WERKSTOFF NR. 1.4436 Rectangular Pipes.
ASTM A312 TP316L Stainless Steel Tube Physical Properties
| Specific Heat 0-1000C (J/kg.K) | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Electrical Resistivity (n.m) | Thermal Conductivity (W/m.K) | |||
|---|---|---|---|---|---|---|---|---|
| 0-315°C | 0-100°C | 0-538°C | at 500°C | at 100°C | ||||
| 500 | 8000 | 193 | 16.2 | 15.9 | 17.5 | 740 | 21.5 | 16.3 |
