Alloy Steel Flanges


ASME SA182 Grade F22 Blind Flange and ASTM A182 F11 Weld Neck Flange Manufacturer in India

Flanges are fixtures that are employed in connecting piping fixtures of different shapes and sizes. Alloy Steel Flanges are alloyed with different elements of alloys that are designed with a chemical content between 1 to 50%. The higher the content of alloys gives them higher strength and corrosion resistance properties. The Chrome Moly Flanges have good resistance to erosion and oxidation in different conditions. These flanges have outstanding toughness and possess good hardenability. They are easy to weld and fabricate to subsequent fixtures. A 4142 Chromoly Alloy Steel Flange has a density of .85 g/cm3 and has an elastic modulus of 190 to 210 GPa. These flanges are designed with a Brinell hardness of 230 max HB. They have a thermal conductivity of 42.6 W/mK. The Alloy Steel F22 Flanges have a low content of alloys that are employed to provide support to different piping fixtures during vigorous movement of fluids and gases. These flanges are quality-assured and produced with the best raw materials and latest technology by our renowned technicians.

The ASTM A182 F11 Slip on Flange is a versatile flange type in the industry. These flanges are manufactured as the flange is slid on the pipe fixture and is welded in place using one or more fillet welds. ASME SA182 Grade F22 Blind Flange is designed to work in elevated pressures and temperatures. These flanges don’t possess a protruding hub allowing them to terminate the flow in the system. They are mostly bolted in place, allowing room for repair and maintenance. The ASTM A182 F91 Socket Weld Flange is a forged flange that is seen in small piping fixtures. The flange is inserted in the socket of the flange and subsequently welded using a single fillet weld.

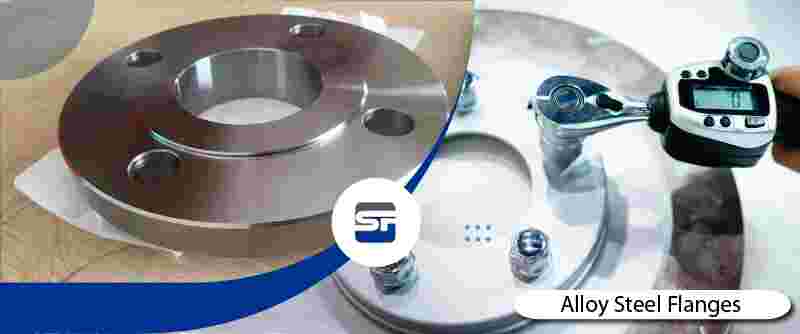

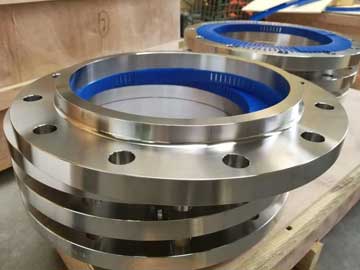

Alloy Steel Flange

Alloy Steel Flange

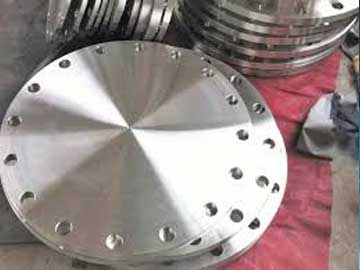

AS Blind Flanges

AS Blind Flanges

Online Class 150 and Class 300 ASTM A182 F91 Socket Weld Flange Price List in India also check Alloy Steel Flanges Price in Mumbai

Suppliers Of Alloy Steel Flanges In Mumbai, India, Get Free Quote For ASTM A182 Low Alloy Steel flanges, Equivalent Grades Of Alloy Steel Flange Material.

Alloy Steel Flanges

Alloy Steel Flange Specification

ASTM Specification ASTM A182 , ASME SA182
Standards BS 10, DIN, B 16.47 Series A & B, B16.48, BS4504, EN 1092, ANSI/ASME B16.5
Size in inch 1/2 inch upto 48 inch
Pressure Chart 300#, PN16, 900#, 1500#, PN6, 600#, PN64, 150#, PN25, 2500#, PN40, PN10

Manufacturer Of ANSI B16.5 Alloy Steel Slip On Flanges In India, Visit our Alloy Steel Blind Flanges in India, Call Now to Get ASME SA 182 AS Pipe Flange Free sample, Stockist Of Alloy Steel Weld Neck Flanges.

ASTM A182 F11 Flange Price

Products Pipe Size Flange Outside Diameter Number of Bolt Holes Price List
SCREW-CR+3 ALLOY SIX LOBE BUTTON FLANGE HEAD CAP SCREWS-8.8 Z/P 3U MIN HEAD MARK YFS 8.8 1-1/2 in 5 in 4 $53.72
FLANGES ALLOY SA182 P91 DN350/250 THK 45.7MMX35,5MM,,Y-PIECE DWG121T5795 FIG.2A, BWE(1 PCS) 2-1/2 in 7 in 4 $110.29
NON ALLOY FLANGES MACHINED PIN BRG CART CAP, SB,21HT, PART NO.Z23510-300A, ORDER NO. 2944266 4 in 9 in 8 $155.40
NON ALLOY - MACHINED CASTINGS - 6 300# 80386 ISO PN 50 #B1 RFLOWER FLANGE FMC 6 in 11 in 8 $191.97

Heavy Discount on Chrome Moly Flanges in size 24mm to 28mm, Buy AISI 4140 Flanges at Distributor Price directly by manufacturer of AISI 4130 Threaded Flanges

Get instant delivery Of AS Flanges , Weight Chart Of Alloy Steel Threaded Flanges, Suppliers Of ANSI B16.5 Alloy Steel Forged Flanges In Mumbai. India.

Alloy Pipe Flanges Types

ASTM A182 Low Alloy Steel flanges

ASTM A182 Low Alloy Steel flanges

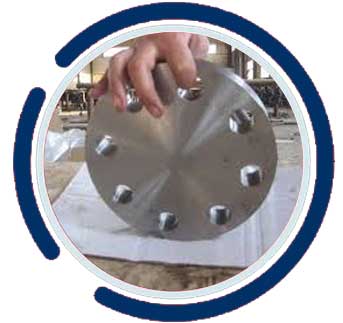

Alloy Steel Blind Flanges

Alloy Steel Blind Flanges

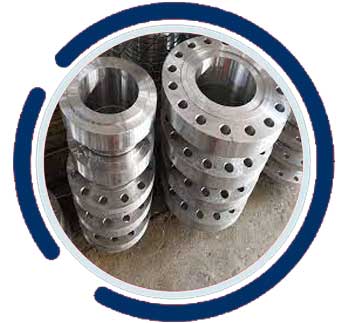

ASME SA 182 AS Pipe Flange

ASME SA 182 AS Pipe Flange

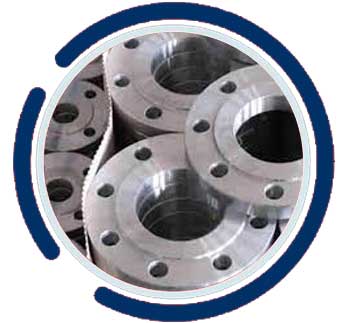

ANSI B16.5 Alloy Steel Slip On Flange

ANSI B16.5 Alloy Steel Slip On Flange

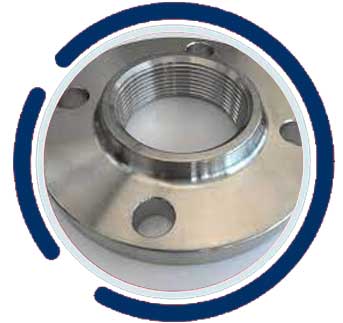

Alloy Steel Threaded Flanges

Alloy Steel Threaded Flanges

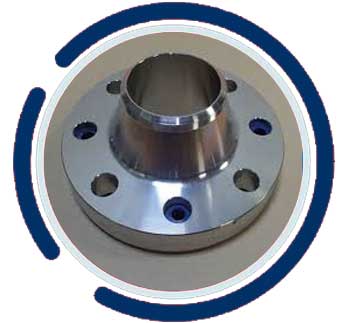

Alloy Steel Weld Neck Flange

Alloy Steel Weld Neck Flange

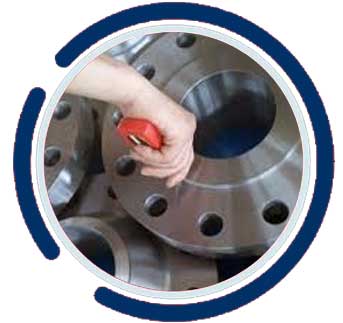

Alloy Steel Flange Material

Alloy Steel Flange Material

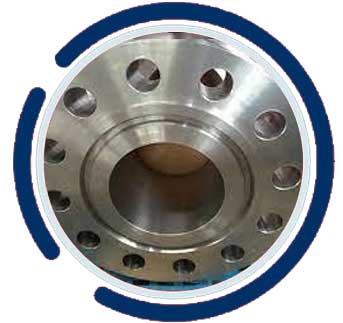

Chrome Moly Alloy Steel RTJ Flanges

Chrome Moly Alloy Steel RTJ Flanges

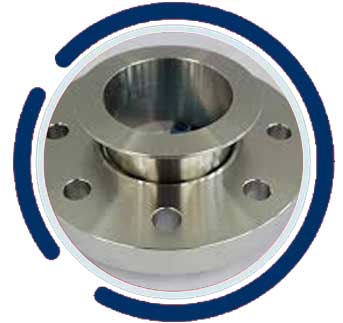

Cast Alloy Steel Lap Joint Flange

Cast Alloy Steel Lap Joint Flange

Chrome Moly Flanges

Chrome Moly Flanges

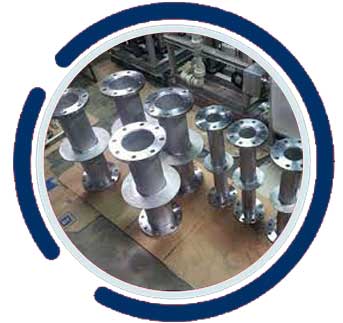

Chromoly AS Puddle Flange

Chromoly AS Puddle Flange

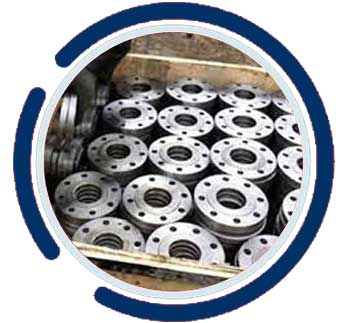

4142 Chromoly Alloy Steel Flange

4142 Chromoly Alloy Steel Flange

Buy directly from Alloy Steel Plate Flanges manufacturers in India to save cost, avoid high margins of distributors and supplier commission

Gasket Chart Of Alloy Steel Slip On Flange

NPS Gasket I.D.
Class 300 Class 150 Class 600 Class 400 Class 900
1/2 0.84 2.125 1.875 2.125 2.125 2.50
3/4 1.06 2.625 2.25 2.625 2.625 2.75
1 1.31 2.875 2.625 2.875 2.875 3.125
1 1/4 1.66 3.25 3 3.25 3.25 3.50
1 1/2 1.91 3.75 3.375 3.75 3.75 3.875
2 2.38 4.375 4.125 4.375 4.375 5.625
2 1/2 2.88 5.125 4.875 5.125 5.125 6.50
3 3.50 5.875 5.375 5.875 5.875 6.625
4 4.50 7.125 6.875 7.625 7.00 8.125
5 5.56 8.50 7.75 9.50 8.375 9.75
6 6.62 9.875 8.75 10.50 9.75 11.375
8 8.62 12.125 11 12.625 12.00 14.125
10 10.75 14.25 13.375 15.75 14.125 17.125
12 12.75 16.625 16.125 18.00 16.50 19.625

PED approved AS Slip On flange suppliers in India, check dimensions and thickness chart

Alloy Steel Blind Flanges Chemical Composition

Grade P C S Mn Cr Si Mo
F1 0.03 0.15 max 0.03 0.3-0.6 4-6 0.5 0.44-0.65
F5 0.03 0.15 max 0.03 0.3-0.6 4-6 0.5-1.0 0.44-0.65
F9 0.03 0.15 max 0.03 0.3-0.6 8-10 0.5-1.0 0.9-1.1
F11 0.03 0.5-0.15 0.03 0.3-0.6 1.0-1.5 0.5-1.0 0.44-0.65
F12 0.03 0.15 max 0.03 0.3-0.6 4-6 0.5 0.44-0.65
F22 0.03 0.50.15 max 0.03 0.3-0.6 4-6 0.5 0.44-0.65
F91 0.03 0.15 max 0.03 0.3-0.6 8-10 0.5-1.0 0.9-1.1

ASME SA 182 AS Pipe Flange Mechanical Properties

Grade Yield Properties Tensile Properties Elongational
F1 485 275 20 %
F5 485 275 20 %
F9 585 380 20 %
F11 415 205 20 %
F12 485 275 20 %
F22 415 205 20 %
F91 585 380 20 %
Select Dimensions, Standard, pressure temperature rating of Gr. 9 Threaded Flange, ASTM A182 F1 RTJ and A182 Grade 5 Lap Joint Flange

ANSI B16.5 Alloy Steel Slip On Flange Equivalent

Material Group Common Name UNS Type DIN W. No Forging Spec. DIN Casting Spec. Equivalent Application
Low AS Moly Steel K12822 C-1/2Mo 1.5415 A182-F1 cl2 15M03 A217-WC1 Up to 470ºC* (875ºF)
AS Chrome Moly K11572 1.1/4Cr-1/2Mo 1.7335 A182-F11 cl2 13CRM044 A217-WC6 Up to 593ºC (1100ºF)
K21590 2.1/4Cr-1Mo 1.7380 A182-F22 cl3 10CRM0910 A217-WC9 Up to 593ºC (1100ºF), HP steam
K41545 5Cr-1/2Mo 1.7362 A182-F5/F5a 12CRMO195 A217-C5 High temp refinery service
K90941 9Cr-1Mo 1.7386 A182-F9 X 12 CrMo 9 1 A217-C12 High temp erosive refinery service
9Cr-1Mo-V 1.4903 A182-F91 X 10 CrMoVNb 9 1 A217-C12A High pressure steam

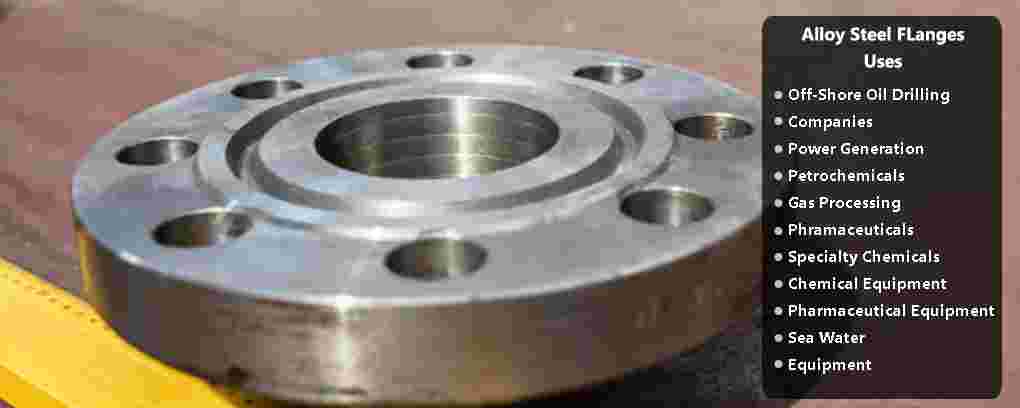

Alloy Steel F22 Flanges Uses

Alloy Steel Flanges Uses

Chrome Moly AS RTJ Flanges Weight Chart

Standard Class Diameter of Bolt Hole Diameter Number of Bolts Bolt Circle Diameter Bolt Size
AS4087 Flanges PN14 Flanges 14 95 4 67 M12
ANSI B16.5 Flanges ANSI 150 Flanges 16 89 4 60 13
ANSI 300 Flanges 16 95 4 67 13
ANSI 600 Flanges 16 95 4 67 13
ANSI 900 Flanges 22 121 4 83 19
ANSI 1500 Flanges 22 121 4 83 19
AS 2129 Flange Table C Flanges 14 95 4 67 13
Table D Flanges 14 95 4 67 13
Table E Flanges 14 95 4 67 13
Table F Flanges 14 95 4 67 13
Table H Flanges 17 114 4 83 16
Table J Flanges 17 114 4 83 16
ISO 7005 (DIN) Flange PN6 Flange 11 80 4 55 M10
PN10 Flange 14 95 4 65 M12
PN16 Flange 14 95 4 65 M12
PN20 Flange 16 90 4 60.5 M14
PN25 Flange 14 95 4 65 M12
PN40 Flanges 14 95 4 65 M12

High Chrome Moly Flanges Pressure Rating

Temperature °F 1500# 150# 400# 300# 600# 2500# 900#
-20 to 100 3470 265 925 695 1390 5785 2085
200 3395 260 905 680 1360 5660 2035
300 3260 230 870 655 1305 5435 1955
400 3200 200 855 640 1280 5330 1920
500 3105 170 830 620 1245 5180 1865
600 3025 140 805 605 1210 5040 1815
650 2940 125 785 590 1175 4905 1765
700 2840 110 755 570 1135 4730 1705
750 2660 95 710 530 1065 4430 1595
800 2540 80 675 510 1015 4230 1525
850 2435 65 650 485 975 4060 1460
900 2245 50 600 450 900 3745 1350
950 1405 35 375 280 560 2345 845
1000 825 20 220 165 330 1370 495
Don't forget to refer our Low Alloy Steel Flange pressure rating chart and 13crmo4-5 15crmo flange Dimensions | Get Quote of 12cr1mov steel flange Now

AISI 4130 Threaded Flanges Value Added Services

  •  Mechanical Testing Such as Tensile of Area
  •  Hardness Test
  •  Chemical Analysis – Spectro Analysis
  •  Positive Material Identification – PMI Testing
  •  Flattening Test
  •  Micro and MacroTest
  •  Pitting Resistance Test
  •  Flaring Test
  •  Intergranular Corrosion (IGC) Test

Chrome Moly Flanges Dimensions

Flange (ID)
(inch)
NPS Flange (OD)
(inches)
900 LB 150 LB 400 LB 300 LB 600 LB
0.84 1/2 2.50 1.875 2.125 2.125 2.125
1.06 3/4 2.75 2.25 2.625 2.625 2.625
1.31 1 3.125 2.625 2.875 2.875 2.875
1.66 1 1/4 3.50 3 3.25 3.25 3.25
1.91 1 1/2 3.875 3.375 3.75 3.75 3.75
2.38 2 5.625 4.125 4.375 4.375 4.375
2.88 2 1/2 6.50 4.875 5.125 5.125 5.125
3.50 3 6.625 5.375 5.875 5.875 5.875
4.50 4 8.125 6.875 7.00 7.125 7.625
5.56 5 9.75 7.75 8.375 8.50 9.50
6.62 6 11.375 8.75 9.75 9.875 10.50
8.62 8 14.125 11 12.00 12.125 12.625
10.75 10 17.125 13.375 14.125 14.25 15.75
12.75 12 19.625 16.125 16.50 16.625 18.00

12CR1MOV Steel Flange HS Code

HSN Code Product Description
84819090 Other
7307 Tube or pipe fittings (for example, couplings, elbows, sleeves), of iron
730791 Flanges:
73072100 Flanges
848190 Parts:
8481 cocks, Taps, valves and similar appliances for boiler shells, pipes, tanks, vats or the like, including thermostatically controlled valves and pressure-reducing valves
73079190 Other

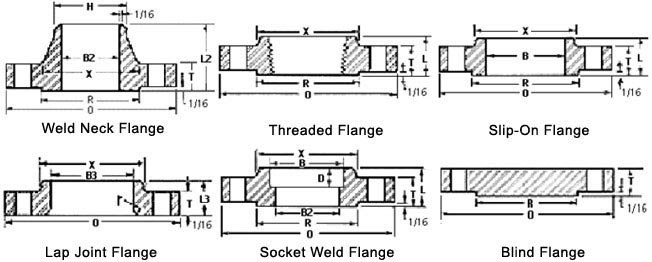

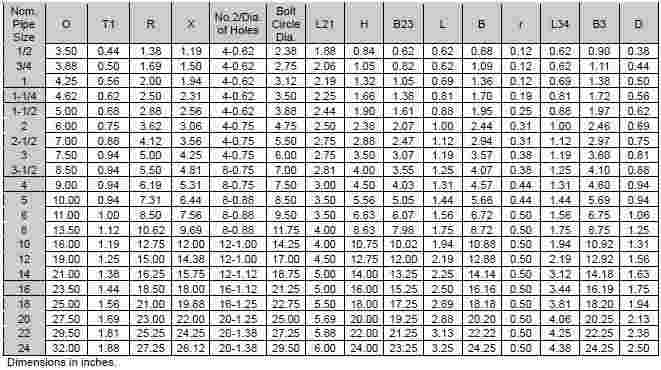

Alloy Steel Flange Size

Alloy Steel Flange Size


Alloy Steel Flange Size

ASTM A182 Low Alloy Steel flanges Inventory

Alloy Steel Flange Chromium AS Flanges
ASTM A182 F11 Flange Cast Alloy Lap Joint Flange
Alloy Pipe Flanges Alloy Threaded Flanges
ASTM A182 Low Alloy flanges Chrome Moly Flanges
Alloy Blind Flanges Alloy Flange Material
ASME SA 182 AS Pipe Flange Chromoly AS Pipe Flanges
ANSI B16.5 AS Slip On Flange 4130 AS Slip On Flange
Chrome AS Blind Flanges 4142 Chromoly AS Flanges
AS Weld Neck Flange Scm420 Chromoly AS Socket Weld Flange
Chromoly AS Puddle Flange 4140 Low Alloy Threaded Flange
ASME B16.5 AS Flange Chrome 4130 AS Slip On Flange
Chrome Moly AS RTJ Flange 4142 AS Flange Material
AS A182 F91 Flange AS Socket Weld Flange
ANSI B16.5 AS Forged Flange ASTM A182 AS Forged Flange
Low AS Flange Annealed AS Weld Neck Flange
High Chrome Moly Flange Chromoly AS Flange
Chrome AS Blind Flange High AS Slip on Flange
Alloy Weld Neck Scm420 Chromoly Alloy Socket Weld Flange
