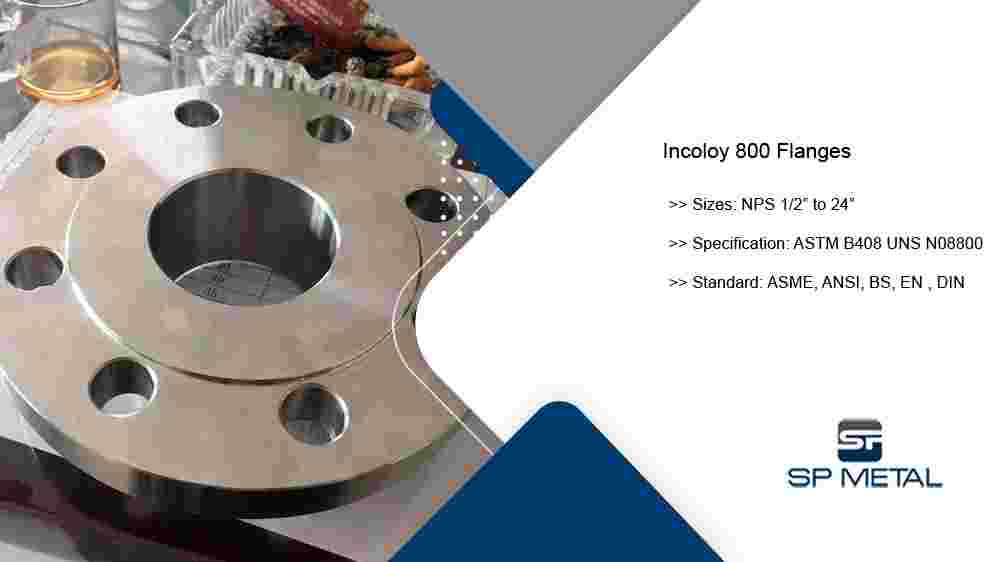

Incoloy 800 Flanges, Alloy 800 SORF/ ASTM B564 UNS N08800 WNRF Flange

What is Incoloy 800 Flanges?

Incoloy 800 Flanges are part of the super austenitic grade of stainless steel components. These flanges possess a superior alloy concentration of iron, nickel, and chromium with additions of molybdenum, copper, and silicon, giving them excellent strength. The flanges within this grade exhibit superior corrosion resistance properties and securely connect different piping equipment. These flanges offer superior strength and stability at high temperatures and pressures. Apart from this, they have excellent tolerances across aqueous environments.

Comparision Between Alloy 800 Weld Neck Flanges and Nickel 800H Slip On Flange

Weld neck flanges and slip on flanges are the most common grade of flanges used in the piping industry. Both are differentiated based on certain characteristics.

Nickel 800H slip on flanges has higher carbon concentration enabling them to possess higher creep-rupture properties than the 800 weld neck flange.
800H has superior creep-rupture properties compared to 800 grade.
Weld neck flanges are characterized by a long tapered face. Slip on flanges have a low profile face.
Slip on flanges are preferred in low-pressure and temperature systems. Weld neck flanges are preferred in high pressure and temperature systems.

ASME B16.5 Incoloy® 800H Pipe Flanges Uses

ASME B16.5 Incoloy® 800H Pipe Flanges are the high carbon version of the Incoloy 800 flanges. These flanges have good creep-rupture properties and are resistant to oxidizing and nitrating atmospheres. These properties allow them to be utilized in high-temperature power generation plants, the oil and gas industry, furnace components, chemical and petrochemical processing, thermal processing fixtures, and so on.

UNS N08800 Blind Flanges vs Werkstoff Nr. 1.4876 Socket Weld Flange

UNS N08800 blind flanges are designed without a face or a boring hub. These flanges securely terminate the ends of piping systems sealing high-pressure fluids and gases. They are generally bolted in place, allowing room for inspection and cleaning.
Werkstoff Nr. 1.4876 socket weld flanges are typically designed as a raised face. These flanges are inserted in a socket and welded using a single fillet weld. These flanges are preferred in small high-pressure pipes.

JIS 10K ASTM B564 UNS N08800 WNRF Flange and Alloy 800 SORF Flange manufacturer in India

Table of Content

Specification Of Incoloy 800 Flanges
Alloy 800 Flanges Price
Incoloy 800 Threaded Flange Chemical Composition
Alloy 800 Mechanical Properties
UNS N08800 Equivalent
Tolerance Chart Of Incoloy 800 Flange
Nickel 800 Flanges Pressure Rating
Incoloy 800 Physical Properties
Gasket Sizes Of ASME SB408 UNS N08800 Blind Flange
Alloy UNS N08800 Flange Types

ASME SB564 800ht Incoloy Flanges Stock
Incoloy 800 Slip on Flange Torque Chart
Dimension Of Werkstoff Nr. 1.4876 Socket Weld Flange
Inconel 800 Temperature Range
Incoloy 800 Melting Point
Incoloy 800 Pipe Flange Coefficient Of Thermal Expansion
Incoloy 800 Corrosion Resistance
Incoloy 800HT Density
Incoloy 800 Socket Weld Flange Creep Properties

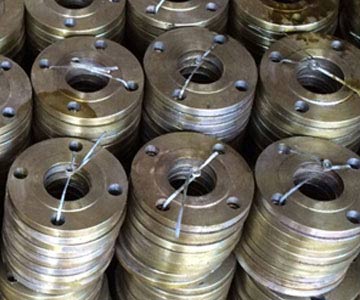

Incoloy 800 Pipe Flange

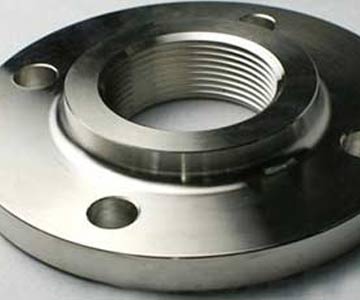

Incoloy 800 Threaded Flange

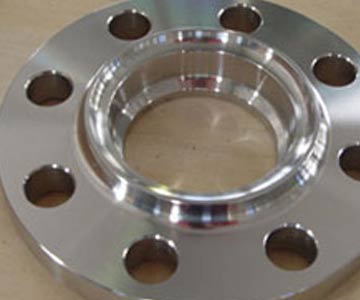

Incoloy 800 Socket Weld Flange

Specialist manufacturer of AWWA C207 Class D Alloy 800 Flanges and BS10 Table D Incoloy 800 Blind Flange in Mumbai

Specification Of Incoloy 800 Flanges

Specifications	ASTM B564 / ASME SB564
Size	1/2″NB TO 48″NB
Standards	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Looking for Incoloy 800 Flanges suppliers who offer prompt delivery in Asia? Manufacturer of Alloy 800 Flanges in India, call us for big discount and ready sizes, check latest price of Nickel 800 Flanges in Mumbai

Alloy 800 Flanges Price

Description	Per Unit (INR)
FLANGE ASME/ASTM SB-564 (INCOLOY 800/800H /800HT)	1,300
INCOLOY 800H (FLANGES)	2,670
INCONEL ALLOY 800 FLANGE ASTM B408 UNS N08810 ASME B16.5 11/2NB SCH 40	27,828
INCONEL ALLOY 800 FLANGE ASME SB408 UNS N08800 ASME B16.5 3NB SCH 10	52,395

Well-known Incoloy 800 Flanges Manufacturer in India. For final Asme Sb564 N08825 Pipe Flange Price List Please Call on +91 22 6636 3099.

Incoloy 800 Threaded Flange Chemical Composition

Grade	Ni	Fe	Cr	Cu	Ti	Al	C	Mn	S	Si
Incoloy 800	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.1 max	1.5 max	.015 max	1.0 max
Incoloy 800H	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.05-.10 max	1.5 max	.015 max	1.0 max
Incoloy 800HT	30.0-35.0	39.5 min	19.0-23.0	.75 max	.25-.60	.85-1.20	.06-.10 max	1.5 max	.015 max	1.0 max

Alloy 800 Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1350-1400 ℃	Psi - 75,000 , MPa -520	Psi - 30,000 , MPa - 205	30 - 35 %

Manufacturer & Supplier Of ASTM B408 UNS N08800 Sorf Flange, ASME SB408 UNS N08800 Wnrf Flange In India

UNS N08800 Equivalent

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 800	N08800	1.4876	Z8NC32-21	X10NiCrAlTi32-20	NCF 800	NA 15	ЭИ670	XH32T
Incoloy 800H	N08810	1.4958	Z8NC32-21	X10NiCrAlTi32-20	NCF 800H	NA 15(H)	ЭИ670	XH32T
Incoloy 800HT	N08811	1.4959	-	X8NiCrAlTi32-21	NCF 800HT	NA 15(HT)	ЭИ670	XH32T

Tolerance Chart Of Incoloy 800 Flange

Incoloy Flanges		Tolerance Table
A	O.D. (Outside Diameter)	When O.D. (Outside Diameter) is 24" or less: ±1/16" (1.6 millimeter) When O.D. (Outside Diameter) is over 24": ±1/8" (3.2 millimeter)
D	Inside Diameter (I.D.)	10" and smaller: ±1/32" (0.8 mm) 12" thru 18": +1/8" (3.2 mm) 20" and larger: -1/16" (1.6 mm)
B	Diameter of contact face	1/16" raised face: ±1/32" (0.8 mm) 1/4" RF (Raised Face), T/G (Tongue & Groove), (male & female), (m/f): ±1/64" (0.4 millimeter)
J	Diameter of hub at base	When hub base is 24" or smaller: ±1/16" (1.6 millimeter) When hub base is over 24": ±1/8" (3.2 millimeter)
H	Diameter of hub at point of welding	5" and smaller: +3/32" (2.4 mm), -1/32" (0.8 mm) 6" and larger: +5/32" (4.0 mm), -1/32 (0.8 mm)
P	Drilling	Circle Bolts: ±1/16" (1.6 mm) Bolts hole spacing: ±1/32" (0.8 mm)
	Eccentricity of bolt circle with respect to facing	2 1/2" and smaller ±1/32" (0.8 mm) maximum 3" and larger ±1/16" (1.6 mm) maximum
C	Thickness	18" and smaller: ±1/8" (3.2 mm), -0" 20" and larger: ±3/16" (4.8 mm), -0"
K	Length of hub	10" and smaller: ±1/16" (1.6 mm) 12" and larger: ±1/8" (3.2 mm)

Check Pressure Rating of ANSI B16.5 Class 300/ 600/ 900 Alloy 800 Weld Neck Flange, ASTM B408 UNS N08800 Lap Joint, Threaded Flange and Inconel 800 Slip On (SORF) Flange exporter in Mumbai

Nickel 800 Flanges Pressure Rating

Incoloy Flanges	Pressure And Temperature Ratings
Temperature °F	Class 150 As Per ASME B16.5	Class 300 As Per ASME B16.5	Class 400 As Per ASME B16.5	Class 600 As Per ASME B16.5	Class 900 As Per ASME B16.5	Class 1500 As Per ASME B16.5	Class 2500 As Per ASME B16.5
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

Check Properties Of JIS NCF 800HT Flat Face Flange and ASME B564 800 Incoloy Reducing Flanges Supplier & Manufacturers In Mumbai, India.

Incoloy 800 Physical Properties

Density	Melting Range		Specific Heat		Electrical Resistivity
g/cm3	°C	°F	J/kg. k	Btu/lb.°F	µΩ·m
7.94	1357-1385	2475-2525	460	0.110	989

NDT test done for AS/NZ 4087 ASME SB408 N08800 Socket Weld Flange, Long Weld Neck Flange and Nickel Alloy 800 Forged Flange material to ensure leak free connection

Gasket Sizes Of ASME SB408 UNS N08800 Blind Flange

Normal Pipe Size	Gasket I.D. (Inside Daimeter)	Gasket O.D. (Outside Daimeter)
Normal Pipe Size	Gasket I.D. (Inside Daimeter)	150 LB	300 LB	400 LB	600 LB	900 LB
1/2	0.84	1.875	2.125	2.125	2.125	2.50
3/4	1.06	2.25	2.625	2.625	2.625	2.75
1	1.31	2.625	2.875	2.875	2.875	3.125
1 1/4	1.66	3	3.25	3.25	3.25	3.50
1 1/2	1.91	3.375	3.75	3.75	3.75	3.875
2	2.38	4.125	4.375	4.375	4.375	5.625
2 1/2	2.88	4.875	5.125	5.125	5.125	6.50
3	3.50	5.375	5.875	5.875	5.875	6.625
4	4.50	6.875	7.125	7.00	7.625	8.125
5	5.56	7.75	8.50	8.375	9.50	9.75
6	6.62	8.75	9.875	9.75	10.50	11.375
8	8.62	11	12.125	12.00	12.625	14.125
10	10.75	13.375	14.25	14.125	15.75	17.125
12	12.75	16.125	16.625	16.50	18.00	19.625

Alloy UNS N08800 Flange Types

Incoloy 800 Flanges

Alloy 800 Flanges

Nickel 800 Flanges

Incoloy 800 Slip on Flange

ASME Sb408 UNS N08800 RTJ Flange

Incoloy 800 Flange

Incoloy 800 Weld Neck Flange

Incoloy 800 Blind Flange

Incoloy 800 800h Flange Nickel Alloy N08800 Wn Rf Flanges

Incoloy® 800h Blind Rtj Flange

Werkstoff Nr. 1.4876 Blrf Flange

Afnor Z8nc32-21 So Flange

ASME B564 800 Incoloy Slip On Flange

Alloy 800 Long Weld Neck Flange

Get instant delivery Of DN15-1200 3000lbs Forged Alloy 800HT RTJ Flange , Ready Stock Of Incoloy 800 Raised Face Flange , DIN 1.4876 BLRF Flange Manufacturer In Mumbai. India.

ASME SB564 800ht Incoloy Flanges Stock

ASTM B408 UNS N08800 Bleed Rings	800 Incoloy Class 150 Weldoflange
Incoloy 800Ht Class 150 LBS Nipo Flange	800 Incoloy Long Weld Neck Flanges
Incoloy alloy 800H Lap Joint Pipe Flanges	Incoloy alloy 800H PN16 Screwed Flanges
Incoloy 800Ht Weld Neck Flange	Incoloy 800 Lap Joint Flange
Incoloy alloy 800H Long Weld Neck Flange	800 Incoloy Spectacle Blind Flanges
Incoloy 800Ht Spades & Ring Spacers	ASTM B408 UNS N08800 Nipoflange
Incoloy 800 5D Weldoflange	Nickel Alloy 800 Flange Outlet
800 Incoloy Flanges	Incoloy 800 Blind Flanges
Incoloy 800Ht Slip on Flange	Incoloy 800Ht Threaded Flange
800 Incoloy Reducing Flange	ASTM B408 UNS N08800 Socket Weld Flange
800 Incoloy Forged Flange	Alloy 800H Plate Flange
800 Incoloy Ring Type Joint Flange	ASTM B408 UNS N08800 Raised Face Flange
Nickel Alloy 800 WNRF Flange	Incoloy 800Ht RTJ Flange
Incoloy 800 Series a Lap Joint Ring Flange	ASTM B408 UNS N08800 Class 300 threaded Flange
800 Incoloy PN16 blind Flange	Incoloy 800 ASTM B408 Forged Socket Weld Pipe Flange
Incoloy 800 Class 300 slip on Flanges	Incoloy 800Ht Slip On Weld Flanges
Incoloy 800 Tongue and Groove Flanges	Alloy 800H Male and Female Flanges
Incoloy 800Ht Reducing Flange	800 Incoloy ASME B16.5 Flange
Nickel Alloy 800 Flange	Incoloy 800Ht BS 10 Flange
Incoloy 800 BS 4504 Flange	ASTM B408 UNS N08800 EN 1092-1 Flange
Incoloy alloy 800H SORF Flanges	800 Incoloy BLRF Flanges
Incoloy 800Ht Forged steel slip on Flange	Incoloy 800Ht Race face slip on Flange
Incoloy 800 Forged integral puddle Flange	Incoloy 800Ht table e long weld neck
800 Incoloy Class 150 LBS Flanges	Alloy 800H PN10 Forged Flanges
Incoloy 800 RTJ Flanges	Incoloy 800Ht PN10 Plate Flange
800 Incoloy Tongue & Groove Flange	Incoloy 800 Reducing Flanges
Incoloy 800Ht Class 150 reducing threaded Flanges	Incoloy 800Ht Class 150 Pipe Flanges
Incoloy alloy 800H Class 150 Flanges	Incoloy 800 ASTM B408 Pipe Flanges
Nickel Alloy 800 SWRF Flanges	Incoloy 800 ASTM B408 Forged blind Flanges
Incoloy 800 groove weld neck Flanges	Incoloy alloy 800H Socket Weld Hub Flanges
Nickel Alloy 800 threaded lap joint Flanges	Incoloy 800 ASTM B408 Slip On Integral Flanges
800 Incoloy BS 10 Flanges	Nickel 800 Class 150 Tongue & Groove Flanges
Incoloy 800Ht BS 4504 pn16 Flanges	800 Incoloy EN 1092-1 flat Flanges
Incoloy 800 ASTM B408 Raised Face Flanges	Incoloy alloy 800H Flat Faced Plate Flanges

View Torque Chart of EN 1092-2 PN10 800 Incoloy Orifice Flanges, Incoloy DIN 1.4876 Lap Joint, Plate Flange and Incoloy Alloy 800 Spectacle Blind Flange supplier in India, contact us for more information!

Incoloy 800 Slip on Flange Torque Chart

Size in Inches	Size in Millmeter	Max. Radial Projection of Imperfections that are
Size in Inches	Size in Millmeter	Serrations, No Deeper Than the Bottom, Millmeter	Serrations, Deeper Than the Bottom, Millmeter
1/2	15	3.0	1.5
3/4	20	3.0	1.5
1	25	3.0	1.5
1 1/4	32	3.0	1.5
1 1/2	40	3.0	1.5
2	50	3.0	1.5
2 1/2	65	3.0	1.5
3	80	4.5	1.5
3 1/2	90	6.0	3.0
4	100	6.0	3.0
5	125	6.0	3.0
6	150	6.0	3.0
8	200	8.0	4.5
10	250	8.0	4.5
12	300	8.0	4.5
14	350	8.0	4.5
16	400	10.0	4.5
18	450	12.0	6.0
20	500	12.0	6.0
24	600	12.0	6.0

Buy Alloy 800 Weld Neck Flanges Directly From Largest Manufacturers In Mumbai, Check Dimension Chart Of Incoloy N08800 Blind Flanges

Dimension Of Werkstoff Nr. 1.4876 Socket Weld Flange

Normal Pipe Size	Outer Diameter of Flanges	Thickness of Flanges	Diameter of (RF) Raised Face	Diameter of Hub At Base	Lengtd Tdru Hub			Diameter And Bore		Diameter of Hub at Bevel	Fillet Radius	Socket Deptd
	Outer Diameter of Flanges	Thickness of Flanges	Diameter of (RF) Raised Face	Diameter of Hub At Base	Weld Neck (WN) Flanges	Slip On And Threaded/ Socket Weld Flanges	Lap Joint Flanges	Slip-on (SORF) And Socket Weld Flanges	Lap Joint (Loose) Flanges	Diameter of Hub at Bevel	Fillet Radius	Socket Deptd
	O	Q	R	X	Y	Y	Y	W	B	H	r	Z
1/2	3-1/2	7/16	1-3/8	1-3/16	1-7/8	5/8	5/8	.88	.90	.84	1/8	3/8
3/4	3-7/8	1/2	1-11/16	1-1/2	2-1/16	5/8	5/8	1.09	1.11	1.05	1/8	7/16
1	4-1/4	9/16	2	1-15/16	2-3/16	11/16	11/16	1.36	1.38	1.32	1/8	1/2
1-1/4	4-5/8	5/8	2-1/2	2-5/16	2-1/4	13/16	13/16	1.70	1.72	1.66	3/16	9/16
1-1/2	5	11/16	2-7/8	2-9/16	2-7/16	7/8	7/8	1.95	1.97	1.90	1/4	5/8
2	6	3/4	3-5/8	3-1/16	2-1/2	1	1	2.44	2.46	2.38	5/16	11/16
2-1/2	7	7/8	4-1/8	3-9/16	2-3/4	1-1/8	1-1/8	2.94	2.97	2.88	5/16	3/4
3	7-1/2	15/16	5	4-1/4	2-3/4	1-3/16	1-3/16	3.57	3.60	3.50	3/8	13/16
3-1/2	8-1/2	15/16	5-1/2	4-13/16	2-13/16	1-1/4	1-1/4	4.07	4.10	4.00	3/8	7/8
4	9	15/16	6-3/16	5-5/16	3	1-5/16	1-5/16	4.57	4.60	4.50	7/16	15/16
5	10	15/16	7.5/16	6-7/16	3-1/2	1-7/16	1-7/16	5.66	5.69	5.56	7/16	15/16
6	11	1	8-1/2	7-9/16	3-1/2	1-9/16	1-9/16	6.72	6.75	6.63	1/2	1-1/16
8	13-1/2	1-1/8	10-5/8	9-11/16	4	1-3/4	1-3/4	8.72	8.75	8.63	1/2	1-1/4
10	16	1-3/16	12-3/4	12	4	1-15/16	1-15/16	10.88	10.92	10.75	1/2	1-5/16
12	19	1-1/4	15	14-3/8	4-1/2	2-3/16	2-3/16	12.88	12.92	12.75	1/2	1-9/16
14	21	1-3/8	16-1/4	15-3/4	5	2-1/4	3-1/8	14.14	14.18	14.00	1/2	1-5/8
16	23-1/2	1-7/16	18-1/2	18	5	2-1/2	3-7/16	16.16	16.19	16.00	1/2	1-3/4
18	25	1-9/16	21	19-7/8	5-1/2	2-11/16	3-13/16	18.18	18.20	18.00	1/2	1-15/16
20	27-1/2	1-11/16	23	22	5-11/16	2-7/8	4-1/16	20.20	20.25	20.00	1/2	2-1/8
24	32	1-7/8	27-1/4	26-1/8	6	3-1/4	4-3/8	24.25	24.25	24.00	1/2	2-1/2

PED Certified Nickel 800H Slip On Flange Manufacturers in Mumbai, India, Temperature Rating Of Werkstoff Nr. 1.4876 Socket Weld Flange In MM.

Inconel 800 Temperature Range

alloy 800 is used for its strength characteristics at service temperatures up to about 1500°F (816°C).

Incoloy 800 Melting Point

Melting Point	1385°C	2525°F

Incoloy 800 Pipe Flange Coefficient Of Thermal Expansion

Physical Properties	°F	°C
Mean Coefficient of Thermal Expansion	70-200 70-400 70-600 70-800	21-93 21-204 21-316 21-427
Thermal Conductivity	70 200 400 600 800	21 93 204 316 427

Incoloy 800 Corrosion Resistance

Incoloy 800HT Density

Properties	Metric	Imperial
Density	7.94 g/cm³	0.287 lb/in³

Incoloy 800 Socket Weld Flange Creep Properties

Incoloy 800 is primarily used in applications with temperatures up to 1100° F, where alloys 800H and 800HT are normally used in temperatures above 1100° F where resistance to creep and rupture is required.

Incoloy 800 Flanges
