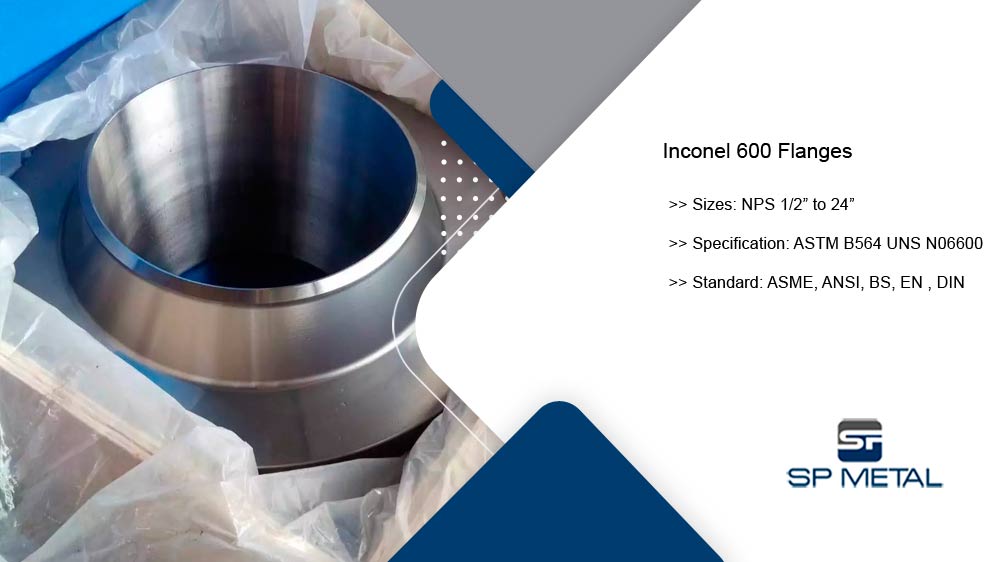

Inconel 600 Flanges


Inconel 600 Flanges

What is Inconel 600 Flanges?

Inconel 600 Flanges are solution-hardened modules made up of superior concentrations of nickel and chromium alloy. These flanges are utilized in applications that require high resistance to corrosion and oxidation. The flanges are strong and securely seal different types of piping modules. The flanges within this grade are used across cryogenic to high-temperature systems. The components are non-magnetic in nature and have excellent mechanical properties offering good weldability across an array of stress-induced systems. Apart from this, they show excellent resistance to chloride-ion pitting, allowing them to be used in marine systems.

Comparision UNS N06600 Weld Neck Flange and DIN 2.4816 Spectacle Blind Flanges

Flanges are characterized by their sizes, face types, and pressure holding capacity. Weld neck flanges and spectacle blind flanges can be distinguished based on these characteristics.

  • UNS N06600 Weld Neck Flange are characterized by a long protruding tapered hub. DIN 2.4816 spectacle blind flanges have two components a blind face and a spacer with a hollow face.
  • Weld neck flanges are utilized in high pressure and temperature systems. The blind end of spectacle blind flanges can be used to terminate the flow in the system.

Alloy 600 Blind Flange Offshore Oil Application

Alloy 600 Blind Flanges are versatile components, which terminate the flow within the system. These flanges are under most stress as they seal the ends of the system. They are resistant to high pressures, and temperatures making them an ideal choice for the oil industry. Furthermore, they are resistant against corrosion, allowing oil and its products to be securely stored using this module.

Inconel 600 Orifice Flange vs ANSI B16.5 Alloy 600 Slip On Flanges

Slip on and orifice flanges are amongst the unique flanges in the piping industry. Both these flanges can be distinguished based on certain key features.

  • Inconel 600 orifice flanges are generally characterized by a disc-shaped raised face. ANSI B16.5 alloy 600 slip on flanges have a low-profile head.
  • Orifice flanges are generally bolted and allow for easy dismantling. Slip on flanges are welded on the piping component using one or two fillet welds.
  • Slip on flanges within this grade are preferred in low-temperature systems. Orifice flanges are fitted on high-pressure pipelines to check their rate of flow.

Alloy 600 Flanges Features

Some of the features of Alloy 600 flanges include

  • Excellent weldability
  • Outstanding strength due to the superior chromium-nickel base
  • Superior resistance against a range of corrosive media
  • Non-magnetic
  • Enhanced mechanical properties
  • Resistant to temperatures from cryogenic to high temperatures
  • Good tolerance to chloride ion pitting
  • Superb resistance in ammonia based environments

Alloy 600 WNRF Flange and ASTM B564 UNS N06600 SORF Flange manufacturer in India

Manufacturer of Nickel Alloy 600 Lap Joint Flange and WNR 2.4816 Slip-on Flange from bar blanks, and ASME B16.5/ MSS SP-44 Series Nickel Alloy 600 Weld Neck Flange & Flat Flange cutted from sheet

Nickel 600 Flanges Specification

Pressure Rating ANSI/ ASMEClass 150, Class 1500, Class 900, Class 300, Class 2500, Class 600,
StandardsJISB2220, GOST Flange, BS1560-3.1, API7S-43, API7S-15, API605, BS, EN1092, BS4504, EN-1092, BS 10, DIN, ASME, ANSI, DIN, ISO70051, MSS S44, ASME/ANSI B16.5, ANSI/ASME 16.36/B16.5/16.47A/B16.47 Series B & A, 16.47B, B16.48, EN
JIS20 K, 16 K, 5K, 40 K, 30 K, 10 K, 63 K,
Pressure Calculation in DIN16Bar, 10Bar, 25Bar, 6Bar, 40Bar, PN16, PN40, PN64, PN25, PN6, PN10
EquipmentPress machine, Pushing Machine, Bending machine, electric bevelling machine Sand-blasting machine, etc
EN25Bar 6Bar 40Bar 16Bar 10Bar
UNI16Bar
Most common Types Forged / Threaded / Plate/ Screwed
Shapes and Types we produce Ring Type Joint (RTJ), Large Male-Female (LMF), Small Tongue, Flat Face (FF), Small Male-Female (SMF) Large Tongue & Groove, ,Raised Face (RF), Lap-Joint Face (LJF), Groove
Production techniquemachined, Forged, and Heat treated
TestMagnetic particle detector, Direct-reading Spectrograph, Hydrostatic testing machine, UI trasonic flaw detector,X-ray detector,

Manufacturer & Supplier Of Inconel 600 Flange, Alloy 600 Flanges In India

Inconel 600 Chemical Composition

GradeCMnSiSCuFeNiCr
Inconel 6000.15 max1.00 max0.50 max0.015max0.50 max6.00 – 10.0072.00 min14.00 – 17.00

Get instant delivery Of 2 inch ASTM B564 Inconel 600 Threaded Flanges , Mechanical Composition Of Din 2.4816 Spectacle Blind Flanges, 600 Alloy Socket Weld Flanges Manufacturer In Mumbai. India.

Inconel 600 Mechanical Properties

ElementMelting PointDensityYield Strength (0.2%Offset)Tensile StrengthElongation
Inconel 6001413 °C (2580 °F)8.47 g/cm3Psi – 45,000 , MPa – 310Psi – 95,000 , MPa – 65540 %

Sizes Of Nickel 600 Flanges

Inconel Alloy Din 2.4816 Flange1/2″ (15 NB) to 48″ (1200NB)
Inconel 600 Slip on Flange1/2″ NB – 12″ NB
ASTM B564 Inconel 600 Blind Flange1/2″ NB – 24″ NB

UNS N06600 Equivalent

STANDARDUNSWERKSTOFF NR.ENJISGOSTBSAFNOR
Inconel 600N066002.4816NiCr15FeNCF 600МНЖМц 28-2,5-1,5NA 13NC15FE11M

Buy Alloy 600 Blind Flange Directly From Largest Manufacturers In Mumbai, Check Weight Chart Of UNS N06600 Weld Neck Flange

ASTM B564 UNS N06600 Flange Weight Chart

StandardDiaClassBolt Circle DiaBolt SizeNo of BoltsDia of Bolt Hole
AS 2129 Flange95Table C Flanges6713414
95Table D Flanges6713414
95Table E Flanges6713414
95Table F Flanges6713414
114Table H Flanges8316417
114Table J Flanges8316417
AS4087 Flanges95PN14 Flanges67M12414
ANSI B16.5 Flanges89ANSI 150 Flanges6013416
95ANSI 300 Flanges6713416
95ANSI 600 Flanges6713416
121ANSI 900 Flanges8319422
121ANSI 1500 Flanges8319422
ISO 7005 (DIN) Flange80PN6 Flanges55M10411
95PN10 Flanges65M12414
95PN16 Flanges65M12414
90PN20 Flanges60.5M14416
95PN25 Flanges65M12414
95PN40 Flanges65M12414

Well-known Manufacturer Of ASTM B564 UNS N06600 Weld Neck Flange in India. For final ASME SB564 UNS N06600 Orifice Flange Price List Please Call on +91 22 6636 3099.

Pressure Rating Of Inconel 600 Blind Flange

ANSI/ ASME B 16.47Blind [Series B & A], Welding Neck Flange
PRESSURE CLASS150, 600, 400, 75, 900 300,
ANSI/ ASME B 16.5Threaded Flange, Welding Neck, Slip on, High Hub Blind, Socket Weld, Blind,Lap Joint, Ring Type Joint,
PRESSURE CLASS900, 300, 600, 1500, 400, 150, 2500
ANSI/ ASME B 16.36 Slip on, Welding Neck, Threaded Flange
PRESSURE CLASS2500, 300, 400, 900, 1500, 600,
BS 4504[PART 1]Welding Neck, Plate, Hubbed Slip-On Hubbed Threaded, Blank, Loose Plate With Weld On Plate Collar Flange
BS 4504 SEC 3.1Welding Neck, Hubbed Slip on, Lapped Pipe End, Loose Plate, Hubbed Threaded, Plate, Blank, Loose Plate With Weld Neck Flange
PRESSURE CLASSPN 2.5 TO 40
PRESSURE CLASSPN 2.5 TO 400
BS10Slip-On Boss, Plate, Welding Neck, Screwed Boss, Slip-On, Blind Flange
TABLEE, D,H, F
BS 1560 BOSSWelding Neck, Socket Welding,Screwed Boss Slip-On,Blind, Lapped, Flange
PRESSURE CLASS300, 2500 1500, 900, 600, 400, 150,
DINSDIN2641,2642, 2527, 2629, 2634, 2635, 2633, 2637,2638, 2627, 2656, 2566, 2636, 2655, 2628, 2573, 2576, 2673 2632, 2631,
PRESSURE CLASSPN 6 TO 100

PED Certified Inconel 600 Alloy Pipe Flanges Manufacturers in Mumbai, India, Dimensions Of Inconel Alloy 600 Nippolet Flanges In MM.

Alloy 600 Flanges Dimension

ASTM Standards of Alloy 600 Flanges
  • ASME B16.25, Buttwelding Ends
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.36, Orifice Flange
  • ASME B16.5, Pipe Flange and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.1, Cast Iron Flange and Flanged Fittings Classes 25, 125 and 250
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)
  • ASME B16.47, Large Diameter Steel Flange NPS 26 Through NPS 60
  • ASME B31.3, Process Piping
  • ASME B31.1, Power Piping

Looking for Nickel 600 Flanges suppliers who offer prompt delivery in Asia? Manufacturer of #150 ANSI Alloy 600 RTJ Flange in India, call us for big discount and ready sizes, check latest price of Inconel 600 Blind Flange in Mumbai

Why pay extra? Buying from Inconel 2.4816 Spectacle Blind Flange manufacturers saves your cost, wide selection of ASTM B564 Nickel 600 Socket Weld Flange and UNS N06600 Threaded Flange in India

Inconel 600 Flanges Price

DescriptionPer Unit (INR)
BLIND FLANGE 2 150# RF ASME B16.5 50-150RF-INCONEL 600(1 PCS)18,583
INCONEL 600 FLANGES 2 600 RTJ19,519
FLANGES - INCONEL FLANGES (INC.600) 2 WN 600 RF SCH XXS1,436
ALLOY 600 3300# SM.GRV.WN SCH80(NICKEL ALLOYS)SB564 UNS N06600 INCONEL FORGED FLANGE ASME B16.5 DN8056,339
ALLOY 600 1300# SM.GRV.WN SCH80(NICKEL ALLOYS)SB564 UNS N06600 INCONEL FORGED FLANGE ASME B16.5 DN2520,832
ALLOY 600 2300# SM.GRV.WN SCH80(NICKEL ALLOYS)SB564 UNS N06600 INCONEL FORGED FLANGE ASME B16.5 DN5033,199
ALLOY 600 1-1/2300# SM.GRV.WN SCH80(NICKEL ALLOYS)SB564 UNS N06600 INCONEL FORGED FLANGE ASME B16.5 DN4027,916

Alloy 600 Material Properties

Typical Physical Properties of Inconel 600 Flanges
DensityMelting RangeSpecific HeatCurie TemperatureElectrical Resistivity
lb/in3Mg/m3°F°CBtu/lb-°FJ/kg-°C°F°Cmil/ftμΩ-m
0.3068.472470-25751354-14130.106444.00-192-1246201.03
Manufacturer of Class 150/ 300/ 600 Alloy 600 Flanges, WNR 2.4816 Forged Flange and EN 1092-1 Type 11 PN25 Inconel 600 Orifice Flanges with smooth seal surface

Alloy 600 Flanges Types

Nickel 600 Flanges
Nickel 600 Flanges
Inconel 600 Blind Flange
Inconel 600 Blind Flange
Class 300, BS 3293, Alloy 600 Flange
Class 300, BS 3293, Alloy 600 Flange
UNS N06600 Flange
UNS N06600 Flange
Inconel 600 Flanges
Inconel 600 Flanges
Alloy 600 Flanges
Alloy 600 Flanges
ASTM B564 UNS N06600 Blind Flange
ASTM B564 UNS N06600 Blind Flange
Inconel 600 Slip on Flange
Inconel 600 Slip on Flange
Inconel 600 Threaded Flange
Inconel 600 Threaded Flange
Inconel 625 Alloy Steel 8 Spectacle Blind Flanges
Inconel 625 Alloy Steel 8 Spectacle Blind Flanges
ASTM B16.47 Plate Rf 600# Nickel Alloy Inconel 625 725 690 Flanges
ASTM B16.47 Plate Rf 600# Nickel Alloy Inconel 625 725 690 Flanges
Inconel 600 Weld Neck Flange
Inconel 600 Weld Neck Flange
Inconel 600 Socket Weld Flange
Inconel 600 Socket Weld Flange
Inconel 625 Din2527 Bl Flange
Inconel 625 Din2527 Bl Flange
ASTM B564 Inconel 625 UNS N06625 Nickel Alloy Steel Wn Weld Neck Flange
ASTM B564 Inconel 625 UNS N06625 Nickel Alloy Steel Wn Weld Neck Flange
Inconel 600 Pipe Flange
Inconel 600 Pipe Flange
Werkstoff Nr. 2.4816 Anchor Flange
Werkstoff Nr. 2.4816 Anchor Flange
EN Nicr15fe Plate Flange
EN Nicr15fe Plate Flange
Inconel 600® Forged Flange
Inconel 600® Forged Flange
ASTM B166 Inconel 600 Threaded Flange
ASTM B166 Inconel 600 Threaded Flange

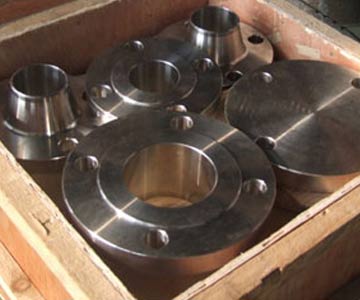

Inconel 600 Flange Packaging

Inconel 600 Flange Packaging

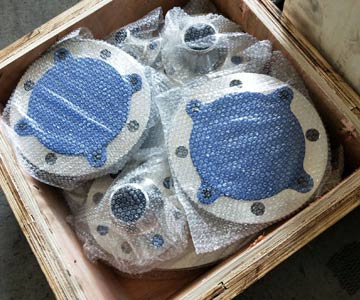

Alloy 600 Flange Packaging
  • Bundles (hexagonal)
  • Wooden Boxes
  • Crates (steel/wooden)
  • Special crates for Alloy Steel Pipes and Tubes with each radius separated
  • Packaging for Alloy Steel Seamless Pipe and Tube as per customer’s requirements
Manufacturer of EN 1092-2 PN10 UNS N06600 Long Weld Neck Flange, JIS 10K Class 300 Inconel 600 Threaded Reducing Flange for welding and Asme Sb564 N06600 Socket Weld/ orifice/ Rtj Flange in RTJ, Tongue, Female, Male, Flat, Groove, Raised, RJ face

ASTM B16.47 600 Inconel Flanges Stock

Inconel 600 ASTM B564 Weld Neck FlangesInconel 600 Lap Joint Flanges
600 Inconel Long Weld Neck FlangesInconel 600 DIN 2.4816 Spectacle Blind Flanges
Inconel 600 ASTM B564 Spades & Ring SpacersAlloy 600 Nipoflange
Inconel 600 5D WeldoflangeInconel alloy 600 Flange Outlet
Inconel 600 DIN 2.4816 Forged FlangesNickel 600 Plate Flange
Inconel 600 DIN 2.4816 Ring Type Joint FlangesAlloy 600 Raised Face Flanges
Inconel 600 DIN 2.4816 FlangesInconel 600 Blind Flanges
ASTM B564 UNS N06600 Slip on FlangesInconel 600 ASTM B564 Threaded Flanges
Inconel 600 DIN 2.4816 Reducing FlangesAlloy 600 Socket Weld Flanges
Inconel 600 Tongue and Groove FlangesNickel 600 Male and Female Flange
Inconel 600 ASTM B564 Reducing FlangesInconel 600 DIN 2.4816 ASME B16.5 Flanges
Inconel alloy 600 FlangesASTM B564 UNS N06600 BS 10 Flanges
Inconel 600 BS 4504 FlangesAlloy 600 EN 1092-1 Flanges
600 Inconel SORF FlangesInconel 600 DIN 2.4816 BLRF Flanges
Inconel alloy 600 WNRF FlangesASTM B564 UNS N06600 RTJ Flanges

Gasket Size Chart Of Inconel 600 Slip on Flange

Normal Pipe SizeGasket I.D. (Inside Daimeter)
Gasket O.D. (Outside Daimeter)
150 LB300 LB400 LB600 LB900 LB
1/20.841.8752.1252.1252.1252.50
3/41.062.252.6252.6252.6252.75
11.312.6252.8752.8752.8753.125
1 1/41.6633.253.253.253.50
1 1/21.913.3753.753.753.753.875
22.384.1254.3754.3754.3755.625
2 1/22.884.8755.1255.1255.1256.50
33.505.3755.8755.8755.8756.625
44.506.8757.1257.007.6258.125
55.567.758.508.3759.509.75
66.628.759.8759.7510.5011.375
88.621112.12512.0012.62514.125
1010.7513.37514.2514.12515.7517.125
1212.7516.12516.62516.5018.0019.625

Tradename Of Inconel Alloy 600 Nippolet Flanges

UNS NO:N06600
international Specifications:DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe BS 3072-3076 (NA14) DIN 17750, DIN 17742,
Specifications ASME/ASTM:ASME SB-564

Alloy 600 Rtj Flange Manufacturing Facilities

  • Raw material cutting: band saw
  • Open / Close Die Forging & Rolling: Hammer /Press / Ring Rolling
  • Bolt Hole drilling: High speed CNC Vertical Machining Center
  • Heat treatment: Solution Annealing (batch annealing furnaces)
  • Machining: SPM lathes/ CNC lathes

Inconel 600 Pipe Flange Version

Flange Version
edgewise, Flat steel, as a flange
flat, as a tire, Flat steel
square steel
Round steel
thighs outwards, Angle steel,
wide leg to the outside, Angle steel
narrow leg to the outside Angle steel,
thighs inside, Angle steel
wide leg inside, Angle steel
narrow leg inside, Angle steel
bridge inside, T-steel
bridge to the outside, T-steel
foot bent upright, T-steel
opening to the outside, U-steel
opening inwards, U-steel
(bent around the X-axis) Double-T carrier
(bent around the Y-axis) Double-T carrier
high edge Rectangular tube
flat, Rectangular tube
square tube
round tube

DIN 2.4816 Spectacle Blind Flanges Surafce Treatment

  • Anti-rust Paint
  • Oil Black Paint
  • Cold and Hot Dip Galvanized
  • Yellow Transparent
  • Zinc Plated

Check Standard Of ANSI B16.5 Alloy 600 Slip On Flanges and Inconel 600 Flanges Manufacturer in India.

Inconel 600 Socket Weld Flange Standard

TypeENDIN
Inconel Blind Flanges052527
Inconel Weld Neck Flanges112627 – 2638
Inconel Flat Flanges for Welding012573 | 2576
Inconel Threaded Flanges132558 | 2565 – 2569
Inconel Loose Flanges042673 – 2676
Loose Flanges022641 | 2642 | 2655 | 2656
Inconel Weld Neck Collars342673 – 2676
Inconel Weld-on Collars322641 | 2642 | 2655 | 2656
Inconel Slip-on Flanges1286029 | 86030
Inconel Exhaust gas line Flanges86044
Inconel Lapped Flanges86037
Weld Flanges for Pressure Vessels28031 | 28033
Inconel Welding Flanges86041
in accordance with drawings Special Flanges

Nickel 600 Plate Flange Testing

  • Tensile testing machine
  • Ultrasonic testing machine
  • Mobile spectrometer for PMI test
  • Radiation servo meter

UNS N06600 Heat Treatment

Super alloy AL 600™ can be solution annealed at 1010°C (1850°F) for 15 minutes and air cooled.

Inconel 600 Brinell Hardness

Alloy statusBrinell hardnessHB
Annealing treatment≤195
Solution treatment≤185

Alloy 600 Corrosion Resistance

With 72% minimum nickel, this alloy is resistant to many organic and inorganic compounds and also offers good corrosion resistance in reducing conditions. The high nickel content lowers the chances for stress corrosion cracking for this alloy in the annealed condition.

Inconel 600 Threaded Flange Melting Point

Physical PropertiesMetricEnglish
Thermal Conductivity14.9 W/m-K103 BTU-in/hr-ft²-°F
Melting Point1354 - 1413 °C2470 - 2580 °F

Is Inconel 600 Magnetic

Inconel 600 is non-magnetic, has excellent mechanical properties and a combination of high strength and good workability and is readily weldable. Alloy 600 exhibits cold forming characteristics normally associated with chromium-nickel stainless steels.

Inconel 600 Electrical Conductivity

Physical Properties°FBritish Units°CMetric Units
Electrical
Resistivity
70
200
400
600
800
40.6 microhm-in.
40.9
41.5
42.2
43.0
21
93
204
316
427
1.03 microhm-m
1.04
1.05
1.07
1.09

A Global supplier

See Who Buy From SP Metals And What Exactly?

Inconel 600 Flanges Manufacturers in India

Inconel 600 Flanges Manufacturers in India

Inconel 600 Blind Flange

Inconel 600 Blind Flange


Malaysia, Sweden, Iran, Vietnam, Los Alamos -Mexico, Netherlands, Singapore, United States, Italy, Jakarta -Indonesia, Oman, China, Dubai- UAE, Dammam -KSA, Russia, Egypt, United Kingdom (UK), Indonesia, USA, France, Colombia, Germany, South Africa, Malaysia, Jakarta, Qatar, Bahrain, Romania, Denmark Philippines, Istanbul- Turkey, Jordan, Brazil, Mexico, Europe, Morocco

ASTM B564 UNS N06600 Alloy 600 Flanges

ASTM B564 UNS N06600 Alloy 600 Flanges

South Africa, Kuala Lumpur, Kuwait, Dubai, South Korea, Spain, Saudi Arabia (KSA), Malaysia, Belgium, Poland, Tehran -Iran, Ellington -United States, Bangladesh, Greece, Finland, Australia, Nigeria, Argentina, Singapore, Hong Kong, Portugal, NY 12203 (USA), Japan, United Arab Emirates (UAE), Turkey, Thailand, Taiwan, Czechia, Chile, Austria, Peru, Norway, Canada, New Zealand
