316 Stainless Steel Sheets Benefits
Grade 304 is the most ordered stainless steel all over the world. It provides the quality resistance of corrosion, easy maintenance, formability, strength for which stainless is known for.
While 316 stainless steel sheets comes in second in terms of sold quantities, it provides enormously superior corrosion resistance to acids and chlorides.
The below given points makes it popular for a wide range of environments such as:
Sector with high levels of salt
Brewing provisions & equipment
Coastal conditions
Surroundings with increased subjection to acids and alkalis
Foodservice, processing, and preparation environments
Medical implants and tools
These increased resistances also help to take the assumption out of cleaning and allows to clean stainless steel sheet more frequently by using stronger detergent and cleansers with little worry about damage or changing the appearance of stainless steel sheet.
This makes 316 stainless steel perfect upgrade for surroundings with cleanliness standards and strict hygiene.
Difference between Stainless Steel 304 Flat strip and 316 strip coil
Stainless Steel 304 Flat strip and 316 strip coil are available in a wide variety which are served to
an extensive range of applications.
SS 304 Flat strip provides excellent corrosion resistance in a wide variety of environment and also when it comes into contact with different corrosive media. SS 304 Flat strip is a profiles used in interior wall decoration furniture to give luxurious look.
It is formed through hot or cold rolling, and it offers many advantages over standard steel such as increased corrosion-resistance, ductility, tensile strength and cryogenic toughness. It is a flat-rolled, very thin sheet of stainless steel.
Stainless steel 316 Strip Coil provides excellent resistance to corrosion when it is exposed to a range of corrosive surroundings and media. It is usually regarded as “marine grade” but is non-resistant to warm sea water. It is an enormously versatile component, and has diverse uses and applications across the spectrum of industry. These include filtration devices, fabricating heating elements, cutlery, surgical instruments, springs, flexible tubing and heat exchangers, etc.
Leading Exporter and Supplier of ASTM A240 Type 316 Plate

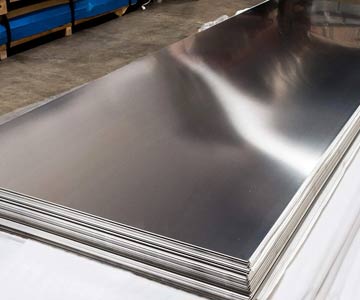

Stainless Steel 316 Plate
Stainless Steel 316 Sheet
Looking for UNS S31600 316 Stainless Steel Sheet Suppliers who offer prompt delivery in Asia? SS 316 Plate Manufacturers In India, call us for big discount and ready sizes, check latest price of Stainless Steel 316 Foil in Mumbai
SS 316 Plate Specification
Product Type SS 316 Sheet, SS 316 Plate Specification and Material Grade ASTM A240 / ASME SA240 Grade 316 Tolerances (thickness & width) EN 10258/ DIN 59381) EN 10151 ASTM A240 316 SS Strips EN 10088 316 Stainless Steel strips American / European Standard ASTM A 480 ASTM A 959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 Available Sizes Cold rolled ASTM A240 Grade 316 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASTM A240 Grade 316 Stainless Steel Sheet 3.0–10.0 mm Form Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate Manufacturer and Supplier Thickness 0.1 to 100 mm Thk Width 10-2500mm Length 2m, 2.44m, 3m, or as required Finish 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard SUS 316 Stainless Plate Suppliers in India
Contact us to get latest price list of SS 316 Sheet
SS 316 Plate Price
Description Price in US Price in India 316 stainless steel coil / sheet / plate US $2099-$2299 / Ton 157591.87 - 172607.77 4mm 6mm 8mm 10mm thick 4x8 stainless steel 316 sheet US $600.00-$800.00 / Ton 45047.70 - 60063.60 ss 316 BA surface price 0.4mm thick stainless steel plate US $0.72-$0.87 / Kilogram 54.06 - 65.32 Stainless steel plate 316 US $2000-$3000 / Metric Ton 150159.00 - 225238.50
316 Stainless Steel Sheet Mechanical Properties
ASTM A240 Melting Range Psi / Mpa - Tensile Strength Psi / Mpa - Yield Strength (0.2%Offset) Density % Elongation ASTM A240 Gr 316 1400 °C (2550 °F) MPa – 515 Psi – 75000 MPa – 205 Psi – 30000 8.0 g/cm3 35 %
SS 316 Plate Equivalent In ASTM
Grade WERKSTOFF UNS BS JIS AFNOR GOST EN SS 316 1.4401 / 1.4436 S31600 316S31 / 316S33 SUS 316 Z7CND17‐11‐02 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3
Stainless Steel 316 Plate Supplier in India , Must View SS 316 Foil Composition, Size And Weight Chart
Check Stainless Steel 316 Sheet Thickness, Sizes, Composition, Density And Specification Of SS 316 Plate Ex Mumbai
SS 316 Plate Chemical Composition
ASME SA 240 C Si P N Mn S Mo Cr Ni SA 240 316 0.08 max 1.0 max 0.045 max 67.845 min 2 max 0.030 max 2.00 – 3.00 16.00 – 18.00 11.00 – 14.00
SS 316 Sheet Thickness Chart
Thickness Thickness Available Sizes Surface Area per Unit weight Approx Weight per Sheet inches mm lbs/ft² kg/m² lbs kg 0.015 0.381 36 x 96 0.630 3.07566 15.12 6.84936 0.015 0.381 36 x 120 0.630 3.07566 18.90 8.5617 0.0178 0.45212 36 x 96 0.756 3.690792 18.15 8.22195 0.0178 0.45212 36 x 120 0.756 3.690792 22.68 10.27404 0.0178 0.45212 48 x 96 0.756 3.690792 24.19 10.95807 0.0178 0.45212 48 x 120 0.756 3.690792 30.24 13.69872 0.0235 0.5969 30 x 96 1.008 4.921056 20.16 9.13248 0.0235 0.5969 30 x 120 1.008 4.921056 25.20 11.4156 0.0235 0.5969 36 x 96 1.008 4.921056 24.19 10.95807 0.0235 0.5969 36 x 120 1.008 4.921056 30.24 13.69872 0.0235 0.5969 36 x 144 1.008 4.921056 36.29 16.43937 0.0235 0.5969 48 x 96 1.008 4.921056 32.26 14.61378 0.0235 0.5969 48 x 120 1.008 4.921056 40.32 18.26496 0.0235 0.5969 48 x 144 1.008 4.921056 48.39 21.92067 0.0291 0.73914 30 x 96 1.260 6.15132 25.20 11.4156 0.0291 0.73914 30 x 120 1.260 6.15132 31.50 14.2695 0.0291 0.73914 36 x 96 1.260 6.15132 30.24 13.69872 0.0291 0.73914 36 x 120 1.260 6.15132 37.80 17.1234 0.0291 0.73914 36 x 144 1.260 6.15132 45.37 20.55261 0.0291 0.73914 48 x 96 1.260 6.15132 40.32 18.26496 0.0291 0.73914 48 x 120 1.260 6.15132 50.41 22.83573 0.0291 0.73914 48 x 144 1.260 6.15132 60.49 27.40197 0.0355 0.9017 30 x 96 1.512 7.381584 30.24 13.69872 0.0355 0.9017 30 x 120 1.512 7.381584 37.80 17.1234 0.0355 0.9017 36 x 96 1.512 7.381584 36.29 16.43937
316 Stainless Steel Plate Sizes
Size(mm) Weight per sheet (kg) Size (mm) Weight per sheet (kg) 2500 x 1250 x 1.2 30.7 2500 x 1250 x 2.0 51.2 3000 x 1500 x 1.2 44.2 3000 x 1500 x 2.0 73.7 2500 x 1250 x 1.5 38.4 2500 x 1250 x 3.0 77.5 3000 x 1500 x 1.5 55.3 3000 x 1500 x 3.0 112.0
Size (mm) Weight per sheet (kg) Size (mm) Weight per sheet (kg) 2000 x1000 x0.7 11.5 3000 x1500 x1.5 55.3 2500 x1250 x0.7 17.9 2000 x1000 x2.0 32.7 2000 x1000 x0.9 14.7 2500 x1250 x2.0 51.2 2500 x1250 x0.9 23.0 3000 x1500 x2.0 73.7 2500 x1250 x1.0 25.6 2000 x1000 x2.5 40.9 2000 x1000 x1.2 19.6 2500 x1250 x2.5 63.9 2500 x1250 x1.2 30.7 3000 x1500 x2.5 92.1 3000 x1500 x1.2 44.2 2000 x1000 x3.0 49.6 2000 x1000 x1.5 24.6 2500 x1250 x3.0 77.5 2500 x1250 x1.5 38.4 3000 x1500 x3.0 112.0
Difference Between Stainless Steel 316 Sheet, Plate & Foil
If thickness greater than 6.35 mm is called a SA 240 type 316 Plate.
If thickness greater than 0.15 mm and less than 6.35mm is called a ASTM A240 Grade 316 Sheet .
If thickness less than 0.15mm is then its a ASTM A240 Type 316 Foil .
SUS 316 Stainless Plate Suppliers In Mumbai, Check Weight Chart Of Stainless Steel 316 Strip
Stainless Steel 316 Plate Weight Chart
Thickness Plate Weight per Unit Area Density 3/16 inches 0.06000 lbs/in²42.184176 kg/m² 0.315 lbs/in³8.72 g/cm³ 1/4 inches 0.08 lbs/in²56.245568 kg/m² 0.315 lbs/in³8.72 g/cm³ 3/8 inches 0.121 lbs/in²85.0714216 kg/m² 0.315 lbs/in³8.72 g/cm³ 1/2 inches 0.161 lbs/in²113.1942056 kg/m² 0.315 lbs/in³8.72 g/cm³ 5/8 inches 0.196 lbs/in²137.8016416 kg/m² 0.315 lbs/in³8.72 g/cm³ 3/4 inches 0.235 lbs/in²165.221356 kg/m² 0.315 lbs/in³8.72 g/cm³ 7/8 inches 0.274 lbs/in²192.6410704 kg/m² 0.315 lbs/in³8.72 g/cm³ 1 inches 0.313 lbs/in²220.0607848 kg/m² 0.315 lbs/in³8.72 g/cm³ 1 1/4 inches 0.391 lbs/in²274.9002136 kg/m² 0.315 lbs/in³8.72 g/cm³ 1 1/2 inches 0.47 lbs/in²330.442712 kg/m² 0.315 lbs/in³8.72 g/cm³ 1 3/4 inches 0.549 lbs/in²385.9852104 kg/m² 0.315 lbs/in³8.72 g/cm³ 2 inches 0.627 lbs/in²440.8246392 kg/m² 0.315 lbs/in³8.72 g/cm³ 2 1/4 inches 0.705 lbs/in²495.664068 kg/m² 0.315 lbs/in³8.72 g/cm³ 2 1/2 inches 0.784 lbs/in²551.2065664 kg/m² 0.315 lbs/in³8.72 g/cm³ 2 3/4 inches 0.862 lbs/in²606.0459952 kg/m² 0.315 lbs/in³8.72 g/cm³ 3 inches 0.941 lbs/in²661.5884936 kg/m² 0.315 lbs/in³8.72 g/cm³
Well-known SS316 Perforated Sheet Suppliers In Uae. For final Stainless Steel 316 Coil Price List Please Call on +91 22 6636 3099.
ASTM A240 Grade 316 Stainless Steel Sheet Finishes
No.1, No. 2B, No.3, BA, No.6, No.4, No.7, 2D, 2B,Cold rolled sheet (CR), 1D, No.1 finish hot rolled ASTM A240 Stainless Steel 316 Plate, No.4, 2B, 8K, BA, hairline, satin, mirror, brush,No. 2D, Hot rolled plate (HR), SATIN (Met with Plastic Coated), BA NO(8) etc.
PED Certified 316 Stainless Steel Plate Suppliers in Mumbai, India, Dimensions Of WNR 1.4436 SS 316 Shim Sheet In MM.
316 SS Plate Dimensions
Plate Surface finish Thickness (milimeter) Width (max milimeter) 2B – heat treated, Cold rolled, pickled, skin passed Sheet 0.25–8.0 2032 2E – heat treated, Cold rolled, mechanically descaled plate 0.4–8.0 2032 2H – Work hardened plate 0.4–6.35 1524 2D – heat treated, Cold rolled, pickled Sheet 0.4–6.35 1524 2R – bright annealed plate, Cold rolled 0.25–3.5 1524 brushed, Polished plate 0.5–4.0 1524
ASTM A240 SS 304 Plate Imperial Dimensions
Plate Surface finish Width (max in) Gauge (in) 2D – heat treated, Cold rolled, pickled plate 60 12–24 2B – heat treated, Cold rolled, skin passed Plate, pickled 72* 10–24 Temper rolled Sheet Mexinox only 48 13–29 BA Mexinox only 48 18–28 Polished Sheet (not brushed) 60 11–24
SS 316 Plate Hsn Code
HS Code Description Unit 72193320 EX STOCK STAINLESS STEEL SHEETS GRADE 316/316L(1MM to less than 3MM) KGS
Stainless Steel 316 Strips Thermal Conductivity
Temperature Range °F °C in/in °F cm/cm °C 68-212 20-100 9.2 x 10-6 16.6 x 10-6 68-932 20-500 10.1 x 10-6 18.2 x 10-6 68-1832 20-1000 10.8 x 10-6 19.4 x 10-6
Stainless Steel 316 Plate Types
ASTM A240 316 2b Stainless Steel Plate
1mm 1.5mm 2mm Thick Sus Stainless Steel Plate 316
2b Ba No.1 Surface Finish 3mm Thick 316 Stainless Steel Plate
316 Stainless Steel Clad Plate
316 Steel Plate
12mm 316 Stainless Steel Sheet
Stainless Steel 316 Coil
Stainless Steel 316 Foil
Stainless Steel 316 Strip
Stainless Steel 316 Shim Sheet
ASTM A240 Grade 316
316 Stainless Steel Checker Plate
316 Stainless Steel Bbq Plate
316 Stainless Steel Perforated Sheet
SS 316 Tread Sheet
Buy Your Sizes From Our ASTM A240 SS 316 Sheet And SUS 316 Stainless Steel Plates Ready Stock
316 Stainless Steel Plate For Sale
SS 316 Hot Rolled Plate Mill Finish
Cut To Size 316 SS Custom Cut Plate
ASME SA240 SS 316 Cold Rolled Plate
SS 316 Plate Mirror Finish
No. 4 Brushed Finish SS 316 Checkered Plate
SS UNS S31600 Plate
ASTM A240 SS 316 Chequered Plate
No. 4 Finish SS 316 1/4 Inch Plate
ASTM A240 SS 316 Plate 2b Finish
SS 10mm Plate
SS 316 Hot Rolled Hot Rolled Plate
#8 Finish AISI 316 Embossed Plate
SS 316 Checker Plate
2B Finish SS 316 Chequer Plate
8 Mirror Finish SS 316 Clad Plate
ASTM A240 SS 316 Plate Brushed Finish
ASTM A240 SS 316 Polished Plate
No. 4 Brushed Finish SS 316 Perforated Sheet
No. 4 Finish SS Grade 316 Hot Rolled Sheet
SS 316 Tread Plate
SS Werkstoff No 1.4401 Hot Rolled Bbq Plate
SS 316 Chequered Plate
SS UNS S31600 Plasma Cutting Plate
ASTM A240 SS 316 Perforated Plate
#8 Finish SS 316 Sheet
ASME SA240 SS 316 Rolling Plate
2B Finish SS 316 Thin Plate
ASTM A240 SUS 316 Laser Cut Plate
SS 316 Tisco Plate
Cut To Size 316 SS Cold Rolled Sheet
SS 316 Hot Rolled Quarto Plate
8 Mirror Finish SS 316 Diamond Plate
ASTM a240 Grade 316 Diamond/ Checker Plate In Cut To Sizes, Supplier Of SS 316 Shim Sheet Material As Per International Standard
ASTM Standard For Stainless Steel 316 Coil
ASTM A240 ASTM A666 ASME SA240 AMS 5524
Comparitive Properties of UNS S31600 Plate
Alloy Group Magnetic Response1 Work Hardening Rate Corrosion Resistance2 Hardenable Austenitic Generally No Very High High By Cold Work Ferritic Yes Medium Medium No Martensitic Yes Medium Medium Quench & Temper Precipitation Hardening Yes Medium Medium Age Harden
316 Stainless Steel Heat Resistance
316 stainless steel cannot be hardened by heat treatment.
Solution treatment or annealing can be done by rapid cooling after heating to 1010-1120°C.
SS 316 Sheet Suppliers In UAE, Exporter Of AMS 5524 Foil And Coil In 1mm/ 2mm, Check Online Price List And Sizes
SS 316 Perforated Sheet Dimension
Hole Dia mm Hole Centres mm O/A Finish Tck mm Full Sheet Size mm 0.75 1.5 23% 2B 0.6 2000 x 1000 1 2 23% 2B 1.0 2000 x 1000 1.5 2.6 30% 2B 1.0 2000 x 1000 2 3.5 30% 2B 1.0 2000 x 1000 2 3.5 30% 2B 1.0 2000 x 1000 3 5 33% 2B 1.0 2000 x 1000 4 5.6 46% 2B 1.0 2000 x 1000 5 8 35% 2B 1.0 2000 x 1000 6 8 51% 2B 1.0 2000 x 1000 8 10 58% 2B 1,0 2000 x 1000
ASTM A240 Grade 316 Hardness In HRC
Melting Point Of Grade 316 Stainless Steel
Plate Type Melting Point Stainless Steel 316 Plate 1400 °C (2550 °F)
SS 316 Plate Density
Plate Type Density Stainless Steel 316 Plate 8000 g/cm3
Plain & Polished 316 Stainless Steel Sheet Sizes
Type THICKNESS MM PLATE FINISH MAX SHEET SIZE MM Grade 316 0.8, 1.0 Embossed 2500 x 1250 0.9 Bright 2000 x 1000 0.9, 1.2 Brushed Finish 2000 x 1000, 2500 x 1250 0.9 Plain 2B 2000 x 1000 0.8, 1.2 Rimex Super Mirror 2400 x 1200, 2500 x 1250
Stainless 316 Sheet & Plate Finish Cross Reference Chart
Grit RA RMS Trizact 30 250 40 200 60 145 150 80 71 125 100 61 69 120 52 58 A160 150 42 47 A130 180 30 34 A110 220 20 22 A90 240 15 17 A65 320 12 14 A45 500+ <3 <3 A35 1200 A20 1500 A10
Alloy Grade Finish Thickness Width Weight Each Length 316 2B 11 ga 48" 201.6 # 120" 316 2B 14 ga 48" 126 # 120" 316 2B 16 ga 48" 100.8 # 120" 316 2B 18 GA 48" 80.6 # 120" 316 2B 20 GA 48" 60.48 # 120"
Steel Sheet Type Sheet Thickness Sheet Length Sheet Width Sheet Specification 316 S/S HRAP REM .5000 RL RW ASTM A240 ASME SA240 316 S/S HRAP REM .2500 RL RW ASTM A240 ASME SA240 316 S/S PLATE HRAP REM .1875 RL RW ASTM A240 ASME SA240
316 Stainless Steel Sheet Gauge Thickness
NOMINAL DECIMAL STANDARD VARIANCE FROM SHEET METAL GAUGE (APPROXIMATE INCHES) NOMINAL DECIMAL (+/- INCHES )7 0.1793 0.0080 8 0.1644 0.0080 9 0.1495 0.0080 10 0.1345 0.0070 11 0.1196 0.0050 12 0.1046 0.0050 13 0.0897 0.0050 14 0.0747 0.0040 15 0.0673 0.0040 16 0.0598 0.0030 17 0.0538 0.0030 18 0.0478 0.0030 19 0.0418 0.0030 20 0.0359 0.0030 21 0.0329 0.0025 22 0.0299 0.0020 23 0.0269 0.0020 24 0.0239 0.0020 25 0.0209 0.0015 26 0.0179 0.0015 28 0.0149 0.0010
Largest SS 316 Sheet Manufacturer In India , SS316 Coil Manufacturers, DIN 1.4401 316 Stainless Sheet Suppliers In Mumbai. India.
DIN 1.4401 Coil Processing
SS 316 Plate Processing Options 2 Plasma Cutting Tables from 3/16″ thick thru 6.25″ thick. SS 316 plate can be plasma cut 4 Dynamic Waterjet Tables from light gauge sheet metal thru 8″ thick SS 316 plate can be waterjet cut 4 Kasto Plate Saws from 1/2″ thick thru 22″ thick SS 316 plate or bar can be Kasto saw cut. 1 plate laser gauges thru 1-1/8″ thick SS 316 sheet plate can be laser cut. 3 Plate Shears SS 316 plate thru 3/4″ thick can be shear cut to size. Gauer Processing SS 316 sheared and edged bar can be gauer processed from 3/16″ thick thru 5/8″ thick up to 8″ wide. Machine Cutting SS 316 rings and discs can be machine cut from 1/2″ thick thru 12″ thick, up to 42″ in diameter Stainless 316 Plate Leveling In house plate leveling of coil from 13 gauge stainless sheet thru 3/8″ Stainless 316 Plate coil, thru 78.75″ wide (2 meter)
316 Stainless Steel Sheet Thickness Tolerance
Gauge LB/Sq. Ft. LB/Sq In. Gauge Tolerance 72″ Wide 96″ Wide 3/16 0.1875 8.579 0.05958 +.045″ -.010″ +.050″ -.010″ 7/32 0.2187 9.870 0.06854 1/4 0.2500 11.162 0.07750 5/16 0.3125 13.746 0.09546 3/8 0.3750 16.496 0.11456 +.055″ -.010″ +.060″ -.010″ 7/16 0.4375 19.080 0.13250 1/2 0.5000 21.633 0.15044 9/16 0.5625 24.247 0.16838 5/8 0.6250 26.831 0.18633 11/16 0.6875 29.415 0.20427 3/4 0.7500 32.123 0.22308 +.060″ -.010″ +.065″ -.010″ 13/16 0.8125 34.707 0.24102 7/8 0.8750 37.291 0.25897 15/16 0.9375 39.875 0.27691 1 1.0000 42.665 0.29628 +.070″ -.010″ +.075 -.010″ 1-1/8 1.1250 47.833 0.33217 1-1/4 1.2500 53.001 0.36806 1-3/8 1.3750 58.169 0.40395 1-1/2 1.5000 63.337 0.43984 1-3/4 1.7500 73.672 0.51161 2 2.0000 84.008 0.58339 +.125″ -.010″ +.150″ -.010″ 2-1/8 2.1250 89.610 0.62229 2-1/4 2.2500 94.777 0.65817 2-1/2 2.5000 105.113 0.72995 2-3/4 2.7500 115.449 0.80173 3 3.0000 126.301 0.87709 +.150″ -.010″ +.160″ -.010″ 3-1/2 3.5000 146.972 1.02064 4 4.0000 168.264 1.16850 +.180″ -.010″ +.200″ -.010
Stainless Steel 316 Plate Properties
Property Value Modulus of Elasticity 193 GPa Electrical Resistivity 0.074 x 10-6 Ω.m Thermal Conductivity 16.3 W/m.K Thermal Expansion 15.9 x 10-6 /K
SA240 316 Stainless Plate Services
Mechanical Testing Such as Tensile of Area
Hardness Test
Chemical Analysis – Spectro Analysis
Positive Material Identification – PMI Testing
Flattening Test
Micro and MacroTest
Pitting Resistance Test
Flaring Test
Intergranular Corrosion (IGC) Test
Stainless Steel 316 Shim Sheet Test Certificate
EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
