- Cold Rolled ASTM A240 304 Plate : 0.5-6.4 mm
- Hot Rolled UNS S30400 Plate : 3.0–10.0 mm
- ASME SA240 304 Sheet : 0.01~200mm
- +91 22 66363099
- info@spmetal.net
Corrosion Resistance
It provides excellent corrosion resistance in a range of atmospheric environments and also when it comes in contact with many corrosive substances. Crevice corrosion and pitting can arise in surrounding containing chlorides and stress corrosion cracking may arise at a temperature above 60°C.
Heat resistance
It is resistant to potable water containing up to approximately 200mg/L chlorides at room temperature 20°C to 25°C, this reduces to about 150mg/L at around 60°C.
It provides good oxidization resistance in intermittent service at about 870°C and continuous service to 925°C. It is not recommended to be used in the temperature range of 425-860°C if subsequent aqueous corrosion resistance is required.
Machinability
304 grade steel provides good machinability and it can also be enhanced by the following techniques
1. Cutting borders must be keen. Dull borders may cause too much work hardening
2. Cuts must be light but deep sufficient to stop work hardening by riding on the material surface
3. Chip breaker should be working to aid in ensuring swarf endure clear of the work
4. Low thermal conductivity of it outcomes in heat concentrating at the cutting borders. Which conveys that coolants and lubricants are mandatory and must be utilized in larger amount.
Welding Properties
It provides excellent welding with and without filler metals by using standard fusion methods. Post-weld annealing is not needed to weld thin sections however heavy welded sections may be needed for some post-weld annealing for optimal corrosion resistance. For optimal annealing heat to 1010-1120°C and cool rapidly with air or water. It cannot be hardened by thermal treatment.

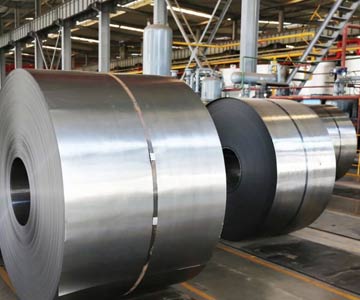

Stainless steel 304 hr coil is a flexible stainless steel coil, which is extensively utilized for the production of equipment and elements which needs general properties like ductility and corrosion resistance.
It can be generally used at a temperature less than 650 ℃. It provides excellent corrosion resistance of stainless steel and good intergranular corrosion resistance. For oxidizing acids, it is established in experiments that nitric acid is present at a boiling temperature of 65% or lesser.
In alkali solution and most of the organic acid and inorganic acid provides good corrosion resistance.
It is the most widely used stainless steel HR coil, it is suitable for food processing, storage and transportation, water heaters, boilers, auto parts, medical equipment, chemical, agriculture, marine components, building materials etc. It is nationally recognized as food grade stainless steel.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length of 304 Stainless Sheet | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2D, 2B, BA, NO.4, NO.1, NO.8, 8K, checkered, mirror, embossed, sand blast, hair line, Brush, etching, etc |
| SA240 Gr304 Plate Finishes | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, BA NO(8), 2D, SATIN |

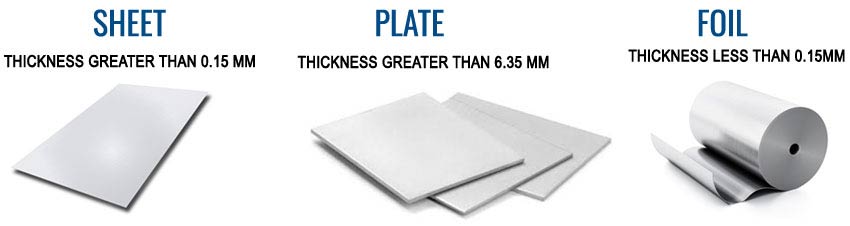

| Form of Stainless Sheet 304 | Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Perforated Sheet, Strip, Chequered Plate, Flats, Ring (Flange), Blank (Circle), etc. |
| Stainless Steel 304 Plate Suppliers In India | |
| Description | Price In (US) | Price in (INR) |
|---|---|---|
| SS 304 mirror Stainless Steel Strip/ Coil/ Sheet | $1,200.00-$1,800.00/ Metric Ton | 90115.80 - 135173.70 |
| SS 304 1mm Sheet Price | $1,400.00-$1,600.00/ Ton | 105135.10 - 120154.40 |
| Standard size 4x8 metal sus 304 grade SS 304 Chequered Plate Price | $1.48-$1.98/ Kilogram | 111.14 - 148.69 |
| Stainless Steel Sheet 304 / SS 304 Perforated Sheet Price | $1.70-$2.20/ Kilogram | 127.66 - 165.21 |
| SS 304 2mm Sheet Price | $1.48 - $2.20 | 111.14 - 165.21 |
Looking for Stainless Steel 304 Plate supplier who offer prompt delivery in Asia? 304 Stainless Steel Sheet Manufacturers In India, call us for big discount and ready sizes, check latest SS 304 Plate Price in Mumbai
| Type | Density |
| SS 304 Plate | 8.0 g/cm3 |
| Grade | Elastic Modulus (GPa) | Density (kg/m3) | Thermal Conductivity (W/m.K) | Electrical Resistivity (nΩ.m) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Specific Heat 0-100°C (J/kg.K) | |||
| at 100°C | at 500°C | 0-100°C | 0-315°C | 0-538°C | |||||
| Stainless Steel 304 | 193 | 8000 | 16.2 | 21.5 | 720 | 17.2 | 17.8 | 18.4 | 500 |
Stainless Steel 304 Coil Manufacturer Usa, Suppliers Of Stainless Steel 304 Perforated Sheet In Mumbai, One Stop Shop For All ASME SA240 304 2b Stainless Steel Sheet.
| ss 304 plate size chart | standard 304 ss plate thickness | Weight per Sheet | ss 304 sheet weight per square meter |
|---|---|---|---|
| 36 x 120 | 0.0235 inches 0.5969 mm | 30.24 lbs13.69872 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 36 x 144 | 0.0235 inches 0.5969 mm | 36.29 lbs16.43937 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 48 x 96 | 0.0235 inches 0.5969 mm | 32.26 lbs14.61378 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 48 x 120 | 0.0235 inches 0.5969 mm | 40.32 lbs18.26496 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 48 x 144 | 0.0235 inches 0.5969 mm | 48.39 lbs21.92067 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 30 x 96 | 0.0291 inches 0.73914 mm | 25.20 lbs11.4156 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 30 x 120 | 0.0291 inches 0.73914 mm | 31.50 lbs14.2695 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 36 x 96 | 0.0291 inches 0.73914 mm | 30.24 lbs13.69872 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 36 x 96 | 0.015 inches 0.381 mm | 15.12 lbs6.84936 kg | 0.630 lbs/ft²3.07566 kg/m² |
| 36 x 120 | 0.015 inches 0.381 mm | 18.90 lbs8.5617 kg | 0.630 lbs/ft²3.07566 kg/m² |
| 36 x 96 | 0.0178 inches 0.45212 mm | 18.15 lbs8.22195 kg | 0.756 lbs/ft²3.690792 kg/m² |
| 48 x 120 | 0.0291 inches 0.73914 mm | 50.41 lbs22.83573 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 48 x 144 | 0.0291 inches 0.73914 mm | 60.49 lbs27.40197 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 30 x 96 | 0.0355 inches 0.9017 mm | 30.24 lbs13.69872 kg | 1.512 lbs/ft²7.381584 kg/m² |
| 30 x 120 | 0.0355 inches 0.9017 mm | 37.80 lbs17.1234 kg | 1.512 lbs/ft²7.381584 kg/m² |
| 36 x 96 | 0.0355 inches 0.9017 mm | 36.29 lbs16.43937 kg | 1.512 lbs/ft²7.381584 kg/m² |
| 36 x 120 | 0.0178 inches 0.45212 mm | 22.68 lbs10.27404 kg | 0.756 lbs/ft²3.690792 kg/m² |
| 48 x 96 | 0.0178 inches 0.45212 mm | 24.19 lbs10.95807 kg | 0.756 lbs/ft²3.690792 kg/m² |
| 48 x 120 | 0.0178 inches 0.45212 mm | 30.24 lbs13.69872 kg | 0.756 lbs/ft²3.690792 kg/m² |
| 30 x 96 | 0.0235 inches 0.5969 mm | 20.16 lbs9.13248 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 30 x 120 | 0.0235 inches 0.5969 mm | 25.20 lbs11.4156 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 36 x 96 | 0.0235 inches 0.5969 mm | 24.19 lbs10.95807 kg | 1.008 lbs/ft²4.921056 kg/m² |
| 36 x 120 | 0.0291 inches 0.73914 mm | 37.80 lbs17.1234 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 36 x 144 | 0.0291 inches 0.73914 mm | 45.37 lbs20.55261 kg | 1.260 lbs/ft²6.15132 kg/m² |
| 48 x 96 | 0.0291 inches 0.73914 mm | 40.32 lbs18.26496 kg | 1.260 lbs/ft²6.15132 kg/m² |
| PRODUCT | FINISH | THICKNESS MM | MAXIMUM SHEET SIZE MILIMETER |
|---|---|---|---|
| Grade 304 | Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 | |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 | |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 | |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
SS 304 Perforated Sheet Supplier In India, Stainless Steel 304 Mesh Sheet Mechanical Properties, SS 304 Sheet Dealers In Mumbai
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
304 | 515 | 205 | 40 | 92 | 201 |
304H | 515 | 205 | 40 | 92 | 201 |
304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
| 304H | min. max. | 0.04 0.10 | - 2.0 | - 0.75 | -0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | |
| Grade | Elastic Modulus (GPa) | Density (kilogram/m3) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Specific Heat 0-100°C (J/kg.K) | Thermal Conductivity (W/m.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
SS 304/L/H | 193 | 8000 | 17.2 | 17.8 | 18.4 | 500 | 16.2 | 21.5 | 720 |
| Plate Surface finish | Thickness (milimeter) | Width (max milimeter) |
|---|---|---|
| 2B – heat treated, Cold rolled, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
| 2E – heat treated, Cold rolled, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| 2D – heat treated, Cold rolled, pickled Sheet | 0.4–6.35 | 1524 |
| 2R – bright annealed plate, Cold rolled | 0.25–3.5 | 1524 |
| brushed, Polished plate | 0.5–4.0 | 1524 |
ASTM A240 SS 304 Plate Imperial Dimensions
| Plate Surface finish | Width (max in) | Gauge (in) |
|---|---|---|
| 2D – heat treated, Cold rolled, pickled plate | 60 | 12–24 |
| 2B – heat treated, Cold rolled, skin passed Plate, pickled | 72* | 10–24 |
| Temper rolled Sheet Mexinox only | 48 | 13–29 |
| BA Mexinox only | 48 | 18–28 |
| Polished Sheet (not brushed) | 60 | 11–24 |
SS 304 Sheet Suppliers In Mumbai, India, Get Free Quote For 304 SS Foil, Equivalent Grades Of Stainless Steel 304 Checker Plate.
| rade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
304H | S30409 | 304S51 | - | 1.4948 | X6CrNi18-11 | - | - |
We provide Multiple Payment Options Of Stainless Steel 304 Checker Plate Thickness, Contact US Today For Buy UNS S30400 SS 304 Foil, SS 304 Sheet Manufacturer India.
304 Stainless Steel Sheet Suppliers In India, We Maintain SS Werkstoff No 1.4301 Shim Sheet and 304 Polished Stainless Steel Plates Good Quality, Check Availability Of Schedule 40 SS UNS S30400 Cold Rolled Plates.
- Cold Rolled ASTM A240 304 Plate : 0.5-6.4 mm
- Hot Rolled UNS S30400 Plate : 3.0–10.0 mm
- ASME SA240 304 Sheet : 0.01~200mm
SP Metals are suppliers of a range of polished stainless steel 304 sheets and Plates, finishes include Bright, Natural, Brushed, Mirror, Dull Polished and Embossed Rigidised
| Stainless Steel | Specified Thickness | Tolerance |
| 11 Gauge | 0.120" | 3.05 mm | ± 0.005" | 0.13mm |
| 12 Gauge | 0.105” | 2.667mm | ± 0.005" | 0.127mm |
| 14 Gauge | 0.075” | 1.905mm | ± 0.004" | 0.102mm |
| 16 Gauge | 0.059” | 1.499mm | ± 0.004" | 0.102mm |
| 18 Gauge | 0.048” | 1.219mm | ± 0.003" | 0.076mm |
| 20 Gauge | 0.035” | 0.889mm | ± 0.002" | 0.051mm |
| 22 Gauge | 0.031" | 0.79 mm | ± 0.002" | 0.05mm |
| 24 Gauge | 0.025" | 0.64 mm | ± 0.002" | 0.05mm |
| Hole Centres milimeter | Hole Dia milimeter | O/A | Tck milimeter | Finish | Full Sheet Size milimeter |
|---|---|---|---|---|---|
| 1.5 | 0.75 | 23% | 0.6 | 2B | 2000 x 1000 |
| 2 | 1 | 23% | 1.0 | 2B | 2000 x 1000 |
| 2.6 | 1.5 | 30% | 1.0 | 2B | 2000 x 1000 |
| 3.5 | 2 | 30% | 1.0 | 2B | 2000 x 1000 |
| 3.5 | 2 | 30% | 1.0 | 2B | 2000 x 1000 |
| 5 | 3 | 33% | 1.0 | 2B | 2000 x 1000 |
| 5.6 | 4 | 46% | 1.0 | 2B | 2000 x 1000 |
| 8 | 5 | 35% | 1.0 | 2B | 2000 x 1000 |
| 8 | 6 | 51% | 1.0 | 2B | 2000 x 1000 |
| 10 | 8 | 58% | 1,0 | 2B | 2000 x 1000 |
| PRODUCT | THICKNESS MILIMETER | FINISH | MAX SHEET SIZE MILIMETER |
|---|---|---|---|
| Grade 304 | 0.9 | Plain 2B | 2000 x 1000 |
| 0.9 | Bright | 2000 x 1000 | |
| 0.9, 1.2 | Brushed Finish | 2000 x 1000, 2500 x 1250 | |
| 0.8, 1.2 | Rimex Super Mirror | 2400 x 1200, 2500 x 1250 | |
| 0.8, 1.0 | Embossed | 2500 x 1250 |
Stainless Steel 304 Strip Manufacturer, ASTM A240 Type 304 SS Plate In India
| 2 Plasma Cutting Tables | Ss 304 2B Plate can be plasma cut from 3/16 Inch thick thru 6.25Inch thick. |
| 4 Kasto Plate Saws | SS 304 Polished Plate or bar from 1/2Inch thick thru 22Inch thick SS 304 can be Kasto saw cut. |
| 4 Dynamic Waterjet Tables | ASME Sa240 SS 304 Shim Sheet can be waterjet cut from light gauge sheet metal thru 8Inch thick Stainless 304 Plate. |
| Stainless 304 Plate Leveling | In house plate leveling of coil from 13 gauge stainless sheet thru 3/8Inch Stainless 304 Plate coil, thru 78.75Inch wide (2 meter) |
| 1 plate laser | 304 Stainless Hot Rolled Plate gauges thru 1-1/8Inch thick SS 304 plate can be laser cut. |
| Gauer Processing | SS 304 sheared and edged bar can be gauer processed from 3/16Inch thick thru 5/8Inch thick up to 8Inch wide. |
| 3 Plate Shears | 304 SS Sheets thru 3/4Inch thick can be shear cut to size. |
| Machine Cutting | SS 304 rings and discs can be machine cut from 1/2Inch thick thru 12Inch thick, up to 42Inch in diameter |
SP Metals is supplier & exporter of 304 Stainless Steel Strip. Ss Sheet 304 Price, compare price of ASTM A240 Type 304 Sheet Distributors & Stainless Steel 304 hot rolled plate with SS UNS S30400 Perforated Plate Suppliers in china.
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Well-known SS 304 Plate Manufacturers India. For final 304 Stainless Steel Sheet Price List Please Call on +91 22 6636 3099.
| HSN Code | Product Description |
|---|---|
| 7219 | Flat-rolled products of stainless steel, of a width of 600 mm or more |
| 721933 | Of a thickness exceeding 1 mm but less than 3 mm: |
| 72193390 | Other |
| 721990 | Other: |
| 72199090 | Other |
| 72199013 | Thickness less than 3 mm |
Length (mtrs) X Width (mtrs) X Thick (mm) X 8.068 = Wt. Per PC.
Length (feet) X Width (feet) X Thick (mm) X 3/4 = Wt. Per PC
|
|
It is most commonly-used stainless steel food alloy which is used for an extensive range of industries. It is highly utilized since it can resist corrosion produced by an extensive range of chemicals and it can also be electro polished to a shiny, smooth, easy-to-clean surface.
But, some corrosives and excessive exposure to salt yet still demean 304 stainless steel quality.
316 Stainless Steel Sheet Food and Dairy product processing and storage
It is an austenitic stainless steel alloy which has high content of chromium and nickel. Similar to many steel alloys, it has a continuous use temperature various times higher than most food making processes will ever need.
It is highly resistant to acids, alkalis, and chlorides such as salt and this makes it an ideal food grade steel sheet material.
Grade 304 SS, can experience severe pitting corrosion when it is exposed to salt, which is frequently available in food products. Grade 316 SS is a great material for Food and Dairy product processing and storage.
The difference between stainless steel 304 sheets and plate is its thickness to which the metal is rolled out.
SS 304 plate usually has a thickness or gauge of more than 6mm and SS 304 sheet has a thickness of less than 6mm, but greater than that of foil. As a general principle, the thinner the metal, the larger will be its gauge number.
Both SS 304 sheet and plate can be offered in dull or satin polished with one side protective coating.
Stainless Steel 304 sheet and plate are most commonly used grade and less expensive. It is highly flexible provides good corrosion resistance and also maintains durability.
Thailand, Iran, China, Los Alamos -Mexico, Malaysia, Dubai- UAE, Turkey, Taiwan, Europe, Italy, Peru, Poland, Singapore, NY 12203 (USA), South Africa, Bahrain, Czechia, Romania, France, Denmark Jakarta -Indonesia, Oman, Kuala Lumpur, Spain, Malaysia, Colombia, Jordan, Jakarta, Vietnam, Australia, Mexico, Belgium, Netherlands, Saudi Arabia (KSA), Malaysia, Sweden, USA, Dammam -KSA,
New Zealand, Chile, Bangladesh, Tehran -Iran, United Arab Emirates (UAE), Hong Kong, Finland, Japan, Kuwait, Nigeria, Austria, Argentina, Qatar, South Africa, Brazil, Indonesia, Germany, Russia, Ellington -United States, Dubai, Portugal, Istanbul- Turkey, Norway, United Kingdom (UK), Philippines, Morocco, Singapore, Canada, United States, Egypt, South Korea, Greece
