What is Stainless Steel 904L Plate?
Stainless Steel 904L Plate is an austenitic low carbon stainless steel grade. The fittings play a crucial role in influencing the characteristics of the flow across the system. Made with a superior concentration of chromium, nickel coupled with additions of copper and, molybdenum these fittings are highly resistive to corrosive media. The fittings within this grade possess outstanding toughness and superb formability. Their excellent oxidation resistance and welding capacities allow them to be welded to different piping equipment.
Comparision Between ASTM B625 UNS N08904 Shim Sheet and DIN 1.4539 Coil
Shim sheets and coils are versatile metal components that are employed in different fields of the industry.
ASTM A240 Type 904L Stainless Steel Sheet Oil and Gas Application
Oil and gas processing is an extensive process that deals with a range of products and their by-products. These components are highly corrosive in nature and would damage any normal grade of steel. The ASTM A240 Type 904L Stainless Steel Sheet is designed with superior corrosion and oxidation properties. The versatile components within this grade are seen in oil and gas process equipment, refinery components, cooling devices, etc.
ASTM A240 Tp904L Foil vs SS 904L Plate
ASTM A240 Tp904L foil and SS 904L Plate can be characterized by their gauge thickness and functionality.
Stainless Steel 904L Grade Plate Features
Some features of the 904L grade plate include:
Table of Content
Stainless Steel 904L Plate
Stainless Steel 904L Sheet

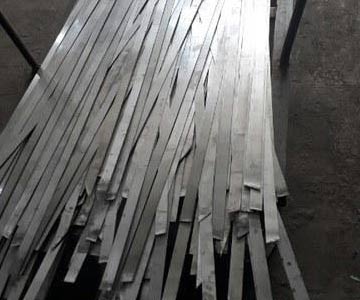

Stainless Steel 904L Strips

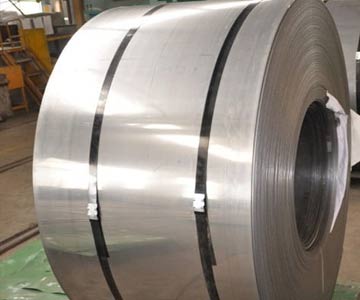

Stainless Steel 904L Coil
Looking for Stainless Steel 904L Plate Supplier who offer prompt delivery in Asia? Manufacturer of 904L nickel Strip in India, call us for big discount and ready sizes, check latest price of 904L Stainless Steel Plate in Mumbai
SS 904L Plate Gauge Chart
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
ASME SB625 904L Perforated Sheet Sizes
| Thickness (in) | Thickness (mm) | Max Width (in) | Max Width (mm) | Weight (Lbs per Feet) | Weight (Kilos per m2) |
|---|---|---|---|---|---|
| 0.187 | 4.7498 | 24 | 609.6 | 7.5398 | 36.8168 |
| 0.165 | 4.191 | 24 | 609.6 | 6.6528 | 32.4856 |
| 0.125 | 3.175 | 24 | 609.6 | 5.04 | 24.6103 |
| 0.105 | 2.667 | 24 | 609.6 | 4.2336 | 20.6727 |
| 0.09 | 2.286 | 24 | 609.6 | 3.6288 | 17.7194 |
| 0.062 | 1.5748 | 24 | 609.6 | 2.4998 | 12.2065 |
| 0.059 | 1.4986 | 24 | 609.6 | 2.3789 | 11.6162 |
| 0.055 | 1.397 | 24 | 609.6 | 2.2176 | 10.8285 |
| 0.05 | 1.27 | 24 | 609.6 | 2.016 | 9.8441 |
| 0.045 | 1.143 | 24 | 609.6 | 1.8144 | 8.8597 |
| 0.042 | 1.0668 | 24 | 609.6 | 1.6934 | 8.2689 |
| 0.04 | 1.016 | 24 | 609.6 | 1.6128 | 7.8753 |
| 0.035 | 0.889 | 24 | 609.6 | 1.4112 | 6.8909 |
| 0.032 | 0.8128 | 24 | 609.6 | 1.2902 | 6.3 |
| 0.03 | 0.762 | 24 | 609.6 | 1.2096 | 5.9065 |
| 0.025 | 0.635 | 24 | 609.6 | 1.008 | 4.9221 |
| 0.022 | 0.5588 | 24 | 609.6 | 0.887 | 4.3312 |
| 0.02 | 0.508 | 24 | 609.6 | 0.8064 | 3.9377 |
| 0.018 | 0.4572 | 24 | 609.6 | 0.7258 | 3.5441 |
| 0.016 | 0.4064 | 24 | 609.6 | 0.6451 | 3.15 |
| 0.015 | 0.381 | 24 | 609.6 | 0.6048 | 2.9532 |
| 0.014 | 0.3556 | 24 | 609.6 | 0.5645 | 2.7565 |
| 0.012 | 0.3048 | 24 | 609.6 | 0.4838 | 2.3624 |
| 0.01 | 0.254 | 24 | 609.6 | 0.4032 | 1.9688 |
| 0.008 | 0.2032 | 12 | 304.8 | 0.3226 | 1.5753 |
| 0.006 | 0.1524 | 12 | 304.8 | 0.2419 | 1.1812 |
| 0.005 | 0.127 | 12 | 304.8 | 0.2016 | 0.9844 |
904L Stainless Steel Equivalent
| STANDARD | UNS | WERKSTOFF NR. | KS | JIS | BS | AFNOR | EN |
| SS 904L | N08904 | 1.4539 | STS 317J5L | SUS 904L | 904S13 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
How to Cut SS 904L Plate
Get instant delivery Of 20mm 904L SS 10mm Plate , Chemical Properties Of N08904 Stainless Steel Chequer Plate, SS 904L Perforated Plate Supplier In Mumbai. India.
SS 904L Chemical Composition
| Grade | C | Ni | Si | MO | P | S | Mn | Cr | CU | |
| SS 904L | Min | - | 23.00 | - | 4.00 | - | - | - | 19.0 | 1.00 |
| max | 0.20 | 28.00 | 1.00 | 5.00 | 0.045 | 0.035 | 2.00 | 23.0 | 2.00 |
Well-known Supplier Of 904L SS 2B Plate in India. For final 904L Nickel Hot Rolled Plate Price List Please Call on +91 22 6636 3099.
Stainless Steel 904L Price
| Description | Price in India | Price in US |
| astm n08904 904l Stainless Steel Sheet Plate en 1.4539 | 74952.50 - 187381.25 | US $1000-2500 / Ton |
| TISCO ss 904l Stainless Steel Sheet/Plate 3mm | 71204.88 - 299810.00 | US $950-4000 / Ton |
| SS 904L sheet NO.4/BA/2B/Mirror/Brushed | 82447.75 - 374762.50 | US $1100-5000 / Metric Ton |
904L Stainless Steel Mechanical Properties
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 904L | 490 | 35 | 220 | 70-90 typical | - |
Welding Of 904L Stainless Steel
Finish Of Stainless Steel 904L Plate
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by pickling, heat treatment or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat exchanger after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with Number 150 - Number 180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Manufacturer & Supplier Of SS UNS N08904 Coil, Werkstoff No 1.4539 Coils In India
904L Stainless Plate Specification
| Specifications | ASTM B677 / B673 / B674, ASTM A240, ASTM A240M, ASTM A480, ASTM A480M, ASTM B625 / ASME SB625 |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Dimensions | ASTM, ASME and API |
| Hardness | Hard, Soft, Half Hard, Spring Hard, Quarter Hard etc. |
| Size | 1000 milimeter x 2000 milimeter, 1220 milimeter x 2440 milimeter, 4' x 8', 1250 milimeter x 2500 milimeter, 1500 milimeter x 3000 milimeter to 6000 milimeter, 2000 milimeter x 4000 milimeter to 6000 milimeter |
| Thickness | 4.0 milimeter - 100 milimeter |
| Range | 5 milimeter To 150 milimeter |
| End | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | Foils, Coils, Rolls, Plain Sheet, Perforated Sheet, Shim Sheet, Ring (Flange) Chequered Plate, Flats, Strip, Blank (Circle) etc. |
Stainless Steel 904L Sheet Tolerance
| Gauge | LB/Sq. Ft. | LB/Sq In. | Gauge Tolerance | ||
|---|---|---|---|---|---|
| 72″ Wide | 96″ Wide | ||||
| 3/16 | 0.1875 | 8.579 | 0.05958 | +.045″ -.010″ | +.050″ -.010″ |
| 7/32 | 0.2187 | 9.870 | 0.06854 | ||
| 1/4 | 0.2500 | 11.162 | 0.07750 | ||
| 5/16 | 0.3125 | 13.746 | 0.09546 | ||
| 3/8 | 0.3750 | 16.496 | 0.11456 | +.055″ -.010″ | +.060″ -.010″ |
| 7/16 | 0.4375 | 19.080 | 0.13250 | ||
| 1/2 | 0.5000 | 21.633 | 0.15044 | ||
| 9/16 | 0.5625 | 24.247 | 0.16838 | ||
| 5/8 | 0.6250 | 26.831 | 0.18633 | ||
| 11/16 | 0.6875 | 29.415 | 0.20427 | ||
| 3/4 | 0.7500 | 32.123 | 0.22308 | +.060″ -.010″ | +.065″ -.010″ |
| 13/16 | 0.8125 | 34.707 | 0.24102 | ||
| 7/8 | 0.8750 | 37.291 | 0.25897 | ||
| 15/16 | 0.9375 | 39.875 | 0.27691 | ||
| 1 | 1.0000 | 42.665 | 0.29628 | +.070″ -.010″ | +.075 -.010″ |
| 1-1/8 | 1.1250 | 47.833 | 0.33217 | ||
| 1-1/4 | 1.2500 | 53.001 | 0.36806 | ||
| 1-3/8 | 1.3750 | 58.169 | 0.40395 | ||
| 1-1/2 | 1.5000 | 63.337 | 0.43984 | ||
| 1-3/4 | 1.7500 | 73.672 | 0.51161 | ||
| 2 | 2.0000 | 84.008 | 0.58339 | +.125″ -.010″ | +.150″ -.010″ |
| 2-1/8 | 2.1250 | 89.610 | 0.62229 | ||
| 2-1/4 | 2.2500 | 94.777 | 0.65817 | ||
| 2-1/2 | 2.5000 | 105.113 | 0.72995 | ||
| 2-3/4 | 2.7500 | 115.449 | 0.80173 | ||
| 3 | 3.0000 | 126.301 | 0.87709 | +.150″ -.010″ | +.160″ -.010″ |
| 3-1/2 | 3.5000 | 146.972 | 1.02064 | ||
| 4 | 4.0000 | 168.264 | 1.16850 | +.180″ -.010″ | +.200″ -.010 |
904L SS Chequered Plate Pacakging
ASTM A240 Grade 904L SS Plate Types
PED Certified Stainless Steel 904L Plates Supplier in Mumbai, India, Sizes Of 904L SS Sheet In MM.
904L Plate Weight
| Gauge | LB/Sq. Ft. | LB/Sq In. | Gauge Tolerance | ||
|---|---|---|---|---|---|
| 72″ Wide | 96″ Wide | ||||
| 3/16 | 0.1875 | 8.579 | 0.05958 | +.045″ -.010″ | +.050″ -.010″ |
| 7/32 | 0.2187 | 9.870 | 0.06854 | ||
| 1/4 | 0.2500 | 11.162 | 0.07750 | ||
| 5/16 | 0.3125 | 13.746 | 0.09546 | ||
| 3/8 | 0.3750 | 16.496 | 0.11456 | +.055″ -.010″ | +.060″ -.010″ |
| 7/16 | 0.4375 | 19.080 | 0.13250 | ||
| 1/2 | 0.5000 | 21.633 | 0.15044 | ||
| 9/16 | 0.5625 | 24.247 | 0.16838 | ||
| 5/8 | 0.6250 | 26.831 | 0.18633 | ||
| 11/16 | 0.6875 | 29.415 | 0.20427 | ||
| 3/4 | 0.7500 | 32.123 | 0.22308 | +.060″ -.010″ | +.065″ -.010″ |
| 13/16 | 0.8125 | 34.707 | 0.24102 | ||
| 7/8 | 0.8750 | 37.291 | 0.25897 | ||
| 15/16 | 0.9375 | 39.875 | 0.27691 | ||
| 1 | 1.0000 | 42.665 | 0.29628 | +.070″ -.010″ | +.075 -.010″ |
| 1-1/8 | 1.1250 | 47.833 | 0.33217 | ||
| 1-1/4 | 1.2500 | 53.001 | 0.36806 | ||
| 1-3/8 | 1.3750 | 58.169 | 0.40395 | ||
| 1-1/2 | 1.5000 | 63.337 | 0.43984 | ||
| 1-3/4 | 1.7500 | 73.672 | 0.51161 | ||
| 2 | 2.0000 | 84.008 | 0.58339 | +.125″ -.010″ | +.150″ -.010″ |
| 2-1/8 | 2.1250 | 89.610 | 0.62229 | ||
| 2-1/4 | 2.2500 | 94.777 | 0.65817 | ||
| 2-1/2 | 2.5000 | 105.113 | 0.72995 | ||
| 2-3/4 | 2.7500 | 115.449 | 0.80173 | ||
| 3 | 3.0000 | 126.301 | 0.87709 | +.150″ -.010″ | +.160″ -.010″ |
| 3-1/2 | 3.5000 | 146.972 | 1.02064 | ||
| 4 | 4.0000 | 168.264 | 1.16850 | +.180″ -.010″ | +.200″ -.010 |
Buy UNS N08904 Cold rolled Sheet Directly From Largest Supplier In Mumbai, Check Dimension Of 904L stainless steel Foil
Dimension Of 904L Stainless Steel Sheet
| Plate Surface finish | Thickness (milimeter) | Width (max milimeter) |
|---|---|---|
| 2B – heat treated, Cold rolled, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
| 2E – heat treated, Cold rolled, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| 2D – heat treated, Cold rolled, pickled Sheet | 0.4–6.35 | 1524 |
| 2R – bright annealed plate, Cold rolled | 0.25–3.5 | 1524 |
| brushed, Polished plate | 0.5–4.0 | 1524 |
Imperial Dimensions Of ASTM A240 Stainless Steel 904L Plate
| Plate Surface finish | Width (max in) | Gauge (in) |
|---|---|---|
| 2D – heat treated, Cold rolled, pickled plate | 60 | 12–24 |
| 2B – heat treated, Cold rolled, skin passed Plate, pickled | 72* | 10–24 |
| Temper rolled Sheet Mexinox only | 48 | 13–29 |
| BA Mexinox only | 48 | 18–28 |
| Polished Sheet (not brushed) | 60 | 11–24 |
Plain & Polished 904L Stainless Steel Sheet
| PRODUCT | FINISH | THICKNESS MM | MAX SHEET SIZE MM |
|---|---|---|---|
| Grade 410 | Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 | |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 | |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 | |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
Perforated Stainless Steel Sheet 904L
| Hole Dia mm | Hole Centres mm | O/A | Finish | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |

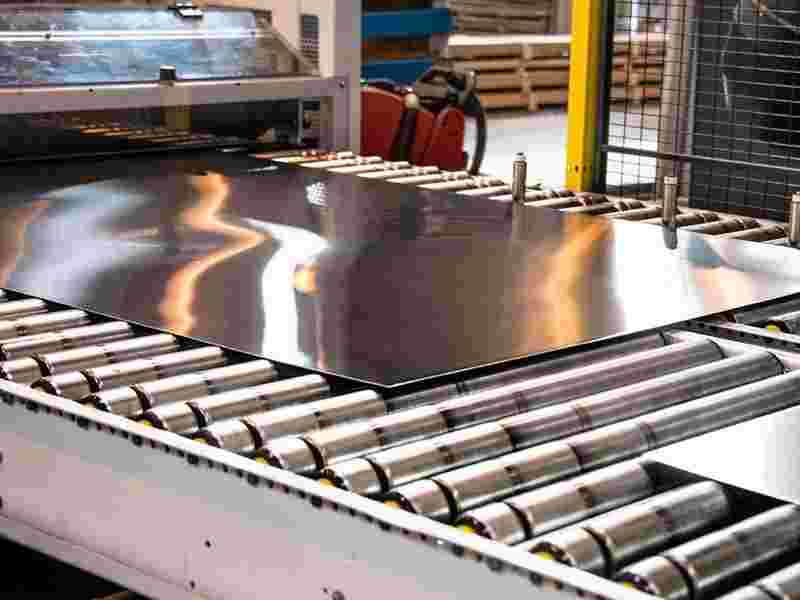

Value Added Services Of Stainless Steel 904L Strips
1.4539 Steel Plate Stockist
| Stainless Steel 904L Chequered Plate | Stainless Steel 1.4539 Quarto Plate |
| 904L SS Clad Plate | 904L Grade Stainless Steel Tisco Plate |
| N08904 Stainless Steel Chequer Plate | 904L Stainless Steel Tread Plate |
| 904L Grade Stainless Steel Checker Plate | SS 904L Polished Plate |
| 904L Stainless Steel Plate Mirror Finish | 904L SS Chequered Plate |
| SS 904L Plate Brushed Finish | Stainless Steel 904L Hot Rolled Sheet |
| 904L SS 10mm Plate | 904L Grade Stainless Steel Cold Rolled Sheet |
| Stainless Steel 904L 1/4 Inch Plate | 904L Steel Perforated Sheet |
| 904L Steel Plate | Alloy 904L Rolling Plate |
| Stainless Steel 1.4539 Hot Rolled Plate | SS 904L Perforated Plate |
| Alloy 904L Cold Rolled Plate | ASTM B625 UNS N08904 Bbq Plate |
| SS 904L Plate 2b Finish | 904L SS Diamond Plate |
| ASTM B625 UNS N08904 Plate Mill Finish | N08904 Stainless Steel Thin Plate |
| 904L Grade Stainless Steel Custom Cut Plate | Alloy 904L Sheet |
| 904L Steel Checkered Plate | Stainless Steel 904L Laser Cut Plate |
| Alloy 904L Embossed Plate | 904L Steel Plasma Cutting Plate |
904L Stainless Steel Density
| 904L Sheet Density |
| 7.95 g/cm3 |
Melting Point Of ASTM A240 904L Coil
| Melting Point | Specific Gravity | Density |
|---|---|---|
| 2372 –2534°F 1300–1390°C | 7.98 | 0.287 lbs / in3 7.95 g /cm3 |
Stainless Steel 904L Shim Sheet Thermal Conductivity
| Physical Properties | Metric | English |
|---|---|---|
| Thermal Conductivity | 11.5 W/m-K @Temperature 20.0 °C | 79.8 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| 12.9 W/m-K @Temperature 100 °C | 89.5 BTU-in/hr-ft²-°F @Temperature 212 °F |
Test Certificate Of SS UNS N08904 Strip
ASTM A240 Grade 904L Corrosion Resistance
Stainless Steel 904l has medium corrosion resistance properties such as oxidation resistance. It is a suitable austenitic stainless steel to be used in the prevention of hot seawater corrosion and chloride based attack.
Check Hardness Of 904L Nickel Strip and Stainless Steel 904L Chequered Plate Supplier & Manufacturers In Mumbai, India.
Stainless Steel 904L Coil Hardness
| Hardness | 904L Steel |
|---|---|
| Hardness (Rockwell) | 70-90 |
| Hardness (Brinell) | 150 |
A Global supplier
Know The Delivery Strength Of Your Supplier First
Stainless Steel 904L Plate Suppliers In India
904L Stainless Steel Sheet
NY 12203 (USA), Belgium, Indonesia, Tehran -Iran, Spain, France, Jordan, Malaysia, Qatar, South Korea, Singapore, Bahrain, Oman, Iran, United Kingdom (UK), South Africa, Russia, Australia, Canada, Denmark Jakarta, Norway, Mexico, Netherlands, Finland, Turkey, United Arab Emirates (UAE), Dubai, South Africa, Greece, Jakarta -Indonesia, China, Europe, Peru, Sweden, Czechia, Chile
ASTM B625 UNS N08904 Coil
Morocco, Bangladesh, Malaysia, Italy, Germany, Japan, Thailand, Argentina, Romania, Malaysia, Egypt, Poland, Brazil, Colombia, Dubai- UAE, USA, Nigeria, Kuala Lumpur, Ellington -United States, New Zealand, Portugal, Taiwan, Istanbul- Turkey, Dammam -KSA, Los Alamos -Mexico, Vietnam, Philippines, Saudi Arabia (KSA), Kuwait, Hong Kong, Austria, United States, Singapore
