Carbon Steel Plates


Carbon Steel Plates
What is Carbon Steel Plates?

Carbon steels are designed with a higher carbon concentration giving these modules superior strength and performance. Carbon can be alloyed to other components to diversify its properties within the system. The plates are employed in building components that require high strength and durability. Designed with superior corrosion resistance properties, the Carbon Steel Plates are available in sizes above 6mm. The plates can be availed in low, medium, high, and ultra-high carbon content. Higher the carbon content, the greater is its tolerances and performance in the system.

Carbon Steel Sheet Definition

Carbon Steel Sheet can be defined as a metal component, which is employed in building systems that don’t require stability and strength. These carbon grade modules possess a good concentration of carbon and are used as means to lower the weight of the entire component. For additional force, the sheets can be corrugated or diamonded by adding ridges on these sheets. These ridges don’t add additional weights to the items on the contrary help in making them more efficient.

ASTM A572 Grade 50 CS Foil vs Carbon Steel Coils

Carbon steel metal can be shaped into different components to make them suited for different applications. ASTM A572 Grade 50 Cs and Carbon Steel Coils are versatile components of this grade that can be characterized based on certain features.

  • ASTM A572 Grade 50 Cs foil is the thinnest metal within this grade. Foils are designed with a thickness of below 0.2mm and can be readily hammered or rolled. A foil is utilized to wrap metal to provide it with protection during heat treatment, transportation, and corrosion.
  • Carbon Steel Coils are modules that are wound after the initial rolling procedure. These coils are available in thickness between 1.2mm to 20mm. They can be efficiently transported and cut into different sizes.
Difference Between Carbon Steel Boiler Plate and Shipbuilding Plate

A shipbuilding plate is generally produced utilizing mild steel. This quality of steel is flexible and allows the ship to bend and swirl across the ocean. Shipbuilding plates don’t have to withstand high pressures always. However, some portions of the ship may utilize high tensile steel for better fatigue resistance. Carbon Steel Boiler Plates have to withstand high pressures and temperatures and are produced from high tensile strength steel. These plates are designed to have enhanced corrosion and oxidation resistance compared to shipbuilding plates.

ASTM A516 Grade 70 Shim Sheet vs IS 2062 E250 Br Strip

ASTM A516 Grade 70 Shim Sheet and IS 2062 E250 Br strips are unique components within this grade, which have their own different functions.

  • ASTM A516 Grade 70 shim sheet is utilized to fill gaps and spaces across different items. These components are rigid and help in providing stability and strength to the structure. They are available in thicknesses above 0.020mm.
  • Is 2062 E250 Br strip is employed across different welding procedures. These strips are available in thickness between 0.2mm to 0.5mm.
ASTM A36 Structural Steel Plate Uses

ASTM A36 Structural Steel Plate is designed with higher carbon content and can be easily welded. They are widely used in the construction of bridges, buildings, and oil rigs. It is employed in forming tanks, bearing plates, rings, base plates, forgings, ornamental works, agricultural works, and machinery parts. Apart from this, they are also utilized across various parts that are obtained from flame cutting, such as walkways, parking garages, trenches, and walkways.

Boiler Plate and Carbon Shipbuilding Plate Supplier in India


Carbon Steel Plate

ASTM A516 Grade 70 Plate and Carbon Structural Steel Plate Stockist in Mumbai

Low Carbon Steel Sheet Thickness
GRADESTHICKNESS
WidthLength
A363/16" - 8"48" - 120"96" - 480"
A572 Grade 42 | 50 | 60 | 653/16" - 6"48" - 120"96" - 480"
A5883/16" - 4"48" - 120"96" - 480"
A871-653/16" - 1-1/4"48" - 120"96" - 650"
A709 Grade 36 | 50 | 50W3/16" - 4"48" - 120"96" - 480"
A656 Grade 50 | 60 | 70 | 803/16" - 1"48" - 120"96" - 480"
1045Inquire for sizes
33 MAXInquire for sizes
Thickness (mm)Mill Edge
Width (mm)
Length (mm)
Plate6.00~150500~40001200~18000
Sheet1.50~5.9950~1845760~6100

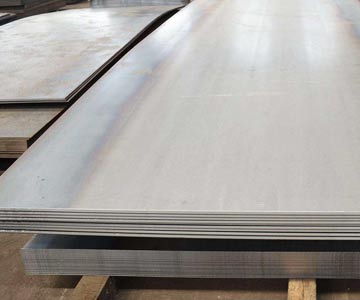

Carbon Steel Plates
Carbon Steel Plates

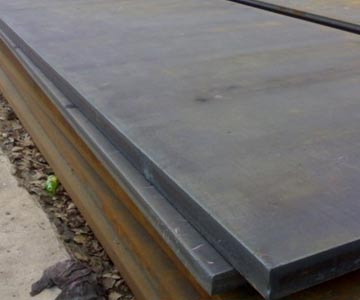

Carbon Steel Sheet
Carbon Steel Sheet

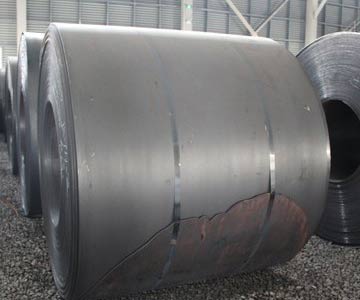

Carbon Steel Coil
Carbon Steel Coil
ASTM A516 Grade 70 Shim Sheet
ASTM A516 Grade 70 Shim Sheet

ASTM A515 Gr 70 Plate Grade
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Check Astm A36 Steel Price Per Kg In India And C45 Plate Hardness And Material Properties

Carbon Steel Plate Price
Carbon Steel Circle Price Per PieceCS Plates Price in Saudi RiyalCarbon Steel Perforated Coils Price in UAE Dirham
Carbon Steel Sheets PriceSaudi Riyal 1612.43UAE Dirham 1578.67
ASTM A36 Carbon Steel Shim Sheets PriceSaudi Riyal 1874.92UAE Dirham 1835.67
CS Coils Price ListSaudi Riyal 2812.39UAE Dirham 2753.50
CS Coils CostSaudi Riyal 7499.70UAE Dirham 7342.67
Price of ASTM c45 CoilsSaudi Riyal 1987.42UAE Dirham 1945.81
CS Strips PriceSaudi Riyal 2249.91UAE Dirham 2202.80
ASTM A516 Grade 70 Carbon Steel Plate Hardness
HardnessMetricImperial
Hardness, Brinell126126
Hardness, Knoop (Converted from Brinell hardness)145145
Hardness, Rockwell B (Converted from Brinell hardness)7171
Hardness, Vickers (Converted from Brinell hardness)131131

SP Metals is an ONGC certified Carbon Steel Coil Supplier in India & ASTM A515 Gr 60 Plate distributor in Mumbai

ASTM A515 Gr 60 Plate Properties
Electrical PropertiesMetricEnglishComments
Electrical resistivity @0°C (32°F)0.0000159 Ω-cm0.0000159 Ω-cmannealed condition
@100 °C/ 212 °F0.0000219 Ω-cm0.0000219 Ω-cmannealed condition
@ 200 °C/392 °F0.0000293 Ω-cm0.0000293 Ω-cmannealed condition
Know Exact Specifications Of Astm A830 Grade 1045 Plate And Astm A516 Grade 60/ Gr. 65/ Gr 70 Yield Strength, Minimum Temperature And Chemical Composition
Carbon Steel Plate Specification
SpecificationsASTM A283, A516 / ASME SA283, SA516
Thickness3/16″ to 24″
Width & Length
1 mm TO 200 mm THK in 1000 mm to 3000 mm width x 2500 mm / 5000 mm / 10000 mm
grade
517 GR. 60 / 70, IS 2062, IS 2002
Surface2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching, etc
FinishHot rolled plate (HR), Cold rolled sheet (CR)
FormCoils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc.
Carbon Steel Plate Manufacturers In India
ASTM A36 Carbon Steel Plate Yield Strength
GradeThicknessYieldTensileElongation
A515 Grade 7050-200mmMPa -551 minMPa – 485-62017-21%
A515 Grade 6050-200mmMPa -220 minMPa – 415-55021-25%
A516 Grade 706-100mmMPa -260 minMPa – 485-62017-21%
A516 Grade 606-100mmMPa -220 minMPa – 415-55021-25%
A516 Grade 656-100mmMPa -240 minMPa – 450-58519-23%
A572 Grade 508mm-200mmMPa -345 minMPa – 45018-21%
A572 Grade 428mm-200mmMPa -290 minMPa – 41520-24%

GradeConditionYield Strength
R°(Mpa)
Tensile Strength
Rm
(Mpa)
Elon-
gation
A5(%)
Hardness
HRC
Quenching
Temperature
(℃)
Benda-
bility
Nominal Thickness,t
1.95mm≤t≤10.0mm
RolledAnnealed
C45Rolled
Annealed
Water-quenched
Oil quenched
460
330
750
540
2270
1980
18
30
58
55
820
860
Min.reco-mmended
Bending radius
(≤90°)
2.0
×t
1.0×t
Carbon Steel Plates Temperature
Plain Carbon Steels Plate Can Be Used At Temperatures ~25 °c (800 °f). Temperatures Up To About 540 °c (1 000 °f) Can Be Withstood For Only Short Periods

ONGC Approved ASTM A36 Carbon Steel Plate Supplier In India. Also Check ASTM A709 Grade 36 Plate Chemical Properties

Chemical Composition Of Carbon Structural Steel Plate
GradeCMnPSPVNiCoCrSi
A515 Grade 700.30-0.351.30 max0.035 max0.035 max0.13-0.45
A515 Grade 600.24-0.310.98 max0.035 max0.035 max0.13-0.45
A516 Grade 700.27-0.310.79 – 1.300.035 max0.035 max0.13-0.45
A516 Grade 600.21-0.270.55 – 0.980.035 max0.035 max0.13-0.45
A516 Grade 650.24-0.290.79 – 1.300.035 max0.035 max0.13-0.45
C450.42-0.500.50-0.800.025 max0.025 max0.20-0.400.15-0.35
EN80.35 TO 0.450.60 TO 1.000.06 max0.06 max0.05 – 0.30
A572 Grade 500.231.350.040.050.040.060.0150.050.4
A572 Grade 420.211.350.040.050.040.060.0150.050.4

Carbon Steel Sheet Manufacturers In India, Suppliers Of ASTM A283 Grade C Plate In Mumbai, One Stop Shop For All ASTM A285 Grade C Plate.

ASTM A516 Grade 70 Shim Sheet Heat Treatment
GradeHEAT TREATMENTCORRESPONDING SPECIFICATION
Hardening TemperatureQuenching MediumTempering TemperatureBrinell Rock well hardnessJAPAN JISAISIPOLDI THREAD
EN-8750-900OIL150-200

WE are Largest Carbon Steel Coil Manufacturers in India

Types Of ASTM A283 Grade C Plate
Carbon Structural Steel Plate
Carbon Structural Steel Plate
CS Boiler Steel Plate
CS Boiler Steel Plate
Carbon Steel Tanks Steel Plate
Carbon Steel Tanks Steel Plate
Carbon Shipbuilding Steel Plate
Carbon Shipbuilding Steel Plate
ASTM A516 Grade 70 Plate
ASTM A516 Grade 70 Plate
ASTM A830-1045 High-carbon Steel Plate
ASTM A830-1045 High-carbon Steel Plate
High Strength Steel Plate
High Strength Steel Plate
High Tensile Steel Plate
High Tensile Steel Plate
ASTM A515 Gr 70 Boiler Quality Plates
ASTM A515 Gr 70 Boiler Quality Plates
ASTM A515 Gr 60 Pressure Vessel Plates
ASTM A515 Gr 60 Pressure Vessel Plates
ASTM A36 Carbon Steel Plate
ASTM A36 Carbon Steel Plate
ASTM A709 Grade 36 Sheet
ASTM A709 Grade 36 Sheet
ASTM A283 Gr.c Steel Plates
ASTM A283 Gr.c Steel Plates
ASTM A285 Grade C Carbon Steel Plates
ASTM A285 Grade C Carbon Steel Plates
ASTM A537 Class 2 Hr Boiler Plates
ASTM A537 Class 2 Hr Boiler Plates
C45 Plate
C45 Plate
Is 2062 Grade B Sheet
Is 2062 Grade B Sheet
Is 2062 E250 Br Plates
Is 2062 E250 Br Plates
ASTM A516 Grade 60 Plates
ASTM A516 Grade 60 Plates
ASTM A516 Grade 65 Boiler Steel Plates
ASTM A516 Grade 65 Boiler Steel Plates
ASTM A515 Gr 60 Plate
ASTM A515 Gr 60 Plate
ASTM A572 Grade 50 Cs Plates
ASTM A572 Grade 50 Cs Plates
15mo3 Alloy Steel Plate
15mo3 Alloy Steel Plate
Jis G3101 Ss400 Mild Steel Plate
Jis G3101 Ss400 Mild Steel Plate
Check Is 2063 Grade B Mild Steel Price List In India, Composition And Weight Chart Also Know About Is 2062 E250 Br Equivalent Material
ASTM A285 Grade C Plate Weight
Thickness Chart in InchesPlate Weight per Unit AreaDensity
3/160.06000 lbs/in²42.184176 kg/m²0.315 lbs/in³8.72 g/cm³
1/40.08 lbs/in²56.245568 kg/m²0.315 lbs/in³8.72 g/cm³
3/80.121 lbs/in²85.0714216 kg/m²0.315 lbs/in³8.72 g/cm³
1/20.161 lbs/in²113.1942056 kg/m²0.315 lbs/in³8.72 g/cm³
5/80.196 lbs/in²137.8016416 kg/m²0.315 lbs/in³8.72 g/cm³
3/40.235 lbs/in²165.221356 kg/m²0.315 lbs/in³8.72 g/cm³
7/80.274 lbs/in²192.6410704 kg/m²0.315 lbs/in³8.72 g/cm³
10.313 lbs/in²220.0607848 kg/m²0.315 lbs/in³8.72 g/cm³
1 1/40.391 lbs/in²274.9002136 kg/m²0.315 lbs/in³8.72 g/cm³
1 1/20.47 lbs/in²330.442712 kg/m²0.315 lbs/in³8.72 g/cm³
1 3/40.549 lbs/in²385.9852104 kg/m²0.315 lbs/in³8.72 g/cm³
20.627 lbs/in²440.8246392 kg/m²0.315 lbs/in³8.72 g/cm³
2 1/40.705 lbs/in²495.664068 kg/m²0.315 lbs/in³8.72 g/cm³
2 1/20.784 lbs/in²551.2065664 kg/m²0.315 lbs/in³8.72 g/cm³
2 3/40.862 lbs/in²606.0459952 kg/m²0.315 lbs/in³8.72 g/cm³
30.941 lbs/in²661.5884936 kg/m²0.315 lbs/in³8.72 g/cm³
Astm A36 Carbon Steel Strips Manufacturers India

SP Metals is an ISO certified C45 Carbon Steel Coil Suppliers in India & ASTM A537 Class 2 Plate Stockist in Mumbai.

Carbon Steel Plate Equivalent
EN10025(93)EN10025(90)BS4360DIN 17100JIS3101NFA 35-501
S275J2G3-43 DSt 44-3U-E28-4
Cs Plate Sizes
Size (in inches)Size (in mm)
.1253.18
.1343.40
.1563.96
.1874.75
.2506.35
.3127.92
.3759.53
.50012.7
.60015.9
.75019.1
.87522.2
125.4
1.12528.6
1.25031.8
1.50038.1
1.75044.5
250.8
2.50063.5
376.2

Get instant delivery Of 2 Inch ASTM A515 Gr 70 Plate, Astm A516 Grade 70 Carbon Steel Sheet Suppliers In Mumbai, India.

ASTM A537 Class 2 Plate Dimension
Plate Surface finishThickness (mm)Width (max mm)
2B – Cold rolled, heat treated, pickled, skin passed Sheet0.25–8.02032
2D – Cold rolled, heat treated, pickled Sheet0.4–6.351524
2E – Cold rolled, heat treated, mechanically descaled plate0.4–8.02032
2R – Cold rolled, bright annealed plate0.25–3.51524
2H – Work hardened plate0.4–6.351524
Polished, brushed plate0.5–4.01524

ASTM A1008 Cold Rolled Sheet Imperial Dimensions

Plate Surface finishGauge (in)Width (max in)
2B – Cold rolled, heat treated, pickled, skin passed Plate10–2472*
2D – Cold rolled, heat treated, pickled plate12–2460
BA Mexinox only18–2848
Polished Sheet (not brushed)11–2460
Temper rolled Sheet Mexinox only13–2948
Carbon Steel Coil Hs Code
HS Code Description
721123 Flat-rolled products of iron or non-alloy steel, of a width of 600 mm, simply cold-rolled "cold-reduced", not clad, plated or coated, containing by weight 0,25% of carbon
721129 Flat-rolled products of iron or non-alloy steel, of a width of 600 mm, simply cold-rolled "cold-reduced", not clad, plated or coated, containing by weight = 0,25% of carbon
Is 2062 Grade B Plate Application
  • Automobile Industries
  • Boilers
  • Chemical Fertilizers
  • Desalination
  • Decoratives
  • Dairies and Food
  • Metallurgical Industries
  • Oil and Gas Industries
  • Pharmaceuticals
  • Power Plants

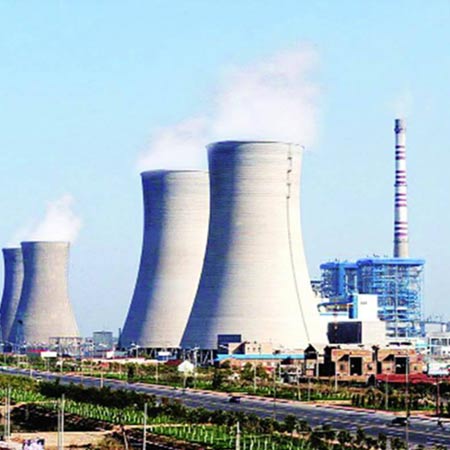

Carbon Steel Plate uses

Prestige quality Carbon Steel Plate Suppliers In India offer in DIN, ISO, EN, BS, JIS or ANSI standard.

Levels For Each Of Cs Plate

TYPE OF CARBON STEEL

CARBON COMPOSITION

LOW CARBON/MILD

0.05-0.25%

MEDIUM CARBON

0.26-0.60%

HIGH CARBON

0.61-1.50%

Structural Carbon Steel Plates

  • ASTM (USA): A 36, A 283: A, B, C, D
  • IS (INDIA): IS 2062: E250 Gr A/ B/ C
  • DIN (GERMANY): DIN 17100: ST 37.3, ST 44.2, ST 44.3
  • BS (ENGLAND): BS 4360: 40, 43
  • EN (EUROPE): EN 10025: S235, S275
  • JIS (JAPAN): G 3106: SM400, G 3101: SS400

High Tensile Carbon Steel Plates

  • ASTM (USA): A572: Gr 42, Gr 50, A656 Gr 50
  • IS (INDIA): IS 2062: E300,E350,E410, E450, SAILMA: 300HI, 350HI, 410HI, 450HI, IS 8500: FE 440, FE 490, FE540, FE 570
  • DIN (GERMANY): 17100: ST 44.3, ST 52.3
  • BS (ENGLAND): BS 4360: 43, 50
  • EN (EUROPE): EN 10025: S275, S355, EN 10113
  • JIS (JAPAN): G 3101: SS490, G 3106: SM 490, SS520

Boiler Quality Steel Plates

  • ASTM (USA): A515: Gr60, Gr70, A 516: Gr60, Gr65, Gr70, A 517, A 387, A 533, A 537, A 542, A 543, A 302
  • IS (INDIA): IS 2002, IS 2041: R/H220, R/H 260, R/H 275, R/H 355
  • DIN (GERMANY): 17102: StE 285, St E355, 17155: HI, HII, 19 Mn 6
  • BS (ENGLAND): BS 1501-161: Gr360, Gr400, BS 1501-224: Gr400, Gr 490
  • EN (EUROPE): EN 10028 : P235L, P265L P355L, P460L, EN 10028 : 13CrMo4-5, 16Mo3
  • JIS (JAPAN): G 3103: SB410, SB450, SB480, G3115: SPV 24, SPV 32, SPV 36 G3125

Medium Carbon Steel Plates

  • ASTM (USA): SAE 1045
  • IS (INDIA): IS 5517: 45C8, IS 4432
  • DIN (GERMANY): DIN 17200: C45, EN 8
  • BS (ENGLAND): BS 970: 080 M 46
  • EN (EUROPE): EN 10083: C45
  • JIS (JAPAN): G 4051: S 45C
Cs Boiler Steel Plate Cutting

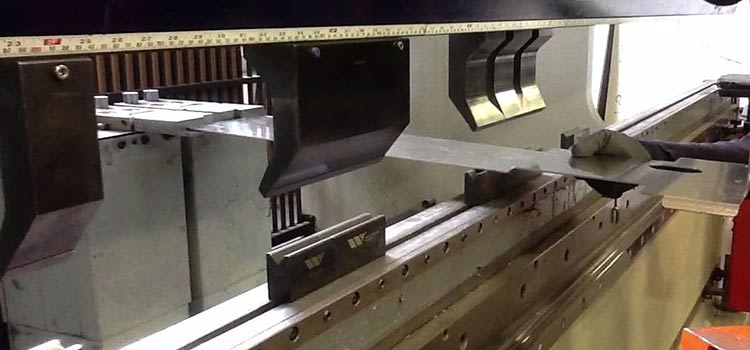

Carbon Steel Plate Cutting Machine
ASTM A516 Grade 70 Plate Services
  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test
  • Micro and MacroTest
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test

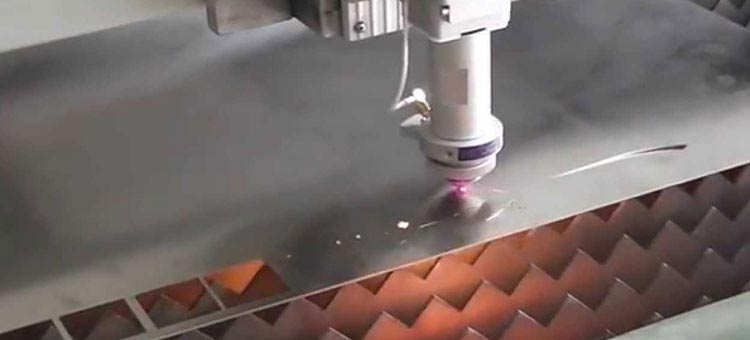

Carbon Steel Sheet Laser Cutting
Carbon Steel Sheet Laser Cutting
Carbon Shipbuilding Steel Plate Certificate
  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report
A Global supplier

We Have Supplied Carbon Steel Plate To Some Of The Following Major Locations

Carbon Steel Plates Suppliers in India

Carbon Steel Plates Suppliers in India

ASTM A516 Grade 70 Plate

ASTM A516 Grade 70 Plate


Ellington -United States, South Africa, Europe, Istanbul- Turkey, Italy, Argentina, Portugal, Dammam -KSA, Belgium, Brazil, Vietnam, Saudi Arabia (KSA), Netherlands, Colombia, Kuwait, Bahrain, Canada, Kuala Lumpur, Philippines, Russia, Sweden, Thailand, Dubai- UAE, New Zealand, South Africa, Austria, Poland, Malaysia, Morocco, Nigeria, Jakarta, Indonesia, China, Dubai

Carbon Structural Steel Plate

Carbon Structural Steel Plate


Jakarta -Indonesia, Malaysia, Greece, Chile, NY 12203 (USA), France, Qatar, Czechia, Jordan, Iran, Romania, Norway, Hong Kong, Los Alamos -Mexico, Denmark Peru, Turkey, Germany, United Arab Emirates (UAE), Tehran -Iran, Malaysia, Taiwan, Finland, Japan, United States, South Korea, USA, Egypt, Singapore, Bangladesh, United Kingdom (UK), Spain, Oman, Singapore, Mexico, Australia
