Stock in special cut to length bar in tolerance – 0/+10mm (-0 +0.5 inch)
What Is Stainless Steel Round Bar?
Stainless Steel Round Bar belong to an alloy of ferrous components. These ferrous components are made with 11% of chromium giveing these bars superior corrosion and oxidation resistance. A round bar in this grade can be characterized as a long, cylindrical bar that is employed in providing supports, braces, and strength to different modules in industrial and commercial systems. The aesthetically appearing round bars possess superior strength and can be easily welded or fabricated in place.
ASTM A276 Rod Vs SS Hex Bar
Bars and rods are generic terms used in the metal industry for metals of straight lengths. Both these structures are very similar but can be differentiated based on, certain features:
SS Bright Bar Oil And Gas Application
SS Bright Bars can be characterized by their bright aesthetic appeal however, these modules exhibit superior corrosion resistance due to the ferrous coating of chromium embedded in stainless steel. These bars offer enhanced tolerance to reducing acids which are common in oil and gas systems. The SS bright bars are machined to form fasteners, grills, and other construction equipment necessary for the smooth running of the oil and gas industries.
Difference Between Stainless Steel Square Bar And ASTM A276 Flat Bar
Stainless Steel Square Bar and ASTM A276 Flat Bar are identical components, which can be distinguished based on their widths and shapes. A Stainless steel square bar is a component having a cross-section of a square. These square bars can be seen in general assembly and manufacturing systems. ASTM A276 flat bar has a rectangular cross-section. These bars have smaller widths compared to square bars and can be seen in support braces, ladders, overhead doors, heat exchangers, etc.
SS round bar Features
Some of the features of the SS Round Bar include:
Table of Content
Stainless Steel Round Bar Specification
Stainless Steel Bars Length | 2 to 6 meters or 8 to 20 feet |
---|---|
SS Rod Chamfering | Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine |
Types of Bar | Round Bars, Flat Bars, Square Bars, bright Bars, Hex Bars, Rod Manufacturer and Supplier |
Ultrasonic Test of ASTM A276 Threaded Rod | As per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO it is 100% tested thru Digital Ultrasonic Flaw Detector, 10423:2003-PSL 3, MIL STD 2154, SEP 1920:1984 |
SS Round Bars Size Tolerances | h11 |
Tolerance of Cold Rolled SS Round Bars Length | Stock in special cut to length bars in tolerance – 0/+10mm (-0 +0.5 inch) |
Dual certified Manufacturers | Dual certified SS Round Bars Manufacturers in India, accordance to certify ASME SA276 and ASTM A276 American specifications |
Surface Finish of Cold Rolled SS Bar | Cold drawn or Belt polished condition |
Bars Heat Treatment | Annealed and Solution Annealed |
Stainless Steel Round Bar Suppliers in India |

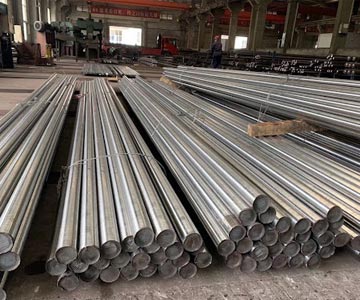

Stainless Steel Round Bar

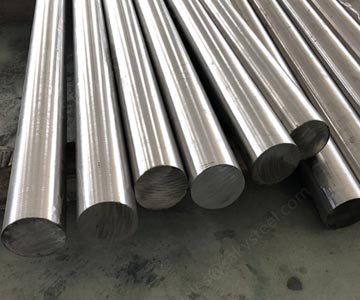

ASTM A276 Stainless Steel Rod
ASTM A276 Round Bar Length
Stock in special cut to length bar in tolerance – 0/+10mm (-0 +0.5 inch)
Stainless Steel Round Bar Price List Per Kg
Hot Rolled Stainless Steel Round Bar 2mm, 3mm
US $1.30-$2.20 / Kilogram
INR : 97.00 - 164.15
Astm A276 Stainless Steel Rod
US $1.00-$1.50 / Kilogram
INR: 74.62 - 111.92
Stainless Steel Round Bar 8mm
US $2.00-$2.50 / Kilogram
INR : 149.23 - 186.54
Hot Rolled Bar Stainless Steel
US $5.01-$6.90 / Kilogram
INR :373.82 - 514.85
Stainless Steel Round Flat Bar
US $1.49-$1.79 / Kilogram
INR: 111.18 - 133.56
15mm Stainless Steel Bright Bar
US $2.20-$3.50 / Kilogram
INR : 164.15 - 261.15
Stainless Steel Flat Round Bar
US $2.10 / Kilogram
INR : 156.69
Stainless Steel Bar/rods
US $2.00-$3.00 / Kilogram
INR: 149.23 - 223.85
Stainless Steel Round Rod Dia 3mm To 450mm
US $1.50-$2.10 / Kilogram
INR : 111.92 - 156.69
Stainless Steel Square Bar Grade
300 Series SS Grades | SS 303, 304, 304L, 309, 310, 316, 316L, 316H, 317, 317L, 321, 347 |
400 Series SS Grades | 410, 410PSQ, 410QDT, 410HT, 416, 416HT, 416PSQ, 420 |
Stainless Steel Round Bar Manufacturers in India, Suppliers Of ASTM A276 SS Rod In Mumbai, One Stop Shop For All SS Welding Rod.
Stainless Steel Bars Physical Composition
Tensile Psi (Mpa) | Hardn. | Elongation Strip / Round | Reduction in Area (%) | Yield Psi (Mpa) |
75000 (515) | – | 30 | 40 | 30000(205) |
– | 30000 (250) | |||
– | ||||
– | ||||
– | ||||
– |
Stainless Steel Round Bar Sizes
Type | SIZES in milimeter | SIZES in inches | Tolerance |
---|---|---|---|
Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
Cold Drawn and Polish | 3.00 to 75.00 | 1/8 to3.00 | h8 to h11 |
Cold Drawn and Ground | 10.00 to 75.00 | 5/6 to 2.50 | h8 to h11 |
Peeled nd Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9 to h11 |
SS Round Bars Standard lengths of 2000 mm up to 6000 mm.
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Stainless Steel Round Stock
Metric | US Bar | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter (millimeter) | Stainless Steel Round Bars Size | Diameter(Inch) | Bar Size | Diameter (millimeter) | SS Round Bar Size | Diameter (millimeter2) | Stainless Round Bar Size |
5 | 5 | 0.00250 | #2 | 6 | 6 | 100 | 10M |
5.005 | 5.005 | 0.00375 | #3 | 10 | 10 | 200 | 15M |
6 | 6 | 0.00500 | #4 | 13 | 13 | 300 | 20M |
7 | 7 | 0.00625 | #5 | 16 | 16 | 500 | 25M |
8 | 8 | 0.00750 | #6 | 19 | 19 | 700 | 30M |
9 | 9 | 0.00875 | #7 | 22 | 22 | 1000 | 35M |
10 | 10 | 1.00000 | #8 | 25 | 25 | 1500 | 45M |
11 | 11 | 1.00125 | #9 | 29 | 29 | 2500 | 55M |
12 | 12 | 1.00250 | #10 | 32 | 32 | ||
14 | 14 | 1.00375 | #11 | 35 | 35 | ||
16 | 16 | 1.00500 | #12 | 38 | 38 | ||
18 | 18 | 1.00625 | #13 | 41 | 41 | ||
20 | 20 | 1.00750 | #14 | 44 | 44 | ||
22 | 22 | 1.00875 | #15 | 48 | 48 | ||
25 | 25 | 2.00000 | #16 | 51 | 51 | ||
28 | 28 | 2.00250 | #18 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |

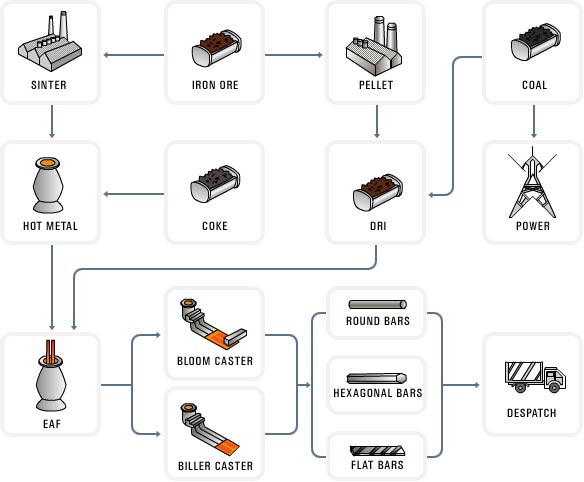

Stainless Steel Bar Manufacturing Process
We are largest Stainless Steel Round Bar Manufacturer In India. check Chemical Composition of ASTM A276 Round Bar, Stainless Steel Square Bar and Stainless Steel Hex Bar
Chemical Composition If Stainless Round Bar
ASTM Grade | Carbon | Manganese | Silicon | Sulfur | Phospherous | Chromium | Nickel | Molybdenum | Other |
304 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | - | - |
316 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.0 3.0 | - |
317L | 0.035 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 3.0 4.0 | - |
310 S | 0.08 max | 2.00 max | 1.5 max | 0.030 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 3.0 4.0 | - |
347 H | 0.04 0.10 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | - | 10C(Cb+Ta)<1.10% |
321 | 0.08 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | - | 5C 0.70% |
Steel Hollow Bar Equivalent
UNS NO | Outokumpu | AISI | Werkstoff NO | ASTM NO |
---|---|---|---|---|
S31254 | 254SMO | 904L | 1.4547 | A276 |
N08904 | 6Mo (Moly) | 1.4539 | A479 | |
EN10272 | B677 | |||
F44 |
Standard | UNS | AFNOR | EN | WERKSTOFF NR. | GOST | JIS | BS |
SS 304L | S30403 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | 1.4306 / 1.4307 | 03Х18Н11 | SUS 304L | 3304S11 |
SS 310 | S31000 | – | X15CrNi25-20 | 1.4841 | 20Ch25N20S2 | SUS 310 | 310S24 |
SS 304H | S30409 | – | – | 1.4301 | – | – | – |
SS 304 | S30400 | Z7CN18‐09 | X5CrNi18-10 | 1.4301 | 08Х18Н10 | SUS 304 | 304S31 |
310S | S31008 | – | X8CrNi25-21 | 1.4845 | 20Ch23N18 | SUS 310S | 310S16 |
SS 310H | S31009 | – | – | – | – | – | – |
SS 316L | S31603 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 1.4404 / 1.4435 | 03Ch17N14M3 / 03Ch17N14M2 | SUS 316L | 316S11 / 316S13 |
Stainless Steel 316H | S31609 | – | – | 1.4401 | – | – | – |
SS 316 | S31600 | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | 1.4401 / 1.4436 | – | SUS 316 | 316S31 / 316S33 |
SS 316Ti | S31635 | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 | 1.4571 | 08Ch17N13M2T | SUS 316Ti | 320S31 |
SS 317 | S31700 | – | – | 1.4449 | – | SUS 317 | – |
SS 321 | S32100 | – | X6CrNiTi18-10 | 1.4541 | – | SUS 321 | – |
SS 317L | S31703 | – | X2CrNiMo18-15-4 | 1.4438 | – | SUS 317L | – |
SS 321H | S32109 | – | X12CrNiTi18-9 | 1.4878 | – | SUS 321H | – |
347H | S34709 | – | X6CrNiNb18-12 | 1.4961 | – | SUS 347H | – |
SS 347 | S34700 | – | X6CrNiNb18-10 | 1.4550 | 08Ch18N12B | SUS 347 | – |
904L | N08904 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 | 1.4539 | STS 317J5L | SUS 904L | 904S13 |
ASTM A479 Stainless Round Mechanical Properties
Grade | Elongation | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point |
SS 202 | 40 % | 8.0 g/cm3 | 515 MPa | 275 MPa | 1454 °C (2650 °F) |
SS 303 | 50 % | 55% | Psi – 85,000 | Psi – 45,000 | Rb 180 |
SS 304 | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
SS 304L | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
SS 316 | 35 % | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) |
SS 316L | 40 % | 8.0 g/cm3 | 485 Min | 170 Min. | 1400 °C (2550 °F) |
Types Of Stainless Steel Round Rod
Stainless Steel Round Bar Weight Chart
Diameter | Weight Chart | Dia | Weight Chart |
---|---|---|---|
(mm) | per metre (kg) | (in) | per metre (kg) |
3mm | 0.06 | 1/8" | 0.06 |
4mm | 0.10 | 3/16" | 0.14 |
5mm | 0.16 | 1/4" | 0.25 |
6mm | 0.22 | 5/16" | 0.39 |
7mm | 0.30 | 3/8" | 0.56 |
8mm | 0.40 | 7/16" | 0.77 |
10mm | 0.62 | 1/2" | 1.00 |
12mm | 0.89 | 9/16" | 1.22 |
14mm | 1.22 | 5/8" | 1.56 |
15mm | 1.40 | 11/16" | 1.89 |
16mm | 1.59 | 3/4" | 2.25 |
18mm | 2.01 | 7/8" | 3.07 |
20mm | 2.48 | 1" | 4.03 |
22mm | 3.00 | ||
24mm | 3.57 | ||
25mm | 3.88 |
Shafting Bar Vs Round Bar
SS Round Bars Packaging
ASME SA276 Stainless Steel Rounds Delivery State
Stainless Steel Round bars Surface Condition | Delivery State Choice |
---|---|
Black | Forged |
Polished | |
Bright | Hot Rolled |
Polished | |
Black | |
Bright | |
Polished | Cold Drawn |
Pickled |
SS Round Bar Weight Calculation Formula
Finish Of Stainless Steel Bars
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
ST | Smooth turned | PR | reeled and Peeled |
CF | Cold finished | HRAP | Hot rolled pickled and annealed |
P&T | Peeled and turned | RT | Rough turned/peeled |
CG | Centreless ground | HF | Hot finished |
Stainless Steel Rod Condition
H&T | Hardened and tempered. |
ANN | Annealed |
PH | Precipitation hardened. |
PED Certified SS Hex bar Manufacturers in Mumbai, India, Sizes Of Stainless Steel Square Bar In MM.
Stainless Steel Square Bar Sizes Chart
Stainless Steel Square bar – metric sizes and weights | |||
---|---|---|---|
KG’s per Metre | Colour Code | Square bars Size | Standard Length (metres) |
0.081 | Yellow | 10 x 10 | 6.00 |
1.016 | Pink | 12 x 12 | 6.00 |
5.003 | Purple | 25 x 25 | 6.00 |
20.012 | Green | 50 x 50 | 6.00 |
12.08 | Yellow | 40 x 40 | 6.00 |
2.006 | Grey | 16 x 16 | 6.00 |
3.022 | Green | 20 x 20 | 6.00 |
8.024 | Orange | 32 x 32 | 6.00 |
Stainless Steel Solid Round Bar Standards
Application Of Hot Rolled Stainless Steel Round Bar
Stainless Steel Round Bar For Sale
Stainless Steel Round Rod | Stainless Steel Polished Flat Bars |
ASTM A276 Round Bars | Polished Stainless Steel Bars |
ASTM A276 Threaded Rod | Polished Stainless Steel Round Bars |
Stainless Steel Cold Rolled Bars | Stainless Steel Black Bars |
Hot Rolled Stainless Steel Flat Bars | Stainless Steel Spring Bars |
Stainless Steel Flat Bar Rolled Edge | Stainless Steel Forged Bars |
Hot Rolled Stainless Steel Bars | Forged Stainless Steel Round Bars |
hot rolled stainless steel flat bar Manufacturers In India, Visit our 20mm diameter cold rolled steel bar in India, Call Now to Get SS hollow Bar Free sample.
Features Of Cold Rolled SS Bar
SS Round Bar Hsn Code
HS Code | Description |
---|---|
72210090 | 2xd10x1.000 Mm SS Round Bars- |
72210090 | 1.4542 6 Mm Stainless Steel Round Bars |
72210090 | 1.4542 11 Mm SS Round Bars |
72210090 | 1.41121 8 Mm Stainless Steel Bars |
72210090 | 1.41121 12 Mm Stainless Steel Round Bars |
72210090 | .4542 8 Mm SS Round Bars 1 |
72210090 | SS Rod / Bar Round (For Aircraft) 304/304l Cda S/s Rod .3750 |
A276 SS Flat Bar Manufacturers in India, We provide SS Bright Bar with instant delivery
SS Bars Manufacturers In Mumbai, India, Get Free Quote For Stainless Steel Rod and SS Cold Rolled Round Bar
Stainless Steel Hex Bar Testing
