- Metric system: standard length is 9 - 12 metres
- USA : 40 feet
- +91 22 66363099
- info@spmetal.net
What Is Monel 400 Round Bar?
Monel 400 Round Bars are nickel-copper alloys that are hardened following the cold working process. These round bars have a uniform circular cross-section and exhibit enormous strength and toughness across the systems. The round bars are resistant to corrosion and oxidation in different stress-induced environments. The bars show enhanced resistance to stress-corrosion cracking and exhibit high resistance to reducing hydrochloric and hydrofluoric acids. They have good tolerances to marine systems and are slightly magnetic in room temperatures. Apart from this, the Monel round bars can withstand temperatures ranging from sub-zero to 1000 degrees F.
2.4360 Monel 400 Flat Bar Vs UNS N04400 Monel 400 Hex Bar
Bars are available in a range of shapes. 2.4360 Monel 400 Flat Bar and UNS N04400 Monel 400 hex bar are amongst the most common shapes within this grade of bars. These modules can be differentiated based on certain characteristics.
Monel 400 rod Oil And Gas Application
Monel 400 Rod is a robust structure designed with superior corrosion resistance properties. These rods can withstand fluctuating pressures and temperatures, making them suitable for oil and gas systems. Monel 400 rods work well in hydrochloric and hydrofluoric acids, helping them resist pitting and crevice corrosion in off-shore rigs and pressure vessels. They are widely seen in oil and gas extraction, drilling, storage, refining, crude oil steels, pumps, propeller shafts, and so on.
Difference Between Monel 400 Steel Square Bars And ASTM B164 nickel alloy 400 rod
Bars and rods are used interchangeably in the metal industry. Both these components within this grade can be differentiated based on their material type, shapes, and other features. A Monel 400 Steel square bar is designed with a square cross-section. These modules have distinct openings across each of the modules. ASTM B164 nickel alloy 400 rods are characterized by a long metal module that can possess a uniform circular or square cross-section. These modules are robust and don’t have any openings or hollow spaces.
Table of Content

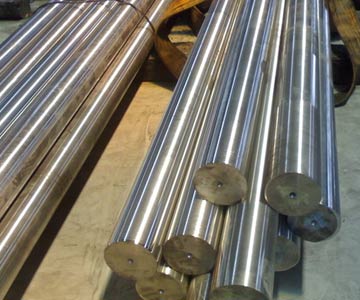

Monel 400 Round Bar

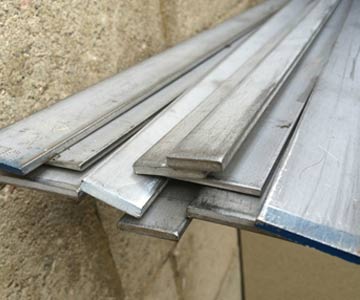

DIN 2.4360 Monel 400 Flat Bar
Werkstoff 2.4360 Monel Round Bar Specification
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Monel 400 Round bars size | Diameter: 3-~800 milimeter |
| Flat bars size | Thickness: 2 -100 milimeter |
| Width: 10 to 500 milimeter | |
| Angle bars size | 3 milimeter*20 milimeter*20 milimeter~12 milimeter*100 milimeter*100 milimeter |
| Channel bars | 80 x 40 milimeter to 150 x 75 milimeter section; 5.0 to 6.0 milimeter thickness |
| Marking |
|
| Rectangular barss Section | 3.0 to 12.0 milimeter thickness |
| Billet Size | 1/2 to 495 milimeter Diameter |
| Rectangles Size | 33 x 30 milimeter to 295 x 1066 milimeter |
| Hollow bars | 32 milimeter OD x 16 milimeter ID to 250 milimeter OD x 200 milimeter ID) |
| Monel 400 Round bars Dimensions | Diameter / Height: |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Dual certified Manufacturers | Dual certified Alloy 400 Round Bar Manufacturers in India, accordance to certify ASME SB164 and ASTM B164 American specifications |
| Monel 400 Round bars Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Monel 400 Round bars Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round bars,Cold Rolled, Rod |
| Processing | bars cutting to 650 milimeter |
| Monel 400 Round bars Form | Rod, Round, Channel bars, T-bars, Flat bars, Precision Ground bars, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round bars, Ingot, Billet, I/H bars, Forging etc. |
| Monel 400 Round Bar Manufacturers in India | |
Looking for Monel 400 Round Bar Price suppliers who offer prompt delivery in Asia? Manufacturer of ASTM B164 Monel 400 Bar Stock in India, call us for big discount and ready sizes, check latest price of Werkstoff 2.4360 Monel Round Bar in Mumbai
Monel 400 Round Bar Price
| Description | Price in US | Price in India |
| Monel 400 SB 164 Round Bar | US $15.00-$50.00 / Kilogram | 1116.08 - 3720.28 |
| ASTM B865 MONEL K-500 MONEL 400 ROUND BAR | US $20.00-$27.00 / Kilogram | 1488.11 - 2008.95 |
| Alloy 400 Round Bar | US $24.00-$28.00 / Kilogram | 1785.73 - 2083.35 |
| monel k400 Cold Rolled Round Bar square hex bars | US $30.00-$50.00 / Kilogram | 2232.16 - 3720.28 |
Gravity Of Alloy 400 Flat Bar
| Specific Gravity |
|---|
| 8.8 g/cm3 |
Monel 400 Nickel Hexagon Bars Melting
| Element | Monel 400 |
| Melting Point | 1350 °C (2460 °F) |
Alloy 400 Hex Bar Length
UNS N04400 Bright Bar Pacakging
Manufacturer & Supplier Of Monel 400 Bar Hs Code, Alloy 400 Round Bar In India
Monel 400 Rod Surface Finish
| Cold drawn | CD | Polished | P |
| Bright drawn | BD | Slit rolled edge | SRE |
| Centreless ground | CG | Hot finished | HF |
| Cold finished | CF | Hot rolled annealed and pickled | HRAP |
| Peeled and turned | P&T | Rough turned/peeled | RT |
| Smooth turned | ST | Peeled and reeled | PR |
2.4360 Monel 400 Polished Bar Tolerance
| Tolerances for Cold Drawn Monel 400 Round Bar | ||
|---|---|---|
| Shape / Section | Size, diameter or width across flats | Permitted variation |
| mm | mm | |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 | + 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 | + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 | + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
| Square and hexagon | ≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 | + 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
PED Certified Alloy 400 Bar Manufacturers in Mumbai, India, Dimensions Of 2.4360 Monel 400 Round Bar In MM.
Well-known Manufacturer Of ASTM B164 Monel 400 Hex Bar in India. For final Monel 400 Flat Bar Price List Please Call on +91 22 6636 3099.
ASTM B164 UNS N04400 Rod Strength
Buy ASME Sb164 UNS N04400 Rod Directly From Largest Manufacturers In Mumbai, Check Application Of Monel 400 Square Bar
Nickel 400 Triangular Bar Uses
ASTM B164 400 Monel Cold Drawn Bar Standard
Monel 400 Rounds Density
| Element | Monel 400 |
| Density | 8.8 g/cm3 |
Check sizes Of Alloy 400 Flat Bar and Monel 400 Nickel Hexagon Bars Supplier & Manufacturers In Mumbai, India.
Condition Of 400 Alloy Black Bar
| ANN | Annealed |
| H&T | Hardened and tempered. |
| PH | Precipitation hardened. |
Types Of Monel 400 Steel Forged Bars
Monel 400 Hex Bar Sizes
| Wt per Foot of hex bar | Size in Inches | Wt per Inch |
|---|---|---|
| 0.0180 | 1/4″ | 2.160 |
| 0.0104 | 3/16″ | 1.248 |
| 0.0600 | 3/8″ | 4.920 |
| 0.0290 | 5/16″ | 3.480 |
| 0.0740 | 1/2″ | 8.880 |
| 0.0560 | 7/16″ | 6.72 |
| 1.150 | 5/8″ | 13.80 |
| 0.0930 | 9/16″ | 11.16 |
| 1.660 | 3/4″ | 19.92 |
| 1.390 | 11/16″ | 16.68 |
| 2.300 | 7/8″ | 27.60 |
| 2.600 | 15/16″ | 31.20 |
| 1.950 | 13/16″ | 23.40 |
| 3.30 | 1-1/16″ | 39.60 |
| 2.90 | 1″ | 34.80 |
| 4.600 | 1-1/4″ | 55.20 |
| 3.700 | 1-1/8″ | 44.40 |
| 5.600 | 1-3/8″ | 67.20 |
| 5.100 | 1-5/16″ | 61.20 |
| 6.600 | 1-1/2″ | 79.20 |
| 6.100 | 1-7/16″ | 73.20 |
| 26.53 | 3″ | 318.36 |
| 9.030 | 1-3/4″ | 108.36 |
| 7.800 | 1-5/8″ | 93.60 |
| 18.42 | 2-1/2″ | 221.04 |
| 11.80 | 2″ | 141.60 |
| 10.0400 | 1-7/8″ | 124.80 |
| 16.920 | 2-3/8″ | 203.04 |
| 14.920 | 2-1/4″ | 179.04 |
Size Chart of Monel 400 Square Bar
| Size in milimeter | Average Weight | |
| KG/FT | KG/MTR | |
| 12 x 12 | 0.030 | 1.010 |
| 10 x 10 | 0.020 | 0.080 |
| 16 x 16 | 0.060 | 2.000 |
| 14 x 14 | 0.050 | 1.050 |
| 20 x 20 | 1.000 | 3.014 |
| 17 x 17 | 0.069 | 2.027 |
| 32 x 32 | 2.040 | 8.000 |
| 63 x 63 | 9.050 | 31.020 |
| 25 x 25 | 1.050 | 4.090 |
| 42 X 42 | 4.022 | 13.085 |
| 40 x 40 | 3.080 | 12.060 |
| 53 X 53 | 6.072 | 22.005 |
| 50 x 50 | 6.000 | 19.060 |
| 56 x 56 | 7.050 | 24.060 |
Get instant delivery Of 20mm Alloy 400 Hex Bar , Chemical Composition Of Nickel 400 Round Bar , UNS N04400 Bright Bar Manufacturer In Mumbai. India.
Nickel 400 Round Bar Chemical Composition
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
Mechanical Properties of ASME Sb164 UNS N04400 Rod
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
Equivalent of Alloy 400 Bar
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | МНЖМц 28-2,5-1,5 | NU-30M | NW 4400 | NA 13 | NiCu30Fe |
2.4360 Monel 400 Round Bar Dimension
| Diameter or Width (milimeter) | Sectional Area | round bars Weight per meter | Perimeter | |||
| Round (centimeter²) | Square (centimeter²) | Round (kilogram) | Square (kilogram) | Round (centimeter) | Square (centimeter) | |
| 5.0 | 0.20 | 0.25 | 0.15 | 0.20 | 1.57 | 2.0 |
| 5.5 | 0.24 | 0.30 | 0.19 | 0.24 | 1.78 | 2.2 |
| 6.0 | 0.28 | 0.36 | 0.22 | 0.28 | 1.88 | 2.4 |
| 7.0 | 0.38 | 0.49 | 0.30 | 0.38 | 2.20 | 2.8 |
| 8.0 | 0.50 | 0.64 | 0.39 | 0.50 | 2.51 | 3.2 |
| 9.0 | 0.64 | 0.81 | 0.50 | 0.64 | 2.83 | 3.6 |
| 10 | 0.79 | 1.00 | 0.63 | 0.73 | 3.14 | 4.0 |
| 11 | 0.95 | 1.21 | 0.75 | 0.95 | 3.46 | 4.4 |
| 12 | 1.13 | 1.44 | 0.89 | 1.13 | 3.77 | 4.8 |
| 14 | 1.54 | 1.96 | 1.21 | 1.54 | 4.40 | 5.6 |
| 16 | 2.01 | 2.56 | 1.58 | 2.01 | 5.03 | 6.4 |
| 18 | 2.54 | 3.24 | 2.00 | 2.54 | 5.65 | 7.2 |
| 20 | 3.14 | 4.00 | 2.47 | 3.14 | 6.28 | 8.0 |
| 22 | 3.80 | 4.84 | 2.98 | 3.80 | 6.91 | 8.8 |
| 25 | 4.91 | 6.25 | 3.85 | 4.91 | 7.85 | 10.0 |
| 28 | 6.16 | 7.84 | 4.83 | 6.15 | 8.80 | 11.2 |
| 32 | 8.04 | 10.24 | 6.31 | 8.04 | 10.05 | 12.8 |
| 36 | 10.18 | 12.96 | 7.99 | 10.17 | 11.31 | 14.4 |
| 40 | 12.57 | 16.00 | 9.86 | 12.56 | 12.57 | 16.0 |
| 45 | 15.90 | 20.25 | 12.49 | 15.90 | 14.14 | 18.0 |
| 50 | 19.64 | 25.00 | 15.41 | 19.62 | 15.71 | 20.0 |
| 56 | 24.63 | 31.36 | 19.34 | 24.62 | 17.59 | 22.4 |
| 63 | 31.17 | 36.69 | 24.47 | 31.16 | 19.79 | 25.2 |
| 71 | 39.59 | 50.41 | 31.08 | 39.57 | 22.31 | 28.4 |
| 80 | 50.27 | 64.00 | 39.46 | 50.24 | 25.13 | 32.0 |
ASTM B164 Monel 400 Bar Stock
| Monel 400 Square Bars Bright | Monel 400 Grade Bright Bars Cold Drawn |
| ASTM B164 Alloy 400 Square Bars Annealed | Monel 400 UNS N04400 Bright Bars Flat |
| Monel 2.4360 Threaded Bars M16 | Monel 400 Threaded Rods |
| Alloy 400 Monel 2.4360 Rectangular Bars Cold Drawn | Werkstoff 2.4360 Monel Polished Square Bars |
| Monel 2.4360 Cold Rolled Round Bars | Monel ASTM B164 Polished Round Bars |
| 2.4360 Monel 400 Threaded Bars M12 | Monel 400 ASTM B164 Threaded Bars |
| Monel UNS N04400 Square Bars | UNS N04400 Monel 400 Polished Flat Bars |
| 2.4360 Monel 400 Rectangular Bars Bright | Monel Grade 400 Bright Bars Hollow |
| Monel Grade 400 Rectangular Bars Black | ASTM B164 Alloy 400 Bright Bars Hex |
Alloy 400 Hollw Bar Sizes
| Size in Mm | kg per meter | Size In MM | kg per meter |
| 20*20*2.0 | 1.12 | 25*25*2.0 | 1.43 |
| 25*25*1.5 | 1.06 | 20*20*2.5 | 1.35 |
| 25*25*2.5 | 1.74 | 30*30*2.5 | 2.14 |
| 30*30*2.0 | 1.68 | 25*25*3.0 | 2.04 |
| 30*30*3.0 | 2.51 | 40*40*1.5 | 1.81 |
| 40*40*2.0 | 2.31 | 50*50*1.5 | 2.28 |
| 40*40*3.0 | 3.45 | 40*40*4.0 | 4.46 |
| 40*40*5.0 | 5.40 | 40*40*2.5 | 2.92 |
| 50*50*2.0 | 2.93 | 50*50*2.5 | 3.71 |
| 50*50*3.0 | 4.39 | 60*60*3.0 | 5.34 |
| 50*50*5.0 | 6.97 | 50*50*4.0 | 5.72 |
| 60*60*4.0 | 6.97 | 60*60*5.0 | 8.54 |
| 60*60*6.0 | 9.45 | 80*80*3.0 | 7.22 |
| 70*70*3.6 | 7.46 | 70*70*5.0 | 10.11 |
| 70*70*6.3 | 12.50 | 90*90*5.0 | 13.30 |
| 75*75*3.0 | 7.07 | 80*80*5.0 | 11.70 |
| 80*80*3.6 | 8.59 | 70*70*3.0 | 6.28 |
| 80*80*6.0 | 13.90 | 90*90*3.0 | 8.01 |
| 90*90*3.6 | 9.72 | 70*70*8 | 15.30 |
| 90*90*6.0 | 15.76 | 100*100*4.0 | 12.00 |
| 100*100*3.0 | 8.96 | 90*90*8.0 | 20.40 |
| 100*100*5.0 | 14.80 | 120*120*6.3 | 22.30 |
| 100*100*6.0 | 16.19 | 120*120*10 | 34.20 |
| 100*100*10 | 27.90 | 120*120*5 | 18.00 |
| 120*120*6.0 | 21.30 | 100*100*5.0 | 14.80 |
| 120*120*8.0 | 27.90 | 100*100*8.0 | 22.90 |
| 120*120*12 | 35.8 | 120*120*12.5 | 41.60 |
| 140*140*5.0 | 21.10 | 140*140*6.3 | 26.30 |
| 140*140*8 | 32.90 | 140*140*10 | 40.40 |
| 140*140*12.5 | 49.50 | 150*150*5.0 | 22.70 |
| 150*150*6.3 | 28.30 | 150*150*8.0 | 35.40 |
| 150*150*10 | 43.60 | 180*180*10 | 53.00 |
| 150*150*16 | 66.40 | 180*180*6.3 | 34.20 |
| 180*180*5 | 27.40 | 150*150*16 | 66.40 |
| 180*180*8 | 43.00 | 150*150*12.5 | 53.40 |
| 180*180*12.5 | 65.20 | 200*200*6 | 35.8 |
| 200*200*5 | 30.50 | 180*180*16 | 81.40 |
| 200*200*6.3 | 38.2 | 250*250*8 | 60.50 |
| 200*200*10 | 59.30 | 250*250*12.5 | 92.60 |
| 200*200*16 | 91.50 | 250*250*6.3 | 48.10 |
| 200*200*8 | 48.00 | 250*250*10 | 75.00 |
| 200*200*12.5 | 73.00 | 250*250*16 | 117.00 |
| 300*300*6.3 | 57.90 | 400*400*16 | 192 |
| 300*300*10 | 57.90 | 350*350*12.5 | 132.00 |
| 300*300*12.5 | 112.00 | 300*300*16 | 142.00 |
| 350*350*8 | 85.70 | 350*350*10 | 106.00 |
| 300*300*8 | 90.70 | 350*350*16 | 167.00 |
| 400*400*10 | 122.00 | 400*400*12 | 141.00 |
| 400*400*12.5 | 152.00 | 300*300*8 | 73.10 |
Monel 400 Bar Hs Code
| HS Code | Description |
|---|---|
| 75051220 | MONEL 400 ROUND BARS (GOODS FOR RE-EXPORT, NO EX BONDING ALLOWED) |
| 75051220 | NICKEL COPPER ROUND BARS (MONEL 400) DIA. 14.28 x 3000MM H12 |
| 75052200 | NICKEL ALLOY ROUND BARS GRADE MONEL 400 UNS N04400 |
| 75052200 | NICKEL ALLOY ROUND BARS GRADE MONEL 400 UNS N04400 |
| 75051220 | MONEL 400 ROUND BARS (GOODS FOR RE-EXPORT, NO EX BONDING ALLOWED) |
| 75051220 | NICKEL ALLOY ROUND BARS GRADE MONEL 400, UNS N04400 |
| 75051220 | NICKEL ALLOY ROUND BARS GRADE MONEL 400, UNS N04400 |
| 75051220 | NICKEL ALLOY ROUND BARS GRADE MONEL 400, UNS N04400 |
| 75051220 | NICKEL COPPER ROUND BARS GRADE NICLAL 400 (MONEL 400) DIA.12.2X3500MM (AS PER INVOICE & P/LIST) |
| 75051220 | ROUND BAR NICLAL 400 DIAM 12.2X3500MM H12 (MONEL 400 ASTM B-164) |
| 75051220 | NICKEL COPPER ROUND BARS GRADE NICLAL 400 (MONEL 400) DIA :12.2X3500 MM (AS PER INVOICE & P/LIST) |
Alloy 400 Round Bar Sizes
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter) | Round Bar Size | Diameter (millimeter2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
