Monel 400 Pipe Fittings


Monel 400 Pipe Fittings

What Is Monel 400 Pipe Fittings?

Monel 400 pipe fittings are nickel-copper alloys that are hardened by the cold working procedure. Monel fittings are high-strength components exhibiting superior toughness and resistances across different systems. These fittings are highly tolerant to corrosive media and high-temperature systems. The fittings across this grade offer enhanced weldability and can withstand a range of stress-corrosion cracking in water. The pipe fittings play an important role in influencing the characteristics of the flow. These fittings show high resistance to hydrochloric and hydrofluoric acids.

UNS N04400 Elbow Vs Werkstoff Nr. 2.4360 End Cap

Elbows and end caps are versatile components, which play a critical role in protecting piping modules and influencing the characteristics of the flow. A UNS N04400 elbow is employed to change the direction of the flow of fluids and gases across different piping systems. Werkstoff Nr. 2.4360 end cap is designed to seal hydraulic ends in piping modules. These fittings help in effectively protecting piping modules against corrosion and damage during transportation and storage.

Alloy 400 Buttweld Fittings Oil And Gas Application

Alloy 400 buttweld fittings are robust components possessing high strength coupled with excellent resistance against corrosion and oxidation. The fittings in this range are suitable for oil and gas applications as they can withstand high pressures and elevated temperatures. These fittings exhibit high tolerance to hydrochloric and hydrofluoric acids while being resistant to pitting and crevice corrosion. They are widely seen in oil and gas extraction, drilling, storage, refining, pipelines, pumps, cooling tanks, etc.

Difference Between Alloy 400 Tee And Monel 400 Fittings

Pipe fittings are piping equipment that helps in shaping the characteristics of the flow while facilitating their protection across different systems. Monel 400 fittings are high-strength fittings, which can effectively change the direction of the flow, join pipes of different sizes, reduce the flow or divert the flow. Alloy 400 tee is part of the Monel 400 fittings. These components are made up of three branched ports, which help in supplying fluids and gases across three different channels. The fittings can either be equal or reduced.

ASTM B366 Alloy 400 Elbow and Monel Fittings Manufacturer in India

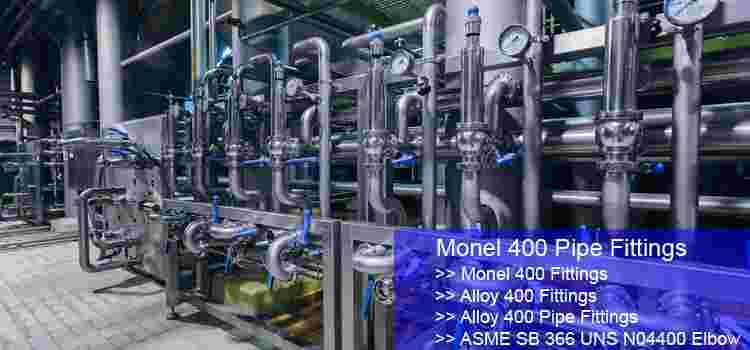

Monel 400 Fittings Manufacturers in India

ASTM B366 UNS N04400 Monel Fittings Specification

ThicknessSCH20, SCH10, SCH30, SCH60,STD SCH40, XS, SCH 100, SCH 80, SCH 120, SCH 160, SCH 140, XXS available with NACE MR 01-75
SpecificationsAstm B366
sizeSeamless Butt Weld Fittings: 1/2 Inch - 10 Inch
Welded Butt Weld Fittings: 1/2 Inch - 48 Inch
DimensionsASME B16.28, ANSI/ASME B16.9, MSS-SP-43, BS4504, BS4504, BS10, BS1560
TypeDN15 to DN1200
Bending RadiusR=2D, 1D, 3D, 6D, 5D, 10D 8D, or Custom MSS Sp-43 Monel 400 Pipe Fitting
Size Range½" NB to 24" NB in Sch 40s, 10s, 80s, XXS, 160s. (DN6~DN100)
Elbows Standard: ASME B16.28, ASME B16.9, DIN2605 MSS SP-75 ASME B16.25, JISB2312 JISB2311 JISB2313, GB, BS, ISO
Angle : 30deg, 22.5 deg, 45 deg, 180 deg, 90 deg, 1.0D, 2.0D, 1.5D, 2.5D, 4D, 3D, 5D,7D-40D, 6D .
Manufacturing processCast, Forge, Press,Push, etc.
ConnectionWelding
Key markets and industries
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Nuclear power (mostly seamless).
  • acids & Petrochemicals .
Specialized manufacturer of45º Elbows, 90º Elbows, Tees, Reducers,Crosses, Pipe Cap, Pipe Bend, Stub End
Test CertificatesRaw Materials Certificate
EN 10204/3.1B
Third Party Inspection Report, etc100% Radiography Test Report
uses and Application
  • Schedule 10 fittings are an economical alternative for lower-pressure applications.
  • Fittings To Connect Tube & Pipes in Petroleum, Chemical, Power, Construction, Metallurgy, Gas, Shipbuilding etc
  • Schedule 40 fittings have a thicker wall for higher-pressure applications.
We provide Material Test Certificates (MTC) as per EN 10204 3.2, and EN 10204 3.1 Test Certificates certifying NACE MR0103, NACE MR0175

Looking for suppliers who offer prompt delivery in Asia? Manufacturer of Monel 400 Fittings in India, call us for big discount and ready sizes, check latest price of Alloy 400 Fittings in Mumbai

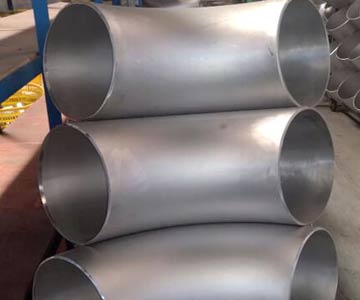

Monel 400 Long Radius Elbow

Monel 400 Long Radius Elbow

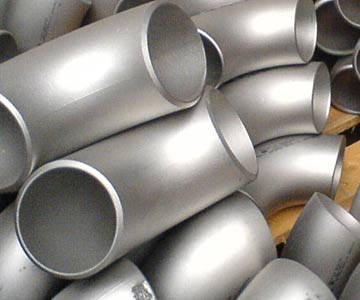

Alloy 400 Pipe Fittings

Alloy 400 Pipe Fittings

SCH40 ASME B16.9 BW ASTM B366 UNS N04400 Socket Weld Fittings and Monel 400 Fittings Manufacturer in India accordance with ANSI B16.28, MSS-SP-43 Type A, JIS B2312 standards

Standards of Monel 400 Fittings

UNS:N04400
Specifications:ASTM B366

Monel 400 Chemical Composition

GradeCMnSiSCuFeNi
Monel 4000.30 max2.00 max0.50 max0.024 max28.00 – 34.002.50 max63.00 min

Well-known Monel 400 Pipe Fittings Manufacturer in India. For final ASTM B366 UNS N04400 Price List Please Call on +91 22 6636 3099.

Monel 400 Mechanical Properties

ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Monel 4008.8 g/cm31350 °C (2460 °F)Psi – 80,000 , MPa – 550Psi – 35,000 , MPa – 24040 %

Manufacturer & Supplier Of Monel Tube Fittings, Monel Compression Tube Fittings In India

UNS N04400 Equivalent

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
Monel 4002.4360N04400NW 4400NA 13МНЖМц 28-2,5-1,5NU-30MNiCu30Fe

Monel Alloy 400 Properties

PropertyMetric Units
Melting Range1300-1350°C
Density8,800 kg/m³ @ 20°C
Coefficient of Thermal Expansion13.9 x 10 -6 / °C (20°C)
Curie Temperature20-50°C
Themal Conductivity21.8 W/m. °C @ 20°C
Thermal Capacity (Specific Heat)427 J/kg. °C @ 20°C
Electrical Conductivity32 % IACS
Electrical Resistivity0.547 microhm.m @ 20°C
Modulus of Elasticity (tension)179 GPa @ 20°C
Modulus of Rigidity (torsion)65.5 GPa @ 20°C
Poisson’s Ratio0.32

Exporter of Alloy 400 Fittings and DIN 2.4360 Pipe Cap and Check UNS N04400 Stub End and Equal/ Reducing Tee Sizes

Monel 400 Pipe Fittings Size

Outer Diameter And Inside DiameterEquivalentDiameter Of Pipe NominalTypical Threads In Inches
5/160.3131/1627
13/320.4051/827
35/64

0.540

1/418
43/640.6753/818
27/320.8401/214
1-3/641.0503/414
1-5/161.315111-1/2

1-21/32

1.6601-1/411-1/2
1-29/321.9001-1/211-1/2
2-3/82.375211-1/2
2-7/82.8752-1/28
3-1/23.50038
44.0003-1/28

ASTM B366 Monel 400 Density

PropertiesMetricImperial
Density8.8 gm/cm30.318 lb/in3

Monel 400 Buttweld Fittings Annealing Temperature

MONEL 400 alloy may be annealed at 926°C (1700°F).

Monel 400 Allowable Stress

Metal Temperature, °F-20~100200300400500600
Max. Allowable Stress, ksi16.714.613.613.213.113.1
Metal Temperature, °F650700750800850900
Max. Allowable Stress, ksi13.113.012.912.711.08.0

Check Hardness Of Monel Alloy 400 Long/ Short Radius Elbow and Monel K500 2D/ 3D/9D Tube Bends Supplier & Manufacturers In Mumbai, India.

Monel 400 Brinell Hardness

PropertiesMetricImperial
Brinell hardness125-215125-215
Rockwell B hardness70-9670-96

Alloy 400 Corrosion Resistance

Alloy 400 (UNS N04400) is a nickel-copper alloy with excellent resistance to a wide range of corrosive environments. It is resistant to chloride stress corrosion cracking and has high strength and toughness over a wide range of temperatures.

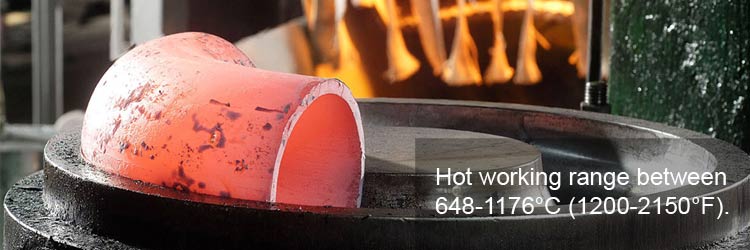

UNS N04400 Heat Treatment

UNS N04400 Heat Treatment

Get instant delivery Of Nickel 400 forged Fittings, Dimension Chart Of Alloy 400 Pipe Fittings, Nickel Alloy 400 Buttweld Fittings Manufacturer In Mumbai. India.

Monel 400 Melting Point

Monel alloy 400 has a specific gravity of 8.80, a melting range of 1300–1350 °C

Monel 400 Long Radius Elbow Modulus Of Elasticity

PropertiesMetricImperial
Modulus of elasticity179 GPa26000 ksi

ASTM B366 Monel 400 Thermal Expansion Coefficient

PropertyMetric Units
Coefficient of Thermal Expansion13.9 x 10 -6 / °C (20°C)

Alloy 400 Pipe Fittings Types

Monel 400 Pipe Fittings
Monel 400 Pipe Fittings
Monel Pipe Fittings
Monel Pipe Fittings
Monel Fittings
Monel Fittings
Monel 400 Fittings
Monel 400 Fittings
Monel 400 Buttweld Fittings
Monel 400 Buttweld Fittings
Monel Tube Fittings
Monel Tube Fittings
Monel 400 Tube Fittings
Monel 400 Tube Fittings
Monel 400 Forged Fittings
Monel 400 Forged Fittings
Alloy 400 Fittings
Alloy 400 Fittings
Alloy 400 Pipe Fittings
Alloy 400 Pipe Fittings
Alloy 400 Tube Fittings
Alloy 400 Tube Fittings
Monel Compression Tube Fittings
Monel Compression Tube Fittings
Monel 400 Elbow
Monel 400 Elbow
Monel 400 Tee
Monel 400 Tee
Nickel 400 forged Fittings
Nickel 400 forged Fittings
Monel 400 90° Long Radius Elbow
Monel 400 90° Long Radius Elbow
Monel DIN 2.4360 90° Short Radius Elbow
Monel DIN 2.4360 90° Short Radius Elbow
ANSI B16.9 Monel 400 45° Long Radius Elbow
ANSI B16.9 Monel 400 45° Long Radius Elbow
Alloy 400 45° Short Radius Elbow
Alloy 400 45° Short Radius Elbow
ASTM B366 400 Monel 180° Long Radius Elbow
ASTM B366 400 Monel 180° Long Radius Elbow
Monel UNS N04400 180° Short Radius Elbow
Monel UNS N04400 180° Short Radius Elbow
400 Monel Alloy 1D Elbow
400 Monel Alloy 1D Elbow
ASME SB366 Alloy 400 1.5D Elbow
ASME SB366 Alloy 400 1.5D Elbow
NU-30M 3D Elbow
NU-30M 3D Elbow
NW 4400 5D Elbow
NW 4400 5D Elbow
NA 13 10D Elbow
NA 13 10D Elbow
Nickel 400 Seamless Buttwelding 45° Elbow
Nickel 400 Seamless Buttwelding 45° Elbow
ASTM B366 UNS N04400 90° Elbows
ASTM B366 UNS N04400 90° Elbows
Monel 400 UNS N04400 Welded Elbows
Monel 400 UNS N04400 Welded Elbows
ASME SB 366 UNS N04400 Seamless Buttwelding 180° Returns
ASME SB 366 UNS N04400 Seamless Buttwelding 180° Returns
Monel Alloy 400 Straight Tees
Monel Alloy 400 Straight Tees
ASME B16.9 Monel 400 Straight Crosses
ASME B16.9 Monel 400 Straight Crosses
Monel 400 Reducing Outlet Tees
Monel 400 Reducing Outlet Tees
Monel DIN 2.4360 Reducing Outlet Crosses
Monel DIN 2.4360 Reducing Outlet Crosses
ANSI B16.9 Monel 400 Equal Tee
ANSI B16.9 Monel 400 Equal Tee
Alloy 400 Reducing Tee
Alloy 400 Reducing Tee
ASTM B366 400 Monel Equal Cross
ASTM B366 400 Monel Equal Cross
Monel UNS N04400 Reducing Cross
Monel UNS N04400 Reducing Cross
Monel 400 Reducer
Monel 400 Reducer
ASME SB366 Alloy 400 Concentric Reducer
ASME SB366 Alloy 400 Concentric Reducer
NU-30M Eccentric Reducer
NU-30M Eccentric Reducer
NW 4400 Stub End
NW 4400 Stub End
NA 13 Lap Joint Stub Ends
NA 13 Lap Joint Stub Ends
Nickel 400 Long Stubend
Nickel 400 Long Stubend
ASTM B366 UNS N04400 Short Stubend
ASTM B366 UNS N04400 Short Stubend
Monel 400 UNS N04400 Pipe Cap
Monel 400 UNS N04400 Pipe Cap
ASME SB 366 UNS N04400 End Cap
ASME SB 366 UNS N04400 End Cap
Monel Alloy 400 Collar
Monel Alloy 400 Collar
ASME B16.9 Monel 400 Swage Nipple
ASME B16.9 Monel 400 Swage Nipple
Monel 400 Pipe Nipples
Monel 400 Pipe Nipples
Monel DIN 2.4360 Barrel Nipple
Monel DIN 2.4360 Barrel Nipple
ANSI B16.9 Monel 400 Reducing Nipple
ANSI B16.9 Monel 400 Reducing Nipple
Alloy 400 Bend
Alloy 400 Bend
ASTM B366 400 Monel Long Radius Bend
ASTM B366 400 Monel Long Radius Bend

Monel 400 Welding Electrode

Monel Is Often Welded Via Gas Tungsten Arc, Gas Metal Arc, And Submerged Arc Welding.

Monel 400 Pipe Fittings Machinability

The Machinability Of Monel 400 Is Difficult As It Work-hardens During Machining. The Conventional Machining Techniques Used On Iron Alloys May Be Used For This Alloy.

Is Alloy 400 Magnetic

The Alloy Is Slightly Magnetic At Room Temperature. Monel 400 Is Widely Used In The Chemical, Oil And Marine Industries.

Buy UNS N04400 Elbow Directly From Largest Manufacturers In Mumbai, Check Dimension Chart Of Nickel Alloy 400 Buttweld Tee

ASME SB366 UNS N04400 Monel Tube Fittings Documentation

  • Fumigation Certificates
  • Guarantee Letter
  • Raw Material Test Reports
  • Fumigation Certificates
  • Heat Treatment Charts
  • Commercial Invoice which includes HS Code
  • QAP (Quality Assurance Plan)
  • NABL approved Laboratory Test Reports
Manufacturer of Monel Pipe Fittings in cut square or slightly chamfered ends. Check Weight Chart of Nickel Alloy 400 Buttweld Fittings

Monel 400 Socket weld Fittings Types

Monel 400 90° Elbow
Monel 400 90° Elbow
Alloy 400 45° Elbow
Alloy 400 45° Elbow
Monel UNS N04400 3d Long Radius Bend
Monel UNS N04400 3d Long Radius Bend
ASTM B564 UNS N04400 5d Long Radius Bend
ASTM B564 UNS N04400 5d Long Radius Bend
Monel 400 6d Long Radius Bend
Monel 400 6d Long Radius Bend
DIN 2.4360 Monel 8d Long Radius Bend
DIN 2.4360 Monel 8d Long Radius Bend
Nickel Alloy 400 10d Long Radius Bend
Nickel Alloy 400 10d Long Radius Bend
Monel 400 UNS N04400 12d Long Radius Bend
Monel 400 UNS N04400 12d Long Radius Bend
ASME SB 564 UNS N04400 Tee
ASME SB 564 UNS N04400 Tee
Monel Alloy 400 Cross
Monel Alloy 400 Cross
ASME B16.11 Monel 400 Full Coupling
ASME B16.11 Monel 400 Full Coupling
Monel 400 Half Coupling
Monel 400 Half Coupling
Alloy 400 Reducing Coupling
Alloy 400 Reducing Coupling
Monel UNS N04400 Pipe Cap
Monel UNS N04400 Pipe Cap
ASTM B564 UNS N04400 Hex Head Bushing
ASTM B564 UNS N04400 Hex Head Bushing
Monel 400 Hex Head Plug
Monel 400 Hex Head Plug
DIN 2.4360 Monel Square Head Plug
DIN 2.4360 Monel Square Head Plug
Nickel Alloy 400 Round Head Plug
Nickel Alloy 400 Round Head Plug
Monel 400 UNS N04400 Union
Monel 400 UNS N04400 Union
ASME SB 564 UNS N04400 Hex Nipple
ASME SB 564 UNS N04400 Hex Nipple
Monel Alloy 400 Street Elbow
Monel Alloy 400 Street Elbow
ASME B16.11 Monel 400 Bull Plug
ASME B16.11 Monel 400 Bull Plug
Monel 400 Boss
Monel 400 Boss
Alloy 400 Swage Nipple
Alloy 400 Swage Nipple
Monel UNS N04400 Pipe Nipple
Monel UNS N04400 Pipe Nipple
ASTM B564 UNS N04400 Adapter
ASTM B564 UNS N04400 Adapter
Monel 400 Male Union
Monel 400 Male Union
DIN 2.4360 Female Union
DIN 2.4360 Female Union
Nickel Alloy 400 Branch Outlet
Nickel Alloy 400 Branch Outlet
UNS N04400 90° Elbow Outlet
UNS N04400 90° Elbow Outlet
ASME SB 564 UNS N04400 45° Lateral Tee
ASME SB 564 UNS N04400 45° Lateral Tee
Monel Alloy 400 Lateral Outlet
Monel Alloy 400 Lateral Outlet
ASME B16.11 400 Nipple Branch Outlet
ASME B16.11 400 Nipple Branch Outlet
Monel 400 Socket weld Reducers
Monel 400 Socket weld Reducers
Alloy 400 Socket weld Concentric Reducer
Alloy 400 Socket weld Concentric Reducer
 UNS N04400 Socket Weld Eccentric Reducer
UNS N04400 Socket Weld Eccentric Reducer
ASTM B564 UNS N04400 Socket Weld Equal Tee
ASTM B564 UNS N04400 Socket Weld Equal Tee
Monel 400 Socket Weld Unequal Tee
Monel 400 Socket Weld Unequal Tee
DIN 2.4360 Socket Weld Adapters
DIN 2.4360 Socket Weld Adapters
Nickel Alloy 400 Socket Weld Pipe Nipples
Nickel Alloy 400 Socket Weld Pipe Nipples
UNS N04400 Outlets
UNS N04400 Outlets
ASME SB 564 UNS N04400 Weldolet
ASME SB 564 UNS N04400 Weldolet
Monel Alloy 400 Sockolet
Monel Alloy 400 Sockolet
ASME B16.11 Monel 400 Threadolet
ASME B16.11 Monel 400 Threadolet
Monel 400 Nipolet
Monel 400 Nipolet
Alloy 400 Latrolet
Alloy 400 Latrolet
Monel UNS N04400 Elbolet
Monel UNS N04400 Elbolet
ASTM B564 UNS N04400 Threaded Elbolet
ASTM B564 UNS N04400 Threaded Elbolet
Monel 400 Socket weld Elbolet
Monel 400 Socket weld Elbolet
DIN 2.4360 Monel Sweepolet
DIN 2.4360 Monel Sweepolet
Nickel Alloy 400 Insert Weldolet
Nickel Alloy 400 Insert Weldolet
Monel 400 UNS N04400 Brazolet
Monel 400 UNS N04400 Brazolet
ASME SB 564 UNS N04400 Coupolet
ASME SB 564 UNS N04400 Coupolet
Monel Alloy 400 Flexolet Butt Weld
Monel Alloy 400 Flexolet Butt Weld
ASME B16.11 Monel 400 Flexolet Socket Weld
ASME B16.11 Monel 400 Flexolet Socket Weld
Nickel 400 Flexolet Threaded
Nickel 400 Flexolet Threaded

PED Certified Monel Fittings Manufacturers in India, Weight Of 2.4360 Eccentric/ Concentric Reducer In MM.

Test Certificate of Monel 400 Pipe Fittings

  • 100% Radiography Test Report
  • Raw Materials Certificate
  • Third Party Inspection Repor
  • EN 10204/3.1B,

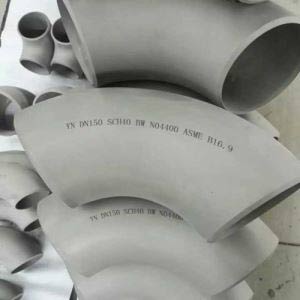

Alloy 400 Tube Fittings Marking

  • Size = (2")
  • Name of Manufacturer = (SP Metals)
  • Fittings Type = (Elbow)
  • Material Designation = (ASTM B366 Uns N04400)
  • Schedule = (SCH 40)
  • Standard = (ASME B16.9)
304 Stainless Steel Pipe Fittings Marking Formula

Monel 400 Forged Fittings Services

  • Chemical Analysis – Spectro Analysis
  • Intergranular Corrosion (IGC) Test
  • Hardness Test
  • Chemical Equipment
  • Pitting Resistance Test
  • Positive Material Identification – PMI Testing
  • Micro and MacroTest
  • Flattening Test
  • Mechanical Testing Such as Tensile of Area
2 Inch Monel Compression Tube Fittings, Alloy 400 Eccentric / Concentric Reducer at factory Price for Piping industry and Petrochemical Plants according to ASME B16.9, BS1640, DIN 2605 type 5, ISO 3419 standards

Alloy 400 Fittings Price

DescriptionPer Unit (INR)
ALLOY FITTING FITTING TYPE LAPJOINT STUB END SIZE DIA 4X LG 3 X THK 0.237 IN MATERIAL MONEL 400 ASTM B 366 WP24,089
SWAGE NIPPLE SCH XSS IN ASTM MONEL B1652 X 1 MONEL K 400 (METAL FITTINGS)13,157
FITTING TYPE LAP JOINT STUB END SIZE DIA3 X LG2-1/2XTHK 0.12 IN MATERIAL MONEL400 ASTM B366 WPNC OR WPNCW STANDARD ANS6,125
PIPE FITTINGS & FLANGES:NIPPLE PIPE TYPESEAMLESS SIZE 1/2 INCH LENGTH 6 INCH CONNECTION TBE MATERIAL MONEL 400 ASTM B162,173
NICKEL - ALLOY STEEL FITTINGS END TYPE STUB LAP JOINT SZ DIA 16IN MATERIAL MONEL400 ASTM B366 GR WPNC OR WPNC-W STANDAR60,999
NICKEL - ALLOY STEEL FITTINGS TEE PIPE REDUCER SIZE 16 X 16 X 6 IN CONNECTION BWMATERIAL MONEL 400 ASTM B366 RATING SCH220,666
FITTINGS : MONEL 400 EQUAL TEE 1/2 NPT(F) X (F) 3000# -8NTTT.2,045
FITTINGS : MONEL 400 PLUG 1/2 NPT (M)-8N PLUG335
FITTINGS : MONEL-400 REDUCING BRANCH TEE1 NB SW 16STTB8S X 1/2 NBSW-3000#4,323
FITTINGS : MONEL-400 ELBOW-1/2 NBSW-3000#8SWELU1,646

Monel Fittings Hs Code

Hs Code Description
75072000Tube or Pipe Fittings

A Global supplier

Our favourite export locations where we can give support and best price

Monel 400 Pipe Fittings Manufacturer In India

Monel 400 Pipe Fittings Manufacturer In India

ASTM B366 UNS N04400 Monel Fittings

ASTM B366 UNS N04400 Monel Fittings

Spain, Mexico, Ellington -United States, Kuala Lumpur, Brazil, Denmark USA, United Arab Emirates (UAE), Peru, Poland, United States, Austria, Los Alamos -Mexico, Malaysia, Singapore, Norway, Taiwan, Sweden, Malaysia, China, Hong Kong, Greece, Bahrain, Qatar, South Africa, Europe, Malaysia, Colombia, Philippines, France, Tehran -Iran, Iran, Morocco, United Kingdom (UK), Finland

Alloy 400 Fittings

Alloy 400 Fittings


Russia, NY 12203 (USA), Indonesia, Thailand, Canada, Czechia, Germany, Turkey, Jakarta -Indonesia, South Africa, Japan, Kuwait, Nigeria, Netherlands, Istanbul- Turkey, South Korea, Argentina, Australia, Jordan, Oman, Dubai, Romania, Bangladesh, Italy, Dubai- UAE, Singapore, Portugal, Dammam -KSA, Belgium, Chile, Vietnam, New Zealand, Egypt, Saudi Arabia (KSA), Jakarta
