Incoloy 825 Pipe Fittings And ASTM B366 UNS N08825 Elbow/ Reducer/ Tee

What is Incoloy 825 Pipe Fittings?

Incoloy 825 pipe fittings are manufactured with a superior concentration of nickel, chromium, and iron alloys. The addition of molybdenum, titanium, and copper within these fittings gives the modules enhanced corrosion resistance in oxidizing and reducing environments. The fittings within this grade show superior tolerance to localized attacks induced by pitting of acids and crevice corrosion. The 825 Incoloy fittings securely connect and influence the characteristics of fluids and gases across different systems.

Alloy 825 Fittings Characteristics

Some features of Alloy 825 Fittings include:

Excellent resistance against corrosion stress cracking
Superior resistance in both reducing and oxidizing acids
Moderate tolerance against localized pitting and crevice corrosion attacks
Outstanding strength and mechanical properties
Superb tolerance to high temperatures up to 800 degrees F
Highly resistant to attacks from sulphuric and phosphoric acids

ASTM B366 UNS N08825 Elbow vs DIN 2.4858 Tee

Elbows and tees are versatile components, which are widely utilized within this grade. These fittings can be differentiated based on certain key features.

ASTM B366 UNS N08825 elbow is a pipe fitting that is employed to effectively change the direction of fluids or gases within the system. DIN 2.4858 tee is characterized by a three-branched port that supplies the flow across three different channels.
Elbows ensure an optimum and consistent flow of fluids and gases in the system. The characteristics of flow in tees is irregular and not consistent.
Elbows are preferred in bends over tees.

Incoloy 825 Concentric Reducer Uses

Incoloy 825 concentric reducers are employed in applications to join piping equipment of dissimilar sizes in the system. The cone-shaped module is utilized when there is cavitation or shift in diameters of different pipes. Due to these unique features, they are widely used in chemical processing, oil and gas piping equipment, nuclear fuel processing, components in pickling systems, etc.

Difference Between ASTM B366 Incoloy 825 Fittings and Alloy 825 Tubing Fittings

Fittings are important components in piping modules, which help in shaping the characteristics of flow in fluids and gases. ASTM B366 Incoloy 825 Fittings are robust components that help in changing the direction of flow, joining dissimilar pipes, tubes, valves, etc., or diverting the flow in the system. Alloy 825 tubing fittings are part of the Incoloy 825 fittings that focus solely on tubes. These fittings are employed based on their outside diameters and play a pivotal role in influencing the characteristics of the flow in tubing modules.

ASTM B366 UNS N08825 Elbow and Incoloy 825 Fittings Manufacturer in India

Table of Content

Incoloy 825 Fittings Price List
Incoloy 825 Pipe Fittings Specification
Alloy 825 Equivalent Material
UNS N08825 Chemical Composition
Physcal Properties of Alloy 825 Fittings
Incoloy 825 Mechanical Properties
Dimension Chart of Inconel 825 End Cap
Alloy 825 Pipe Fittings Types
Alloy 825 Tubing Fittings Test Certificate
Value Added Services of Incoloy 825 Threaded Forged Fittings

Incoloy 825 Pipe Fittings Stock
Documentation of ASME SB 366 UNS N08825 Long Radius Elbows
Incoloy 825 Long Radius Elbow Marking
Incoloy 825 Coefficient Of Thermal Expansion
Incoloy 825 Corrosion Resistance
Inconel 825 Density Kg/m3
Alloy 825 Hardness
UNS N08825 Heat Treatment
Incoloy 825 Temperature Range

Incoloy 825 Elbow

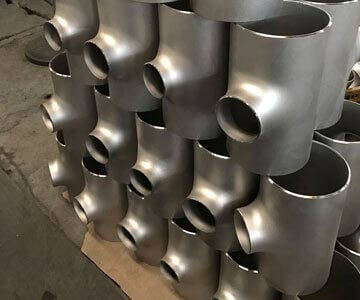

Incoloy 825 Tee

Incoloy 825 Reducer

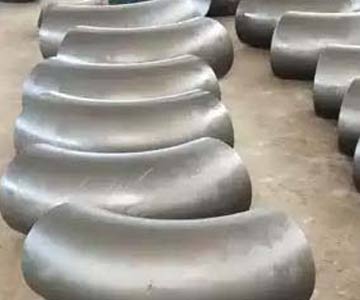

Incoloy 825 Long Radius Elbow

Why pay extra? Buying from DIN 2.4858 Eccentric / Concentric Reducer manufacturers saves your cost, wide selection of 825 Incoloy Stub End and Alloy 825 Tee in India

Incoloy 825 Fittings Price List

Description	Per Unit (INR)
NICKEL FITTINGS TEE BW EGUAL 4 IN - 10 SSP: 3,05---INCOLOY 825 ANSI B 16.9	6,559
Nickel Fittings- CAP, PIPE: SIZE 2-1/2 IN, CONNECTION BW, MATERIAL INCOLOY 825;ASTM B366 , RATING SCH 40S, STANDARD ANS	980
NICKEL ALLOYS FITTINGS Concentric reducer 4 x 1-1/2 S40 Incoloy 825	6,494
INSTRUMENTATION TUBE FITTINGS : MATERIAL: INCOLOY 825 UNS N08825 :- MALE CONNECTOR 1/2 OD X 3/8 NPT (M)	7,495
INSTRUMENTATION TUBE FITTINGS : MATERIAL: INCOLOY 825 UNS N08825 :- UNION 1/2OD X 3/8 OD	10,492
INSTRUMENTATION TUBE FITTINGS : MATERIAL: INCOLOY 825 UNS N08825 :- MALE CONNECTOR 3/8 OD X 3/8 NPT (M)	7,495

Well-known Incoloy 825 Fittings Manufacturers in India. For final ASTM B366 UNS N08825 Buttweld Elbow Price List Please Call on +91 22 6636 3099.

Incoloy 825 Pipe Fittings Specification

We provide Material Test Certificates (MTC) as per EN 10204 3.2, and EN 10204 3.1 Test Certificates certifying NACE MR0103, NACE MR0175
Thickness	SCH20, SCH10, SCH30, SCH60,STD SCH40, XS, SCH 100, SCH 80, SCH 120, SCH 160, SCH 140, XXS available with NACE MR 01-75
Specifications	ASTM B366/ ASME SB366
size	Seamless Butt Weld Fittings: 1/2 Inch - 10 Inch Welded Butt Weld Fittings: 1/2 Inch - 48 Inch
Dimensions	ASME B16.28, ANSI/ASME B16.9, MSS-SP-43, BS4504, BS4504, BS10, BS1560
Type	DN15 to DN1200
Bending Radius	R=2D, 1D, 3D, 6D, 5D, 10D 8D, or Custom MSS Sp-43
Size Range	½" NB to 24" NB in Sch 40s, 10s, 80s, XXS, 160s. (DN6~DN100)
Elbows	Standard: ASME B16.28, ASME B16.9, DIN2605 MSS SP-75 ASME B16.25, JISB2312 JISB2311 JISB2313, GB, BS, ISO Angle : 30deg, 22.5 deg, 45 deg, 180 deg, 90 deg, 1.0D, 2.0D, 1.5D, 2.5D, 4D, 3D, 5D,7D-40D, 6D .
Manufacturing process	Cast, Forge, Press,Push, etc.
Connection	Welding
Key markets and industries	Heavy oil refineries. Bitumen upgraders. Nuclear power (mostly seamless). acids & Petrochemicals .
Specialized manufacturer of	45º Elbows, 90º Elbows, Tees, Reducers,Crosses, Pipe Cap, Pipe Bend, Stub End
Test Certificates	Raw Materials Certificate EN 10204/3.1B Third Party Inspection Report, etc100% Radiography Test Report
uses and Application	Schedule 10 fittings are an economical alternative for lower-pressure applications. Fittings To Connect Tube & Pipes in Petroleum, Chemical, Power, Construction, Metallurgy, Gas, Shipbuilding etc Schedule 40 fittings have a thicker wall for higher-pressure applications.

Looking for Alloy 825 Fittings suppliers who offer prompt delivery in Asia? Manufacturer of Alloy 825 Pipe Fittings in India, call us for big discount and ready sizes, check latest price of Alloy 825 Tubing Fittings in Mumbai

Alloy 825 Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	EN	OR	AFNOR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NiCr21Mo	XH38BT	NFE30C20DUM

UNS N08825 Chemical Composition

	C	Ti	Mn	Fe	S	Si	Cr	Ni	Cu	Mo	Al
MIN	–	0.600	–	22.000	–	–	19.500	38.000	1.500	2.500	–
MAX	0.050	1.200	1.000	–	0.030	0.500	23.500	46.000	3.000	3.500	0.200

Physcal Properties of Alloy 825 Fittings

Density	Melting Range		Specific Heat		Electrical Resistivity
g/cm3	°C	°F	J/kg.k	Btu/lb. °F	µΩ·m
8.14	1370-1400	2500-2550	440	0.105	1130

Incoloy 825 Mechanical Properties

	Yield Strength 0.2% Proof (MPa)	Tensile strength (MPa)	Elongation (% in 50mm)	Hardness (HBW)
MIN	241	586	30.00
MAX				237

Manufacturer & Supplier Of Incoloy 825 Fittings, Alloy 825 Elbow In India

Alloy 825 Elbow and Inconel 825 Buttweld, Socket Weld Fittings supplier in India offers Final visual inspection reports with each order. view Inconel 825 Threaded Fittings dimension

Dimension Chart of Inconel 825 End Cap

NPS	O.D. D	LENGTH H	LENGTH H1
1/2	21.3	25	25
3/4	26.7	25	25
1	33.4	38	38
1.1/4	42.2	38	38
1.1/2	48.3	38	38
2	60.3	38	44
2.1/2	73	38	51
3	88.9	51	64
3.1/2	101.6	64	76
4	114.3	64	76
5	141.3	76	89
6	168.3	89	102
8	219.1	102	127
10	273	127	152
12	323.8	152	178
14	355.6	165	191
16	406.4	178	203

NPS	O.D. D	LENGTH H	LENGTH H1
18	457	203	229
20	508	229	254
22	559	254	254
24	610	267	305
26	660	267
28	711	267
30	762	267
32	813	267
34	864	237
36	914	267
38	965	305
40	1016	305
42	1067	305
44	1118	343
46	1168	343
48	1219	343

Dimensional Tolerances of End Caps ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 - 0.8	1.6	1.6	+ 2.4 - 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	3	3	3	6
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 - 3.2	+ 6.4 - 4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Overall Length (H)	6	6	10	10
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Alloy 825 Pipe Fittings Types

Inconel 825 Fittings

Alloy 825 Fittings

Incoloy 825 Tube Fittings

Incoloy 825 Pipe Fittings

Alloy 825 Pipe Fittings

Incoloy 825 Buttweld Fittings

Incoloy 825 Fittings

ASTM B366 UNS N08825 90° Long Radius Elbow

Incoloy 825 90° Short Radius Elbow

Alloy 825 45° Long Radius Elbow

ASTM B366 Wpnicmc 45° Short Radius Elbow

Werkstoff Nr. 2.4858 180° Long Radius Elbow

Inconel 825 180° Short Radius Elbow

ASME B366 Incoloy N08825 1D Elbow

GOST Эп703 1.5D Elbow

JIS NCF 825 3D Elbow

EN Nicr21mo 5D Elbow

Nickel 825 10D Elbow

UNS N08825 Seamless Buttwelding 45° Elbow

BS NA 16 90° Elbows

Afnor Nfe30c20dum Welded Elbows

Xh38bt Incoloy Seamless Buttwelding 180° Returns

825 Incoloy Straight Tees

ASME SB366 UNS N08825 Straight Crosses

Nickel Alloy 825 Reducing Outlet Tees

DIN 2.4858 Reducing Outlet Crosses

825 Alloy Equal Tee

825 Nickel Alloy Reducing Tee

ASTM B366 UNS N08825 Equal Cross

Incoloy 825 Reducing Cross

Alloy 825 Reducers

ASTM B366 Wpnicmc Concentric Reducer

Werkstoff Nr. 2.4858 Eccentric Reducer

Inconel 825 Stub End

ASME B366 Incoloy N08825 Lap Joint Stub Ends

GOST Эп703 Long Stubend

JIS NCF 825 Short Stubend

EN Nicr21mo Pipe Cap

Nickel 825 End Cap

UNS N08825 Collar

BS NA 16 Swage Nipple

Afnor Nfe30c20dum Pipe Nipples

Xh38bt Incoloy Barrel Nipple

825 Incoloy Reducing Nipple

ASME SB366 UNS N08825 Bend

Nickel Alloy 825 Long Radius Bend

DIN 2.4858 Short Radius fittings

825 Alloy Long Radius fittings

825 Nickel Alloy 3R Elbows

Various Types of Incoloy 825 Socket Weld Fittings

Incoloy 825 Hex Head Plug

Alloy 825 Square Head Plug

Incoloy UNS N08825 Round Head Plug

ASTM B366 UNS N08825 Union

Inconel 825 Hex Nipple

DIN 2.4858 Incoloy Street Elbow

Nickel Alloy 825 Bull Plug

Incoloy 825 UNS N08825 Boss

ASME SB 366 UNS N08825 Swage Nipple

Nickel Alloy 825 10D LONG RADIUS BEND

Incoloy 825 UNS N08825 12D LONG RADIUS BEND

ASME SB 366 UNS N08825 Tee

Incoloy Alloy 825 Cross

ASME B16.9 Incoloy 825 Full Coupling

Alloy WERKSTOFF NR. 2.4858 Half Coupling

NCF 825 Reducing Coupling

NA 16 Pipe Cap

EN NiCr21Mo Hex Head Bushing

Incoloy Alloy 825 Pipe Nipple

ASME B16.9 Incoloy 825 Adapter

Alloy WERKSTOFF NR. 2.4858 Male Union

NCF 825 Female Union

NA 16 Branch Outlet

Incoloy EN NiCr21Mo 90° Elbow Outlet

Incoloy 825 90° Elbow

Alloy 825 45° Elbow

Incoloy UNS N08825 3D LONG RADIUS BEND

ASTM B366 UNS N08825 5D LONG RADIUS BEND

Inconel 825 6D LONG RADIUS BEND

DIN 2.4858 Incoloy 8D LONG RADIUS BEND

Incoloy 825 45° Lateral Tee

Alloy 825 Lateral Outlet

Incoloy UNS N08825 Nipple Branch Outlet

ASTM B366 UNS N08825 Socket weld Reducers

Inconel 825 Socket weld Concentric Reducer

DIN 2.4858 Incoloy Socket Weld Eccentric Reducer

Nickel Alloy 825 Socket Weld Equal Tee

Incoloy 825 UNS N08825 Socket Weld Unequal Tee

ASME SB 366 UNS N08825 Socket Weld Adapters

ASTM B366 UNS N08825 Socket weld Elbolet

Inconel 825 Sweepolet

DIN 2.4858 Incoloy Insert Weldolet

Nickel Alloy 825 Brazolet

Incoloy 825 UNS N08825 Coupolet

ASME SB 366 UNS N08825 Flexolet Butt Weld

Incoloy Alloy 825 Socket Weld Pipe Nipples

ASME B16.9 Incoloy 825 Outlets

Alloy WERKSTOFF NR. 2.4858 Weldolet

NCF 825 Sockolet

NA 16 Threadolet

EN NiCr21Mo Nipolet

Incoloy 825 Latrolet

Alloy 825 Elbolet

Incoloy UNS N08825 Threaded Elbolet

Incoloy Alloy 825 Flexolet Socket Weld

ASME B16.9 Incoloy 825 Flexolet Threaded

Buy ASME SB 366 UNS N08825 End Cap Directly From Largest Manufacturers In Mumbai, Check Length and Weight Chart Of Nickel Alloy 825 Pipe Tee

Manufacturer of Alloy 825 Fittings and ASME SB 366 UNS N08825 Long/ Short Radius Elbow offers P.T testing

Alloy 825 Tubing Fittings Test Certificate

100% Radiography Test Report
Raw Materials Certificate
Third Party Inspection Repor
EN 10204/3.1B,

Value Added Services of Incoloy 825 Threaded Forged Fittings

Chemical Analysis – Spectro Analysis
Intergranular Corrosion (IGC) Test
Hardness Test
Chemical Equipment
Pitting Resistance Test

Positive Material Identification – PMI Testing
Micro and MacroTest
Flattening Test
Mechanical Testing Such as Tensile of Area

Incoloy 825 Pipe Fittings Stock

ASTM B366 825 Incoloy Fittings	Incoloy 825 Pipe Fittings
WNR 2.4858 90 Degree Elbow	Incoloy 825 End Cap
825 Incoloy 45 Degree Elbow	ASME SB366 Incoloy 825 Buttweld Fittings
Incoloy WNR 2.4858 3D Elbow	Incoloy UNS N08825 End Cap
ASME SB366 Incoloy 825 5D Elbow	Incoloy 825 Reducer
825 Incoloy Equal Cross	Incoloy 825 Pipe Cap
ASTM B366 825 Incoloy Lateral Tee	Incoloy 825 Cross Tee
Incoloy UNS N08825 1D Elbow	ASTM B366 Incoloy 825 Short Stub End
ASME SB366 Incoloy 825 Stub End	ASTM B366 825 Incoloy Pipe Cap
ASTM B366 825 Incoloy Buttweld Fittings	Alloy 825 Pipe Bend
825 Incoloy Pipe Fittings	Incoloy UNS N08825 Long Stub End
ASME SB366 Incoloy 825 Eccentric Reducer	Incoloy 825 Long Radius Elbow
Incoloy 825 Equal Tee	Incoloy UNS N08825 Stub End
Incoloy WNR 2.4858 Concentric Reducer	825 Incoloy 5D Elbow
ASTM B366 Incoloy 825 Concentric Reducer	Incoloy WNR 2.4858 Short Radius Elbow
ASTM B366 Incoloy 825 Reducing Cross	ASME SB366 Incoloy 825 Equal Cross

Documentation of ASME SB 366 UNS N08825 Long Radius Elbows

Fumigation Certificates
Guarantee Letter
Raw Material Test Reports
Fumigation Certificates

Heat Treatment Charts
Commercial Invoice which includes HS Code
QAP (Quality Assurance Plan)
NABL approved Laboratory Test Reports

Incoloy 825 Long Radius Elbow Marking

Size = (2")
Name of Manufacturer = (SP Metals)
Fittings Type = (90 Deg Elbow)
Material Designation = (Alloy 825)
Schedule = (SCH 80S)
Standard = (ASME B16.9)

Get instant delivery Of Alloy 825 Socketweld Branch Outlets , Thermal Expansion Of UNS N08825 Pipe Bends, Inconel 825 Eccentric Reducer Manufacturer In Mumbai. India.

Incoloy 825 Coefficient Of Thermal Expansion

Physical Properties	°F	British Units	°C	Metric Units
Mean Coefficient of Thermal Expansion	80-200 80-400 80-600 80-800	7.9 microin./in.-°F 8.3 microin./in.-°F 8.5 microin./in.-°F 8.7 microin./in.-°F	27-93 27-204 27-316 27-427	14.0 X 10(-6)m/m-K 14.9 X 10(-6)m/m-K 15.3 X 10(-6)m/m-K 15.7 X 10(-6)m/m-K
Thermal Conductivity	Room 200 400 600 800	77 Btu-in/ft²-hr-°F 85 Btu-in/ft²-hr-°F 98 Btu-in/ft²-hr-°F 110 Btu-in/ft²-hr-°F 120 Btu-in/ft²-hr-°F	Room 93 204 316 427	11.1 W/m-K 12.3 W/m-K 14.1 W/m-K 15.9 W/m-K 17.3 W/m-K

Incoloy 825 Corrosion Resistance

Incoloy 825 is its corrosion resistance. In reducing & oxidising conditions, Incoloy 825 resists general corrosion, pitting & crevice corrosion, intergranular corrosion and stress corrosion cracking. It is particularly useful in sulphuric & phosphoric acids, sulphur containing flue gases, sour gas and oil wells and sea water.

Inconel 825 Density Kg/m3

Physical Properties	°F	British Units	°C	Metric Units
Density	Room	0.294 lb./in.(3)	Room	8.14 g/cm(3)

Sch40 Dn50 Incoloy 825 Pipe Bend Hardness and Nickel Alloy 825 Equal/ Unequal Tee at Competitive Price for Petrochemical and Gas industry

Alloy 825 Hardness

Alloy state	Tensile strength Rm N/mm²	Brinell hardness HB
825	550	≤200

UNS N08825 Heat Treatment

Incoloy 825 Temperature Range

The hot-working range for INCOLOY alloy 825 is 1600 to 2150°F (870 to 1180°C). For optimum corrosion resistance, final hot working should be done at temperatures between 1600 and 1800°F (870 and 980°C).

Incoloy 825 Pipe Fittings
