Incoloy 825 Flanges


ASTM B564 UNS N08825 WNRF Flange and Alloy 825 SORF Flange manufacturer in India

The Incoloy 825 is a high-strength nickel, iron, and chromium alloy with small additions of copper, molybdenum, and titanium. The Incoloy 825 Flanges are employed to connect piping fixtures of different sizes. These flanges have enhanced corrosion resistance properties and have good resistance to stress cracking induced by chlorides. They are stabilized with titanium that helps in resisting pitting and intergranular corrosion. The Alloy 825 Blind Flange doesn’t possess a boring center or a hub. These flanges play a pivotal role in terminating the flow of fluids and gases in the system. They are generally bolted in place, allowing room for maintenance and cleaning. Alloy 825 SORF Flange is a versatile flange that is slid on the fixture and welded using one or more fillet welds. These flanges are not preferred in applications where the stress on the grade is high. The ASTM B564 UNS N08825 WNRF Flange has a tapered hub or face type. These flanges have a raised face type allowing them securely seal the fixture across high-pressure and temperature systems. The versatile ASTM B564 UNS N08825 Socket Weld Flange is seen in small pipes of high pressure. These flanges have a socket wherein the pipe is attached in a recessed area and welded in place making use of a single fillet weld.

The 825 Incoloy Threaded Flange is threaded on their interior or exterior, allowing it to easily affix to subsequent threads. These flanges have an NPT configuration and are preferred in low-pressure and temperature systems. Incoloy Alloy 825 Plate Flanges are circular flat discs that are welded to the ends of a pipe and usually bolted to another module. In most cases, a gasket is used to join the components. The Inconel 825 Orifice Flanges are generally employed to measure the rate of liquid and gaseous flow in the pipeline.

Incoloy 825 Flanges

Incoloy 825 Flanges

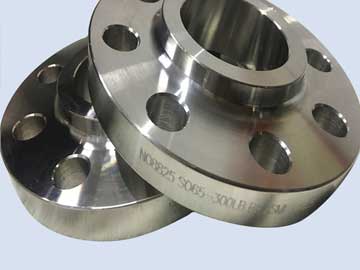

Alloy 825 Slip-On Flanges

Alloy 825 Slip-On Flanges

Suppliers Of ASTM B564 UNS N08825 Lap Joint Flanges In Mumbai, India, Get Free Quote For alloy 825 flange, Equivalent Grades Of Incoloy 825 Threaded Flanges.

Premier manufacturer and supplier of ASME B16.47 Series B Class 150 Alloy 825 Flanges and Inconel 825 Orifice, Lap Joint Flanges

Incoloy 825 Flanges

Incoloy 825 Slip On Flanges Specification

Grades UNS N08825 - Incoloy 825
Standards ASTM, ASME, BS, ANSI, DIN, EN
Specifications ASME SB 564 / ASTM B 564
Dimensions ANSI B16.47 Series A & B, AWWA, ANSI B16.5, ASA, MSS SP44, API-605, Custom Drawings
Size 1/2” upto 36″
Class 150#, 300#, PN25, PN16, 1500#, PN10, 900#, 2500#, PN6, 600#, PN40, PN64

Manufacturer Of DIN 2.4858 RTJ Flange In India, Visit our Incoloy Alloy 825 Pipe Flanges in India, Call Now to Get 825 Alloy Plate Flanges Free sample, Stockist Of Incoloy 825 Industrial Flange.

ASTM B564 UNS N08825 Blind Flange Price

Products Pipe Size Flange Outside Diameter Number of Bolt Holes Price
BLIND FLANGE NPS 16, CL1500, RTJ,EXTRA SM. FIN. ASTM A105; ASME B16 5; NACE; CLADDED WITH MIN. 3.5 MM INCOLOY 825 1-1/2 in 5 in 4 $39.37
FLANGES - INCOLOY FLANGES (INC.825) 2 WN 300 RF SCH XXS 63-125 RMS (QTY - 2 NOS) 2-1/2 in 7 in 4 $76.74
FLANGES - INCOLOY FLANGES (INC.825) TEST COUPON GREZZO TT ATTO A RICAV, 500MM X200MM X 20MM X PROVE CLIENTE (QTY - 1 NOS 6 in 11 in 8 $142.90
INCOLOY 825 WNRTJ FLANGE TO ASTM B 425 GR UNS NO 8825,DIMN B 16.5,NACE MR.0175 :- SIZE: 1/2 NB X 2500 # SCH 80S 1 in 11 in 4 $28.79

Highly reliable manufacturer of Class 150/ 300/ 600 ASTM B564 UNS N08825 Socket Weld Flange material in India and Check Price List of Alloy 825 Blind Flange

Get instant delivery Of Werkstoff Nr. 2.4858 Weld Neck Flange, Weight Chart Of 825 Incoloy SORF Flanges, Suppliers Of ANSI B16.5 825 Nickel Alloy Blind Flange In Mumbai. India.

Incoloy 825 Flanges Types

ASTM B564 UNS N08825 Lap Joint Flanges

ASTM B564 UNS N08825 Lap Joint Flanges

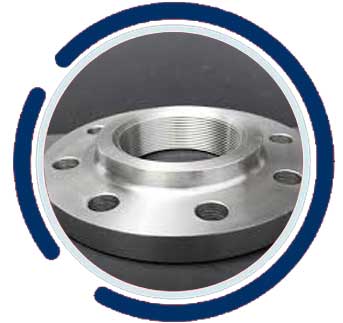

Incoloy 825 Threaded Flanges

Incoloy 825 Threaded Flanges

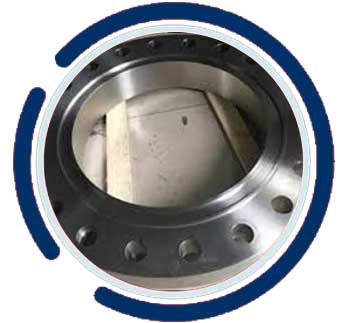

DIN 2.4858 RTJ Flange

DIN 2.4858 RTJ Flange

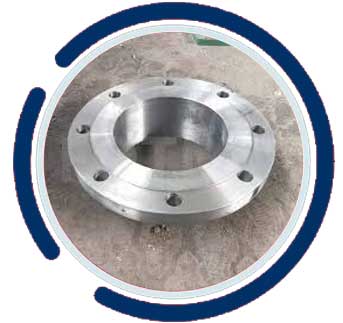

Incoloy Alloy 825 Pipe Flanges

Incoloy Alloy 825 Pipe Flanges

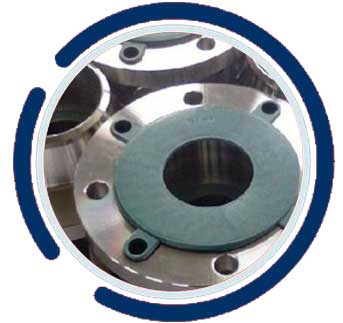

825 Alloy Plate Flanges

825 Alloy Plate Flanges

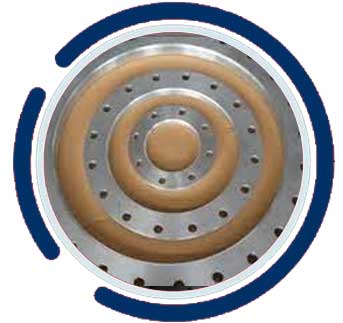

Incoloy 825 Industrial Flanges

Incoloy 825 Industrial Flanges

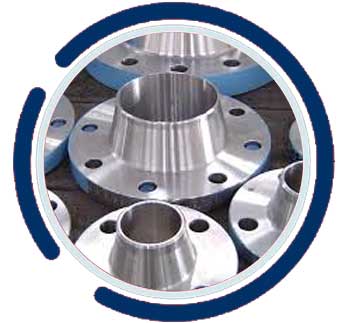

Werkstoff Nr. 2.4858 Weld Neck Flanges

Werkstoff Nr. 2.4858 Weld Neck Flanges

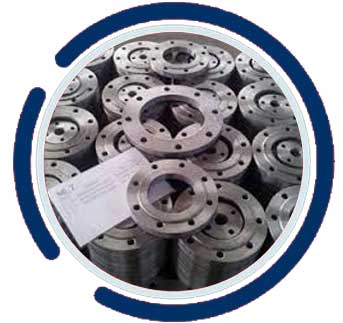

825 Incoloy SORF Flanges

825 Incoloy SORF Flanges

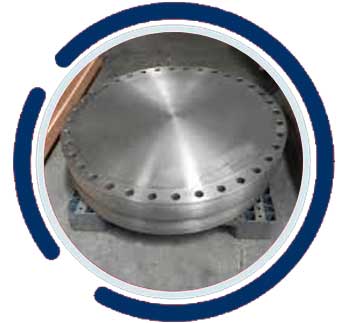

ANSI B16.5 825 Nickel Alloy Blind Flanges

ANSI B16.5 825 Nickel Alloy Blind Flanges

825 Alloy Orifice Flange

825 Alloy Orifice Flange

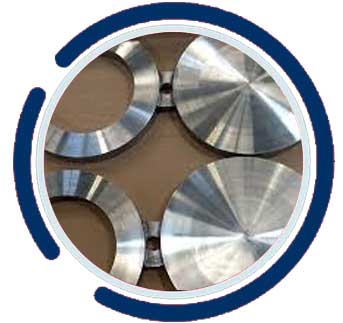

NA 16 Inconel Spectacle Blind Flanges

NA 16 Inconel Spectacle Blind Flanges

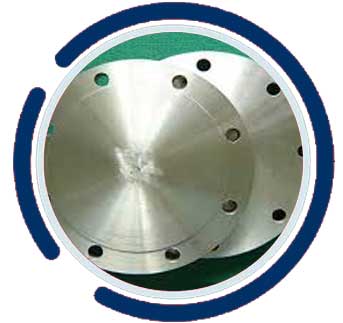

ASTM B564 UNS N08825 Blind Flange

ASTM B564 UNS N08825 Blind Flange

Buy directly from 825 Alloy Orifice Flange manufacturers in India to save cost, avoid high margins of distributors and supplier commission

Werkstoff Nr. 2.4858 Weld Neck Flanges Dimension

NOMINAL PIPE SIZES
NPS (IN)
CLASS 300
NO.
OF BOLTS
DIA OF
FLANGE (IN)
DIA OF
BOLT HOLES
(IN)
DIA OF
BOLTS (IN)
BOLT
CIRCLE (IN)
3/4 4 4-5/8 0.75 5/8 3-1/4
1 4 4-7/8 0.75 5/8 3-1/2
1/4 4 3-3/8 0.62 1/2 2-1/4
1/2 4 3-3/4 0.62 1/2 2-5/8
1-1/4 4 5-1/4 0.75 5/8 3-7/8
3 8 8-1/4 0.88 3/4 6-5/8
24 24 36 1.62 1-1/2 32
1-1/2 4 6-1/8 0.88 3/4 4-1/2
3-1/2 8 9 0.88 3/4 7-1/4
4 8 10 0.88 3/4 7-7/8
20 24 30-1/2 1.38 1-1/4 27
5 8 11 0.88 3/4 9-1/4
2 8 6-1/2 0.75 5/8 5
2-1/2 8 7-1/2 0.88 3/4 5-7/8
6 12 12-1/2 0.88 3/4 10-5/8
10 16 17-1/2 1.12 1 15-1/4
12 16 20-1/2 1.25 1-1/8 17-3/4
8 12 15 1 7/8 13
14 20 23 1.25 1-1/8 20-1/4
18 24 28 1.38 1-1/4 24-3/4
16 20 25-1/2 1.38 1-1/4 22-1/2

PED approved NA 16 Inconel Spectacle Blind Flange manufacturer in India, check dimensions and thickness chart

JIS NCF 825 Socket Weld Flanges Chemical Composition

Al C Cu Mn Cr Si Ni S Ti Fe
0.02 max 0.05 max 1.50 – 3.00 1.00 max 19.50 – 23.50 0.5 max 38.00 – 46.00 0.03 max 0.06 – 1.20 22.00 min

Nickel Alloy 825 Forged Flange Mechanical Properties

Yield Proerties Density Elongational Melting Point Tensile Properties
Psi – 32,000 , MPa – 220 8.14 g/cm3 30 % 1400 °C (2550 °F) Psi – 80,000 , MPa – 550
We supply EN 1092-1 Type 11 PN25 ASME SB564 N08825 Spectacle Blind Flange, and MSS SP-44 Series A 825 Incoloy Threaded, Spectacle Blind Flanges, Incoloy DIN 2.4858 Long Weld Neck Flange with Hydrostatic (Hydro) Testing

DIN 2.4858 RTJ Flange Equivalent

BS WERKSTOFF NR. AFNOR UNS EN JIS OR GOST
NA 16 2.4858 NFE30C20DUM N08825 NiCr21Mo NCF 825 XH38BT ЭП703

Weight Chart of ASME SB564 825 RTJ Flanges

Standard Dia Class Bolt Circle Dia Bolt Sizes No. of Bolts Dia of Bolt Hole
ANSI B16.5 Flanges 95 ANSI 300 67 13 4 16
121 ANSI 900 83 19 4 22
95 ANSI 600 67 13 4 16
89 ANSI 150 60 13 4 16
121 ANSI 1500  83 19 4 22
AS 2129 Flanges 95 Table C 67 13 4 14
114 Table H  83 16 4 17
114 Table J 83 16 4 17
95 Table E  67 13 4 14
95 Table F  67 13 4 14
95 Table D  67 13 4 14
AS4087 Flanges 95 PN14 67 M12 4 14
ISO 7005 (DIN) Flanges 80 PN6  55 M10 4 11
95 PN16  65 M12 4 14
95 PN40 65 M12 4 14
90 PN20  60.5 M14 4 16
95 PN10  65 M12 4 14
95 PN25  65 M12 4 14

825 Incoloy SORF Flanges Pressure Rating

Temperature °F 300# 150# 2500# 400# 900# 600# 1500#
-20 to 100 720 275 6000 960 2160 1440 3600
500 480 170 3980 635 1435 955 2390
600 450 140 3760 600 1355 900 2255
300 560 215 4660 745 1680 1120 2795
650 445 125 3700 590 1330 890 2220
750 425 95 3560 570 1280 855 2135
800 420 80 3520 565 1265 845 2110
850 420 65 3480 555 1255 835 2090
700 430 110 3620 580 1305 870 2170
200 620 235 5160 825 1860 1240 3095
400 515 195 4280 685 1540 1025 2570
1000 350 20 2915 465 1050 700 1750
1050 345 20 2865 460 1030 685 1720
1100 305 20 2545 405 915 610 1525
900 415 50 3460 555 1245 830 2075
950 385 35 3220 515 1160 775 1930
1150 235 20 1970 315 710 475 1185
1200 185 20 1545 245 555 370 925
1250 145 20 1230 195 440 295 735
1350 95 20 800 130 290 190 480
1400 75 20 630 100 225 150 380
1450 60 20 485 80 175 115 290
1300 115 20 970 155 350 235 585
1500 40 20 345 55 125 85 205
Buy EN 1092-2 PN10 Incoloy 825 Slip On Flange at best price in India, view 15mm- 1500mm BS4504 PN16 Incoloy Alloy 825 Plate, Forged Flange and Nickel Alloy 825 Pipe Flange supplier in Mumbai

Alloy 825 Flanges Inventory

Incoloy 825 Flange Nickel Alloy 825 Forged Flange
ASTM B564 UNS N08825 Blind Flange Incoloy 825 Industrial Flange
Werkstoff Nr. 2.4858 Weld Neck Flange 825 Incoloy Alloy Pipe Flange
Incoloy 825 Slip On Flange Incoloy 825 Reducing Flange
JIS NCF 825 Socket Weld Flange Inconel 825 Flange
ASTM B564 Incoloy 825 Pipe Flange Incoloy Alloy 825 Slip on Flange
Alloy 825 Plate Flange NiCr21Mo Incoloy Flange
ASME SB564 UNS N08825 Pipe Flange Nickel Alloy 825 SWRF Flange
Nickel Alloy 825 Forged Flange Incoloy Alloy 825 Flange
Incoloy 825 Threaded Flange Alloy 825 Weld Neck Flange
ASTN B424 UNS N08825 Flange ASTM B564 825 Socket weld Flange
Inconel 825 Weld Neck Flange ASME B16.5 UNS N08825 Weld Neck Flange
Alloy 825 Slip-On Flanges Alloy 825 Long Weld Neck Flanges
Nickel Alloy 825 Slip-On Flanges Incoloy Alloy UNS N08825 Threaded Flanges
ASTM B564 UNS N08825 Lap Joint Flanges ASME SB564 825 RTJ Flanges
DIN 2.4858 RTJ Flange 825 Alloy Flanges
Alloy 825 Socket Weld Flange ASTM B564 UNS N08825 Incoloy 825 Flange
UNS N08825 Blind Flange 825 Incoloy SORF Flange
Alloy 825 Weld Neck Flange Incoloy 2.4858 Lap Joint Flanges
Incoloy Alloy 825 Pipe Flanges ANSI B16.5 825 Nickel Alloy Blind Flange
ASTM B564 825 Flange 825 Alloy Orifice Flange
ANSI B16.5 Inconel 825 Flanges NA 16 Inconel Spectacle Blind Flange
825 Alloy Plate Flanges Incoloy 825 Forged Flange
