Inconel 625 Flanges


Inconel 625 Flanges
What are Inconel 625 Flanges?

Inconel 625 Flanges are an austenitic grade of stainless steel. These flanges have an excellent chemical composition of chromium, nickel, molybdenum, and niobium. The high strength and superior corrosion resistance properties of these flanges allow them to securely seal different piping equipment. The flanges within this grade are designed to withstand temperatures from sub-zero to 1800 degrees F. The flanges can be welded easily as they can be welded following standard shop welding procedures.

ASME SB564 Alloy 625 Flanges Application

ASME SB564 Alloy 625 Flanges are versatile flanges. The applications of these flanges include:

  • Chemical processing of equipment which deals with the handling of reducing and oxidizing components
  • Aerospace components ranging from exhausts, thrust reveres, ducting systems, etc.
  • Air pollution control
  • Marine services using exhausts and auxiliary propulsion systems.
  • Oil and gas production and refining services
  • Nuclear power plants and reactor cores
  • Electrical and communications cable connectors
  • Waste treatment and incineration modules.
Difference Between UNS N06625 Blind Flange and DIN 2.4856 Slip On Flanges

Blind flanges and slip on flanges are the most diverse flanges within the piping industry, which perform a range of different functions.

  • UNS N06625 Blind Flange doesn’t possess a boring center or a face while a DIN 2.4856 slip on flange is characterized by a low profile head.
  • Slip on flanges are slid on the pipe and welded using one or two fillet welds. Blind flanges are bolted to the line allowing room for inspection or cleaning.
  • Blind flanges cut the flow of fluids and gases and terminate the high pressure of fluids and gases. Slip on flanges are not preferred in high-pressure systems.
ASTM B564 Inconel 625 Orifice Flange Vs Nickel Alloy 625 WNRF Flange

Flanges can be distinguished based on their sizes, face type, and pressure holding capacity.

  • An ASTM B564 Inconel 625 Orifice Flange can be characterized by a disc-shaped raised face. Nickel alloy 625 WNFR flange can be recognized by a long a tapered face.
  • WNFR flanges are welded directly on the piping component using a butt-weld. Orifice flanges are generally bolted on the piping modules.
  • WNFR are a flange of choice in high pressure and temperature systems. Orifice flanges are utilized to check the rate of flow in high-pressure piping components.

ASTM B564 UNS N06625 SORF Flanges and Alloy 625 BLRF Flange manufacturer in India

Inconel 625 Flanges Specification Chart
Pressure Rating ANSI/ ASMEClass 150, Class 1500, Class 900, Class 300, Class 2500, Class 600,
StandardsJISB2220, GOST Flange, BS1560-3.1, API7S-43, API7S-15, API605, BS, EN1092, BS4504, EN-1092, BS 10, DIN, ASME, ANSI, DIN, ISO70051, MSS S44, ASME/ANSI B16.5, ANSI/ASME 16.36/B16.5/16.47A/B16.47 Series B & A, 16.47B, B16.48, EN
JIS20 K, 16 K, 5K, 40 K, 30 K, 10 K, 63 K,
Pressure Calculation in DIN16Bar, 10Bar, 25Bar, 6Bar, 40Bar, PN16, PN40, PN64, PN25, PN6, PN10
EquipmentPress machine, Pushing Machine, Bending machine, electric bevelling machine Sand-blasting machine, etc
EN25Bar 6Bar 40Bar 16Bar 10Bar
UNI16Bar
Most common Types Forged / Threaded / Plate/ Screwed
Shapes and Types we produce Ring Type Joint (RTJ), Large Male-Female (LMF), Small Tongue, Flat Face (FF), Small Male-Female (SMF) Large Tongue & Groove, ,Raised Face (RF), Lap-Joint Face (LJF), Groove
Production techniquemachined, Forged, and Heat treated
TestMagnetic particle detector, Direct-reading Spectrograph, Hydrostatic testing machine, UI trasonic flaw detector,X-ray detector,

Looking for ASTM B564 N06625 Slip on Flange suppliers who offer prompt delivery in Asia? Manufacturer of Flange Inconel 625 in India, call us for big discount and ready sizes, check latest price of Inconel 625 Flange in Mumbai

ASTM B564 UNS N06625 Equivalent
STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
Inconel 6252.4856N06625NCF 625NA 21??75????NC22DNB4MNiCr22Mo9Nb
Flange Inconel 625 Sizes
Inconel 625 Flanges1/2 Inch(15 NB) to 48 Inch (1200NB)
625 Alloy Blind Flanges1/2 Inch NB – 24 Inch NB
625 Nickel Slip on Flanges1/2 Inch NB – 12 Inch NB

Manufacturer & Supplier Of ASTM B564 UNS N06625 Weld Neck Flange, Nickel 625 Flange In India

Inconel 625 Chemical Composition
GradeMnCSiCuNiSFeCr
Inconel 6250.50 maximum0.10 maximum0.50 maximum?58.0 minimum0.015 maximum5.0 maximum20.0 ? 23.0

Manufacturer of Forged Alloy 625 Flanges and Inconel Flanges from Round bar blanks, and SB 564 UNS N06625 Slip On Flange & Plate Flange cutted from sheet

Alloy 625 Mechanical Properties
ElementMelting PointDensityYield Strength (0.2%Offset)Tensile StrengthElongation
Inconel 6251350 ?C (2460 ?F)8.4 g/cm3Psi ? 75,000 , MPa ? 517Psi ? 1,35,000 , MPa ? 93042.5 %

Buy B564 UNS N06625 Blind Flange Directly From Largest Manufacturers In Mumbai, Check Length and Weight Chart Of B564 N06625 SORF Flange

Weight Chart Of Alloy 625 Flange
StandardClassDiameterBolt Circle DiameterNumber of BoltsBolt SizeDiameter of Bolt Hole
AS4087 FlangePN14 Flange95674M1214
AS 2129 FlangeTable C Flange956741314
Table D Flange956741314
Table E Flange956741314
Table F Flanges956741314
Table H Flanges1148341617
Table J Flanges1148341617
ANSI B16.5 FlangesANSI 150 Flanges896041316
ANSI 300 Flanges956741316
ANSI 600 Flanges956741316
ANSI 900 Flanges1218341922
ANSI 1500 Flanges1218341922
ISO 7005 (DIN) FlangePN6 Flanges80554M1011
PN10 Flanges95654M1214
PN16 Flanges95654M1214
PN20 Flanges9060.54M1416
PN25 Flanges95654M1214
PN40 Flanges95654M1214

Check Pressure Rating of Nickel Alloy 625 Blind Flange , NDT test done for Inconel 625 UNS N06625 Socket Weld Flange and DIN 2.4856 Lap Joint Flange to ensure leak free connection, Call SP Metals for free sample

Inconel 625 Flanges Pressure Rating
ANSI/ ASME B 16.47Blind [Series B & A], Welding Neck Flange
PRESSURE CLASS150, 600, 400, 75, 900 300,
ANSI/ ASME B 16.5Threaded Flange, Welding Neck, Slip on, High Hub Blind, Socket Weld, Blind,Lap Joint, Ring Type Joint,
PRESSURE CLASS900, 300, 600, 1500, 400, 150, 2500
ANSI/ ASME B 16.36 Slip on, Welding Neck, Threaded Flange
PRESSURE CLASS2500, 300, 400, 900, 1500, 600,
BS 4504[PART 1]Welding Neck, Plate, Hubbed Slip-On Hubbed Threaded, Blank, Loose Plate With Weld On Plate Collar Flange
BS 4504 SEC 3.1Welding Neck, Hubbed Slip on, Lapped Pipe End, Loose Plate, Hubbed Threaded, Plate, Blank, Loose Plate With Weld Neck Flange
PRESSURE CLASSPN 2.5 TO 40
PRESSURE CLASSPN 2.5 TO 400
BS10Slip-On Boss, Plate, Welding Neck, Screwed Boss, Slip-On, Blind Flange
TABLEE, D,H, F
BS 1560 BOSSWelding Neck, Socket Welding,Screwed Boss Slip-On,Blind, Lapped, Flange
PRESSURE CLASS300, 2500 1500, 900, 600, 400, 150,
DINSDIN2641,2642, 2527, 2629, 2634, 2635, 2633, 2637,2638, 2627, 2656, 2566, 2636, 2655, 2628, 2573, 2576, 2673 2632, 2631,
PRESSURE CLASSPN 6 TO 100

Well-known Manufacturer Of Alloy 625 Flange in India. For final ASME SB564 UNS N06625 Orifice Flange Price List Please Call on +91 22 6636 3099.

Price List Of Nickel 625 Flange
DescriptionPer Unit (INR)
INCONEL 625 FLANGES 2 1500 RTJ34,102
GASKET, 2500 RTJ, R TYPE, OCTAGONAL (CUSTOM MADE FLANGE) ASME B16.20 INCONEL 625, ANNEALED CONDITION27,956
BLIND FLANGE, 2-1/16 10K BX-152, INCONEL 625 INLAY RINGGROOVE77,034
INCONEL.625 FLANGES INCONEL 625 FLANGES 2 BL 300 POUND RJ19,599
INCONEL 625 FLANGE, SIZE: 10 X 300 LB RTJ3,219
INCONEL 625 FLANGES 113/16API 10000 # RTJ44,659
INCONEL 625 FLANGES 2 2500 RTJ49,292
INCONEL 625 FLANGE, SIZE: 6 X 300 LB BLIND3,553

PED Certified Inconel 625 Flanges Manufacturers in India, Dimensions Of UNS N06625 BLRF Flange In MM.

ASTM B564 UNS N06625 Flanges Dimension
ASTM Standards of Alloy 625 Flanges
  • ASME B16.25, Buttwelding Ends
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.36, Orifice Flange
  • ASME B16.5, Pipe Flange and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.1, Cast Iron Flange and Flanged Fittings Classes 25, 125 and 250
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)
  • ASME B16.47, Large Diameter Steel Flange NPS 26 Through NPS 60
  • ASME B31.3, Process Piping
  • ASME B31.1, Power Piping
Torque Chart Of Inconel 625 Weld Neck Flange
Size in InchesSize in MillmeterMax. Radial Projection of Imperfections that are
Serrations, No Deeper Than the Bottom, MillmeterSerrations, Deeper Than the Bottom, Millmeter
1/2153.01.5
3/4203.01.5
1253.01.5
1 1/4323.01.5
1 1/2403.01.5
2503.01.5
2 1/2653.01.5
3804.51.5
3 1/2906.03.0
41006.03.0
51256.03.0
61506.03.0
82008.04.5
102508.04.5
123008.04.5
143508.04.5
1640010.04.5
1845012.06.0
2050012.06.0
2460012.06.0
Smooth seal surface Inconel 625 UNS N06625 Plate, Long Weld Neck Flange and 625 Inconel Socket Weld Flange material manufacturer in India, Burr-free threads
ASTM B16.47 625 Inconel Flanges Stock
Inconel 625 Lap Joint FlangesInconel 625 ASTM B564 Weld Neck Flanges
625 Inconel Long Weld Neck FlangesInconel 625 DIN 2.4856 Spectacle Blind Flanges
Inconel 625 ASTM B564 Spades & Ring SpacersAlloy 625 Nipoflange
Inconel 625 5D WeldoflangeInconel alloy 625 Flange Outlet
Inconel 625 DIN 2.4856 Forged FlangesNickel 625 Plate Flange
Inconel 625 DIN 2.4856 Ring Type Joint FlangesAlloy 625 Raised Face Flanges
Inconel 625 DIN 2.4856 FlangeInconel 625 Blind Flange
ASTM B564 UNS N06625 Slip on FlangeInconel 625 ASTM B564 Threaded Flange
Inconel 625 DIN 2.4856 Reducing FlangeAlloy 625 Socket Weld Flange
Inconel 625 Tongue and Groove FlangesNickel 625 Male and Female Flange
Inconel 625 ASTM B564 Reducing FlangesInconel 625 DIN 2.4856 ASME B16.5 Flanges
Inconel alloy 625 FlangesASTM B564 UNS N06625 BS 10 Flanges
Inconel 625 BS 4504 FlangesAlloy 625 EN 1092-1 Flanges
625 Inconel SORF FlangeInconel 625 DIN 2.4856 BLRF Flange
Inconel alloy 625 WNRF FlangeASTM B564 UNS N06625 RTJ Flange
UNS-n06625 Flange Gasket Size Chart
Nominal Size Of Pipe (NPS)Gasket (I.D.) Inside Diameter

(Inches)
Gasket (O.D.) Outside Diameter
150 LBS300 LBS400 LBS600 LBS900 LBS
1/20.841.8752.1252.1252.1252.50
3/41.062.252.6252.6252.6252.75
11.312.6252.8752.8752.8753.125
1 1/41.6633.253.253.253.50
1 1/21.913.3753.753.753.753.875
22.384.1254.3754.3754.3755.625
2 1/22.884.8755.1255.1255.1256.50
33.505.3755.8755.8755.8756.625
44.506.8757.1257.007.6258.125
55.567.758.508.3759.509.75
66.628.759.8759.7510.5011.375
88.621112.12512.0012.62514.125
1010.7513.37514.2514.12515.7517.125
1212.7516.12516.62516.5018.0019.625
Inconel 625 Flange Types
Inconel 625 Flanges
Inconel 625 Flanges
Flange Inconel 625
Flange Inconel 625
Inconel 625 Flange
Inconel 625 Flange
ASTM B564 UNS N06625 Plate Flange
ASTM B564 UNS N06625 Plate Flange
Nickel 625 Flange
Nickel 625 Flange
Alloy 625 Flanges
Alloy 625 Flanges
Inconel 625 Slip on Flange
Inconel 625 Slip on Flange
B564 UNS N06625 Blind Flange
B564 UNS N06625 Blind Flange
Inconel 625 Threaded Flange
Inconel 625 Threaded Flange
Inconel 625 Pipe Flange
Inconel 625 Pipe Flange
Inconel 625 Socket Weld Flange
Inconel 625 Socket Weld Flange
ASTM B564 Inconel 625 UNS N06625 So Flange
ASTM B564 Inconel 625 UNS N06625 So Flange
Inconel 625 Weld Neck Flange
Inconel 625 Weld Neck Flange
Inconel 625 Blind Flange
Inconel 625 Blind Flange
Class 600# 1/2''-24'' UNS N06625 Socket Weld Flange Inconel 625 Wn Flange
Class 600# 1/2''-24'' UNS N06625 Socket Weld Flange Inconel 625 Wn Flange
Inconel 625 Spectacle Blind Flanges
Inconel 625 Spectacle Blind Flanges
ASME B16.5 Inconel 625 UNS N06625 2.4856 Flanges
ASME B16.5 Inconel 625 UNS N06625 2.4856 Flanges
Inconel 625 Class 900# Slip On Flange
Inconel 625 Class 900# Slip On Flange
ASTM B564 UNS N06625 Cl150 Rf Welding Neck Flange
ASTM B564 UNS N06625 Cl150 Rf Welding Neck Flange
ASME 16.5 Wnrf Inconel 625 Flange
ASME 16.5 Wnrf Inconel 625 Flange
Lj Flange Inconel 625 Lap Joint Flange
Lj Flange Inconel 625 Lap Joint Flange

Check Thickness Of Inconel 625 Din 2.4856 Threaded Flanges and Nickel Alloy 625 Spectacle Blind Flanges Supplier & Manufacturers In Mumbai, India.

Inconel 625 Slip on Flange Thickness Chart
Wll Thickness Of Inconel 625 Flanges
NPSOutside Diameter (O.D.)Sch/ Schedule 10Sch/ Schedule 20Sch/ Schedule 30STD WallSch/ Schedule 40Sch/ Schedule 60EXT HvySch/ Schedule 80Sch/ Schedule 100Sch/ Schedule 120Sch/ Schedule 140Sch/ Schedule 160XX Hvy
½0.840.0830.1090.1090.1470.1470.1880.294
¾1.050.0830.1130.1130.1540.1540.2190.308
11.3150.1090.1330.1330.1790.1790.250.358
1 ¼1.660.1090.140.140.1910.1910.250.382
1 ½1.90.1090.1450.1450.20.20.2810.4
22.3750.109……..……..0.1540.154……..0.2180.218……..……..……..0.3440.436
2 ½2.8750.12……..……..0.2030.203……..0.2760.276……..……..……..0.3750.552
33.50.12……..……..0.2160.216……..0.30.3……..……..……..0.4380.6
3 ½40.12……..……..0.2260.226……..0.3180.318……..……..……..……..0.636
44.50.12……..……..0.2370.237……..0.3370.337……..0.438……..0.5310.674
55.5630.134……..……..0.2580.258……..0.3750.375……..0.5……..0.6250.75
66.6250.134……..……..0.280.28……..0.4320.432……..0.562……..0.7190.864
88.6250.1480.250.2770.3220.3220.4060.50.50.5940.7190.8120.9060.875
1010.750.1650.250.3070.3650.3650.50.50.5940.7190.84411.1251
1212.750.180.250.330.3750.4060.5620.50.6880.84411.1251.3121
14140.250.3120.3750.3750.4380.5940.50.750.9381.0941.251.406……..
16160.250.3120.3750.3750.50.6560.50.8441.0311.2191.4381.594……..
18180.250.3120.4380.3750.5620.750.50.9381.1561.3751.5621.781……..
20200.250.3750.50.3750.5940.8120.51.0311.2811.51.751.969……..
22220.25……..……..0.375……..……..0.5……..……..……..……..……..……..
24240.250.3750.5620.3750.6880.9690.51.2191.5311.8122.0622.344……..
Flat Face/ Raised Face 15 NB - 200 NB DIN 2.4856 Weld Neck Flange and Alloy 625 Threaded Flange manufacturer in India, Contact us for more information!
Inconel 625 Blind Flange Standards
Inconel 625 Flange TypeENDIN
Blind Flanges052527
Weld Neck Flanges112627 – 2638
Flat Flanges for Welding012573 | 2576
Threaded Flanges132558 | 2565 – 2569
Loose Flanges042673 – 2676
Loose Flanges022641 | 2642 | 2655 | 2656
Weld Neck Collars342673 – 2676
Weld-on Collars322641 | 2642 | 2655 | 2656
Slip-on Flanges1286029 | 86030
Exhaust gas line Flanges86044
Lapped Flanges86037
Weld Flanges for Pressure Vessels28031 | 28033
Welding Flanges86041
in accordance with drawings Special Flanges
ASME SB564 Alloy 625 Orifice Flange Version
Flange Version
edgewise, Flat steel, as a flange
flat, as a tire, Flat steel
square steel
Round steel
thighs outwards, Angle steel,
wide leg to the outside, Angle steel
narrow leg to the outside Angle steel,
thighs inside, Angle steel
wide leg inside, Angle steel
narrow leg inside, Angle steel
bridge inside, T-steel
bridge to the outside, T-steel
foot bent upright, T-steel
opening to the outside, U-steel
opening inwards, U-steel
(bent around the X-axis) Double-T carrier
(bent around the Y-axis) Double-T carrier
high edge Rectangular tube
flat, Rectangular tube
square tube
round tube

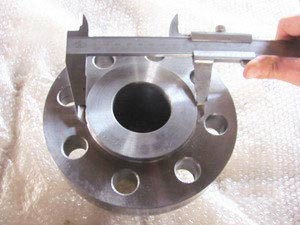

Testing Of DIN 2.4856 WNRF Flanges
  • Tensile testing machine
  • Ultrasonic testing machine
  • Mobile spectrometer for PMI test
  • Radiation servo meter
Testing Of DIN 2.4856 WNRF Flanges

Get instant delivery Of 20mm ASTM B564 UNS N06625 RTJ Flange , Schedule Chart Of Alloy 625 Plate flange, Inconel 625 Alloy Lap Joint Flange Manufacturer In Mumbai. India.

Schedule Chart Of Inconel 625 Pipe Flange
Inconel 625 Flange Schedule/ClassMax. PressurePipe Size - Inconel 625 Pipe FlangesInconel 625 Flange Connection Type
ASME B16.5 Class 150150 psi1/2"FNPT
275 psi1/2"Socket Weld
150 psi1/2"Welded
150 psi3/4"FNPT
275 psi3/4"Socket Weld
275 psi1-1/4"Socket Weld
275 psi1-1/2"Socket Weld
150 psi2"FNPT
275 psi2"Socket Weld
275 psi2-1/2"Socket Weld
275 psi3"Socket Weld
150 psi4"FNPT
275 psi4"Socket Weld
ASME B16.5 Class 300720 psi1/2"Slip On
1/2"Slip On
1"Slip On
1"Slip On
1-1/4"FNPT
1-1/4"Slip On
1-1/2"
1-1/2"
2"
2"
2-1/2"
2-1/2"
3"
3"
4"
4"
Alloy 625 Plate Flange Manufacturing Facilities
Alloy 625 Plate Flange Manufacturing Facilities
UNS N06625 Material Properties
DensityMelting RangeSpecific HeatPermeability at 200 OerstedCurie Temperature
lb/cu ingram/cc°F°CBtu/lb°F (J/kg°C)
70°F(21°C)
15.9 kA/m°F°C
0.3058.442350-24601290-13500.098(410)1.0006<-320-196
Inconel 625 Slip On Flanges Test Cerificate
  • Third Party Inspection Report
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Manufacturer Test Certificate as per EN 10204 / 3.1B
Inconel 625 Threaded Flange Hardness
Alloy stateTensile strength Rm N/mm²Brinell hardness HB
625760≤220
Alloy 625 Magnetic Properties

Inconel Alloy 625 is a non-magnetic, corrosion and oxidation resistant, nickel-chromium alloy. Inconel 625 has tremendous resistance to a wide range of unusually severe corrosive environments including high-temperature effects such as oxidation and carburization.

Nickel Alloy 625 Density
Physical Property°C
Density22
Alloy 625 Flanges Coefficient Of Thermal Expansion
Physical Property°CMetric Units°FBritish Units
Mean Coefficient
of Thermal
Expansion
20-204
20-316
20-427
20-538
20-649
20-760
20-871
20-982
13.1 x 10(-6)m/m-°C
13.5
13.9
14.4
15.1
15.7
16.6
17.3
68-400
68-600
68-800
68-1000
68-1200
68-1400
68-1600
68-1800
7.3 microinches/in.-°F
7.5
7.7
8.0
8.4
8.7
9.2
9.6
Thermal
Conductivity
23
100
200
300
400
500
600
9.8 W/M-°C
11.4
13.4
15.5
17.6
19.6
21.3
74
212
392
572
752
932
1112
68 Btu-in./ft².-hr.-°F
79
93
108
122
136
148
Inconel 625 Melting Point
Melting point1290-1350℃
Inconel 625 Socket Weld Flange Temperature Limit

Alloy 625 is an austenitic chromium-nickel-niobium-molybdenum alloy possessing a combination of outstanding corrosion resistance coupled with high strength from cryogenic temperatures to 982°C (1800°F).

A Global supplier

SP Metals Is Prominent Supplier In South And North America, Europe And West Africa

Inconel 625 Flanges Manufacturers in India

Inconel 625 Flanges Manufacturers in India

Alloy 625 Flange

Alloy 625 Flange


Ellington -United States, Belgium, Tehran -Iran, Qatar, Malaysia, Russia, Poland, USA, Brazil, United Arab Emirates (UAE), Canada, Finland, Los Alamos -Mexico, Turkey, South Korea, Australia, Egypt, Saudi Arabia (KSA), New Zealand, Iran, NY 12203 (USA), Portugal, Morocco, Dubai- UAE, South Africa, China, Germany, Taiwan, Norway, Denmark Jakarta -Indonesia, Nigeria, Oman

ASTM B564 UNS N06625 Weld Neck Flange

ASTM B564 UNS N06625 Weld Neck Flange

Thailand, Singapore, Indonesia, Vietnam, Europe, Austria, Colombia, Spain, Peru, Malaysia, Sweden, Malaysia, Bangladesh, Jakarta, Kuala Lumpur, Dubai, Argentina, Jordan, Singapore, Dammam -KSA, Czechia, France, Istanbul- Turkey, Greece, Hong Kong, Chile, Netherlands, United States, Kuwait, Romania, Mexico, Japan, Bahrain, Italy, South Africa, United Kingdom (UK), Philippines
