Check cl 150 rf flange and 150 flange dimensions according to ASME B16.5

Class 150 flange manufacturer in India

Table of Content

Class 150 Flange

Why don't you directly contact an Class 150 Series A Flange manufacturer? Extensive range and lowest price for 150 Lb Weld Neck Flange in India

Class 150 Flange Specification

Standards ANSI/ ASME B16.48, B16.47, B16.5 Series A & B, EN-1092, BS10, BS4504, API605, DIN, ASME, BS, ANSI, EN, GOST, ASME/ ANSI B16.5/16.47B, ISO70051, MSS S44, JISB2220, API7S-43, API7S-15, EN1092
Types Screwed / Plate / Forged / Threaded
Size Chart From 1/2" (15 NB) upto 48" (1200NB) DN10~DN5000
Coating Zinc Plated, Oil Black Paint, Hot and Cold Dip Galvanized, Yellow Transparent 150# pipe flanges
Technique Heat treated, Forged, and machined
EN 10Bar 6Bar 16Bar 40Bar 25Bar 150 lb pipe flanges
Connect/ Flange Face Type Large Male-Female, Long Tongue, Ring Type Joint, Flat Face, Small Male-Female, Raised Face, Lap-Joint Face
Equipments Electric bevelling machine, Sand-blasting machine, Press machine, Pushing Machine, Bending machine, etc
DIN 16Bar, 6Bar, 40Bar, 25Bar / PN40, PN6, PN64, PN16, PN10, PN25 150# pipe flanges
Test Hydrostatic testing machine, Direct-reading Spectrograph, X-ray detector, Magnetic particle detector and UI trasonic flaw detector

Series B Class 150 Flange Price

Products Pipe Size Flange Outside Diameter Maximum Operating Pressure Number of Bolt Holes Price List
ANSI B16.5CLASS 150 HARDNESS:65 SHORE A,MAKE:VULCAN 33MM THICK FLANGES GASKETS 3/4 in 3-7/8 in 150 psi 4 $50.51
CARBON STEEL FORGED FLANGES - C.S. FLANGES - FLANGES SLIP ON RF 6 CLASS 150 1-1/4 in 4-5/8 in 150 psi 4 $85.39
FLANGES, BLIND, 6, RF, ASME B16.5, CLASS150, SS ASTM A182 GR F304 2 in 6 in 150 psi 4 $126.37
STAINLESS STEEL CASTINGS (ROUGH) - 59254/ 2 / 1 BODY FLANGES CLASS 150 DN350 (DTLS AS PER INV.) 3 in 7-1/2 in 150 psi 4 $198.88
Flange Weld Neck RF Class 150 3/4 Inch Sch 80/XS A105N 4 in 9 in 150 psi 8 $258.70
BLIND FLANGES RE CLASS 150 B16 5 SS A182 F316/F316L 1/2 6 in 11 in 150 psi 8 $417.66

ANSI B16.5 Class 150 Flange Types

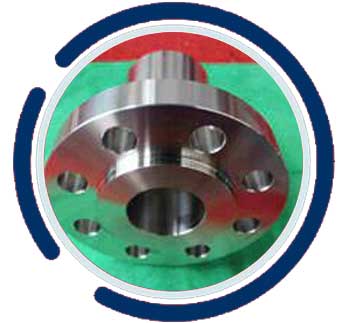

ANSI B16.5 Class 150 Welding Neck Flange

ANSI B16.5 Class 150 Welding Neck Flange

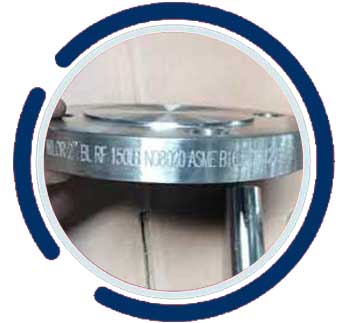

ANSI B16.5 Class 150 Slip On Flange

ANSI B16.5 Class 150 Slip On Flange

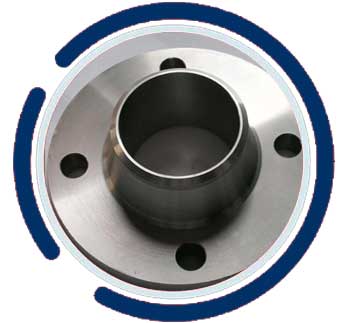

ANSI B16.5 Class 150 Socket Welding Neck Flange

ANSI B16.5 Class 150 Socket Welding Neck Flange

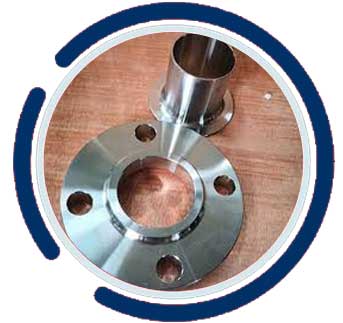

ANSI B16.5 Class 150 Lap Joint Flange

ANSI B16.5 Class 150 Lap Joint Flange

ANSI B16.5 Class 150 Threaded Flange

ANSI B16.5 Class 150 Threaded Flange

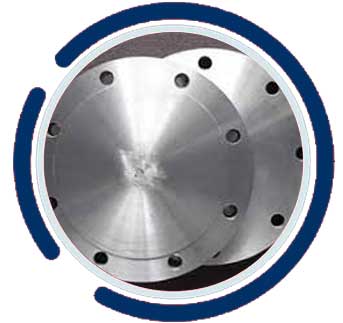

ANSI B16.5 Class 150 Blind Flange

ANSI B16.5 Class 150 Blind Flange

Class 150 Series A Flange Dimensions

Nominal Pipe Size Thickness of Flange Diameter of Hub at Base Outside Diameter of Flange Diameter of Raised Face Length Thru Hub Diameter or Bore Radius of Fillet Diameter of Hub at Bevel Depth of Socket
Slip-On Threaded Socket Welding Neck Lap Joint Lap Joint Slip-on Socket
Q X O R Y Y Y B W r H Z
1/2 7/16 1-3/16 3-1/2 1-3/8 5/8 1-7/8 5/8 .90 .88 1/8 .84 3/8
3/4 1/2 1-1/2 3-7/8 1-11/16 5/8 2-1/16 5/8 1.11 1.09 1/8 1.05 7/16
1 9/16 1-15/16 4-1/4 2 11/16 2-3/16 11/16 1.38 1.36 1/8 1.32 1/2
1-1/4 5/8 2-5/16 4-5/8 2-1/2 13/16 2-1/4 13/16 1.72 1.70 3/16 1.66 9/16
1-1/2 11/16 2-9/16 5 2-7/8 7/8 2-7/16 7/8 1.97 1.95 1/4 1.90 5/8
2 3/4 3-1/16 6 3-5/8 1 2-1/2 1 2.46 2.44 5/16 2.38 11/16
2-1/2 7/8 3-9/16 7 4-1/8 1-1/8 2-3/4 1-1/8 2.97 2.94 5/16 2.88 3/4
3 15/16 4-1/4 7-1/2 5 1-3/16 2-3/4 1-3/16 3.60 3.57 3/8 3.50 13/16
3-1/2 15/16 4-13/16 8-1/2 5-1/2 1-1/4 2-13/16 1-1/4 4.10 4.07 3/8 4.00 7/8
4 15/16 5-5/16 9 6-3/16 1-5/16 3 1-5/16 4.60 4.57 7/16 4.50 15/16
5 15/16 6-7/16 10 7.5/16 1-7/16 3-1/2 1-7/16 5.69 5.66 7/16 5.56 15/16
6 1 7-9/16 11 8-1/2 1-9/16 3-1/2 1-9/16 6.75 6.72 1/2 6.63 1-1/16
8 1-1/8 9-11/16 13-1/2 10-5/8 1-3/4 4 1-3/4 8.75 8.72 1/2 8.63 1-1/4
10 1-3/16 12 16 12-3/4 1-15/16 4 1-15/16 10.92 10.88 1/2 10.75 1-5/16
12 1-1/4 14-3/8 19 15 2-3/16 4-1/2 2-3/16 12.92 12.88 1/2 12.75 1-9/16
14 1-3/8 15-3/4 21 16-1/4 2-1/4 5 3-1/8 14.18 14.14 1/2 14.00 1-5/8
16 1-7/16 18 23-1/2 18-1/2 2-1/2 5 3-7/16 16.19 16.16 1/2 16.00 1-3/4
18 1-9/16 19-7/8 25 21 2-11/16 5-1/2 3-13/16 18.20 18.18 1/2 18.00 1-15/16
20 1-11/16 22 27-1/2 23 2-7/8 5-11/16 4-1/16 20.25 20.20 1/2 20.00 2-1/8
24 1-7/8 26-1/8 32 27-1/4 3-1/4 6 4-3/8 24.25 24.25 1/2 24.00 2-1/2

Nominal Pipe Size Drilling Length of Bolts Approximate Weight in Pounds
Diameter of Bolts Diameter of Bolt Circle Diameter of Holes Number of Bolts Stud Bolts Machine Bolts 1/16” R.F. Blind Slip-on Threaded Welding Neck Lap Joint
Ring Joint 1/16” Raised Face
1/2 1/2 2-3/8 5/8 4 1-3/4 2-1/4 2
2 2 2
3/4 1/2 2-3/4 5/8 4 2 2-1/4 2
2 2 2
1 1/2 3-1/8 5/8 4 3 2-1/2 2 2 2 2 2
1-1/4 1/2 3-1/2 5/8 4 3 2-1/2 2-1/4 3 3 4 3
1-1/2 1/2 3-7/8 5/8 4 3-1/4 2-3/4 2-1/4 4 3 5 3
2 5/8 4-3/4 3/4 4 3-1/2 3 2-3/4 5 5 9 5
2-1/2 5/8 5-1/2 3/4 4 3-3/4 3-1/4 3 7 7 11 7
3 5/8 6 3/4 4 4 3-1/2 3 9 8 14 8
3-1/2 5/8 7 3/4 8 4 3-1/2 3 13 11 15 11
4 5/8 7-1/2 3/4 8 4 3-1/2 3 19 13 16 13
5 3/4 8-1/2 7/8 8 4-1/4 3-3/4 3-1/4 21 15 21 15
6 3/4 9-1/2 7/8 8 4-1/4 3-3/4 3-1/4 28 19 25 19
8 3/4 11-3/4 7/8 8 4-1/2 4 3-1/2 48 30 40 30
10 7/8 14-1/4 1 12 5 4-1/2 3-3/4 70 42 56 42
12 7/8 17 1 12 5 4-1/2 4 105 64 86 64
14 1 18-3/4 1-1/8 12 5-1/2 5 4-1/4 135 85 111 99
16 1 21-1/4 1-1/8 16 5-3/4 5-1/4 4-1/2 176 94 141 128
18 1-1/8 22-3/4 1-1/4 16 6-1/4 5-3/4 4-3/4 214 120 153 146
20 1-1/8 25 1-1/4 20 6-1/2 6 5-1/4 284 155 188 185
24 1-1/4 29-1/2 1-3/8 20 7-1/4 6-3/4 5-3/4 398 210 270 260

Buy fromASME B16.5 Class 150 Welding Neck Flange manufacturer in India for factory price

Exporter of hydro-tested ANSI B16.5 Class 150 Flange in India and View Pressure Rating 150 Lb Blind Flange

150 Lb Weld Neck Flang Pressure Rating

Temperature (in F°) 600# 150# 1500# 300# 900# 400# 2500#
< 100 1480 285 3705 740 2220 985 6170
200 1360 260 3395 680 2035 905 5655
300 1310 230 3270 655 1965 870 5450
400 1265 200 3170 635 1900 845 5280
500 1205 170 3015 605 1810 805 5025
600 1135 140 2840 570 1705 755 4730
650 1100 125 2745 550 1650 730 4575
700 1060 110 2655 530 1590 710 4425
750 1015 95 2535 505 1520 675 4230
800 825 80 2055 410 1235 550 3430
850 640 65 1595 320 955 425 2655
900 460 50 1150 230 690 305 1915
950 275 35 685 135 410 185 1145
1000 170 20 430 85 255 115 715
Hydrostatic Test Pressure (psig) 2225 450 5575 1125 3350 1500 9275

Price stability can be seen in ASME CL150 Slip On Flange manufacturer in India

Class 150 Rtj Flange Thickness

Nominal
Pipe
Size		 "B"
(Thk.)		 "A"
(O.D.)		 "D"
(B.C.D.)		 "C"
(RF Dia.)		 Dia. of
Bolt Holes		 # Bolt
Holes		 Approx.
Weight
1/2" 7/16 3-1/2 2-3/8 1-3/8 5/8 4 2
3/4" 1/2 3-7/8 2-3/4 1-11/16 5/8 4 2
1" 9/16 4-1/4 3-1/8 2 5/8 4 2
1-1/4" 5/8 4-5/8 3-1/2 2-1/2 5/8 4 3
1-1/2" 11/16 5 3-7/8 2-7/8 5/8 4 3
2" 3/4 6 4-3/4 3-5/8 3/4 4 4
2-1/2" 7/8 7 5-1/2 4-1/8 3/4 4 7
3" 15/16 7-1/2 6 5 3/4 4 9
3-1/2" 15/16 8-1/2 7 5-1/2 3/4 8 13
4" 15/16 9 7-1/2 6-3/16 3/4 8 17
5" 15/16 10 8-1/2 7-5/16 7/8 8 20
6" 1 11 9-1/2 8-1/2 7/8 8 27
8" 1-1/8 13-1/2 11-3/4 10-5/8 7/8 8 47
10" 1-3/16 16 14-1/4 12-3/4 1 12 67
12" 1-1/4 19 17 15 1 12 123
14" 1-3/8 21 18-3/4 16-1/4 1-1/8 12 139
16" 1-7/16 23-1/2 21-1/4 18-1/2 1-1/8 16 187
18" 1-9/16 25 22-3/4 21 1-1/4 16 217
20" 1-11/16 27-1/2 25 23 1-1/4 20 283
24" 1-7/8 32 29-1/2 27-1/4 1-3/8 20 415
1/16" raised face included in flange thickness.
Class 150 Flange Material stockist and distributor in Mumbai and Check Chart of 150 Lb Threaded Flange

150 Lb Threaded Flange Bolt Chart

150 LB. Flanges
Nominal Pipe Size Dia of Bolts or Studs # Bolts or Studs Length of Stud
1/16 RF RTJ
1/2 0.50 4 2-1/4 -
3/4 0.50 4 2-1/2 -
1 0.50 4 2-1/2 3
1-1/4 0.50 4 2-3/4 3-1/4
1-1/2 0.50 4 2-3/4 3-1/4
2 0.63 4 3-1/4 3-3/4
2-1/2 0.63 4 3-1/2 4
3 0.63 4 3-1/2 4
3-1/2 0.63 8 3-1/2 4
4 0.63 8 3-1/2 4
5 0.75 8 3-3/4 4-1/4
6 0.75 8 4 4-1/2
8 0.75 8 4-1/4 4-3/4
10 0.88 12 4-1/2 5
12 0.88 12 4-3/4 5-1/4
14 1.00 12 5-1/4 5-3/4
16 1.00 16 5-1/4 5-3/4
18 1.13 16 5-3/4 6-1/4
20 1.13 20 6-1/4 6-3/4
24 1.25 20 6-3/4 7-1/4

Manufacturer Of ASME CL150 Flanges And ASME 150 Weld Neck Flanges In Female, Flat, Groove, RTJ, RJ, Tongue, Male, Raised Face

ANSI B16.5 Class 150 Flange Weight Chart

CLASS Nominal Pipe Size Lap Joint Slip On Blind Threaded Weld Neck Socket Weld
150 lb ½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 3 2
1¼ 3 3 3 3 3 3
1½ 3 3 4 3 4 3
2 5 5 5 5 6 5
2½ 8 8 7 8 10 8
3 9 9 9 9 11.5 9
3½ 11 11 13 12 12 11
4 13 13 17 13 16.5 13
5 15 15 20 15 21 15
6 19 19 27 19 26 19
8 30 30 47 30 42 30
10 43 43 70 43 54 43
12 64 64 123 64 88 64
14 105 90 140 90 114 90
16 140 106 180 98 140 98
18 160 130 220 130 165 130
20 195 165 285 165 197 165
22 245 185 355 185 225 185
24 275 220 430 220 268 220
View Size chart of Class 150 Orifice Flange, and 150 Lb Slip On Flange supplier and manufacturer in India

Class 150 Flat Face Flange Size

Nominal Pipe Size
NPS
 150 Class
No.
of
Bolts		 Dia. of
Flange
(inche)		 Dia. of
Bolt Holes
(inche)		 Diameter of
Bolts
(inche)		 Bolt
Circle
(inche)
1/4 4 3-3/8 0.62 1/2 2-1/4
1/2 4 3-1/2 0.62 1/2 2-3/8
3/4 4 3-7/8 0.62 1/2 2-3/4
1 4 4-1/4 0.62 1/2 3-1/8
1-1/4 4 4-5/8 0.62 1/2 3-1/2
1-1/2 4 5 0.62 1/2 3-7/8
2 4 6 0.75 5/8 4-3/4
2-1/2 4 7 0.75 5/8 5-1/2
3 4 7-1/2 0.75 5/8 6
3-1/2 8 8-1/2 0.75 5/8 7
4 8 9 0.75 5/8 7-1/2
5 8 10 0.88 3/4 8-1/2
6 8 11 0.88 3/4 9-1/2
8 8 13-1/2 0.88 3/4 11-3/4
10 12 16 1 7/8 14-1/4
12 12 19 1 7/8 17
14 12 21 1.12 1 18-3/4
16 16 23-1/2 1.12 1 21-1/4
18 16 25 1.25 1-1/8 22-3/4
20 20 27-1/2 1.25 1-1/8 25
24 20 32 1.38 1-1/4 29-1/2

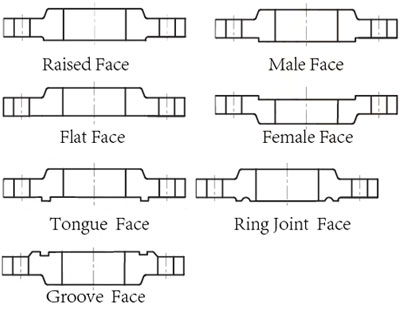

ANSI B16.5 Class 150 Flange Face

  • Flat Face
  • Raised Face
  • Male Face
  • Ring Joint Face
  • Tongue Face
  • Groove Face
  • Female Face
ANSI B16.5 Class 150 Flange Face

ANSI B16.5 FLANGE PRESSURE RATING
  • ANSI B16.5 Class 150
 ANSI B16.5 FLANGE SIZE
  • DN15 - DN2000
  • 1/2 inch to 24 inch
  • Tolerance
ANSI B16.5 MATERIAL(ASTM STANDARD)
  • ASTM A105
  • ASTM A181
  • ASTM A182
  • ASTM A350
 ANSI B16.5 FLANGE APP. WEIGHT AND BOLT AND STUN DIMENSION
  • ANSI B16.5 Flange - APP. Weight
  • ANSI B16.5 Flange - Bolt and Stun Dimension
  • ANSI B16.5 Flange - Surface treatment

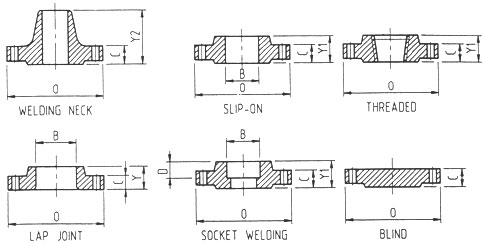

Dimensions of Class 150 RF Flanges - ASME B16.5

Dimensions of Class 150 RF Flanges - ASME B16.5


Nom Size
Inches		 B O D C Y2 Y BCD Y1 No. of
Bolt holes
1/2 22 89 10 11 48 16 61 16 4
3/4 28 98 11 13 52 16 70 16 4
1 35 108 13 14 56 18 79 18 4
1 1/4 43 118 14 16 57 21 89 21 4
1 1/2 50 127 16 18 62 22 99 22 4
2 62 152 18 19 64 25 121 25 4
2 1/2 75 178 19 22 70 29 140 29 4
3 91 191 21 24 70 30 152 30 4
3 1/2 103 216   24 71 32 178 32 8
4 116 229   24 76 33 191 33 8
5 144 254   24 89 37 216 37 8
6 171 279   25 89 40 241 40 8
8 222 343   28 102 45 298 45 8
10 276 406   30 102 49 362 49 12
12 327 483   32 114 56 432 56 12
14 359 533   35 127 79 476 57 12
16 411 597   37 127 87 540 64 16
18 462 635   40 140 97 578 68 16
20 513 699   43 145 103 635 73 20
24 616 813   48 152 111 749 83 20
