What Is Carbon Steel Flanges?
Carbon Steel Flanges are made up of a high carbon concentration, giving them enhanced strength and performance. Some alloys are also added within these flanges to diversify their properties. These flanges can combine a range of piping equipment securely. The flanges within this grade can be availed in low, medium, high, and ultra-high carbon concentrations. Higher the carbon concentration better the strength and corrosion resistance. The versatile features make carbon the most utilized material within the piping industry.
Difference Between ASTM A105 Blind Flange And ASTM A350 Lf2 Flanges
ASTM A105 Blind Flange and ASTM 350 Lf2 Flanges are versatile components of the carbon grade. These flanges can be differentiated based on some basic characteristics. An Lf2 flange is generally welded and possesses good impact resistance. Blind flanges don’t possess a face and are bolted directly to the piping components. They are employed to terminate the flow of high-pressure fluids and gases within the system.
ASME SA105 Slip On Flange Oil And Gas Application
ASME SA105 Slip On Flanges is amongst the most common flanges used within this grade. These cost-effective flanges are a preferred choice in low-pressure systems in different oil and gas systems. Their easy installation further testifies to why they are preferred across this industry. Slip on flanges are generally utilized for process lines for the oil and gas industry. Apart from this, they can also be seen in firefighting systems and cooling water lines in onshore or offshore refining or production systems.
Cs Weld Neck Flange Features
Some of the features of weld neck flanges include
ASTM A694 F65 Lap Joint Flange Characteristics
ASTM A694 F65 Lap Joint Flange is a versatile component. Some of the characteristics of this flange include.
ASME SA694 F60 Socket Weld Flange Vs ASTM A694 F52 Raised Face Flange
Flanges are versatile components that can be characterized by their strengths, face type, corrosion resistance, and so on.
Table of Content
ASTM A105 Flanges Chemical Composition
Elements | Composition, % |
---|---|
Carbon [C] | ≤0.35 |
Manganese [Mn] | 0.60-1.05 |
Phosphorus [P] | ≤0.35 |
Sulfur [S] | ≤0.40 |
Silicon [Si] | 0.10-0.35 |
Copper [Cu] | ≤0.40 |
Nickel [Ni] | ≤0.40 |
Chromium [Cr] | ≤0.30 |
Molybdenum [Mo] | ≤0.12 |
Vanadium [V] | ≤0.08 |
Carbon Steel Blind Flange Mechanical Composition
Tensile Strength min. | Yield Strength min. | Elongation min. | Reduction of Area, min. | Hardness | ||
---|---|---|---|---|---|---|
MPa | ksi | MPa | ksi | % | % | HBW |
485 | 70 | 250 | 36 | 22 | 30 | 137-187 |
Carbon Steel Flanges Price List
Description | Price in Saudi Riyal | Price in India | Price in UAE Dirham |
---|---|---|---|
1/2" Asme Sa105 Socket Weld Flange | SAR 22.16 | INR 420.75 | AED 21.69 |
ANSI B16.5 150# SORF Slip on Raised Face 24" A105 Carbon Steel Flange | SAR 20.97 | INR 398.12 | AED 20.53 |
ANSI B 16.5 Class 300 CS Lap Joint Flange | SAR 27.00 | INR 512.65 | AED 26.43 |
A105n Threaded Flange | SAR 36.30 | INR 680.32 | AED 34.54 |
Physical Properties Of Carbon Steel Plate Flanges
Density (lb / cu. in.) | 0.284 |
Specific Gravity | 7.9 |
Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) | 0.107 |
Melting Point (Deg F) | 2740 |
Thermal Conductivity | 360 |
Mean Coeff Thermal Expansion | 6.7 |
Modulus of Elasticity Tension | 30 |
Modulus of Elasticity Torsion | 11 |
Carbon Steel Flange Material Specification
Specifications | ASME SA182/ ASTM A182 |
---|---|
ADNOC Approved Manufacturer Of Standards |
|
CS Flange Standard EN |
|
Low Temp Carbon Steel Flanges Standard JIS |
|
CS Flanges Standard DIN |
|
Plain Carbon Steel Flanges Standard ANSI |
|
Steel Low Carbon Flanges Standard UNI |
|
Low CS Flange supporting material | Ring Joint, Gasket, Flange Bolts |
Medium Carbon Steel Pipe Flanges Test Certificates | Raw Materials Certificate EN 10204/3.1B Third Party Inspection Report, 100% Radiography Test Report etc |
ASME B16.5 Steel High Carbon Flange size range | 1/2" (15 Nominal Bore) to 48" (1200 Nominal Bore) DN10~DN5000 |
Quenching Carbon Steel Flanges Production technique |
|
Manufacturer of | Galvanized CS Threaded / Forged / Plate / Screwed Flange |
Most common types of Low Temp Carbon Steel Flanges |
|
Normalized Carbon Steel Flange Test | Direct-reading Spectrograph, X-ray detector, UI trasonic flaw detector, Hydrostatic testing machine, Magnetic particle detector |
Equipment for Nace Mr0175 Carbon Steel Flange | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
Specialized manufacturer of |
|
Special manufacturing design of Carbon Steel Flanges | 15 NB (1/2 Inch) to 200 NB (8 Inch) |
Specialized manufacturer of |
|
Carbon Steel Grade Flange Origin | Indian / Japan / USA / West Europe / Korean (Strictly No china Plain Carbon Steel material) |
Carbon Steel Flanges Standard |
|
Material Test Certificates (MTC) as per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
Carbon Steel Flange Dimensions
Nominal Pipe Sizeing Chart | Flanges Inside Dia (ID) (inch) | Flanges Outside Dia (OD) (inches) | ||||
Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | ||
4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
Nominal Pipe Size | Flanges Inside Diameter (ID) (inch) | Flanges Outside Diameter (OD) (inches) | ||||
Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | ||
1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
PED Certified Cs Blind Flange Manufacturers in Mumbai, India, Sizes Of Carbon Steel Plate Flanges In MM.
ASTM A350 Carbon Steel Flange Ratings
Black Carbon Steel Flanges ratings as per ASME/ASTM B16.36 – B16.5 – B16.48
Quenching Carbon Steel Pipe Flanges pressure rating as per DIN – EN1759-1 – EN1092-1 – NFE – ISO7005-1 - BS10/BS4504
NPS | DN |
---|---|
2 | 50 |
1/2 | 15 |
1 1/4 | 32 |
1 1/2 | 40 |
4 | 100 |
3/4 | 20 |
3 | 80 |
2 1/2 | 65 |
1 | 25 |
ASTM A105 Flange Standard
EN TYPE | ASME B16.5 Carbon Steel Flanges | DIN |
---|---|---|
EN-TYPE 14 | SW – Socket Weld | |
EN-TYPE 13 | THR – Threaded | DIN 2566 |
EN-TYPE 21 | LWN – Long Welding Neck / Integral | |
EN-TYPE 32/34 | Welding Collars | |
EN-TYPE 11 | WN – Welding Neck | DIN 2631 DIN 2632 DIN 2633 DIN 2634 DIN 2635 |
EN-TYPE 05 | BL – Blind | DIN 2527 |
EN-TYPE 01/12 | SO – Slip On | |
EN-TYPE 02/04 | LJ – Lap Joint | DIN 2641 DIN 2642 DIN 2655 DIN 2656 |
Flat Flange for Welding | DIN 2573 DIN 2576 | |
Lap Joint Short Stub End | DIN 2673 |
A105n Carbon Steel Slip On Flanges Pressure Class
ASME/ANSI B 16.36 | Low Temp Carbon Steel Threaded Flanges, Welding Neck Flanges, Slip on Flanges (SORF) |
PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
ASME/ANSI B 16.5 | Low Carbon Steel Welding Neck Flanges, Socket Weld Flanges, Slip on Flanges, Blind Flanges, Lap Joint Flanges, Threaded Flanges, High Hub Blind Flanges, Ring Type Joint Flanges |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
BS 4504 SEC 3.1 | Quenching Low Carbon Steel Hubbed Threaded Flanges, Welding Neck Flanges, Blank Flanges, Hubbed Slip on Flanges, Lapped Pipe End Flanges, Plate Flanges, Loose Plate Flanges, Loose Plate With Weld Neck Flanges |
PRESSURE CLASS | PN 2.5 TO PN 40 |
BS 1560 BOSS | Steel High Carbon Slip-On Flanges, Welding Neck Flanges, Socket Welding Flanges, Blind Flanges, Lapped Flanges, Screwed Boss Flanges |
ASME/ANSI B 16.47 | Plain Carbon Steel Weld Neck Flanges, Blind Flange [Series A & B] |
PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673 |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
BS10 | Galvanized Carbon Steel Blind Flanges, Welding Neck Flanges, Plate Slip-On Flanges, Screwed Boss Flanges, Slip-On Boss Flanges |
TABLE | D, E, F, H |
PRESSURE CLASS | PN 6 TO PN 100 |
BS 4504[PART 1] | Killed Carbon Steel Loose Plate With Weld On Plate Collar, Welding Neck Flanges, Hubbed Slip-On Hubbed Threaded, Plate Flanges, Blank Flanges |
PRESSURE CLASS | PN 2.5 TO PN 400 |
Types Of Sa105 Carbon Steel Flange
Refers To Mild Steel Or Low Carbon Steel Pipe Flanges
Other Types Of Carbon Steel Pipe Flanges

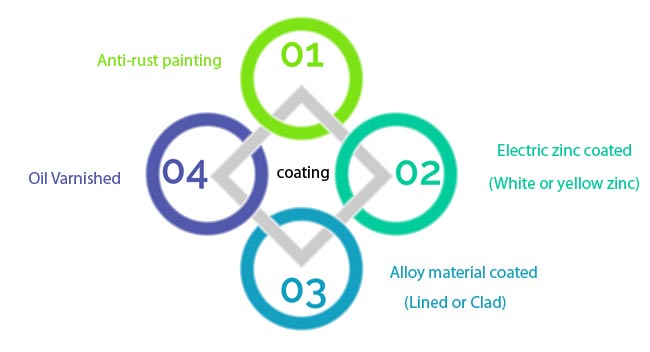

Carbon Steel Weld Neck Flanges Coating
Well-known Carbon Steel Flanges Manufacturers in India. For final Cs Flange Price List Please Call on +91 22 6636 3099.
ASTM A350 Lf2 Flanges Standards
ANSI B 16.5, ANSI B16.45, JIS B2220, DIN2633, ASME, ASTM, JIS , DIN , EN, etc.
Buy Carbon Steel Flanges Directly From Largest Manufacturers In Mumbai, Check Dimension Chart Of Astm A350 Carbon Steel Flange
ASTM A105 Blind Flange Dimensions
ø | D | b | g | k | Holes | l | Kg. |
---|---|---|---|---|---|---|---|
1/2" | 88,9 | 11,1 | 34,9 | 60,3 | 4 | 15,9 | 0,400 |
3/4" | 98,4 | 12,7 | 42,9 | 69,8 | 4 | 15,9 | 0,700 |
1" | 107,9 | 14,3 | 50,8 | 79,4 | 4 | 15,9 | 0,900 |
1 1/4" | 117,5 | 15,9 | 63,5 | 88,9 | 4 | 15,9 | 1,300 |
1 1/2" | 127,0 | 17,5 | 73,0 | 98,4 | 4 | 15,9 | 1,600 |
2" | 152,4 | 19,0 | 92,1 | 120,6 | 4 | 19,0 | 2,600 |
2 1/2" | 177,8 | 22,2 | 104,8 | 139,4 | 4 | 19,0 | 4,100 |
3" | 190,5 | 23,8 | 127,0 | 152,4 | 4 | 19,0 | 5,000 |
3 1/2" | 215,9 | 23,8 | 139,7 | 177,8 | 8 | 19,0 | 6,400 |
4" | 228,6 | 23,8 | 157,2 | 190,5 | 8 | 19,0 | 7,100 |
5" | 254,0 | 23,8 | 185,7 | 215,9 | 8 | 22,2 | 9,000 |
6" | 279,4 | 25,4 | 215,9 | 241,3 | 8 | 22,2 | 11,800 |
8" | 342,9 | 28,6 | 269,9 | 298,4 | 8 | 22,2 | 21,000 |
10" | 406,4 | 30,2 | 323,4 | 361,9 | 12 | 25,4 | 30,000 |
12" | 482,6 | 31,7 | 381,0 | 431,8 | 12 | 25,4 | 45,000 |
14" | 533,4 | 34,9 | 412,7 | 476,2 | 12 | 28,6 | 59,000 |
16" | 596,9 | 36,5 | 469,9 | 539,9 | 16 | 28,6 | 79,000 |
18" | 635,0 | 39,7 | 533,4 | 577,8 | 16 | 31,7 | 97,000 |
20" | 698,5 | 42,9 | 584,2 | 635,0 | 20 | 31,7 | 124,000 |
22" | 749,3 | 46,0 | 641,2 | 692,1 | 20 | 34,9 | 151,000 |
24" | 812,8 | 47,6 | 692,1 | 749,3 | 20 | 34,9 | 188,000 |
CS Lap Joint Flange Prices
Description | Aprox. Wt/Unit | Size | FOB INR | FOB USD | CIF INR | CIF EURO$ | CIF USD | CIF STGP | FOB STGP | FOB EURO$ |
---|---|---|---|---|---|---|---|---|---|---|
SORF FLANGES ASTM A105 B16.5 150# Price | 0.49 | 15mm | 90.05 | 1.364 | 97.88 | 1.780 | 1.483 | 0.999 | 0.919 | 1.637 |
0.61 | 20mm | 108.68 | 1.647 | 118.13 | 2.148 | 1.790 | 1.205 | 1.109 | 1.976 | |
0.90 | 25mm | 122.65 | 1.858 | 133.31 | 2.424 | 2.020 | 1.360 | 1.252 | 2.230 | |
1.13 | 32mm | 178.54 | 2.705 | 194.06 | 3.528 | 2.940 | 1.980 | 1.822 | 3.246 | |
1.48 | 40mm | 189.41 | 2.870 | 205.88 | 3.743 | 3.119 | 2.101 | 1.933 | 3.444 | |
2.37 | 50mm | 248.40 | 3.764 | 270.00 | 4.909 | 4.091 | 2.755 | 2.535 | 4.516 | |
3.60 | 65mm | 457.99 | 6.939 | 497.81 | 9.051 | 7.543 | 5.080 | 4.673 | 8.327 | |
4.10 | 80MM | 481.28 | 7.292 | 523.13 | 9.511 | 7.926 | 5.338 | 4.911 | 8.750 | |
6.04 | 100mm | 659.81 | 9.997 | 717.19 | 13.040 | 10.866 | 7.318 | 6.733 | 11.997 | |
6.53 | 125mm | 884.93 | 13.408 | 961.88 | 17.489 | 14.574 | 9.815 | 9.030 | 16.090 | |
7.78 | 150mm | 1161.27 | 17.595 | 1262.25 | 22.950 | 19.125 | 12.880 | 11.850 | 21.114 | |
12.98 | 200mm | 1637.89 | 24.816 | 1780.31 | 32.369 | 26.974 | 18.166 | 16.713 | 29.780 | |
17.96 | 250mm | 2716.88 | 41.165 | 2953.13 | 53.693 | 44.744 | 30.134 | 27.723 | 49.398 | |
29.06 | 300mm | 3958.88 | 59.983 | 4303.13 | 78.239 | 65.199 | 43.909 | 40.397 | 71.980 | |
36.96 | 350mm | 6210.00 | 94.091 | 6750.00 | 122.727 | 102.273 | 68.878 | 63.367 | 112.909 | |
47.28 | 400mm | 8694.00 | 131.727 | 9450.00 | 171.818 | 143.182 | 96.429 | 88.714 | 158.073 | |
52.20 | 450mm | 9315.00 | 141.136 | 10125.00 | 184.091 | 153.409 | 103.316 | 95.051 | 169.364 | |
68.78 | 500mm | 12420.00 | 188.182 | 13500.00 | 245.455 | 204.545 | 137.755 | 126.735 | 225.818 | |
95.03 | 600mm | 18630.00 | 282.273 | 20250.00 | 368.182 | 306.818 | 206.633 | 190.102 | 338.727 |
Product Range Of ASTM A694 F52 Flanges
Product Form | Standards |
---|---|
Boiler & Pressure Vessel | ASME Section IX |
Forged Fittings | ASME B16.11, BS 3799, MSS SP 83, MSS SP 95, MSS SP 97, GB/T14383, GB/T14626 |
Valve & Valve Parts | API 600, ASME B16.34, API 602 |
Forged Flanges | MSS SP 44, ASME B16.5, ASME B16.47, EN 1092-1, NORSOK L-005, ASME B16.36, BS 4504, ASME B16.48 |
CS Flanges Manufacturers In India |
Carbon Steel Flange Hs Code
Hs Code | Description | No of Shipments |
---|---|---|
73079190 | Other | 1804 |
7307 | Pipe Or Tube Fittings ( Elbows, Couplings, Sleeves), Of Iron Or Steel | |
73072100 | Flanges | 96 |
Carbon Steel Threaded Flange Application
Check Gasket Size Chart Of A105n Carbon Steel Slip On Flanges And Carbon Steel Pipe Flanges Supplier & Manufacturers In Mumbai, India.
A105n Flange Test Certificate
Carbon Steel Flange Torque Values
Size in Inches | Size in millimeter | Max. Radial Projection of Imperfections that are | |
---|---|---|---|
No Deeper Than the Bottom of the Serrations, millimeter | Deeper Than the Bottom of the Serrations, millimeter | ||
1/2 | 15 | 3.0 | 1.5 |
3/4 | 20 | 3.0 | 1.5 |
1 | 25 | 3.0 | 1.5 |
1 1/4 | 32 | 3.0 | 1.5 |
1 1/2 | 40 | 3.0 | 1.5 |
2 | 50 | 3.0 | 1.5 |
2 1/2 | 65 | 3.0 | 1.5 |
3 | 80 | 4.5 | 1.5 |
3 1/2 | 90 | 6.0 | 3.0 |
4 | 100 | 6.0 | 3.0 |
5 | 125 | 6.0 | 3.0 |
6 | 150 | 6.0 | 3.0 |
8 | 200 | 8.0 | 4.5 |
10 | 250 | 8.0 | 4.5 |
12 | 300 | 8.0 | 4.5 |
14 | 350 | 8.0 | 4.5 |
16 | 400 | 10.0 | 4.5 |
18 | 450 | 12.0 | 6.0 |
20 | 500 | 12.0 | 6.0 |
24 | 600 | 12.0 | 6.0 |
A Global supplier
Do You Know Who Are The Best Buyers Of ASTM A105 Blind Flange
Carbon Steel Flanges Manufacturers in India
ASTM A350 LF2 Flanges
Spain, Bangladesh, Argentina, China, Greece, Jordan, South Africa, Taiwan, Indonesia, South Africa, South Korea, Qatar, Russia, Italy, Netherlands, Canada, Germany, New Zealand, Malaysia, Norway, Denmark Ellington -United States, Los Alamos -Mexico, Hong Kong, Belgium, United Kingdom (UK), Jakarta, Singapore, Dubai- UAE, Oman, Sweden, NY 12203 (USA), Istanbul- Turkey, Finland
SA105 Socket Weld Flange
Nigeria, Bahrain, Malaysia, Japan, Saudi Arabia (KSA), Dammam -KSA, Colombia, Czechia, Kuwait, Morocco, Brazil, Egypt, Peru, Iran, Thailand, Austria, Dubai, Malaysia, Portugal, United States, Turkey, Mexico, Chile, Australia, Romania, Singapore, Vietnam, Philippines, Poland, Tehran -Iran, United Arab Emirates (UAE), France, USA, Kuala Lumpur, Jakarta -Indonesia, Europe
