ASTM A106 Grade B Pipe, Carbon Steel Seamless/ Erw Pipe Supplier India

What is Carbon Steel Pipe?

A carbon steel pipe is a piping component that has a carbon concentration between 0.05 to 2.1 percent in weight. These pipes have a low melting point with excellent durability in comparison to standard stainless steel grade pipes. These pipes have high tensile strength and hardness. However, these pipes may be prone to corrosion if not treated and maintained properly in corrosive systems. The pipes in this grade can be availed as low/mild carbon, medium carbon, and high carbon steel modules.

Difference Between ASTM A106 Grade B Carbon Steel Pipe and ASTM A53 Grade b ERW Pipe

Carbon steel is a versatile grade that has a mixture of carbon and iron in its concentration. Erw is one of the methods used in processing different types of pipes. The major difference between both these components is that the ASTM A106 Grade B Carbon Steel Pipe can be produced either by seamless or welded manufacturing processes. ASTM A53 Grade b ERW Pipe is cold rolled and then welded longitudinally.

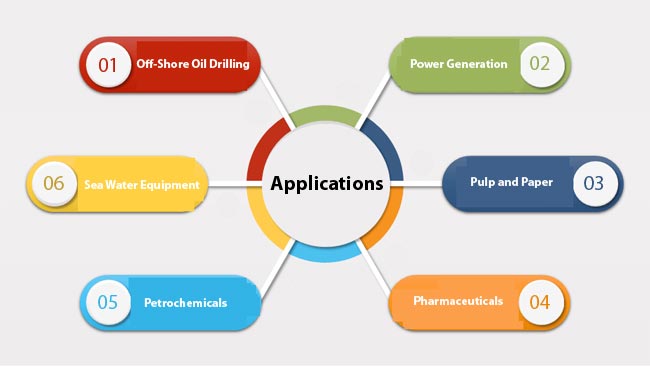

ASME SA106 GRB Material Application

The ASME SA106 group B material is utilized in applications that have high temperatures and pressures. The grade of material is widely used in several industries that include:

Construction of oil and gas refineries
Power plants and petrochemical plants
Pipeline systems
Structural applications
Boilers and ships for transporting fluids and gases across a range of temperatures and pressures.

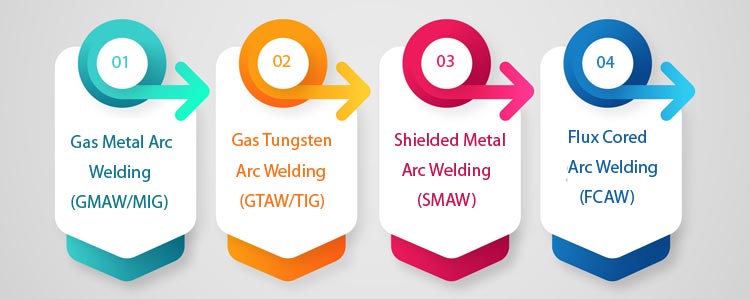

ASTM A333 Grade 6 Pipe Welding Process

ASTM A333 Grade 6 Pipe is used for low-temperature services of below -45 degrees C. The welding process used in welding these pipes is fusion welding. In the fusion welding process, heat is utilized to join pipes within the system by heating them to reach their melting point. They may require the use of filler material. If the temperatures are low, then the cold fusion welding process can be employed which, is a solid-state welding process that requires no heat or fusion to function effectively.

Carbon Steel Seamless Pipe vs Schedule 40 Carbon Steel Welded Pipe

Carbon Steel Seamless and Schedule 40 Carbon Steel Welded Pipe can be differentiated based on various factors. Some of these factors are based below

Scheduled 40 welded carbon pipes are rolled and welded in place. Seamless pipes are manufactured by passing hot steel billets until they are in the correct shape.
Seamless pipes have a higher working range and pressure handling capacity in comparison to sch 40 carbon welded pipes.
Welded pipes are cheaper and require less processing in comparison to carbon seamless pipes.
Carbon seamless pipes are available in select few sizes but, welded carbon pipes are available in different sizes.

CS SMLS Pipe Benefits

CS SMLS pipes are used every day applications involving buildings, automobiles, and machines. These pipes offer benefits that subside other components. Some of these benefits include

Excellent reliability and safety: Carbon steel seamless pipes are some of the most reliable and safest pipes in the industry. These pipes perform exceptionally well in underground systems resisting pests and rotting. The steel grade is non-combustible, making it prone to fires making it ideal for building homes.
Structural stability: These pipes can be utilized in an array of applications and provide the utmost stability. They can be shaped in different shapes and sizes to support heavy loads.
Cost-effective: Pipes in this range are cheaper in the short as well as the long run.

Carbon Steel Seamless Pipe And ASTM A53 Grade B Erw Pipe Supplier In India

Table of Content

Carbon Steel Pipe Pressure Rating Chart
Carbon Steel Pipe Price List
Chemical Composition Of ASTM A106 Grade B Carbon Steel Pipe
ASTM A53 Grade B Pipe Yield Strength
Carbon Steel Pipe Manufacturing Process
CS Pipe Price List
ASTM A106 Grade B Seamless Pipe Thickness
Carbon Steel Pipe Weight Chart
Carbon Steel Tubing Specifications
Carbon Steel Seamless Pipe British Standard
Difference Between Carbon Steel Pipe And Stainless Steel Pipe
Types Of ASTM A333 Grade 6 Pipe
Carbon Steel Tube Grades
CS Smls Pipe Din Standard

Carbon Steel Tube Sizes
Tolerance Chart of Carbon Steel ERW Pipe
Ltcs Pipe Standard
Uses Of ASTM A106 Grade B ERW Pipe
Carbon Steel Pipes Packaging
Carbon Steel Pipe Hs Code
Carbon Steel Tube Material Coating
What Are The Differences Between A106 And A53?
Testing Of CS Pipe Material
CS Seamless Tube Services
Carbon Steel Seamless Pipe Melting
ASTM A53 Grade B ERW Pipe Marking
ASTM A333 Grade 6 Seamless Pipe Welding Procedure
Density Of ASTM A333 Gr 6 Pipe
CS Tubing Thermal Conductivity
A333 Gr 6 Pipe Features

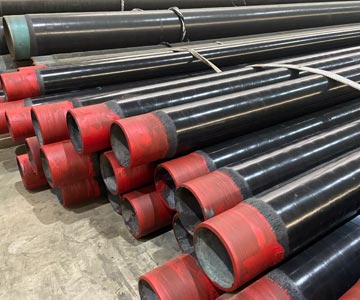

ASTM A106 Grade B Carbon Steel Pipe

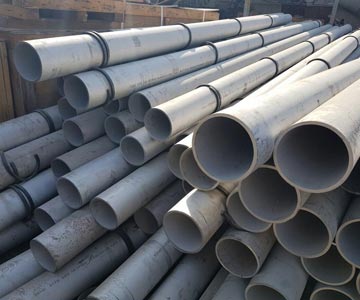

Carbon Steel Pipe

ASTM A333 Grade 6 Pipe Stockist In Mumbai Of Leading Manufacturers Of Cs Smls And Welded Pipe

Carbon Steel Tube Manufacturers In India, We provide CS ERW Pipe with instant delivery, ASTM A333 Gr 6 Pipe Pressure Rating.

Carbon Steel Pipe Pressure Rating Chart

NPS	OD	Sch
(inches)	(inches)	10	20	STD	30	XS	40	60	80	100	XXS	120	140	160
3/8	0.675			6606		9147	6606		9147
2	2.375			3177		4498	3177		4498		8995			7097
1/2	0.84			6358		8575	6358		8575		17150			10908
1	1.315			4956		6670	4956		6670		13340			9316
1 1/4	1.66			4133		5638	4133		5638		11276			7380
2 1/2	2.875			3460		4704	3460		4704		9408			6391
3 1/2	4			2769		3896	2769		3896
12	12.75		961	1441	1268	1922	1560	2160	2644	3244	3843	3843	4324	5042
4	4.5			2581		3670	2581		3670		7339	4769		5782
6	6.625			2071		3195	2071		3195		6390	4157		5318
8	8.625		1420	1829	1574	2841	1829	2307	2841	3375	4971	4085	4613	5147
14	14	875	1092	1313	1313	1750	1533	2079	2625	3283		3829	4375	4921
18	18	681	849	1021	1192	1361	1530	2042	2553	3147		3743	4252	4848
20	20	613	919	919	1225	1225	1455	1989	2526	3138		3675	4288	4824
42	42		583	438	729		875
24	24	510	766	766	1147	1021	1405	1978	2489	3126		3700	4210	4786
30	30	510	817	613	1021	817
34	34	450	721	540	901		992

Buy Schedule 40 Carbon Steel Welded Pipe And Asme Sa106 Grb Material At Dealer Price In India

Carbon Steel Pipe List

ASTM A106 Grade B Carbon Steel Seamless Pipe Price List (2022-2023)

Pipe Type	Standard	Grade	Specification					Conditions	FOB Mumbai
			Outer Diameter		Wall Thickness		Length		USD/ TON
			Inch	Milimeter	Schedule	Milimeter	Meter		USD/ TON
ASTM A106 Gr B Sch 40 SMLS Pipe	ASME SA 106	Grade B	1	33.4	SCH40	3.38	6.0	Black	$ 838
A106 Grade B Seamless Pipe	ASTM A106	Gr B	1 1/4	42.2	SCH40	3.56			$ 770
SA 106 Gr B Seamless Pipe	A106	Grb	1 1/2	48.3	SCH40	3.68			$ 777
ASTM A106 Grade B Carbon Steel Seamless Pipes	ASTM A106	Grade B	2	60.3	SCH40	3.91			$ 760
A106 Seamless Pipe	SA 106B	Gr.B	2 1/2	73.0	SCH40	5.16			$ 785
ASTM A106 Gr.B SMLS Pipe	ASME SA 106	Grade B	3	88.9	SCH40	5.49			$ 785
A106b Seamless Pipe	ASTM A106	Gr.B	4	114.3	SCH40	6.02			$ 777
ASTM A106 Grade B Pipe	A106B	Grb	5	141.3	SCH40	6.55			$ 810
ASTM A106 Gr.B Seamless Pipe	SA 106	Grade B	6	168.3	SCH40	7.11			$ 820
SA 106 Gr B Sch 40 Seamless Pipe	ASTM A106	GradeB	8	219.1	SCH40	8.18			$ 730
SA106 Grade B Schedule 40 SMLS Pipe	ASME SA 106	Gr.B	10	273.1	SCH40	9.27			$ 840
A106 gr.b SMLS Pipe	A106	Grb	12	323.9	SCH40	10.31			$ 844
A106 Grade B Samless Line Pipe Material	ASTM A106b	Grade B	14	355.6	SCH40	11.31			$ 853
A106 Gr B SMLS Pipe	SA 106	Gr B	16	406.4	SCH40	12.70			$ 880

Chemical Composition Of ASTM A106 Grade B Carbon Steel Pipe

specification	Grade	Chemical Composition [%]
		C		Mn		P	S	Si		Cr		Mo		Cu	Ni	V
		Min	Max.	Min	Max.	Max.	Max.	Min.	Max	Min.	Max	Min.	Max	Max	Max	Max
ASTM A-106	A B c	- - -	0.25 0.30 0.35	0.27 0.29 0.29	0.93 1.06 1.06	0.035 0.035 0.035	0.035 0.035 0.035	0.10 0.10 0.10	- - -	- - -	0.40 0.40 0.40	- - -	0.15 0.15 0.15	0.40 0.40 0.40	0.40 -	0.08 0.08 0.08

CS Pipe Manufacturers In India, India, Get Free Quote For ASTM A106 grade b pipe, Properties Of CS seamless tubing

ASTM A53 Grade B Pipe Yield Strength

	Grade A	Grade B	Grade C
Tensile strength, min, psi (MPa)	48,000 (330)	60000 (415)	70,000 (485)
Yield strength, min, psi (MPa)	30,000 (205)	35,000 (240)	40,000 (275)

Carbon Steel Pipe Manufacturing Process

Seamless steel pipe production process

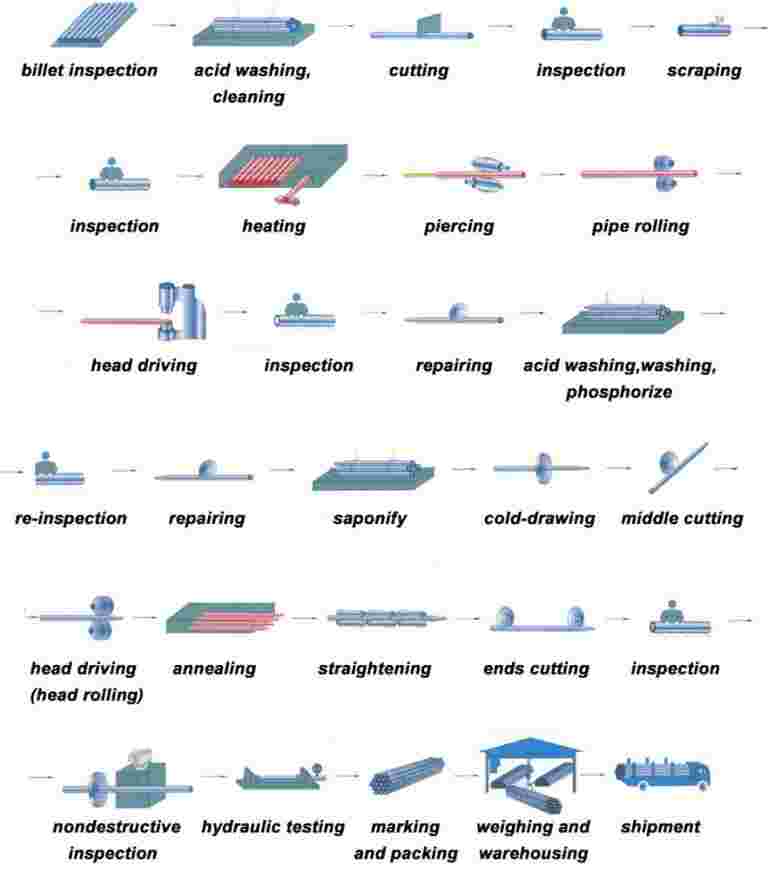

Cold Drawn Seamless Steel Pipe Process

round tube → heating → perforation → Heading → annealing → pickling → oiled (copper) → multi-pass cold drawn (cold rolled) → blank tube → heat treatment → straightening →hydrostatic testing (testing) → mark → storage.

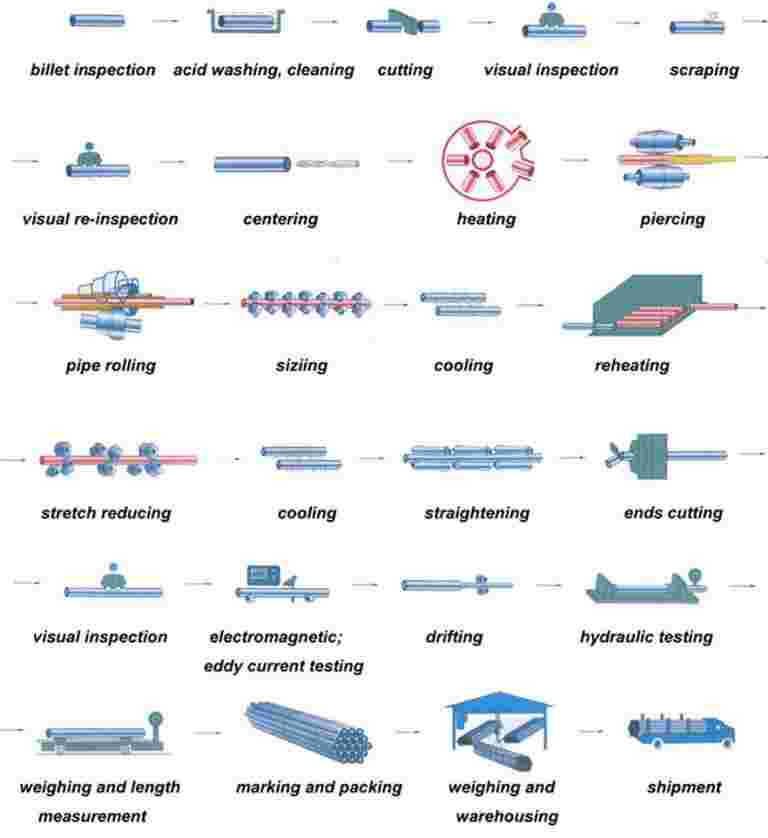

Hot Rolled Seamless Steel Pipe Deformed Process

round tube → heating → perforation → → three-roll rolling, rolling or extrusion → detached → sizing (or reducing) → cooling → straightening hydraulic test (orflaw) → tag → storage.

Check Ltcs Pipe Thickness Chart, Weight Chart And Specifications With Dealer Price List Of Jindal, Ismt And Msl

CS Pipe Price List

Size"	ISMT make	MSL Make	JSL Make
1/2"	1,316.18	1,323.53	1,330.88
3/4"	1,095.59	1,102.94	1,110.29
1"	948.53	955.88	963.24
1.25"	904.41	911.76	919.12
1.5"	801.47	808.82	816.18

carbon steel pipe suppliers in india, Visit our 20mm diameter mirror polished CS Seamless Tubes in India, Call Now to Get ASTM A53 Type E Grade B Pipe Free sample.

ASTM A106 Grade B Seamless Pipe Thickness

Types	Wall thickness	Out diameter	Length
NB Sizes (in stock)	Schedule 5 / 10 / 40 / 80 / 160	1/8” ~ 8”	6m
Carbon Steel Welded Pipes Suppliers(in Stock + Custom Sizes)	1.0 ~ 15.0 mm	5.0mm ~ 1219.2mm	6m
API 5L Carbon Steel Seamless Pipes Suppliers(Custom Sizes)	As per requirement	5.0mm ~ 203.2mm	6m

Carbon Steel Pipe Weight Chart

Nominal	Pipe size	OD mm	Sch STD		Sch 40		Nominal	Pipe size	OD mm	Sch STD		Sch 40
Mm	Inch	Wall	Wt.	Wall	Wt.	100	4	114.3	6.02	16.07	6.02	16.07
3	1/8	10.3	1.73	0.37	1.73	0.357	125	5	141.3	6.6	21.77	6.55	21.77
6	¼	13.7	2.24	0.63	2.24	0.625	150	6	168.3	7.11	28.26	7.11	28.26
10	3/8	17.1	2.31	0.84	2.31	0.84	200	8	219.1	8.2	42.5	8.2	42.5
15	½	21.3	2.77	1.26	2.77	1.26	250	10	273	9.27	60.3	9.27	60.3
20	¾	26.7	2.87	1.69	2.87	1.68	300	12	323.9	9.53	73.8	10.3	79.7
25	1	33.4	3.38	2.5	3.38	2.5	350	14	355.6	9.53	81.3	11.13	94.3
32	1 1/4	42.2	3.56	3.39	3.56	3.38	400	16	406.4	9.53	93.3	12.7	123
40	1 1/2	48.3	3.68	4.05	3.68	4.05	450	18	457.2	9.53	105	14.3	156
50	2	60.3	3.9	5.44	3.9	5.44	500	20	508	9.53	177.2	15.1	183
65	2 1/2	73	5.2	8.63	5.16	8.63	550	22	558.8	9.53	129
80	3	88.9	5.5	11.3	5.5	11.3	600	24	609.6	9.53	141	17.4	255
90	31/2	1.6	5.74	13.57	5.74	13.57	Seamless Sch 40 Pipe/Seamless Pipe

Carbon Steel Tubing Specifications

Common Standard	ASTM A53, A106, API 5L, ASME B36.10 DIN1626, DIN1629, DIN17175, JIS G3454, JIS G3456, JIS G3461, EN10216-1, EN 10208
Available Material	A53B, A106B, API 5L B, X42 to X80, Q235 ST37.0, ST35.8, St37.2, St35.4/8, St42, St45, St52, St52.4STP G38, STP G42, STPT42, STB42, STS42, STPT49 material supplier in India
Codes and Standards	ANSI, ASME, ASTM, API, SAE, BS, AGA, AWWA, ISO, DIN
Dimensions	ASME/ ANSI B36.10 / 19
Standard Size	1/2” NB to 36” NB (LSAW, SSAW, HSAW) / (DN15- DN900)
Wall Thickness	3-12mm
Pipe schedules	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS Supplier
Producing techniques	Seamless / ERW / Welded / Fabricated / CDW / EFW
Available Shapes	Round, Half Round, Square, Rectangular or Custom shape CS Pipes manufacturer and supplier
Length	3 to Max18 Meters or custom
Surface Finishe	Epoxy, Varnish, Black painting, FBE, 3PE, etc.
Pipe End	Beveled End, Plain End, Treaded
Test Certificate provided by supplier	EN 10204 3.1 B
Uses & Application	Suitable for transportation of gas, water & oil under high temp & pressure.
Pipe Marking	All Carbon steel pipe are marked as follows: Supplier or Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Carbon Steel Tubing Suppliers In India

Carbon Steel Precision Steel Pipe

Type	Seamless Tube / Pipe
Size Range	Outside Diameter: 6-114milimeter
Uses	Mechanical Structures, Automative Parts, Hydraulic Equipment
Wall Thickness:	0.5-10milimeter
Standard	ST35, EN 10305, ST37, ST52, ST45, DIN 2445, DIN 2391
LENGTH:	5.8/11.8/6/12 Meter
Heat Treatment	GBK(+A), NBK(+N), BK(+C), BKS(+SR), BKW(+LC)

Carbon Steel Boiler Pipe

Type	Seamless
Size	outside Dia: 21.3-71 milimeter
	Application: steam pipeline / superheated , boiling water tube
	Wall thickness: 2.3-40 milimeter
Standard	ASTM A179, ASTM A192, ASTM A209, JIS G3461, ASTM A210, JIS G3462, DIN17175, JIS3463, EN 10216-2
LENGTH:	5.8/11.8/6/12 Meter

Carbon Steel Structural Steel Pipe

Product	Structural Seamless Pipe, Seamless Structural Pipe
Uses	General structure, mechanism Industry
Size Range	OD: 73-630mm
	WT: 6-35mm
	LENGTH: 5.8/6/11.8/12m
Pipe Standard	ASTM A53, ASTM A519, ASTM A500, JIS G3444, DIN1629, EN 10210/ 10219

Carbon Steel Seamless Pipe British Standard

Grade	Standard	Types
360, 410, 440, 460, 490	BS 3059	Seamless Steel Tubes for Boiler and Heat Exchangers
Carbon Steel	BS 970	Seamless Steel Tubes for Machine Structure

Difference Between Carbon Steel Pipe And Stainless Steel Pipe

Stainless steel has a high chromium content that forms an invisible layer on the steel to prevent corrosion and staining. Carbon steel has a higher carbon content, which gives the steel a lower melting point, more malleability and durability, and better heat distribution.

Types Of ASTM A333 Grade 6 Pipe

ASTM A53 A36 Schedule 10 Carbon Steel Pipe

ASTM A106 Grade B Pipe

ASTM A106 Grade B Seamless Pipe

Carbon Steel Tubing

ASTM A106 Grade B ERW Pipe

Erw Black Carbon Steel Pipe

ASTM A53 Grade B Pipe

ASTM A333 Grade 6 Seamless Pipe

14inch Carbon Steel Spiral Welded Pipe

ASTM A333 Grade 6 Pipe

ASTM A53 Grade B Erw Pipe

Carbon Steel Seamless Pipe

Carbon Steel Welded Pipe

Carbon Steel Tube

Carbon Steel Erw Pipe

Carbon Steel Tube Grades

Standard	Types	Grade
ASTM A179	Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes	Low Carbon Steel
ASTM A192	Seamless Carbon Steel Boiler Tubes for High Pressure	Low Carbon Steel
ASTM A53	Black and Hot-Dipped Zinc-Coated Seamless Steel Pipes	Gr.A, Gr.B, Gr.C
ASTM A106	Seamless Carbon Steel Pipe for High Temperature Service	Gr.B, Gr.C
ASTM A199	Seamless Cold-Drawn Intermediate Alloy Steel Heat-Exchanger and Condenser Tubes	T5, T22
ASTM A333	Seamless Carbon and Alloy Steel for Mechanical Tubing	Gr.1, Gr.3, Gr.6
ASTM A334	Seamless and Welded Carbon Steel Pipes and Alloy Steel Pipes for Low Temperature Use	Gr.1, Gr.6
ASTM A210	Seamless Medium-Carbon Steel Boiler and Superheater Tubes	A1, C
ASTM A213	Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes	T5, T9, T11, T12, T22, T91
ASTM A556	Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes	A2, B2
Astm A106 Grade B Pipe Suppliers In India

Carbon Steel Pipe Manufacturers In India, Suppliers Of CS Seamless Tube In Mumbai, One Stop Shop For All Asme Sa106 Grb Material.

CS Smls Pipe Din Standard

Standard	Types	Grade
DIN 2393	Seamless Steel Pipes for Structural Purpose	RSt34-2, RSt37-2, RSt44-2, St52
DIN 1629 / DIN 2391	Seamless Steel Tubes	St37.0, St44.0, St52.0, St52.3
DIN 17175	Seamless Steel Tubes for Elevated Temperature	St35.8, St45.8, 10CrMo910, 15Mo3, 13CrMo44, STPL340, STB410, STB510, WB36
DIN 2440	Seamless Steel Tubes	St33.2

Refer ASTM A106 Pipe Price List Online And Buy Carbon Steel Pipes And Tubes Only By Stocking Distributor Of Jindal Saw Ltd. In Mumbai And Get Best Rate

Carbon Steel Tube Sizes

Seamless sizes	Welded sizes	Application
Out diameter: 1/4"-36"	Out diameter: 21.3mm-3620mm	API 5L, API 5CT, ASTM A53, ASTM A106, ASTM A179, ASTM A192, ASTM A252, ASTM A333, ASTM A335, ASTM A672

PED Certified CS Tube Manufacturer In India, Dimensions Of CS Pipes In MM.

Tolerance Chart of Carbon Steel ERW Pipe

TYPE	OD	Thickness
SEAMLESS	1/4 inch ~ 36 inch	1.25mm ~ 50mm
ERW	1/8 inch ~ 24 inch	Max 26.5mm
LSAW	219mm ~ 3120mm	3mm ~ 25mm
SSAW	16 inch ~ 64 inch	3mm ~ 25mm

Ltcs Pipe Standard

Carbon Steel Pipe Coating Type	Carbon Steel Pipe Coating Layer	Carbon Steel Pipe Coating thickness
Three layers polyethylene	Inside layer: epoxy (Green)	2.0 -4.5mm
	Mid layer: adhensive (White)
	Outsidelayer:polyethylene (Black)
Two layers polyethylene	Inside layer: adhensive	2.0 -4.5mm
Two layers polyethylene	Outside layer: polythene	2.0 -4.5mm
Epoxy	Epoxy	200-400um
Two layers epoxy	Inside layer: expoxy (Green)	400-800um
Two layers epoxy	Outside layer:intensity epoxy (sage green)	400-800um
Three layers polyethylene	Inside layer: expoxy (Green)	2.5 -3mm
	Mid layer: adhensive (White)
	Outside layer: polypropylene (White)

Uses Of ASTM A106 Grade B ERW Pipe

Carbon Steel Pipes Packaging

Carbon Steel Pipe Hs Code

HSN Code	Product Description
7304	Tubes, pipes and hollow profiles, seamless, of iron (other than cast iron) or steel
73049000	Other
7307	Tube or pipe fittings (for example, couplings, elbows, sleeves), of iron or steel
730793	Butt welding fittings:
73079390	Other
730411	Of stainless steel:
73041110	Tubes and pipes

Carbon Steel Tube Material Coating

3PE Coating	3PP Coating	FBE Coating	Epoxy Coating	Special Painting

What Are The Differences Between A106 And A53?

A53 pipes are used for low/medium temperature and pressure applications, whereas ASTM A106 pipes are used for higher temperatures-pressures and when seamless execution is mandatory.

Testing Of CS Pipe Material

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

CS Seamless Tube Services

BEVELING
UT TESTING
POSITIVE MATERIAL IDENTIFICATION
HEAT TREATING & ANNEALING
HONING & TURNING
POLISHING

Carbon Steel Seamless Pipe Melting

Metal	Melting Point
Metal	(oC)	(oF)
Carbon Steel	1425 – 1540	2600 – 2800

ASTM A53 Grade B ERW Pipe Marking

Specification
Heat Number
Schedule (Wall Thickness)
Nominal tube Size
Manufacturer’s Symbol/ Name
Grade
Manufacturing Method

ASTM A333 Grade 6 Seamless Pipe Welding Procedure

Density Of ASTM A333 Gr 6 Pipe

The density of carbon steel is approximately 7.85 g/cm3 (0.284 lb/in3).

CS Tubing Thermal Conductivity

Material	Expansion Coefficients
Material	10-6 in/in oF	10-6 m/m oC
Carbon Steel	6.5	11.7

A333 Gr 6 Pipe Features

Leak proof
Dimensional accuracy
Corrosion resistance
High strength
Durability
Thermal resistance
Chemical resistance
Excellent finish.
