Incoloy 825 Pipe and Alloy 825 Tubing, B423 UNS N08825 Seamless Tub

What is Inconel 825 Tube?

Inconel 825 Tube is a nickel, chromium, and iron alloy having some concentrations of molybdenum, copper, and titanium. The superior composition these tubes allows them to exhibit excellent corrosion resistance in an array of stress-induced environments while still maintaining a stable austenitic structure. The tubes possess superior resistance against aqueous corrosion and in reducing acids. They are predominantly resistant against sulphuric and phosphoric acids. The alloy resists attacks from intergranular corrosion after welding and fabrication processes take shape.

Difference Between B423 Inconel 825 Seamless Pipe and ASTM B705 Alloy 825 Welded Pipe

Seamless and welded production processes are some of the oldest manufacturing processes in the piping industry. Both these pipes can be differentiated based on their unique features.

Production process- ASTM B705 alloy 825 welded pipe is rolled and welded in place. Seamless pipe is an extruded metal that is manufactured using metal billets.
Strength- B423 Inconel 825 Seamless Pipe possess superior strength in comparison to a welded pipe.
Pressure rating- Seamless pipes have 20% extra working pressures compared to welded pipes.
Price- Welded pipes are cheaper when compared to a standard seamless Inconel 825 pipe.
Size- Welded pipes can be availed in a range of sizes, while the sizes of seamless pipes are restricted

Alloy 825 Pipe Industrial Application

Alloy 825 Pipe is a versatile module having important industrial applications, which include

Chemical processing
Oil and gas extraction and processing
Nuclear fuel reprocessing
Acid production
Modules in pickling components like heating coils, tanks, chains, and baskets.
Food processing
Waste disposal
Ore processing systems
Marine exhaust systems
Sulphuric acid piping and vessels
Electrostatic precipitator electrodes

Is Incoloy 825 Tube Magnetic?

Incoloy 825 is a non-magnetic alloy having a high concentration of nickel. The superior concentration gives these modules enhanced resistance in oxidizing and reducing environments especially those containing sulphuric and phosphoric acids. Their superior mechanical properties ensure that these tubes possess excellent performance across low cryogenic as well as high-temperature systems.

Incoloy 825 Tube vs Werkstoff Nr. 2.4858 Erw Pipe

A round pipe can be produced either seamlessly or through a welding procedure. An ERW pipe is manufactured by cold rolling the metal and then welding it in place.
A round pipe is welded in the interior with a welded seam to give it the correct shape. Erw pipes are always welded longitudinally after the cold-rolling process.

Inconel 825 Efw Pipe Benefits

Some of the benefits of Inconel include

Superior resistance against reducing and oxidizing acid like sulphuric and phosphoric.
Helps in preventing stress-corrosion cracking.
Highly versatile and can be employed in different applications.
Prevents localized attacks by preventing pitting and crevice corrosion.
Enhanced mechanical properties at both room and high temperatures up to 1000 degrees F.
Good level of resistance against a range of oxidizing substances, including nitric acid, nitrates, and oxidizing salts.

Alloy 825 Tubing And ASTM B423 UNS N08825 Seamless Tube Supplier In Mumbai, India.

Table of Content

Alloy 825 Pipe Specification
Alloy 825 Seamless Pipe Sizes
Incoloy 825 Welded Pipe Mechanical Properties
Alloy 825 Tube Chemical Properties
Incoloy 825 Grade Equivalent Material
Schedule Chart Of Inconel 825 Tube
Incoloy 825 Tubing Pressure Rating
Incoloy 825 Pipe Price
ASTM B423 UNS N08825 Tubing Stock Range
Size Range Of Incoloy 825 Pipe
Testing And Documentation Of Werkstoff Nr. 2.4858 Pipe
Alloy 825 Clad Pipe Standards
Wall Thickness Of Incoloy 825 Seamless Pipe

ASTM B423 UNS N08825 Pipe Types
Alloy 825 Seamless Tube Supplier
Uses Of Incoloy® 825 Pipe
Din 2.4858 Welded Pipe Physical Composition
Characteristics Of Incoloy 825 Erw Pipe
Incoloy® 825 Pipes ASTM Standard Specification
Asme Sb 423 UNS N08825 Smls Pipe Test Report
Welding Methods Of Alloy 825 Seamless Tubing

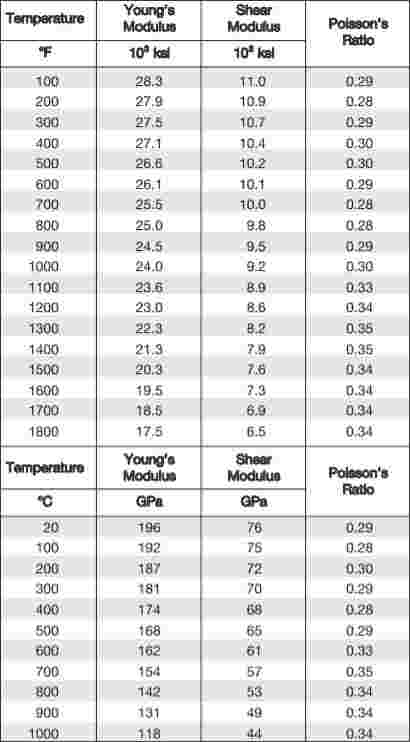

Cold Drawn Incoloy 825 Pipes Modulus Temperature Range
Incoloy 825 Tube Dimension Chart

Alloy 825 Pipe Specification

Size	½” to 6” Nominal Bore Sch 40s, 10s, 160s, 80s
Incoloy 825 pipes Length	Double Random Length 10 to 12 meter Single Random Length 5 to7 meter
Supplier of Incoloy 825 Pipe offer various shapes	Round, Oval, Triangle, Semi-Round, Semi-oval, Rhomboid, Square, Rectangle, Hollow, Elliptical, Hollow, Semi-Rhomboid,
Wall Thickness	0.1 to 60 milimeter
Standard	GB, ASTM, JIS, EN, GOST, AISI, DIN, ASME, AMS
Surface Finish	Bright, Cold Finish, Annealing, Polished, Pickling, or as per need
Dual certified supplier	Dual certified Alloy 825 Pipe suppliers in India, accordance to certify ASTM B705 American specifications
Incoloy 825 pipes Technique	Hot Rolled/ Cold Rolled
Inconel Alloy 825 pipes Manufacturing Shapes	Square, Round, Box Section, Rectangle
Manufacturing types	Seamless, ERW, Welded, EFW
Inspection, Test Reports	PMI Test Reports, EN 10204 3.1, Mill Test Certificates, Mechanical Reports, Chemical Reports, Visual Inspection Reports, NABL Approved Lab Reports, Third Party Inspection, Destructive and Non Destructive Test Reports
Manufacturing Technology	Cold / Hot Formed
Incoloy 825 Pipe Suppliers in India

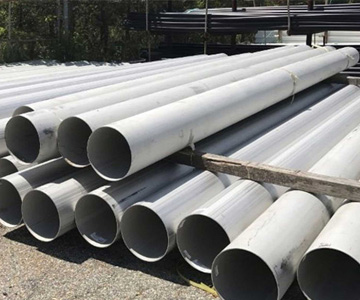

Incoloy 825 Pipe

Alloy 825 Tube

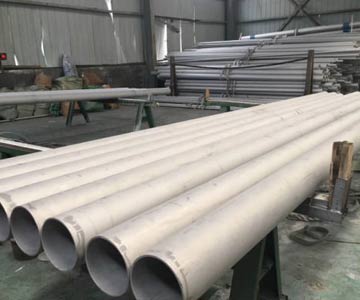

ASTM B423 UNS N08825 Tubing

Searching Alloy 825 Tube Manufacturer In India? Exporter Of Din 2.4858 Square and ERW Pipe And 3 Inch ASTM B705 Nickel 825 Tubing In Various Sizes And Grades In Mumbai.

Alloy 825 Seamless Pipe Sizes

Size: 4 - 219mm

Thickness : 0.5 - 20mm

Length: Single, Double Random & Cut Length

Incoloy 825 Welded Pipe Mechanical Properties

Grade	Yield Strength 0.2% Proof (MPa) min	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Hardness
				Brinell (HB) max	Rockwell B (HR B) max
Incoloy 825	MPa –220, Psi – 32,000	MPa – 550, Psi – 80,000	30	–	–

Alloy 825 Tube Chemical Properties

Grade		C	Mn	Si	Fe	S	Cr	Cu	Ti
Incoloy 825	min.	–	–	–	22.0	–	19.5	1.5	0.6
Incoloy 825	max.	0.05	1.0	0.5	–	0.015	23.5	3.0	1.2

Incoloy 825 Grade Equivalent Material

Grade	Old British		Euronorm		Japanese JIS	UNS No	GOST
	BS	En	No	AFNOR
Incoloy 825	NA 16	NiCr21Mo	2.4858	NFE30C20DUM	NCF 825	N08825	ЭП703

Schedule Chart Of Inconel 825 Tube

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Incoloy 825 Tubing Pressure Rating

Pipes O.D. (in.)	Wall Thickness of Pipe (inches)
Pipes O.D. (in.)	.035	.109	.028	.065	.049	.095	.083	.120
1/4	4800		3700	9500	7000
1/8	10100		7900
3/8	3100			6100	4400
5/16	3700			7300	5400
3/4				3000	2200	4600	4000
1/2	2300			4400	3200
1		3900		2200		3400	2900	4300

Incoloy 825 Pipe Price

Description	Price List in USD	Price List in India
ASTM B423 Incoloy 825 UNS N08825 Nickel alloy seamless pipe / tube	US $24.00-$28.00 / Kilogram	1797.21 - 2096.75
Nickel Alloy smls/welded pipe tube825	US $66.00-$92.00 / Piece	4942.34 - 6889.32
incoloy alloy 825 pipe nickel round tube	US $20.00-$27.00 / Kilogram	1497.68 - 2021.87
Incoloy 825 pipe tube	US $11590-$17390 / Ton	867904.98 - 1302231.89

ASTM B423 UNS N08825 Tubing Stock Range

Incoloy 825 UNS N08825 Seamless Steel Pipes	825 Incoloy Cold Drawn Welded Pipes
Incoloy 825 din 2.4858 Welded Pipes	Incoloy 825 Cold Drawn Pipes
Incoloy 825 ASTM B423 ERW Pipes	Schedule 5S Incoloy 825 UNS N08825 Seamless Pipes
Nickel 825 EFW Pipes	Schedule 40 Alloy 825 Pipes
Incoloy 825 UNS N08825 Cold Drawn Seamless Pipes	Incoloy 825 ASTM B423 Precision Pipes
Incoloy 825 Seamless Steel Precision Pipes	High pressure Incoloy alloy 825 Pipes
Incoloy 825 Cold Drawn Seamless Pipes	Nickel Alloy 825 Electropolished Pipes
Incoloy 825 din 2.4858 Custom Pipes	Incoloy 825 Cold Drawn Pipes
Inconel Alloy 825 Thin Wall Pipes	Incoloy 825 Bush Hex Pipes
ASTM B423 Incoloy Thick Wall Pipe	Incoloy 825 Round Pipe
UNS N08825 825 Incoloy lined pipe	825 Incoloy Alloy Polished Pipes
ASTM B423 Incoloy Thin Wall Pipe	Incoloy 825 Hollow Pipe
Incoloy WERKSTOFF NR. 2.4858 CDW Pipe	Cold Drawn 825 Incoloy Seamless Pipe
Inconel Alloy 825 Welded Pipe	ASME SB423 Incoloy 825 Large Pipe
825 Incoloy ERW Pipe	Schedule 5S Incoloy DIN NR. 2.4858 Pipe
ASME SB423 Incoloy 825 EFW Pipe	Schedule 40 Incoloy Alloy 825 Pipe
Incoloy DIN NR. 2.4858 SMLS Pipe	Alloy 825 UNS N08825 Polished Pipe

Size Range Of Incoloy 825 Pipe

Kilogram/meter	Outside Diameter milimeter	Schedule	Pipe Wall Thickness milimeter	inch
0.050	13.72	10S	01.65	1/4
0.081	13.72	80S	3.02	1/4
01.12	17.15	80S	3.20	3/8
01.30	26.67	10S	2.11	3/4
01.65	201.34	80S	3.73	1/2
2.23	26.67	80S	3.91	3/4
01.29	201.34	40S	2.77	1/2
01.71	26.67	40S	2.87	3/4
0.086	17.15	40S	2.31	3/8
0.064	13.72	40S	2.24	1/4
2.13	33.40	10S	2.77	1
0.064	17.15	10S	01.65	3/8
2.73	42.16	10S	2.77	1¼
4.30	33.40	160	6.352)	1
3.29	33.40	80S	4.55	1
3.44	42.16	40S	3.56	1¼
2.54	33.40	40S	3.38	1
4.53	42.16	80S	4.85	1¼
01.02	201.34	10S	2.11	1/2
3.16	48.26	10S	2.77	1½
5.49	48.26	80S	5.08	1½
4.11	48.26	40S	3.68	1½
5.69	42.16	160	6.352)	1¼
3.99	60.033	10S	2.77	2
5.52	60.033	40S	3.91	2
7.60	60.033	80S	5.54	2
101.29	60.033	160	8.742)	2
5.35	73.03	10S	3.05	2½
8.77	73.03	40S	5.16	2½
101.59	73.03	80S	7.01	2½
6.56	88.90	10S	3.05	3
201.67	88.90	160	101.132)	3
15.51	88.90	80S	7.62	3
13.78	1001.60	40S	5.74	3½
7.53	1001.60	10S	3.05	3½
18.92	1001.60	80S	8.08	3½
16.32	114.30	40S	6.02	4
101.47	88.90	40S	5.49	3
8.50	114.30	10S	3.05	4
22.10	1401.30	40S	6.55	5
34.05	114.30	160	13.492)	4
49.87	1401.30	160	15.882)	5
112.97	219.08	160	23.012)	8
28.69	168.28	40S	7.11	6
22.67	114.30	80S	8.56	4
14.04	168.28	10S	3.4	6
54.75	168.28	120	14.27	6
43.21	168.28	80S	10.097	6
301.44	1401.30	80S	9.53	5
68.59	168.28	160	18.262)	6
901.30	219.08	120	18.23	8
65.63	219.08	80S	12.7	8
43.20	219.08	40S	8.18	8

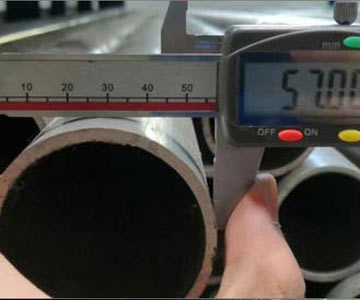

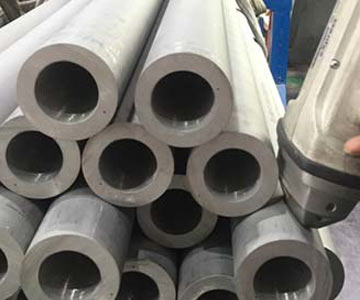

Testing And Documentation Of Werkstoff Nr. 2.4858 Pipe

Destructive Test Report
HS Code Commercial Invoice
Raw Materials Certificate
NABL Approved Lab Reports
EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
Moisture testing
PMI Test Reports
Fumigation Certificates
Surface roughness measurement
100% Radiography Test Report

Laboratory Test Certificate from Govt. Approved Lab
Third Party Inspection for Incoloy 825 Pipe
Mill Test Certificates with all Incoloy 825 Pipe
Mechanical Reports
Chemical Reports
Non Destructive Test Reports
Heat Treatment Charts
Form A for Generalized System of Preferences (GSP)
Visual Inspection Reports

we are largest of Incoloy 825 Pipe Suppliers in india. check astm standards of ASTM B423 UNS N08825 Tubing and Alloy 825 Seamless Tube

Alloy 825 Clad Pipe Standards

BS 3074NA16 ASTM B 163 ASTM B 423 ASTM B 704 ASTM B 705 ASTM B 751 ASTM B 775 ASTM B 829 ASME SB 163	ASME SB 423 ASME SB 704 ASME SB 705 ASME SB 751 ASME SB 775 ASME SB 829 ASME Code Case 1936 DIN 17751 VdTÜV 432 ISO 6207

All Sizes And Wall Thickness In ASTM B829 Inconel 825 Seamless Pipes In Stock At Mumbai

Wall Thickness Of Incoloy 825 Seamless Pipe

Types	Out diameter	Wall thickness	Length
NB Sizes (in stock)	1/8” ~ 8”	SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160	Upto 6 Meters
Incoloy 825 Seamless Pipe (Custom Sizes)	5.0mm ~ 203.2mm	As per requirement	Upto 6 Meters
Incoloy 825 Welded Pipe (in Stock + Custom Sizes)	5.0mm ~ 1219.2mm	1.0 ~ 15.0 mm	Upto 6 Meters

ASTM B423 UNS N08825 Pipe Types

Incoloy 825 Seamless Pipe

Incoloy 825 Welded Pipe

Incoloy 825 Erw Pipe

Alloy 825 Seamless Tube

Alloy 825 Pipe

Incoloy Werkstoff Nr. 2.4858 Square Pipe

Incoloy 825 Rectangular Pipe

Incoloy Din Nr. 2.4858 Hollow Pipe

Incoloy 825 Tube

SP Metals is an ISO certified Incoloy 825 Tube Suppliers in India & Alloy 825 Pipe Stockist in Mumbai.

Alloy 825 Seamless Tube Supplier

Alloy	Product form	Dimension
(22 Cr/42 Ni/3 Mo) INCOLOY 825	Pipe; seamless, cold drawn	26.67 x 2.11 milimeter (¾"nb sch10s)
(22 Cr/42 Ni/3 Mo) INCOLOY 825	Pipe; seamless, cold drawn	21.34 x 2.77 milimeter (½"nb sch40s)
(22 Cr/42 Ni/3 Mo) INCOLOY 825	Pipe; seamless, cold drawn	12.0 x 1.5 milimeter
(22 Cr/42 Ni/3 Mo) INCOLOY 825	Pipe; seamless, cold drawn	88.90 x 3.05 milimeter (3"nb sch10s)

Uses Of Incoloy® 825 Pipe

Acid production
Nuclear fuel reprocessing
Marine exhaust systems
Oil and gas recovery
Chemical processing
Hot vessels for food, water, and seawater
Pollution control
Pickling tank heaters, tanks, and equipment
Calorifiers
Radioactive waste handling

Check Properties and Standards of Inconel 825 Pipes, Stockist Of ISO 6207 Alloy 800 Pipe In India

Din 2.4858 Welded Pipe Physical Composition

Density	lb/in³	0.294
Density	Mg/m³	8.14
Specific Heat	Btu/lb•°F	0.105
Specific Heat	J/kg•°C	440
Melting Range	°F	2500-2550
Melting Range	°C	1370-1400
Curie Temperature	°F	<-320
Curie Temperature	°C	<-196
Permeability	200 oersted (15.9 kA/m)	1.005

Characteristics Of Incoloy 825 Erw Pipe

Good mechanical properties at both room and elevated temperatures up to approximately 1000°F
Permission for pressure-vessel use at wall temperatures up to 800°F
Satisfactory resistance to localized attack like pitting and crevice corrosion
Excellent resistance to reducing and oxidizing acids
Very resistant to sulfuric and phosphoric acids
Good resistance to stress-corrosion cracking

ASTM B751 DIN 2.4858 Tubing And Inconel 825 Welded Pipes Supplier In Mumbai According DIN 17751

Incoloy® 825 Pipes ASTM Standard Specification

UNS:	N08825
Specifications:	ASTM B423, ASTM B829, ASTM B705, ASTM B775, ASTM B163, ASTM B704, ASTM B751
International Specifications:	DIN 17751, ISO 6207, VdTüV 432

Asme Sb 423 UNS N08825 Smls Pipe Test Report

EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Welding Methods Of Alloy 825 Seamless Tubing

AWS A5.14 ERNiFeCr-1, AWS A5.11 ENiCrMo-3, AWS A5.14 ERNiCrMo-3

Cold Drawn Incoloy 825 Pipes Modulus Temperature Range

Modulus Temperature Range Of Alloy 825 Pipe

Incoloy 825 Tube Dimension Chart

Nominal Thickness (in) MM	Pipe Size (in)	Transverse Areas (in2) MM2			Diameter (in) MM		Volume (ft3/ft)	Number of Threads per inch of Screw	Weight		Length of Pipe (ft per sq.0 foot of surface)
Nominal Thickness (in) MM	Pipe Size (in)	Internal	External	Steel	Internal	External	Volume (ft3/ft)	Number of Threads per inch of Screw	(kg/m)	(lb/ft)	Internal Surface (ft)	External Surface (ft)
0.007	1/8	0.006	0.013	0.007	0.027	0.0405	0.00004	27	0.036	0.024	14.020	9.043
0.009	¼	0.010	0.023	0.013	0.036	0.0540	0.00007	18	0.063	0.042	10.049	7.007
0.009	3/8	0.019	0.036	0.017	0.049	0.0675	0.00013	18	0.084	0.057	7.075	5.066
0.011	½	0.030	0.055	0.025	0.062	0.0840	0.00021	14	1.026	0.085	6.014	4.055
0.011	¾	0.053	0.087	0.033	0.082	1.0050	0.00037	14	1.068	1.013	4.064	3.064
0.013	1	0.086	1.036	0.049	1.005	1.0315	0.00060	11 ½	2.050	1.068	3.064	2.090
0.014	1 ¼	1.050	2.016	0.067	1.038	1.0660	0.00104	11 ½	3.038	2.027	2.077	2.030
0.015	1 ½	2.004	2.084	0.080	1.061	1.0900	0.00141	11 ½	4.004	2.072	2.037	2.001
0.015	2	3.036	4.043	1.008	2.007	2.0375	0.00233	11 ½	5.043	3.065	1.085	1.061
0.020	2 ½	4.079	6.049	1.070	2.047	2.0875	0.00333	8	8.062	5.079	1.055	1.033
0.022	3	7.039	9.062	2.023	3.007	3.0500	0.00513	8	11.027	7.058	1.025	1.009
0.023	3 ½	9.089	12.056	2.068	3.055	4.0000	0.00687	8	13.056	9.011	1.008	0.095
0.024	4	12.073	15.090	3.017	4.003	4.0500	0.00884	8	16.006	10.079	0.095	0.085
0.026	5	20.000	24.030	4.030	5.005	5.0563	0.01389	8	21.074	14.061	0.076	0.069
0.028	6	28.089	34.047	5.058	6.007	6.0625	0.02006	8	28.023	18.097	0.063	0.058
0.032	8	50.002	58.042	8.040	7.098	8.0625	0.03552	8	42.049	28.055	0.048	0.044
0.037	10	78.085	90.076	11.090	10.002	10.0750	0.05476	8	60.024	40.048	0.038	0.036
0.041	12	111.090	127.064	15.074	11.094	12.0750	0.07763	8	79.077	53.060	0.032	0.030
0.044	14	135.030	153.094	18.064	13.013	14.0000	0.09354	8	93.075	63.000	0.028	0.027
0.050	16	176.070	201.005	24.035	15.000	16.0000	1.02230	8	116.008	78.000	0.025	0.024
0.056	18	224.000	254.085	30.085	16.088	18.0000	1.05550	8	156.026	105.000	0.023	0.021
0.059	20	278.000	314.015	36.015	18.081	20.0000	1.09260	8	183.005	123.000	0.020	0.019
0.069	24	402.010	452.040	50.030	22.063	24.0000	2.07930	8	254.048	171.000	0.017	0.016
