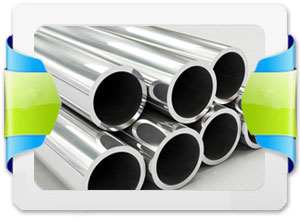

Schedule 120 Steel Pipe | Sch 120 Pipe wall thickness, weight per foot

Sch 120 Pipe wall thickness and weight per foot

Table of Content

ANSI Schedule 120 Seamless Steel Pipe Price

Schedule 120 Steel Pipes Types

Sch 120 Pipe Wall Thickness and Weight Per Foot

Schedule 120 Pipe Pressure Rating

Sch 120 Mild Steel Pipes Sizes

Schedule 120 Black Pipe Application

Check SCH 120 Seamless wrought pipe weight, wall thickness and Price List

ANSI Schedule 120 Seamless Steel Pipe Price

Products	Sizes	Prices
CS SEAMLESS PIPES API 5L A106 GR.B/X42(04 SCH 120)(18.00 MTR)(CO:SOUTH AFRICA )	2'', 1.50'', 1''	₹ 100/ Kg
SS SEAMLESS TUBES/PIPES(COLD FINISH)(GRADE 304/304L3(88.9MM)X SCH10S(3.05MM)120MTR	0.06 - 40 mm	₹7,550.82 - ₹1,61,016.40 / Ton
AS SMLS PIPE SA 335 P11 PIPES 8SCH 120 (18.26 MM)	1" - 8"	₹37,554.10-₹75,608.20/ Ton
L.T.C.S. SEAMLESS PIPES, ASME SA333 GR.6SIZE:168.3 X 14.27MM (NPS 6 X SCH 120)	1.24 - 59.54 mm	₹3,624.40-₹3,775.41/ Piece

View Schedule 120 Pipe Dimensions, Thickness and Pressure Rating

Schedule 120 Steel Pipes Types

Schedule 120 Stainless Steel Pipe

Schedule 120 Carbon Steel Pipe

Schedule 120 Alloy Steel Pipe

Sch 120 Pipe Wall Thickness and Weight Per Foot

Nominal size [inches]	Weight [lb/ft]	Weight [kg/m]	Outside diameter [mm]	Outside diameter [inches]	Wall thickness [mm]	Wall thickness [inches]
4	19.00	28.32	114.3	4.500	11.13	0.438
5	27.04	40.28	141.3	5.563	12.7	0.500
6	36.39	54.20	168.3	6.625	14.27	0.562
8	60.71	90.44	219.1	8.625	18.26	0.719
10	89.29	133.06	273.0	10.750	21.44	0.844
12	125.49	186.97	323.8	12.750	25.4	1.000
14	150.79	224.65	355.6	14.000	27.79	1.094
16	192.43	286.64	406.4	16.000	30.96	1.219
18	244.14	363.56	457.0	18.000	34.93	1.375
20	296.37	441.49	508.0	20.000	38.10	1.500
22	353.61	527.02	559.0	22.000	41.28	1.625
24	429.39	640.03	610.0	24.000	46.02	1.812

Wide stock of Schedule 120 Welded Pipe in Mumbai, India, Ask for a free sample of SCH 120 Aluminum Pipe now! View latest price list

Schedule 120 Pipe Pressure Rating

Outside Diameter	NPS	Sch
(in)	(in)	XS	80	10	100	20	140	30	160	STD	XXS	40	120	60
0.54 13.7 milimeter	1/4 inch	10798 74452	10798 74452							7985 55057		7985 55057
0.675 17.1 milimeter	3/8 inch	9147 63069	9147 63069							6606 45548		6606 45548
0.84 21.3 milimeter	1/2 inch	8575 59125	8575 59125						10908 75211	6358 43838	17150 118249	6358 43838
1.05 26.7 milimeter	3/4 inch	7187 49554	7187 49554						10220 70467	5273 36357	14373 99102	5273 36357
1.315 33.4 milimeter	1 inch	6670 45990	6670 45990						9316 64234	4956 34172	13340 91979	4956 34172
1.66 42.2 milimeter	1 1/4 inch	5638 38874	5638 38874						7380 50885	4133 28497	11276 77748	4133 28497
1.9 48.3 milimeter	1 1/2 inch	5158 35564	5158 35564						7247 49968	3739 25780	10316 71129	3739 25780
2.375 60.3 milimeter	2 inch	4498 31014	4498 31014						7097 48934	3177 21905	8995 62021	3177 21905
2.875 73 milimeter	2 1/2 inch	4704 32434	4704 32434						6391 44066	3460 23857	9408 64868	3460 23857
3.5 88.9 milimeter	3 inch	4200 28959	4200 28959						6132 42280	3024 20850	8400 57918	3024 20850
4 102 milimeter	3 1/2 inch	3896 26863	3896 26863							2769 19092		2769 19092
4.5 114 milimeter	4 inch	3670 25305	3670 25305						5782 39867	2581 17796	7339 50602	2581 17796	4769 32882
5.563 141 milimeter	5 inch	3303 22774	3303 22774						5505 37957	2273 15672	6606 45548	2273 15672	4404 30366
6.625 168 milimeter	6 inch	3195 22030	3195 22030						5318 36668	2071 14280	6390 44059	2071 14280	4157 28663
8.625 219 milimeter	8 inch	2841 19589	2841 19589		3375 23271	1420 9791	4613 31807	1574 10853	5147 35489	1829 12611	4971 34275	1829 12611	4085 28166	2307 15907
10.75 273 milimeter	10 inch	2279 15714	2708 18672		3277 22595	1140 7860	4558 31427	1399 9646	5128 35358	1664 11473	4558 31427	1664 11473	3847 26525	2279 15714
12.75 324 milimeter	12 inch	1922 13252	2644 18230		3244 22367	961 6626	4324 29814	1268 8743	5042 34765	1441 9936	3843 26497	1560 10756	3843 26497	2160 14893
14 356 milimeter	14 inch	1750 12066	2625 18099	875 6033	3283 22636	1092 7529	4375 30166	1313 9053	4921 33930	1313 9053		1533 10570	3829 26401	2079 14335
16 406 milimeter	16 inch	1531 10556	2585 17824	766 5282	3157 21768	956 6592	4404 30366	1148 7915	4882 33661	1148 7915		1531 10556	3733 25739	2009 13852
18 457 milimeter	18 inch	1361 9384	2553 17603	681 4695	3147 21699	849 5854	4252 29318	1192 8219	4848 33427	1021 7040		1530 10549	3743 25808	2042 14080
20 508 milimeter	20 inch	1225 8446	2526 17417	613 4227	3138 21637	919 6337	4288 29566	1225 8446	4824 33261	919 6337		1455 10032	3675 25339	1989 13714
22 559 milimeter	22 inch	1114 7681	2506 17279	557 3841	3063 21119	835 5757	4176 28794	1114 7681	4733 32634	835 5757			3619 24953	1949 13438
24 610 milimeter	24 inch	1021 7040	2489 17162	510 3516	3126 21554	766 5282	4210 29028	1147 7909	4786 32999	766 5282		1405 9687	3700 25512	1978 13638
30 762 milimeter	30 inch	817 5633		510 3516		817 5633		1021 7040		613 4227
32 813 milimeter	32 inch			478 3296		766 5282		957 6599		574 3958		1054 7267
34 864 milimeter	34 inch			450 3103		721 4971		901 6212		540 3723		992 6840
36 914 milimeter	36 inch			425 2930		681 4695		851 5868		510 3516		1021 7040
42 1067 milimeter	42 inch					583 4020		729 5026		438 3020		875 6033

Sch 120 Mild Steel Pipes Sizes

Nom. Pipes Size (in)	Average I.D.	Nom. Wt./Ft.	O.D.	Min. Wall	Max. W.P. PSI**
1/2 inch	.480	0.236	.840	0.170	1010
3/4 inch	.690	0.311	1.050	0.170	770
1 inch	.891	0.464	1.315	0.200	720
1-1/4 inch	1.204	0.649	1.660	0.215	600
1-1/2 inch	1.423	0.787	1.900	0.225	540
2 inch	1.845	1.111	2.375	0.250	470
2-1/2 inch	2.239	1.615	2.875	0.300	470
3 inch	2.758	2.306	3.500	0.350	440
4 inch	3.574	3.713	4.500	0.437	430
6 inch	5.434	7.132	6.625	0.562	370
8 inch	7.189	11.277	8.625	0.718	380

Exporter & supplier of Schedule 120 Black Pipe and SCH 120 Drop Pipe in Mumbai at factory price

Schedule 120 Black Pipe Application

Textile Machinery	Dairy and Food Processing	Construction	Oil and Gas Processing
Chemicals	Power Plants	Modern Architecture	Water treatment facilities
Fertilizers	Pesticides	Pharmaceuticals	Desalination
Ship Building	Breweries	Energy industries	Refinery & Petrochemicals
Synthetic Fibers	Pulp and Paper

Sch 120 Steel Pipe Stock

Sch 120 Black CS Seamless Tube/pipes	Sch 120 Api 5l Gr.b Seamless CS pipes
Erw/lsaw/ssaw/seamless Sch 120 Carbon	CS Tube Seamless pipes Sch 120
Carbon Black Welded Sch 120 pipes For Oil Gas	Sch 120 Api Carbon Seamless pipes Seamless Cold Drawn
Cold Drawn Seamless Sch 120 CS pipes	Erw Structural Carbon Round Welded pipes Sch 120 pipes
Api 5l Sch 120 Hot Rolled Thick Wall Seamless pipes	CS pipes Sch 120
Black CS Sch 120s pipes	Astm A53 A36 Schedule 120 CS pipes
Sch 120 CS Seamless pipes	Seamless Sch 120 CS pipes And Tubes
Cold Rolled Api 5l Seamless Sch 120 CS pipes	Sch 120 S45c Material Seamless CS pipes
Sch 120 Gi pipes Galvanized pipes And Tubes	CS pipes Sch 120
Sch 120 Gi pipes Tubes	Sch 120 CS pipes
