Monel 400 Pipe


Monel 400 Pipe

What is Monel 400 Pipe?

Monel 400 Pipe is a single-phase nickel and copper alloy that is hardened by the cold rolling process. These pipes are resistant to high temperatures and perform well in salt and caustic solutions. The components within this grade exhibit enhanced characteristics like good weldability, corrosion resistance, and high strength. The pipes in the Monel 400 pipe possess excellent stress corrosion resistance in marine environments and freshwater systems. The Monel alloy performs well in temperatures ranging from sub-zero to 1000 degrees F.

Comparison Between Monel 400 Seamless Pipe and UNS N04400 Alloy 400 Welded Pipe

Welding and seamless production systems are some of the oldest manufacturing systems in the piping industry. Both these systems have an array of differentiating factors that set them apart from each other.

  • Manufacturing- Monel 400 Seamless Pipe is an extruded metal that is produced by passing hot steel billets. UNS N04400 welded pipes are manufactured by rolling metal and welding them in place.
  • Pressure rating- Seamless pipes have 20% extra working pressures in comparison to welded pipes.
  • Strength- A seamless pipe possesses enhanced strength and tolerance compared to its counterpart.
  • Price- Seamless pipes are generally expensive compared to welded pipes.

Alloy 400 Pipe Benefits

Alloy 400 pipes have important benefits, which make them an attractive proposition for different industries. Some of their benefits include

  • Excellent strength and corrosion resistance in an array of corrosive media.
  • Good tolerance to marine and freshwater applications.
  • Resistance to reducing acids like sulfuric acids and alkalis.
  • Solution hardened components that can be hardened by the cold working process.
  • Enhanced mechanical properties and strength at sub-zero temperatures.

Monel Tube vs Monel Pipe

In the piping industry tubes and pipes are considered as one but both these modules have distinct features, which help in differentiating them.

  • Classification- A Monel pipe can be based on its schedule and nominal diameters. Monel tubes can be classified based on their wall thickness and outside diameters.
  • Shape-Tubes can be shaped in circular, rectangular, and square shapes, while pipes can only be shaped in a circular shape.
  • Tolerance- Tubes are manufactured with stricter tolerances and resistances in comparison to a pipe.
  • Strength- Monel Tubes are preferred over pipes as they perform well in applications that require high strength and durability

Is Alloy 400 Pipe Expensive?

Alloy 400 pipes are expensive in comparison to standard stainless steel pipes due to their superior nickel concentration of about 63%. These pipes are also composed of nearly 28-34% copper alongside other trace metals like iron, silicon, carbon. The pipes may also have small quantities of sulfur and titanium, which further adds to its costs.

400 Monel ERW Pipe Application

400 Monel Erw pipe is a versatile component whose main applications include

  • Electronic components due, to their lower permeability
  • Chemical and hydrocarbon processing systems
  • Marine engineering and applications
  • Heat exchangers and water heaters
  • Valves, pumps, and fasteners
  • Crude-petroleum distillation towers and stills
  • Freshwater and gasoline tanks
  • Onshore and offshore petroleum extraction and refining
  • Springs and wire products
  • Eyeglasses frames

View UNS N04400 Tubing Specification, Nickel Alloy 400 Tube Supplier In India

Monel 400 Pipe Specification

Size½” to 6” NB Sch 10s, 40s, & 80s, 160s
Wall Thickness0.1 - 60 mm
Monel Alloy 400 pipes Length
  • Single Random Length 5to7 mtr
  • Double Random Length 10-12 mtr
Supplier of Monel 400 Pipe offer various shapesRound, Oval, Triangle, Semi-Round, Semi-oval, Rhomboid, Square, Rectangle, Hollow, Elliptical, Hollow, Semi-Rhomboid,
Surface FinishCold Finish, Bright, Polished, Annealing, Pickling, or as per client requirements
StandardJIS, AISI, ASME, ASTM, AMS, GB, DIN, EN, GOST
Monel Alloy 400 pipes Manufacturing typesSeamless, Welded, ERW, EFW
Dual certified supplier Dual certified Alloy 400 Pipe suppliers in India, accordance to certify ASTM B725 American specifications
Manufacturing ShapesRound, Square, Rectangle, Box Section
Monel Alloy 400 pipes Manufacturing TechnologyHot / Cold Formed
Inspection, Test ReportsEN 10204 3.1, Mill Test Certificates, PMI Test Reports, Chemical Reports, Mechanical Reports, NABL Approved Lab Reports, Visual Inspection Reports, Destructive and Non Destructive Test Reports, Third Party Inspection
Monel Alloy 400 pipes TechniqueCold Rolled Hot Rolled
Monel 400 Pipe Suppliers in India

Monel 400 Pipe

Chemical Formula Of Alloy 400 Seamless Pipe

GradeCMnSiSCuFeNiCr
Monel 4000.30 max2.00 max0.50 max0.24max28.0-34.02.50 max63.00 min

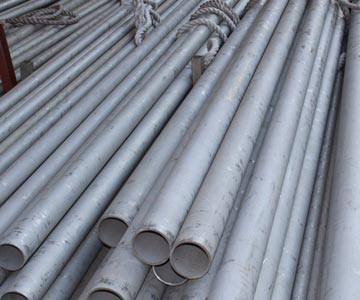

Monel 400 Pipe

Monel 400 Pipe

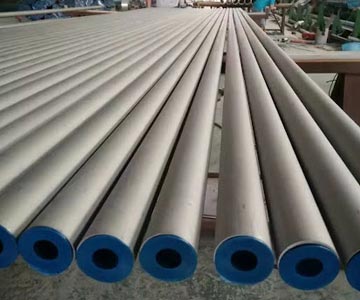

Nickel Alloy 400 Tube

Nickel Alloy 400 Tube

Monel 400 Welded Pipe Mechanical Analysis

ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Monel 4008.8 g/cm31350 °C (2460 °F)Psi – 80,000 , MPa – 550Psi – 35,000 , MPa – 24040 %

We are one of the top Monel 400 Pipe suppliers in India. Our products, including the 400 Nickel Alloy Seamless and Welded Tubing, are known for their dimensional accuracy and quality.

Equivalent List Of 400 Monel Square Pipes

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
Monel 4002.4360N04400NW 4400NA 13МНЖМц 28-2,5-1,5NU-30MNiCu30Fe

Reliable Manufacturer of ASTM B165 Monel 400 Tube, WNR 2.4360 Seamless Pipes Schedule Chart

Monel 400 Pipe Schedule

1/8" IPS(.405"O. D.)3 1/2" IPS( 4.000"O. D.)
SCH 40, 80SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)4" IPS(4.500"O. D.)
SCH 10, 40, 80SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)5" IPS( 5.563"O. D.)
SCH 10, 40, 80SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXHSCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXHSCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXHSCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXHSCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXHSCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXHSCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXHSCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Alloy 400 Pipe Sale

400 Monel Alloy Round Pipesmonel 400 Round Pipes
400 Custom Inconel PipesUNS N04400 Inconel clad Pipes
400 Monel Alloy Custom PipesUNS N04400 Inconel welded Pipes
400 Monel Thick Wall PipesUNS N04400 400 Monel lined Pipes
400 Monel ERW PipesSchedule 5S Monel DIN NR. 2.4360 Pipes
ASME SB165 monel 400 EFW PipesSchedule 40 Monel Alloy 400 Pipes
Monel DIN NR. 2.4360 SMLS PipesAlloy 400 UNS N04400 Polished Pipes
Capillary ASTM B165 monel 400 Thin PipesHigh pressure UNS N04400 Pipes
Monel Alloy 400 Hollow Pipes400 Alloy Electropolished Pipes
ASTM B165 400 Monel Custom PipesASTM B165 monel 400 Capillary Pipes
Alloy 400 UNS N04400 Round PipesAlloy 400 Exhaust Pipes
400 Alloy Square Pipesmonel 400 Thin Wall Pipes

Check Alloy 400 Tubing Pressure Rating, ASTM B730 Alloy 400 Welded and ERW Pipes Sizes, asme sb 725 uns N04400 Material Suppliers In India

Alloy 400 Welded Pipe Sizes Chart

OD
mm
Pipe WT
mm
in.SchKg/m
13.721.651/410S0.50
13.722.241/440S0.64
13.723.021/480S0.81
17.151.653/810S0.64
17.152.313/840S0.86
17.153.203/880S1.12
21.342.111/210S1.02
21.342.771/240S1.29
21.343.731/280S1.65
26.672.113/410S1.30
26.672.873/440S1.71
26.673.913/480S2.23
33.402.77110S2.13
33.403.38140S2.54
33.404.55180S3.29
33.406.352)11604.30
42.162.7710S2.73
42.163.5640S3.44
42.164.8580S4.53
42.166.352)1605.69
48.262.7710S3.16
48.263.6840S4.11
48.265.0880S5.49
60.332.77210S3.99
60.333.91240S5.52
60.335.54280S7.60
60.338.742)216011.29
73.033.0510S5.35
73.035.1640S8.77
73.037.0180S11.59
88.903.05310S6.56
88.905.49340S11.47
88.907.62380S15.51
88.9011.132)316021.67
101.603.0510S7.53
101.605.7440S13.78
101.608.0880S18.92
114.303.05410S8.50
114.306.02440S16.32
114.308.56480S22.67
114.3013.492)416034.05
141.306.55540S22.10
141.309.53580S31.44
141.3015.882)516049.87
168.283.4610S14.04
168.287.11640S28.69
168.2810.97680S43.21
168.2814.27612054.75
168.2818.262)616068.59
219.088.18840S43.20
219.0812.7880S65.63
219.0818.23812091.30
219.0823.012)8160112.97

SP Metals is an ISO certified Monel 400 Tube Suppliers in India & Alloy 400 Tubing Stockist in Mumbai.

Monel 400 Seamless Tube Thickness

TypesOut diameterWall thicknessLength
NB Sizes (in stock)1/8” ~ 8”SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160Upto 6 Meters
monel 400 Seamless Pipe (Custom Sizes)5.0mm ~ 203.2mmAs per requirementUpto 6 Meters
monel 400 Welded Pipe (in Stock + Custom Sizes)5.0mm ~ 1219.2mm1.0 ~ 15.0 mmUpto 6 Meters

Monel 400 Tubing Pressure Rating

Monel Pipe O.D.
(in.)
Wall Thickness of Monel Pipe (inches)
.028.035.049.065.083.095.109.120
Working Pressure (psig)
1/8790010100
1/43700480070009500
5/16 370054007300
3/8 310044006100
1/2 230032004400
3/4 2200300040004600
1 22002900340039004300

SP Metals is an suppliers of Alloy 400 seamless and welded tubes. Buy all sizes online at low cost.

Monel 400 Tube Stock

ASTM B165 monel 400 Pipe4 inch Monel WERKSTOFF NR. 2.4360 Pipe
Monel WERKSTOFF NR. 2.4360 Seamless Pipe400 Monel Thick Wall Pipe
Monel WERKSTOFF NR. 2.4360 Welded PipeASME SB165 monel 400 Large Pipe
Monel Alloy 400 CDW PipeCold Drawn 400 Monel Seamless Pipe
400 Monel ERW PipeSchedule 5S Monel DIN NR. 2.4360 Pipe
Monel DIN NR. 2.4360 SMLS PipeAlloy 400 UNS N04400 Polished Pipe
ASME SB165 monel 400 EFW PipeSchedule 40 Monel Alloy 400 Pipe
Capillary ASTM B165 monel 400 Thin PipeHigh pressure UNS N04400 Pipe
ASTM B165 400 Monel Custom PipeASTM B165 monel 400 Capillary Pipe
Monel Alloy 400 Hollow Pipe400 Alloy Electropolished Pipe
400 Alloy Square Pipemonel 400 Thin Wall Pipe
Alloy 400 UNS N04400 Round PipeAlloy 400 Exhaust Pipe
monel 400 Hexagonal PipeNickel Alloy 400 Pipe material
Alloy 400 Rectangular PipeSmall diameter monel 400 pipe
Nickel Alloy 400 Fabricated PipeASTM B165 400 Monel Annealed pipe
UNS N04400 Cold Drawn PipeCold Drawn ASTM B165 monel 400 Welded Pipe
monel 400 Bush Hex Pipe2.4360 Alloy 400 Clad Pipe
2.4360 Alloy 400 Beveled End PipeMonel Alloy 400 Rectangle Pipe

Various Types Of Monel Alloy 400 Tubing

Monel 400 Seamless Pipe
Monel 400 Seamless Pipe
Monel 400 Welded Pipe
Monel 400 Welded Pipe
Alloy 400 Pipe
Alloy 400 Pipe
Monel 400 Erw Pipe
Monel 400 Erw Pipe
Monel 400 Tube
Monel 400 Tube
Werkstoff Nr. 2.4360 Erw Pipe
Werkstoff Nr. 2.4360 Erw Pipe
Alloy 400 Seamless Tube
Alloy 400 Seamless Tube
SB165 Monel 400 Tube/pipe
SB165 Monel 400 Tube/pipe
Monel 400 Nickel Alloy Pipe
Monel 400 Nickel Alloy Pipe
ASTM B165 400 Monel Hollow Pipe
ASTM B165 400 Monel Hollow Pipe
ASTM B165 UNS N04400 Tubing
ASTM B165 UNS N04400 Tubing
Monel 400 Seamless Tube
Monel 400 Seamless Tube

Monel Vs Inconel Pipe

Monel

Monel May Be A Gather Of Nickel Alloys, Basically Composed Of Nickel (Up To 67%) And Copper, With Little Amounts Of Iron, Manganese, Carbon, And Silicon.

Monel Alloys Compositions (Percentages)

Trade NameASTM/AISI

Alloy Type

UNS%Cu%Al%Ti%Fe%Mn%Si%Ni
Monel 400B 127, B 164N0440028-342.5 Max2.0 Max0.5 Max63 Min
Monel 401N0440128-342.5 Max2.0 Max63 Min
Monel 404N04404Rem0.05 Max0.5 Max0.1 Max0.1 Max52-57
Monel K-500B 865N0550027-332.3-3.150.35-0.852.0 Max1.5 Max0.5 Max63 Min
Monel 405B 164N0440528-342.5 Max2.0 Max0.5 Max63 Min

Inconel

Inconel Is A Family Of Austenitic Nickel-Chromium-Based Superalloys.

Inconel Composition

InconelElement (% By Mass)
NiCrFeMoNbCoMnCuAlTiSiCSPB
60072.014.0–17.06.0–10.01.00.50.50.150.015
61744.2–56.020.0–24.03.08.0–10.010.0–15.00.50.50.8–1.50.60.50.150.0150.0150.006
62558.020.0–23.05.08.0–10.03.15–4.151.00.50.40.40.50.10.0150.015
69059.5309.20.350.010.020.350.0190.003
71850.0–55.017.0–21.0Balance2.8–3.34.75–5.51.00.350.2–0.80.65–1.150.30.350.080.0150.0150.006
X-75070.014.0–17.05.0–9.00.7–1.21.01.00.50.4–1.02.25–2.750.50.080.01

ASTM B725 Alloy 400 Tube Testing

  • Chemical Analysis – Spectro Analysis
  • Pitting Resistance Test
  • Positive Material Identification – PMI Testing
  • Hardness Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
  • Mechanical Testing Such as Tensile of Area
  • Micro and MacroTest
  • Flattening Test
Take a look at our large nickel 400 tubing Size Chart, DIN 17752 Tube. Contact for best Alloy 400 Pipe in India and many more products at factory price.

Monel 400 Pipe Price

ASTM B515 N08800 1.4876 Welded Nickel Alloy Tubes

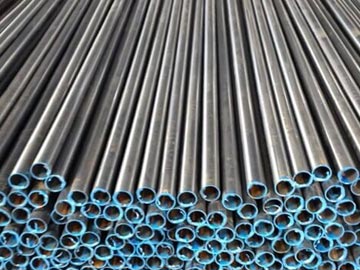

Monel 400 seamless pipe sch40

US $2000-$5000 / Ton

INR : 149708.20 - 374270.50

Incoloy 800 Heating Tube

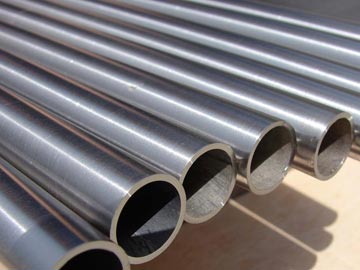

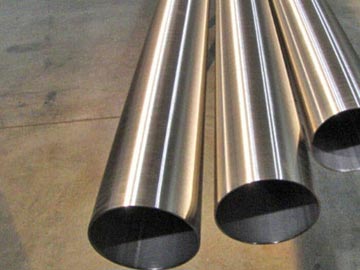

Monel 400 Tube/Pipe

US $19.00-$30.00 / Kilogram

INR : 1422.23 - 2245.62

Incoloy 800 Welded Nickel Alloy Tube

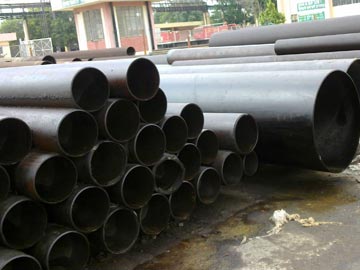

Monel 400 Seamless Pipe

US $20.00-$70.00 / Kilogram

INR : 1497.08 - 5239.79


ASTM B515 N08800 1.4876 Welded Nickel Alloy Tubes

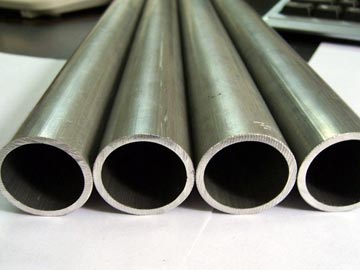

400 Monel Steel 1/8"~40" Round Squared

US $10.00-$1000 / Piece

INR : 748.54 - 74854.10

Incoloy 800 Heating Tube

Monel 400 Tubes

US $2000 / Ton

INR : 149708.20

Incoloy 800 Welded Nickel Alloy Tube

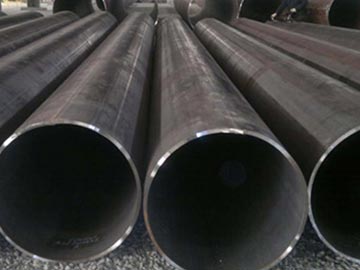

Monel Pipe, 20m

US $ 40.08/ Meter

INR : 3000


DIN 2.4360 Erw Pipe Certificate

  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report etc

Monel 400 Seamless Pipe Packaging

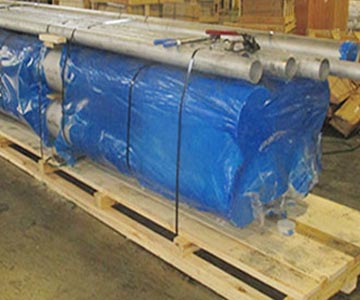

Monel 400 Tube packaging

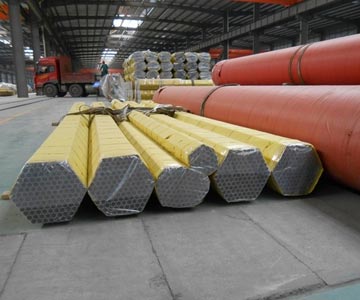

Alloy 400 Pipe packaging

ASTM B165 UNS N04400 Tubing Density

PropertiesMetricImperial
Density8.8 gm/cm30.318 lb/in3

Uses Of ASTM B725 Uns N04400 Welded Pipe

  • Specialty Chemicals
  • Chemical Equipment
  • Off-Shore Oil Drilling Companies
  • Gas Processing
  • Power Generation
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Petrochemicals

Nickel Alloy 400 Tube Documentation

  • Test Certificates certifying NACE MR0103, NACE MR0175
  • Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
  • Guarantee Letter
  • Packing List including net weight and gross weight, number of boxes, Marks and Numbers
  • Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
  • Fumigation Certificates
  • Raw Material Test Reports
  • Material Traceability Records

Alloy 400 Erw Pipe Characteristcs

  • Excellent resistance to rapidly flowing brackish water or seawater
  • Resistant to seawater and steam at high temperatures
  • High resistance to alkalis
  • Excellent resistance to neutral and alkaline salt
  • Excellent resistance to stress corrosion cracking in most freshwaters
  • Resistance to chloride induced stress corrosion cracking
  • Good mechanical properties from sub-zero temperatures up to 1020° F
  • Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
Stock an extensive range of Monel 400 Tubing, view DIN 2.4360 Hexagonal/ Square Pipe as per ASTM B829/ B163/ B730/ B751,ams 4574 Standards specification

ASTM Standards Of Monel 400 Erw Pipe

UNS:

N04400

Specifications:

ASTM B165, ASTM B829, ASTM B775, ASTM B725, ASTM B163, ASTM B730, ASTM B751,ams 4574

international Specifications:

din 17752, VdTUV 2635

Alloy 400 Seamless Tube Welding Material

  • AWS A5.14 ERNiCu-7 Weld Wire
  • AWS A5.11 ENiCu-7 Weld Wire

Hs Code Of Monel Pipe

HS CodeDescription
73043119PIPE NIPPLE,MONEL 400,1,S80S LENGTH=80MM.SCD NPT X PLAIN END CERT 3.1
75072000(NICKEL ALLOY PIPES) ALLOY 400(MONEL 400) ALLOY 400(MONEL 400) PIPES ASTM165
75072000(NICKEL ALLOY PIPES) ALLOY 400(MONEL 400) ALLOY 400(MONEL 400) PIPES ASTM SB165
75071200EFW ALLOY STEEL PIPE (24 PIPE EFW MONEL 400 PER ASTM B 725 UNS N04400 CAT 2 PER ANSI 836.10
75071200NICKEL ALLOY SEAMLESS PIPES GRADE MONEL 400
73065000NEW & UNUSED PRIME QUALITY OF EFW ALLOY STEEL PIPES - 8000IN PIPE ELECTRIC FUSION WELDED MONEL 400 PER ASTM B725 UNS N04
73065000NEW & UNUSED PRIME QUALITY OF EFW ALLOY STEEL PIPES - 10000 IN PIPE ELECTRIC FUSION WELDED MONEL 400 PER ASTM B725 UNS N
75071200FLANGES & PIPE FITTING NICKEL ALLOY MONEL400 2 BL 300 RF 125-250 RMS CODE 1328
75071200NICKEL ALLOY DEFECTIVE SEAMLESS PIPE GRADE MONEL 400
75071200NICKEL ALLOY DEFECTIVE SEAMLESS PIPE GRADE MONEL 400

A Global supplier

Know Which Monel 400 Tube Supplied Where

Monel 400 Pipe Supplier in India

Monel 400 Pipe Supplier in India

Alloy 400 Seamless Pipe

Alloy 400 Seamless Pipe


Indonesia, Spain, Chile, China, Australia, Singapore, Nigeria, Poland, Egypt, Iran, South Africa, Sweden, Italy, South Korea, South Africa, Dammam -KSA, Russia, Qatar, Bahrain, Japan, Vietnam, Thailand, Bangladesh, Hong Kong, Argentina, Netherlands, Portugal, Dubai- UAE, United Kingdom (UK), Norway, Kuwait, Denmark Austria, Malaysia, Tehran -Iran, United States, Canada, Malaysia

Monel 400 Welded Tubing

Monel 400 Welded Tubing


USA, New Zealand, Jakarta, Dubai, Peru, Malaysia, Taiwan, France, Kuala Lumpur, Saudi Arabia (KSA), Belgium, Singapore, United Arab Emirates (UAE), Greece, Istanbul- Turkey, Oman, Ellington -United States, Brazil, Germany, Morocco, Philippines, Los Alamos -Mexico, Europe, Turkey, Mexico, Finland, Jordan, Romania, NY 12203 (USA), Czechia, Colombia, Jakarta -Indonesia
