Hastelloy C276 is a superalloy high-performance alloy that is designed with an austenitic structure. The Hastelloy C276 Pipe is designed with primary constituents of nickel, molybdenum, chromium, and tungsten. This allows the pipes to have excellent corrosion and oxidation resistance across different stress-induced environments. A Nickel Alloy C276 Tubing has a higher resistance to chloride stress corrosion cracking and is resistant to pitting by acids. This tubing has a density of 8.89 g/cm3 and has a melting point of 1371 degrees C. The UNS N10276 Tubing has a minimum tensile strength of 601.2mpa and possesses a minimum yield strength of 204.8mpa. They can be elongated by 56% and have a Rockwell hardness of 100 B. The C276 Nickel Round Pipe is designed possessing an equal circular cross-section. These pipes provide support and stability to different applications in the system. They are very malleable and are available at reasonable rates across all our outlets.
A WNR 2.4819 Welded Pipe is produced as metal is rolled and welded in place using standard welding procedures. These pipes are seen in low-pressure and temperature applications. The versatile Hastelloy C276 Alloy EFW Pipe is manufactured via an electric fusion welding process as high voltage electricity is passed through the metal grade to precisely melt it. These pipes are employed in welding steel of dissimilar sizes and have a high power density. The Hastelloy C276 Seamless Pipe is manufactured via an extrusion process as hot steel billets are passed through metal to precisely shape the fixtures in the correct dimensions. These pipes possess superior strength and have higher corrosion resistance than welded pipe grades. Alloy C276 Seamless Tube doesn’t possess any seam or welds allowing them to withstand 20% higher working pressure compared to welded fixtures. This makes it slightly more expensive than welded fixtures.
Hastelloy C276 Pipe

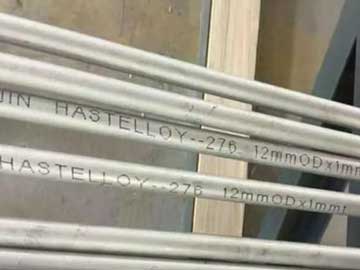

ASME SB622 UNS N10276 Welded Pipe
Table of Content
- ASME SB622 UNS N10276 Welded Pipe Specification
- Alloy C276 Hastelloy ERW Pipe Price
- Hastelloy C276 Pipe Types
- ISO 6207 Hastelloy C276 Seamless Pipe Dimensions
- Alloy NW 0276 Tube Chemical Composition
- ASME SB 622 N10276 Hastelloy Annealed Pipes Mechanical Properties
- UNS N10276 Tubing Equivalent
- Alloy C276 Tubing Schedule Chart
- C276 Hastelloy Heat Exchanger Tube Pressure Rating
- Hastelloy Alloy C276 Pipe Inventory
Suppliers Of Hastelloy C276 Seamless Tubes In Mumbai, India, Get Free Quote For Hastelloy C276 Welded Tubes, Equivalent Grades Of Alloy C276 Tubes.
ASME SB622 UNS N10276 Welded Pipe Specification
| Specifications | ASTM B 622/ B 619, ASME SB 622 / SB 619 |
|---|---|
| Schedule | Schedule 5 to160 |
| Dimensions | ASTM, ASME, and API |
| Type | Seamless / ERW / LSAW / Welded / Fabricated |
| Size | 15″NB to 150″NB |
| Length | Single Random, Cut Length and Double Random |
| Specialized in | Large Diameter Sizes |
| Form of Hastelloy C276 Pipe Manufacturers | Round, Hydraulic, Etc |
| End | Plain End, Beveled End, Treaded |
Suppliers Of UNS N10276 Tubes In India, Visit our 2.4819 Tubes in India, Call Now to Get ASTM B622 UNS N10276 Free sample, Stockist Of ASTM B619 UNS N10276.
Alloy C276 Hastelloy ERW Pipe Price
| Products | Nominal Pipe Size | Overall Length | Price |
|---|---|---|---|
| PIPE STRUCTURE SMLS SIZE 1/4 IN LENGTH 2M MATERIAL HASTELLOY ASTM B622 GRADE C-276 SCHEDULE 40S STANDARD ANSI B36 10 AN | 3/4 in | 10 ft | $88.23 |
| HASTELLOY C-276- PIPES & PIPE FITTINGS REDUCER ECC HASTELLOY C-276 SIZE 4 X 3 X SCH40 | 1-1/4 in | 10 ft | $158.76 |
| HASTELLOY C276 PIPE 3NB X SCH 80 LENGTH3.55 MTR LONG | 2 in | 10 ft | $217.09 |
| HASTELLOY C-276 SMLS PIPE TO SB 619 N10276, IN 6 MTRS LENGTH- SIZE: 1 NB X SCH10S |
2-1/2 in | 10 ft | $257.94 |
| NICKEL HASTELLOY ( R) C-276(R) ALLOY SEAMLESS PIPE 2.375 X 2.067 X 0.154 MM | 4 in | 10 ft | $414.58 |
Get instant delivery Of 2.4819 Alloy C276 Tubes, Weight Chart Of C276 UNS N10276 Tubes, Suppliers Of Hastelloy UNS N10276 Tubes In Mumbai. India.
Hastelloy C276 Pipe Types

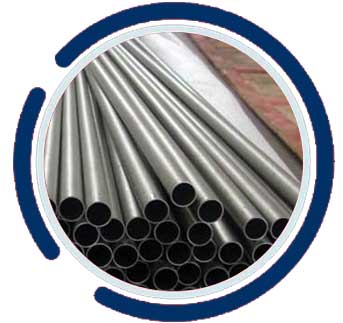

Alloy C276 Hastelloy ERW Pipe

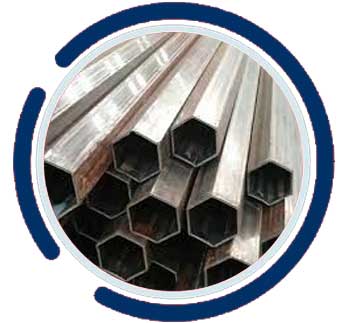

Hastelloy C276 Hexagonal Pipe

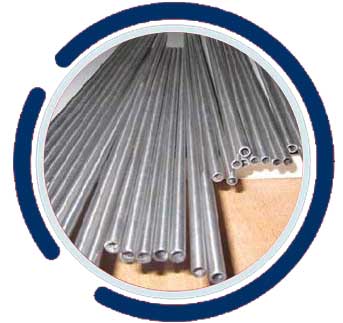

Alloy C276 Tubing

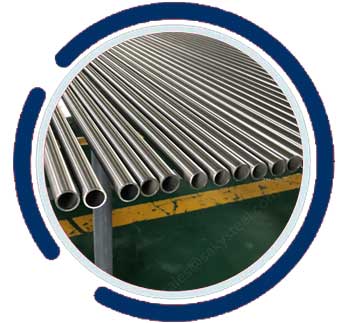

Hastelloy C276 Cold Rolled Coiled Tube

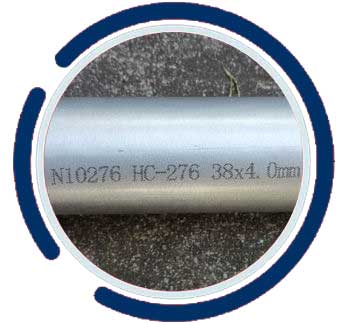

Hastelloy C276 Alloy EFW Pipe

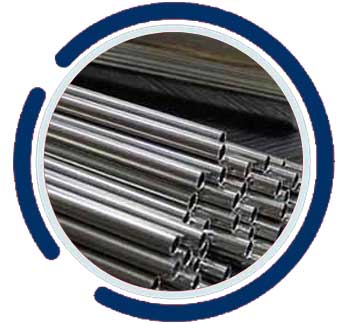

ASME SB 622 N10276 Hastelloy Annealed Pipes

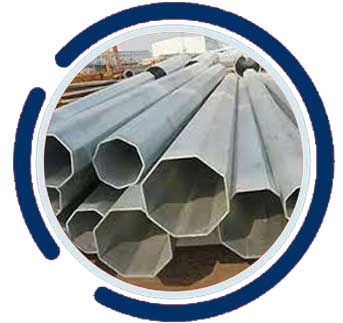

Hastelloy DIN NR. 2.4819 Bush Hex Pipe

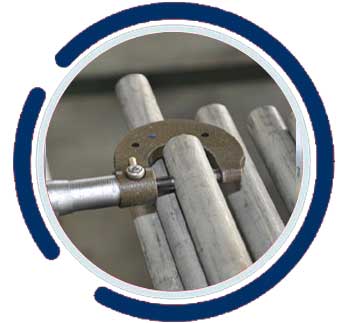

Hastelloy C276 Electropolish Tube

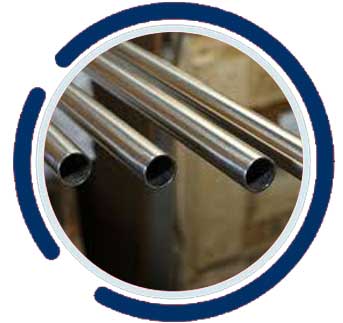

ASTM B619 C276 Hastelloy Round Pipe

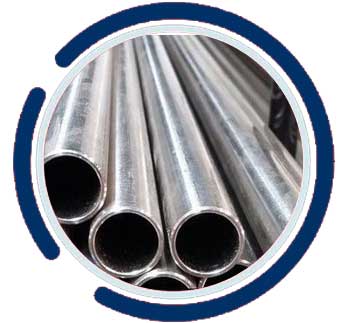

Hastelloy C276 Seamless Pipe

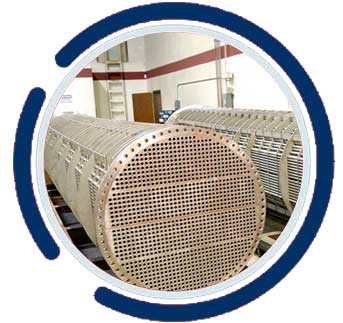

C276 Hastelloy Heat Exchanger Tube

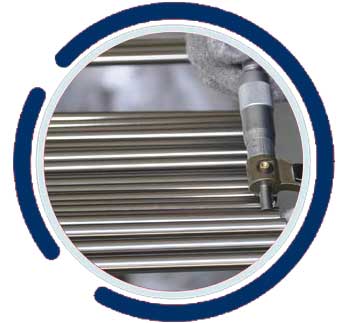

Hastelloy C276 Sanitary Tube
Buy directly from Tubes SB 622 UNS N10276 manufacturers in India to save cost, avoid high margins of distributors and supplier commission
ISO 6207 Hastelloy C276 Seamless Pipe Dimensions
| OD mm |
in. | WT mm |
Kg/m | Sch |
|---|---|---|---|---|
| 13.72 | 1/4 | 1.65 | 0.50 | 10S |
| 13.72 | 1/4 | 2.24 | 0.64 | 40S |
| 13.72 | 1/4 | 3.02 | 0.81 | 80S |
| 17.15 | 3/8 | 1.65 | 0.64 | 10S |
| 17.15 | 3/8 | 2.31 | 0.86 | 40S |
| 17.15 | 3/8 | 3.20 | 1.12 | 80S |
| 21.34 | 1/2 | 2.11 | 1.02 | 10S |
| 21.34 | 1/2 | 2.77 | 1.29 | 40S |
| 21.34 | 1/2 | 3.73 | 1.65 | 80S |
| 26.67 | 3/4 | 2.11 | 1.30 | 10S |
| 26.67 | 3/4 | 2.87 | 1.71 | 40S |
| 26.67 | 3/4 | 3.91 | 2.23 | 80S |
| 33.40 | 1 | 2.77 | 2.13 | 10S |
| 33.40 | 1 | 3.38 | 2.54 | 40S |
| 33.40 | 1 | 4.55 | 3.29 | 80S |
| 33.40 | 1 | 6.352) | 4.30 | 160 |
| 42.16 | 1¼ | 2.77 | 2.73 | 10S |
| 42.16 | 1¼ | 3.56 | 3.44 | 40S |
| 42.16 | 1¼ | 4.85 | 4.53 | 80S |
| 42.16 | 1¼ | 6.352) | 5.69 | 160 |
| 48.26 | 1½ | 2.77 | 3.16 | 10S |
| 48.26 | 1½ | 3.68 | 4.11 | 40S |
| 48.26 | 1½ | 5.08 | 5.49 | 80S |
| 60.33 | 2 | 2.77 | 3.99 | 10S |
| 60.33 | 2 | 3.91 | 5.52 | 40S |
| 60.33 | 2 | 5.54 | 7.60 | 80S |
| 60.33 | 2 | 8.742) | 11.29 | 160 |
| 73.03 | 2½ | 3.05 | 5.35 | 10S |
| 73.03 | 2½ | 5.16 | 8.77 | 40S |
| 73.03 | 2½ | 7.01 | 11.59 | 80S |
| 88.90 | 3 | 3.05 | 6.56 | 10S |
| 88.90 | 3 | 5.49 | 11.47 | 40S |
| 88.90 | 3 | 7.62 | 15.51 | 80S |
| 88.90 | 3 | 11.132) | 21.67 | 160 |
| 101.60 | 3½ | 3.05 | 7.53 | 10S |
| 101.60 | 3½ | 5.74 | 13.78 | 40S |
| 101.60 | 3½ | 8.08 | 18.92 | 80S |
| 114.30 | 4 | 3.05 | 8.50 | 10S |
| 114.30 | 4 | 6.02 | 16.32 | 40S |
| 114.30 | 4 | 8.56 | 22.67 | 80S |
| 114.30 | 4 | 13.492) | 34.05 | 160 |
| 141.30 | 5 | 6.55 | 22.10 | 40S |
| 141.30 | 5 | 9.53 | 31.44 | 80S |
| 141.30 | 5 | 15.882) | 49.87 | 160 |
| 168.28 | 6 | 3.4 | 14.04 | 10S |
| 168.28 | 6 | 7.11 | 28.69 | 40S |
| 168.28 | 6 | 10.97 | 43.21 | 80S |
| 168.28 | 6 | 14.27 | 54.75 | 120 |
| 168.28 | 6 | 18.262) | 68.59 | 160 |
| 219.08 | 8 | 8.18 | 43.20 | 40S |
| 219.08 | 8 | 12.7 | 65.63 | 80S |
| 219.08 | 8 | 18.23 | 91.30 | 120 |
| 219.08 | 8 | 23.012) | 112.97 | 160 |
Alloy NW 0276 Tube Chemical Composition
| Si | Ni | Fe | C | S | Mo | Co | Mn | Cr | P |
|---|---|---|---|---|---|---|---|---|---|
| 0.08 max | Balance | 4 – 7 | 0.01 max | 0.03 max | 15 – 17 | 2.5 max | 1.0 max | 14.5 – 16.5 | 0.04 max |
ASME SB 622 N10276 Hastelloy Annealed Pipes Mechanical Properties
| Density | Tensile Properties | Melting Point | Elongational | Yield Properties |
|---|---|---|---|---|
| 8.89 g/cm3 | Psi – 1,15,000 , MPa – 790 | 1370 °C (2500 °F) | 40 % | Psi – 52,000 , MPa – 355 |
UNS N10276 Tubing Equivalent
| EN | UNS | JIS | WERKSTOFF NR. | OR | AFNOR | GOST |
|---|---|---|---|---|---|---|
| NiMo16Cr15W | N10276 | NW 0276 | 2.4819 | ЭП760 | – | ХН65МВУ |
Alloy C276 Tubing Schedule Chart
| 1/8" IPS(.405"O. D.) | 3 1/2" IPS( 4.000"O. D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4" IPS(.540"O. D.) | 4" IPS(4.500"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8" IPS(.675"O. D.) | 5" IPS( 5.563"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2" IPS(.840"O. D.) | 6" IPS(6.625"O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4" IPS(1.050"O. D.) | 8 ” IPS(8.625"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1" IPS:(1.315′O. D.) | 10" IPS(10.750"O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4" IPS(1.660"O. D.) | 12" IPS(12.750"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2" IPS(1.900"O. D.) | 14" IPS(14.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2" IPS(2.375"O. D.) | 16" IPS(16.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2" IPS(2.875"O. D.) | 18" IPS (18.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3" IPS( 3.500"O. D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
PED approved Nickel Alloy C276 N10276 Tubes suppliers in India, check dimensions and thickness chart
C276 Hastelloy Heat Exchanger Tube Pressure Rating
| Pipe O.D. (in.) |
Wall Thickness of Pipe (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
