Hastelloy C276 Plate


Check Nickel Alloy UNS N10276 Sheet Weight Chart And DIN 2.4819 Foil Price In India

Hastelloy C276 is an austenitic superalloy grade. A Hastelloy C276 Plate is a high-strength grade that is designed with a thickness of above 6mm. These plates possess a superior chemical composition of nickel, molybdenum, chromium, and tungsten. The content allows it to possess good resistance to corrosive and reducing media. The DIN 2.4819 Hot rolled Plate is produced as plates are heated at extreme temperatures till they reach their recrystallization limit. These plates can be easily shaped in different sizes. The Nickel Alloy UNS N10276 Sheet is an aesthetically appealing grade that is designed with a thickness of less than 6mm, but higher than 0.5mm. These sheets have a density of 8.89 g/cm3 and have a melting point of 1371 degrees C. An Alloy C276 Sheet has higher oxidation and creep resistance, allowing them to be strengthened using standard precipitation and solution hardening methods. These sheets are very versatile and resist the development of the grain boundary in the system.

The ASME SB575 Nickel C276 Coil is coiled soon after the rolling process. These coils are easy to handle and can be efficiently transported and later sheared in different fixtures. A DIN 2.4819 Foil is one of the thinnest metal grades that is designed in thicknesses below 0.2 mm. These foils are wrapped around different components, protecting them against damage during heat treatment or storage. The Hastelloy C276 Grade Shim sheet are designed to fill space between components. This allows the sheets to provide stability and support to the system. An NW 0276 Perforated Sheet is produced as metal is punched mechanically or manually using different CNC technology, allowing it to be aesthetically appealing in the system. The C276 Hastelloy Chequered Plate has raised surface designs and specifications. These plates have superior strength and outstanding anti-skid properties due to their versatile design geometry.

Hastelloy C276 Plate

Hastelloy C276 Plate

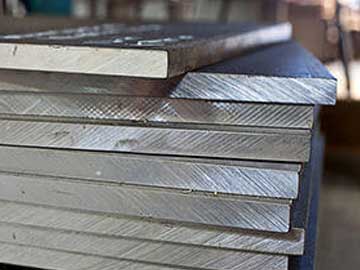

Hastelloy Alloy C276 Sheet

Hastelloy Alloy C276 Sheet

Hastelloy Plate and Alloy C276 Sheet Stockist And Supplier In Mumbai, Check ASME SB575 Nickel C276 Coil Thickness

Hastelloy C276 Plate

Wide stock of Hastelloy C276 Strip and Hastelloy C276 Plate supplier and exporter in India

SB 575 Hastelloy C276 Strip Specification

Specification ASME SB575 / ASTM B575
Length 2.44m, 2m, 3m, or as required
Tolerances
  • EN 10258/ DIN 59381)
  • EN 10151 2.4819 Hastelloy C-276 Strips
  • EN 10088 Hastelloy C276 SB575 strips
Finish 2B, SATIN, 2D, Cold rolled sheet, BA NO (8), Hot rolled plate, 1D, brush, No.1 finish hot rolled, No.4, 8K, BA, hairline, mirror etc.
Dimensions
  • Cold rolled Alloy C276 Plates 0.5-6.4 mm
  • Hot rolled Alloy C276 Plates 3.0–10.0 mm
Shapes Rolling Plates, soft annealed, descaled, Sheet, Strip, sheared, Coils, Flat Sheet, Flat Shim, Shim Sheet, annealed, tread Plates, Flats, Clad Plates, Plates, Rolling Sheet, Foils, Blank, Checker Plates, Rolls, Plain Sheet
Thickness 0.1 upto 100 mm Thk
Hardness Hard, Quarter Hard, Soft, Half Hard, Spring Hard
Width 10 upto 2500mm
Hs Code 75062000

Supplier of Hastelloy C276 Sheet and Alloy C276 Strip in India, extensive stock of Hastelloy C276 Polished Plates in Mumbai

Alloy Hastelloy C276 Coil Price

Products Width and Length Price
HASTELLOY C276 PLATE-135 MM OD X 6MM THK 12 in x 12 in $17.78 / each
HASTELLOY C276 PLATE TO SB 576 UNS N10276 SIZE:200 MM DIA X 6 MM THK 12 in x 24 in $31.90 / each
NICKEL ALLOY PLATE HASTELLOY C276 4 MM X1220 X 2440 12 in x 48 in $52.81 / each
NICKEL ALLOY PLATES CONF. TO SPECN.SB-575 UNS-N10276 HASTELLOY C-276 SIZE(MM): 16 X 2000 X 7500 24 in x 48 in $95.15 / each

Stocking Distributor Of DIN 2.4819 Hot rolled and Cold Rolled Plate In Mumbai. Check Stock of Hastelloy C276 Grade Shim sheet In India

Manufacturer of Hastelloy C276 ASTM B575 Hot Rolled Plates in superior quality surface and tight tolerance, get a Quick Quote! check 2.4819 Hastelloy C-276 Chequered Plates stock length, sizes, and dimensions

Hastelloy C276 Plate Types

Alloy Hastelloy C276 Coil

Alloy Hastelloy C276 Coil

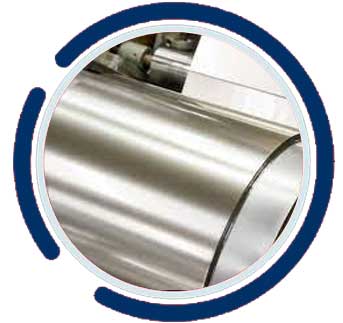

UNS N10276 Hastelloy C276 Foil

UNS N10276 Hastelloy C276 Foil

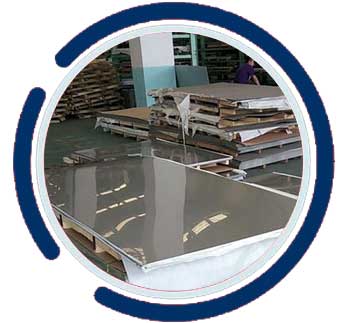

Haynes Alloy C276 N10276 Polished Plate

Haynes Alloy C276 N10276 Polished Plate

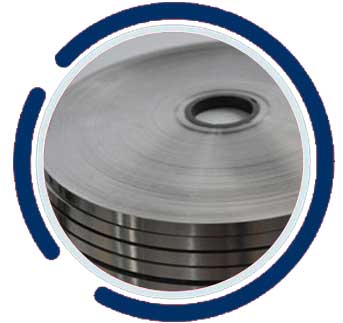

Hastelloy C276 Alloy Strip Tape

Hastelloy C276 Alloy Strip Tape

Alloy C276 Hastelloy Hot Rolled Plate

Alloy C276 Hastelloy Hot Rolled Plate

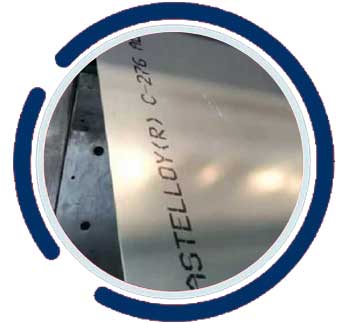

C276 Hastelloy Shim Sheet

C276 Hastelloy Shim Sheet

Hastelloy C276 Cold Rolled Plate

Hastelloy C276 Cold Rolled Plate

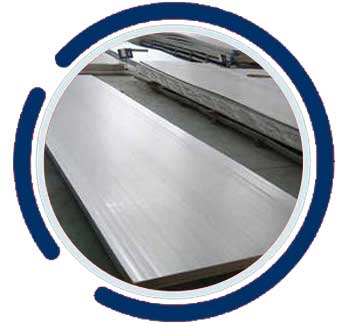

Nickel Alloy C276 Clad Plate

Nickel Alloy C276 Clad Plate

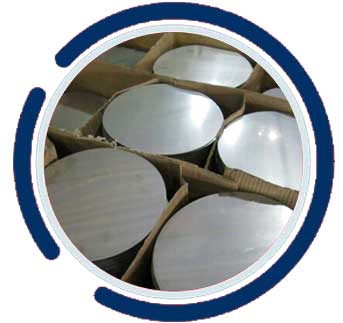

Hastelloy C276 Circle

Hastelloy C276 Circle

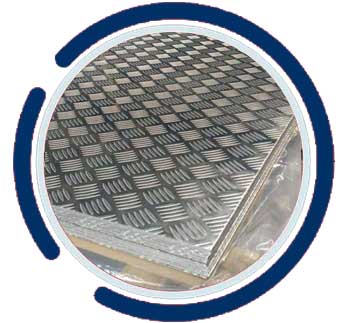

Hastelloy C276 Chequered Plates

Hastelloy C276 Chequered Plates

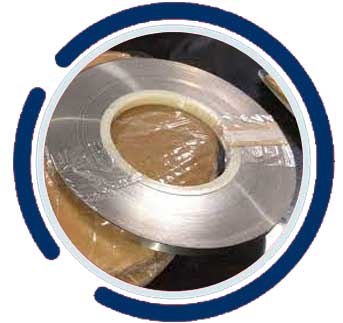

ASTM B575 UNS N10276 Strip

ASTM B575 UNS N10276 Strip

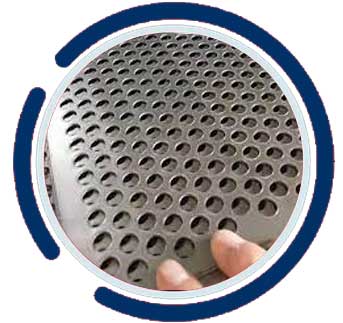

Asme Sb575 Alloy C276 Perforated Sheet

Asme Sb575 Alloy C276 Perforated Sheet

Check Price List of Hastelloy C276 SB575 Clad Plates and Hastelloy C276 SB575 CR Sheet Suppliers in India

Nickel Alloy C276 Sheet Dimension

Dimension KG P/M2
1.2 X 1219 X 3048 10.8
0.5 X 1000 X 2000 4.5
1.6 X 1200 X 3048 14.4
0.7 X 1219 X 3048 6.3
3 X 1200 X 3000 27.0
0.9 X 1219 X 3048 8.1
2.0 X 1219 X 3048 18.0
3.18 X VARIOUS ANN 28.6

C276 Hastelloy Shim Sheet Chemical Composition

Ni C Cr Mn Fe Si Mo S P Co
50.99 min* 0.010 max 14.50 – 16.50 1.00 max 4.00 – 7.00 0.08 max 15.00 – 17.00 0.03 max 0.04 max 2.50 max

Haynes Alloy C276 N10276 Polished Plate Mechanical Properties

Tensile Properties Density Yield Properties Melting Point Elongational
Psi – 1,15,000 , MPa – 790 8.89 g/cm3 Psi – 52,000 , MPa – 355 1370 °C (2500 °F) 40 %

Material Elongation % Ultimate Tensile (min) Hardness Rb Yield Strength (Min)
Ksi Mpa Ksi Mpa
C276 Sheet 60 115.5 796 86 54.6 376
C276 Plate 67 107.4 741 89 50.3 347
Dimensions, Thickness And Cut Piece Available In 4mm C276 Hastelloy Chequered/ Thick Plate, Find Your Size Of NW 0276 Perforated Sheet In Our Inventory And Save Upto 25%

AMS 5599 Alloy C276 Hastelloy plate Equivalent

GOST WERKSTOFF NR. EN UNS OR JIS
ХН65МВУ 2.4819 NiMo16Cr15W N10276 ЭП760 NW 0276

Manufacturer & Supplier of SB 575 Hastelloy C276 Polished Sheet, wide range of ASTM B575 C276 Round Disks and Alloy C276 Blank

Alloy C-276 Cold Rolled Plate Size chart

Size Size
3.18mm .125"
3.40mm .134"
3.96mm .156"
4.75mm .187"
6.35mm .250"
7.92mm .312"
9.53mm .375"
12.7mm .500"
15.9mm .625"
19.1mm .750"
22.2mm .875"
25.4mm 1"
28.6mm 1.125"
31.8mm 1.250"
38.1mm 1.500"
44.5mm 1.750"
50.8mm 2"
63.5mm 2.500"
76.2mm 3"

ASTM B575 UNS N10276 Strip Application

  • Petrochemical industry
  • Chemical Industry
  • Power plants
  • Marine & Power Transmission industry
  • Furniture
  • Energy industries
  • Modern architecture
  • Pharmaceutical processing industry
  • Water waste projects
  • Home appliances
  • Heat exchanger
  • Synthetic fiber
  • Dairy and food processing
  • Fluid piping
Buy Online And Get Dealer Price of Hot-Rolled (HR) And Cold-Rolled Hastelloy Sheet and Alloy C276 Plate Stock Of Manufacturers Like Acroni, Aperam, Thysenkrupp, Posco, Columbus, Acerinox, Jindal

Alloy C276 Plate Inventory

Hastelloy C276 Plate JIS NW C276 Plate
SB 575 Hastelloy C276 Strip Nickel Alloy C276 Clad Plate
Alloy Hastelloy C276 Coil Hastelloy C276 Circle
UNS N10276 Hastelloy C276 Foil ASTM B575 UNS N10276 Strip
Alloy C276 Plate Hastelloy C276 hot rolled steel plate
Hastelloy Alloy C276 Sheet Alloy C276 SB575 Coil
Haynes Alloy C276 N10276 Polished Plate ASTM B575 Hastelloy UNS N10276 Shim Sheet
ASTM B575 Hastelloy C276 Hot Rolled Plate Hastelloy DIN 2.4819 Sheets
Nickel Alloy C276 Sheet ASTM B575 Hastelloy C276 Shim Sheet
ASTM B575 C276 Hastelloy 2D Plate Hastelloy C276 Chequered Plates
Hastelloy C276 Alloy Strip Tape Alloy C276 Cold Rolled Sheets
Alloy C276 Hastelloy Hot Rolled Plate 276 Alloy Perforated Sheets
C276 Hastelloy Shim Sheet Alloy C276 Perforated Sheet
Hastelloy UNS N10276 Polished Cold Drawn Plate DIN 2.4819 Polished Plate
C276 Hastelloy Sheet ASTM B575 Alloy C276 Hot Rolled Plate
AMS 5599 Alloy C276 Hastelloy plate Asme Sb575 Alloy C276 Perforated Sheet
C276 Hastelloy plate Uns N10276 Chequered Plate
Hastelloy C276 Hot Rolled Plate Nickel Alloy C276 Cold Rolled Sheet
Hastelloy C276 Cold Rolled Plate Alloy C-276 Cold Rolled Plate
