Incoloy 800 Pipe Fittings And ASTM B366 Alloy 800H Tee/ Elbow/ Reducer

What is Incoloy 800 Pipe Fittings?

Incoloy 800 pipe fittings are designed with a chemical composition of nickel, iron, and chromium. The structure of the austenitic grade remains stable even after long exposures to extreme temperatures. The high-strength fittings can influence the characteristics of the flow in the system while exhibiting enhanced corrosion resistance properties. The fittings also offer high resistance to oxidizing media in a range of aqueous environments.

Comparision Between Alloy 800H Elbow and Nickel Incoloy 800 End Cap

Pipe fittings are components that are employed in protecting piping components while influencing their flow characteristics.

Alloy 800H elbow is a high carbon module exhibiting superior strength and higher tolerance compared to Nickel Incoloy 800 end cap.
Elbows are used to redirect the flow of fluids and gases across the system. End caps are employed in sealing piping modules. These modules further protect and provide tolerance to corrosion within these components.

Incoloy 800 Butt Weld Pipe Fittings Uses

Incoloy 800 butt weld pipe fittings are super strength robust components that are widely used in:

Chemical and petrochemical processing systems
Heat treatment equipment like furnaces
Heat exchangers
Pipelines for transport of fluids and gases
Industrial furnace systems
Carburizing elements
Nuclear steam generator tubing
Superheater and heaters seen in power plants
Pressure vessels
Ammonia effluent coolers

UNS N08800 Reducer vs Werkstoff Nr. 1.4876 Tee

Reducers and tees are amongst the common grade of pipe fittings within this and other grades of stainless steel. These fittings can be distinguished based on certain features:

UNS N08800 Reducer is used in joining piping components of dissimilar diameters. These reducers are available in a range of sizes to fit different applications.
Werkstoff Nr. 1.4876 Tee is made of three branched ports. These ports allow the flow to be distributed evenly or reduced in one port across three different channels.

Incoloy 800 Fittings Features

Some of the features of Incoloy 800 fittings include:

Superior tolerance against high temperatures and pressures
Higher creep rupture strength
Excellent corrosion resistance
Work hardened during machining
Easy welding procedures using a filler metal
Good ductility
Tolerant to oxidation and carburization in high-temperature systems
Resistant in sulfur and acidic environments

ASTM B366 Alloy 800H Tee and Incoloy 800 Fittings Manufacturer in India

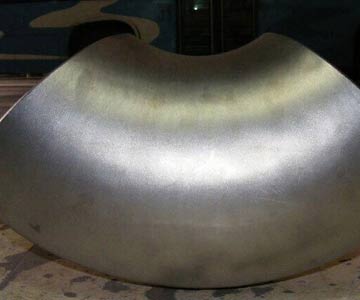

Incoloy 800 Elbow

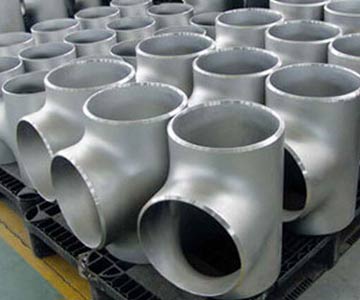

Incoloy 800 Tee

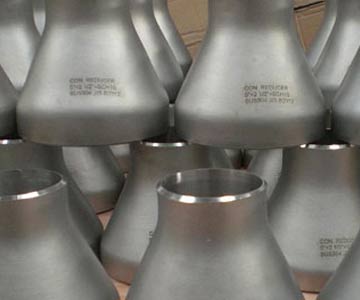

Incoloy 800 Reducer

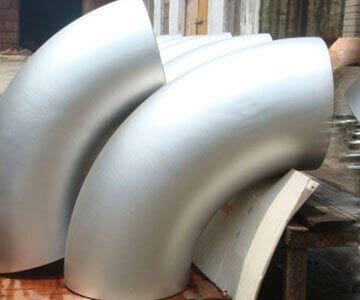

Incoloy 800 Long Radius Elbow

Looking for Alloy 800 Fittings suppliers who offer prompt delivery in Asia? Incoloy 800 Pipe Fittings Manufacturer in India, call us for big discount and ready sizes, check latest price of ASME SB 366 UNS N08800 Alloy 800 Pipe Fittings in Mumbai

Specification of Incoloy 800 Fittings

We provide Material Test Certificates (MTC) as per EN 10204 3.2, and EN 10204 3.1 Test Certificates certifying NACE MR0103, NACE MR0175
Thickness	SCH20, SCH10, SCH30, SCH60,STD SCH40, XS, SCH 100, SCH 80, SCH 120, SCH 160, SCH 140, XXS available with NACE MR 01-75
Specifications	Astm B366
size	Seamless Butt Weld Fittings: 1/2 Inch - 10 Inch Welded Butt Weld Fittings: 1/2 Inch - 48 Inch
Dimensions	ASME B16.28, ANSI/ASME B16.9, MSS-SP-43, BS4504, BS4504, BS10, BS1560
Type	DN15 to DN1200
Bending Radius	R=2D, 1D, 3D, 6D, 5D, 10D 8D, or Custom MSS Sp-43 Alloy 800 Pipe Fitting
Size Range	½" NB to 24" NB in Sch 40s, 10s, 80s, XXS, 160s. (DN6~DN100)
Elbows	Standard: ASME B16.28, ASME B16.9, DIN2605 MSS SP-75 ASME B16.25, JISB2312 JISB2311 JISB2313, GB, BS, ISO Angle : 30deg, 22.5 deg, 45 deg, 180 deg, 90 deg, 1.0D, 2.0D, 1.5D, 2.5D, 4D, 3D, 5D,7D-40D, 6D .
Manufacturing process	Cast, Forge, Press,Push, etc.
Connection	Welding
Key markets and industries	Heavy oil refineries. Bitumen upgraders. Nuclear power (mostly seamless). acids & Petrochemicals .
Specialized manufacturer of	45º Elbows, 90º Elbows, Tees, Reducers,Crosses, Pipe Cap, Pipe Bend, Stub End
Test Certificates	Raw Materials Certificate EN 10204/3.1B Third Party Inspection Report, etc100% Radiography Test Report
uses and Application	Schedule 10 fittings are an economical alternative for lower-pressure applications. Fittings To Connect Tube & Pipes in Petroleum, Chemical, Power, Construction, Metallurgy, Gas, Shipbuilding etc Schedule 40 fittings have a thicker wall for higher-pressure applications.

Incoloy 800 Chemical Composition

The Chemical Composition of Incoloy 800 Pipe Fittings, %
C	≤0.10
Mn	≤1.50
Si	≤1.00
Ni	30.0-35.0
Cr	19.0-23.0
Fe	≥39.5
Ti	0.15-0.60
Al	0.15-0.60
S	≤0.015
Cu	≤0.75

Alloy 800 Mechanical Properties

Tensile Strength, minimum		Yield Strength, minimum		Elongation, minimum	Hardness, minimum
Mpa	ksi	Mpa	ksi	%	HB
600	87	295	43	44	138

UNS N08800 Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800 Pipe Fittings	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H Fittings	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT Fittings	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Well-known Incoloy 800 Fittings Manufacturer in India. For final Alloy 800 Elbow Price List Please Call on +91 22 6636 3099.

The benefit of purchasing UNS N08800 End Cap, Inconel 800 Equal/ Unequal Tee and Alloy 825 Fittings, directly from supplier is the low cost and large selection of Nickel Alloy 800 Buttweld, Socket Weld Fittings which save your time

PED Certified Inconel 800 Weld Fittings Manufacturers in Mumbai, India, Dimensions Of Din 2.4858 Pipe Reducer In MM.

Alloy 800 Fittings Price

Description	Per Unit (INR)
INCOLOY ALLOY PIPE FITTINGS PIPE STRUCTURE SEAMLESS SIZE 3/4 IN LENGTH 3000 MM MATERIAL INCOLOY 800H SCHEDULE 80 ENDS BEV	16,386
NICKEL ALLOY FITTING -INCOLOY 800H/HT EQUAL TEES SIZE: 2 SCH 160	19,474

Standards of Incoloy 800 Pipe Fittings

100% Radiography Test Report

Dimensions	ANSI/ASME B16.9, ASME B16.28, BS4504, BS4504, BS10, MSS-SP-43, BS1560,
Thickness	SCH10, SCH60, SCH 140, SCH20, SCH 160, STD SCH40, SCH 80, XS, SCH 100, SCH30, SCH 120, XXS
size	Seamless Fittings: 1/2 inch – 10 inch Welded Fittings: 1/2 inch – 48 inch
Elbows	Angle :22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 2.5D, 2.0D, 1.5D, 5D, 3D, 4D, 7D, 6D,40D . Standard: ASME B16.25, ASME B16.28, BS,ASME B16.9, GB, MSS SP-75 DIN2605 JISB2312 JISB2311 JISB2313, ISO
Type	DN15 to DN1200
Manufacturing process	Push, Press, Cast, Forge, etc.
Connection	Welding
Specialized manufacturer of	Pipe Cap, 90º Elbows, Tees, Stub End, Reducers, 45º Elbows, Crosses, Pipe Bend
Bending Radius	R=6D, 1D, 2D,8D, 3D, 10D, 5D
Test Certificates	Raw Materials Certificate EN 10204/3.1B Third Party Inspection Report, etc

Buy ASTM B366 UNS N08800 Buttweld Elbow Directly From Largest Manufacturers In Mumbai, Check Weight Chart Of Nickel Alloy 800 Pipe Tee

Alloy 800 Pipe Fittings Stock

ASTM B366 800 Incoloy 90 Degree Elbow	ASME SB366 Incoloy 800 End Cap
Incoloy 800 Fittings	Incoloy 800 Pipe Fittings
ASTM B366 800 Incoloy 3D Elbow	Incoloy UNS N08800 End Cap
WNR 1.4876 45 Degree Elbow	ASTM B366 Incoloy 800 Buttweld Fittings
Incoloy WNR 1.4876 Equal Cross	Incoloy 800 Pipe Cap
ASTM B366 Incoloy 800 5D Elbow	Incoloy 800 Reducer
Incoloy UNS N08800 1D Elbow	800 Incoloy Short Stub End
Incoloy 800 Lateral Tee	ASME SB366 Incoloy 800 Cross Tee
Incoloy 800 Buttweld Fittings	ASME SB366 Incoloy 800 Pipe Bend
ASTM B366 Incoloy 800 Stub End	Incoloy 800 Pipe Cap
Incoloy 800 Equal Tee	Incoloy UNS N08800 Stub End
Incoloy WNR 1.4876 Pipe Fittings	Incoloy UNS N08800 Long Stub End
ASTM B366 Incoloy 800 Eccentric Reducer	ASME SB366 Incoloy 800 Long Radius Elbow
ASTM B366 800 Incoloy Concentric Reducer	Incoloy WNR 1.4876 5D Elbow
800 Incoloy Reducing Cross	ASTM B366 Incoloy 800 Equal Cross
800 Incoloy Concentric Reducer	ASTM B366 800 Incoloy Short Radius Elbow

Supplier of ASME SB 366 UNS N08810 Long/ Short Radius Elbow and Check Properties of Incoloy 800 Pipe Bend

UNS N08800 Properties

Density	Melting Range		Specific Heat		Electrical Resistivity
g/cm3	°C	°F	J/kg. k	Btu/lb.°F	µΩ·m
7.94	1357-1385	2475-2525	460	0.110	989

Get instant delivery Of Alloy 800 Socketweld Branch Outlets , Dimension Chart Of UNS N08800 Pipe Bends, Inconel 800 Eccentric Reducer Manufacturer In Mumbai. India.

Incoloy 800 Pipe Fittings Corrosion

Alloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength.

Inconel 800 Coefficient Of Thermal Expansion

Physical Properties	°F	°C
Mean Coefficient of Thermal Expansion	70-200 70-400 70-600 70-800	21-93 21-204 21-316 21-427
Thermal Conductivity	70 200 400 600 800	21 93 204 316 427

Incoloy 800 Density In Kg/m3

Properties	Metric	Imperial
Density	7.94 gm/cm3	0.287 lb/in3

Penetration inspection is done between 15 ℃ to 50℃ temperature for DIN 1.4876 Eccentric / Concentric Reducer and 800 Incoloy Stub End

Alloy 800H Maximum Temperature

Alloy 800H has good creep- rupture properties at temperatures above 1100°F (600°C). It remains ductile during long term use at temperatures below 1290°F (700°C) due to a maximum titanium and aluminum content of 0.7%.

Seamless ASME B16.9 4 Inch SCH40S NCF 800 Threaded Fittings Pressure Rating and Inconel 800 Return Bends manufacturer in India

Pressure Rating Chart of Incoloy 800 Pipe Fittings

ASME B16.9 Pressure Ratings
ASME B16.9 Fittings Temperature Ratings		Types Of Pressure Ratings Class
		Class 150#	Class 300#
			1/4 - 1 (Inch)	1 1/4 - 2 (Inch)	2 1/2 - 3 (Inch)
(oF)	(oC)		1/4 - 1 (Inch)	1 1/4 - 2 (Inch)	2 1/2 - 3 (Inch)
-20 to 150	-29 to 66	300	2000	1500	1000
200	93	265	1785	1350	910
250	121	225	1575	1200	825
300	149	185	1360	1050	735
350	177	150	1150	900	650
400	204	-	935	750	560
450	232	-	725	600	475
500	260	-	510	450	385
550	288	-	300	300	300

Alloy 800 Elbow Test Certificate

100% Radiography Test Report
Raw Materials Certificate
Third Party Inspection Repor
EN 10204/3.1B,

Value Added Services of Inconel 800 Weld Fittings

Chemical Analysis – Spectro Analysis
Intergranular Corrosion (IGC) Test
Hardness Test
Chemical Equipment
Pitting Resistance Test

Positive Material Identification – PMI Testing
Micro and MacroTest
Flattening Test
Mechanical Testing Such as Tensile of Area

Incoloy 800 Long Radius Elbow Documentation

Fumigation Certificates
Guarantee Letter
Raw Material Test Reports
Fumigation Certificates

Heat Treatment Charts
Commercial Invoice which includes HS Code
QAP (Quality Assurance Plan)
NABL approved Laboratory Test Reports

Incoloy 800 Buttweld Fittings Marking

Size = (108mm * 3.5mm)
Name of Manufacturer = (SP Metals)
Fittings Type = (Elbow)
Material Designation = (ASTM B366 UNS N08800)
Schedule = (SCH 40S)
Standard = (ASME B16.9)

Manufacturer & Supplier Of Alloy 800 Tubing Fittings, Incoloy 800 Buttweld Fittings In India

Alloy 800 Fitting Types

Incoloy 800 Fittings

Alloy 800 Fittings

Incoloy 800 Pipe Fittings

Alloy 800 Pipe Fittings

Incoloy 800 Buttweld Fittings

DIN 1.4876 Incoloy Long Radius Bend

Alloy 800 Elbow

ASTM B366 UNS N08800 Buttweld Elbow

ASME SB 366 UNS N08800 Fittings

Nickel Alloy 800 Pipe Tee

Inconel 800 Weld Fittings

DIN 1.4876 Pipe Reducer

Alloy 800 Long Radius Elbows

Incoloy 800H Threaded Forged Fittings

Alloy 800 Socketweld Branch outlets

UNS N08800 Pipe Bends

Inconel 800 eccentric reducer

Incoloy 800 90° Long Radius Elbow

Alloy 800 90° Short Radius Elbow

Incoloy UNS N08800 45° Long Radius Elbow

ASTM B366 UNS N08800 45° Short Radius Elbow

Inconel 800 180° Long Radius Elbow

DIN 1.4876 Incoloy 180° Short Radius Elbow

Nickel Alloy 800 1D Elbow

Incoloy 800 UNS N08800 1.5D Elbow

ASME SB 366 UNS N08800 3D Elbow

Incoloy Alloy 800 5D Elbow

ASME B16.9 Incoloy 800 10D Elbow

Incoloy 800 Seamless Buttwelding 45° Elbow

Alloy 800 90° Elbows

Incoloy UNS N08800 Welded Elbows

ASTM B366 UNS N08800 Seamless Buttwelding 180° Returns

Inconel 800 Straight Tees

DIN 1.4876 Incoloy Straight Crosses

Nickel Alloy 800 Reducing Outlet Tees

Incoloy 800 UNS N08800 Reducing Outlet Crosses

ASME SB 366 UNS N08800 Equal Tee

Incoloy Alloy 800 Reducing Tee

ASME B16.9 Incoloy 800 Equal Cross

Incoloy 800 Reducing Cross

Alloy 800 Reducers

Incoloy UNS N08800 Concentric Reducer

ASTM B366 UNS N08800 Eccentric Reducer

Inconel 800 Stub End

DIN 1.4876 Incoloy Lap Joint Stub Ends

Nickel Alloy 800 Long Stubend

Incoloy 800 UNS N08800 Short Stubend

ASME SB 366 UNS N08800 Pipe Cap

Incoloy Alloy 800 End Cap

ASME B16.9 Incoloy 800 Collar

Incoloy 800 Swage Nipple

Alloy 800 Pipe Nipples

Incoloy UNS N08800 Barrel Nipple

ASTM B366 UNS N08800 Reducing Nipple

Inconel 800 Bend

Incoloy 800 Heat Treatment

1.4876 Hardness

Property	Value
Hardness: HB30	<=192

Check Melting Point Of Alloy 800 Long Radius Elbows and Incoloy 800 Threaded Forged Fittings Supplier & Manufacturers In Mumbai, India.

Incoloy 800 Melting Point

Melting Point	1385°C	2525°F

Alloy 800 Socket weld Fittings Types

Nickel Alloy 800 10d Long Radius Bend

Incoloy 800 UNS N08800 12d Long Radius Bend

Inconel 800H Tee

ASME SB 564 UNS N08800 Cross

Incoloy Alloy 800 Full Coupling

ASME B16.11 Incoloy 800 Half Coupling

800HT Alloy Reducing Coupling

ASTM B564 UNS N08810 Pipe Cap

Incoloy 800H Hex Head Bushing

NCF 800H Hex Head Plug

NA 15 Square Head Plug

UNS N08811 Round Head Plug

Incoloy 800 Union

Alloy 800 Hex Nipple

Incoloy UNS N08800 Street Elbow

ASTM B564 UNS N08800 Bull Plug

Inconel 800 Boss

DIN 1.4876 Incoloy Swage Nipple

Nickel Alloy 800 Pipe Nipple

Incoloy 800 UNS N08800 Adapter

Inconel 800H Male Union

ASME SB 564 UNS N08800 Female Union

Incoloy Alloy 800 Branch Outlet

ASME B16.11 Incoloy 800 90° Elbow Outlet

800HT Alloy 45° Lateral Tee

ASTM B564 UNS N08810 Lateral Outlet

Incoloy 800H Nipple Branch Outlet

NCF 800H Socket weld Reducers

NA 15 Socket weld Concentric Reducer

UNS N08811 Socket Weld Eccentric Reducer

Incoloy 800 Socket Weld Equal Tee

Alloy 800 Socket Weld Unequal Tee

Incoloy UNS N08800 Socket Weld Adapters

ASTM B564 UNS N08800 Socket Weld Pipe Nipples

Inconel 800 Outlets

DIN 1.4876 Incoloy Weldolet

Nickel Alloy 800 Sockolet

Incoloy 800 UNS N08800 Threadolet

Inconel 800H Nipolet

ASME SB 564 UNS N08800 Latrolet

Incoloy Alloy 800 Elbolet

ASME B16.11 Incoloy 800 Threaded Elbolet

800HT Alloy Socket weld Elbolet

ASTM B564 UNS N08810 Sweepolet

Incoloy 800H Insert Weldolet

NCF 800H Brazolet

NA 15 Coupolet

UNS N08811 Flexolet Butt Weld

WNR 1.4859 Flexolet Socket Weld

Inconel 800 Flexolet Threaded

Inco 800 P Number

P No.	Base Metal
45	Nickel Chrome :- Incoloy 800, 825

Incoloy 800 Pipe Fittings
