Stainless Steel 310 Round Bar


Stainless Steel 310 Round Bar

What is Stainless Steel 310 Round Bar?

Stainless Steel 310 Round Bars are austenitic grades of stainless steel. A round bar is a component exhibiting a uniform circular cross-section. The components in the 310 grade is utilized across high temperatures up to 1150 degrees C. These bars are highly resistant to corrosion and oxidation due to the higher concentration of chromium and nickel in their composition. These modules perform well in carburizing environments and show superior toughness in cryogenic temperatures.

ASTM A276 Type 310 Bar Application

ASTM A276 Type 310 Bar is designed with a uniform cross-sectional area. These robust modules are utilized in a range of applications, which include furnace parts such as rollers, oven lining, heat exchangers, and radiant tubes. These versatile bars are also utilized in food processing equipment, petroleum refining, annealing covers, cryogenic applications, and so on.

Comparision Between SS 310 Round Bar and A479 Gr310 Rod

Bars and rods are used interchangeably in the metal industry. These metals have many similar properties but can be differentiated based on certain key characteristics.

  • SS 310 round bar is designed with a uniform circular cross-section that is smaller than its actual length. An A479 Gr310 Rod can be defined as a metal component that is straight with a circular or square cross-sectional area.
  • SS 310 round bar has a hollow opening while a rod is completely sealed with no openings.

UNS S31000 Hex Bar VS WNR 1.4841 Square Bar

Hex and square bars are amongst the two prominent shapes within this grade. Both these components can be differentiated based on certain key features.

  • UNS S31000 Hex Bar is a 6-sided metal component, while a WNR 1.4841 square bar is a 4-sided bar having all equal sides.
  • Hexagonal bars offer excellent space for movement, allowing them to be shifted through compact spaces. Square bars are robust and don’t offer enough movement space.
  • Square bars have a lower area to perimeter ratio compared to hex bars.

Difference Between 310 SS Square Bar and SS 310S Flat Bars

310 SS Square Bar and SS 310S flat bars can be identical components having some level of similarities. These bars can be differentiated, taking into account certain key features.

  • 310 SS square bar is designed with a square cross-section having equal length across its four sides. SS 310S flat bars have a rectangular cross-section with opposite sides equal.
  • Flat bars possess a lower mass of thickness in comparison to square bars.

Bright finish UNS S31000 Hex and Flat Bar manufacturer in India, Check Price List of ASTM A479 Gr310 Rod

SS 310 Round Bar Price In India

DescriptionPrice in USPrice in India
310 stainless steel hexagonal hex barUS $1.80-$5.00 / Kilogram133.93 - 372.03
10*10mm ss square rod 310US $40.00-$50.00 / Kilogram2976.22 - 3720.28
310s stainless steel square barUS $3000-$3400 / Ton223216.50 - 252978.70
2mm 3mm 6mm Metal Rod SS Bar310US $1989 / Kilogram147992.54
ss 310 Cold Drawn Stainless Steel Flat BarUS $2200-$3100 / Kilogram163692.10 - 230657.05

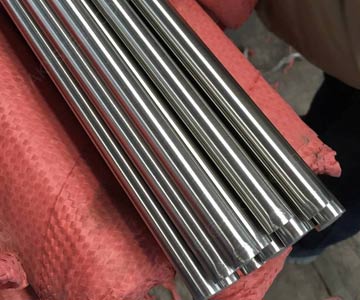

Stainless Steel 310 Round Bar

Stainless Steel 310 Round Bar

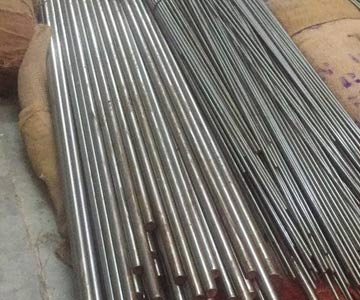

ASTM A276 Grade 310

ASTM A276 Grade 310

Stainless Steel 310 Flat Bar

Stainless Steel 310 Flat Bar

Stainless Steel 310 Bright Bar

Stainless Steel 310 Bright Bar

Specification Table Of SS 310 Flat Bar

ASTM SpecificationsASTM A276, A479 /ASME SA276, SA479
DimensionsEN, DIN, JIS, ASTM, BS, ASME, AISI
Hex Bars in Milimeter18mm – 57mm (11/16″ to 2-3/4″)
Round Bars DiameterOutside Diameter in the range of 4mm to 500mm
Dual certified Manufacturers Dual certified Stainless Steel 321 Round Bar Manufacturers in India, accordance to certify ASME SA276 and ASTM A276 American specifications
Bright Bars DiameterOutside Diameter in the range of 4mm to 100mm
Square Bars in Milimeter18mm – 47mm (11/16″ to 1-3/4″)
FinishBlack, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length1 to 6 Meters, Custom Cut Lengths
Flat Bars in Milimeter1/2” to 10” in thickness range of 2mm to 150mm,
FormRound, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Stainless Steel 321 Round Bar Manufacturer in India

Length Of Stainless Steel 310 Rod

  • Metric system: standard length is 9 - 12 metres
  • USA : 40 feet

Looking for Stainless Steel 310 Round Bar supplier who offer prompt delivery in Asia? Manufacturer of 310 Stainless Steel Bar in India, call us for big discount and ready sizes, check latest price of ASME Sa 276 UNS S31008 Rod in Mumbai

Surface Finish Of Stainless Steel 310 Round Bar

Peeled and turnedP&TRough turned/peeledRT
Cold drawnCDPolishedP
Centreless groundCGHot finishedHF
Bright drawnBDSlit rolled edgeSRE
Cold finishedCFHot rolled annealed and pickledHRAP
Smooth turnedSTPeeled and reeledPR

SS 310 Round Bar, 310 Stainless Steel Rectangular and Square Bar Stock dia 3-450mm, ASTM A276 Type 310 Bar Tolerance

ASTM A276 Grade 310 Stainless Steel Round Bar Tolerance Chart

Shape / SectionSize, diameter or width across flatsPermitted variation
mmmm
Round≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
+ 0 to - 0.070
+ 0 to - 0.085
+ 0 to - 0.100
+ 0 to - 0.120
+ 0 to - 0.140
Flat (thickness)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.250
+ 0 to - 0.350
Flat (width)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.190
+ 0 to - 0.220
+ 0 to - 0.350
+ 0 to - 1.00
+ 1.00 to - 1.00
Square and
hexagon
≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105
+ 0 to - 0.090
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.250

Manufacturer & Supplier Of Stainless Steel 310 Round Bar, 310 Stainless Steel Round Bar In India

310 SS Round Bar Sizes Chart

US BarMetricJapaneseCanadian/ASTM
Diameter(Inch) Bar SizeDiameter (millimeter) Bar SizeDiameter (millimeter)Round Bar SizeDiameter (millimeter2)Bar Size
0.250#2556610010M
0.375#35.55.5101020015M
0.500#466131330020M
0.625#577161650025M
0.750#688191970030M
0.875#7992222100035M
1.000#810102525150045M
1.125#911112929250055M
1.250#1012123232
1.375#1114143535
1.500#1216163838
1.625#1318184141
1.750#1420204444
1.875#1522224848
2.000#1625255151
2.250#1828285757
3232
3636
4040
4444
5050

Well-known Manufacturer Of ASTM A479 SS 310 Hex Bar in India. For final SS 310 Bar Price List Please Call on +91 22 6636 3099.

SS 310 Round Bar Application

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
SS 310 Bar application

Cold Drawn Hot Rolled SS 310 Bar Specification, 310 Stainless Steel Flat Bar, Check WERKSTOFF NR. 1.4845 Triangular Bar Weight Chart

ASME Sa479 Gr310 Rod Weight

Round Bar bar Sizekilogram / Meterkilogram / FootSizekilogram / Meterkilogram / FootSizekilogram / Meterkilogram / Foot
1/8"0.0620.01922 millimeter2.9790.9083 to 1/4"41.99612.800
3 millimeter0.0550.01720 millimeter2.4700.7533"35.76210.900
4 millimeter0.0980.03024 millimeter3.5431.0803 to 3/4"55.78017.001
5/32"0.0950.0297/8"3.0380.9263 to 1/2"48.77214.850
5 millimeter0.1540.0471"3.9701.2104 to 1/4"72.24921.908
3/16"0.1410.04325 millimeter3.8711.1804"63.34019.306
6 millimeter0.2230.06827 millimeter4.4901.3684 to 3/4"90.24927.366
7/32"0.1900.05826 millimeter4.1701.2714 to 1/2"80.34024.4487
7 millimeter0.2980.09130 millimeter5.5481.6915 to 1/2"121.00036.690
1/4"0.2490.0761 to 1/8"5.0331.5345"99.94030.461
8 millimeter0.3980.12032 millimeter6.3141.8946 to 1/2"167.63051.093
5/16"0.3870.1181 to 1/4"6.3491.9246"143.90043.860
3/8"0.5570.17035 millimeter7.5532.3907 to 1/2"225.00068.226
9 millimeter0.4980.1521 to 3/8"7.5502.3037"196.00059.432
11 millimeter0.7480.22838 millimeter8.9032.79210"397.140121.048
10 millimeter0.6200.18936 millimeter7.9992.4388"254.5577.586
12 millimeter0.8890.27140 millimeter9.8723.009
7/16"0.7610.2321 to 1/2"8.9512.715
13 millimeter1.0430.3181 to 3/4"12.1793.712
1/2"0.9940.3031 to 5/8"10.4493.200
9/16"1.2560.3831 to 7/8"13.9774.260
14 millimeter1.2070.36845 millimeter12.5553.807
5/8"1.5510.47350 millimeter15.4144.698
15 millimeter1.3910.42448 millimeter14.2054.330
17 millimeter1.7910.5432 to 1/8"17.9635.475
16 millimeter1.5780.4812"15.9064.848
18 millimeter2.0010.61060 millimeter22.2056.768
11/16"1.8800.5732 to 1/4"20.1286.135
3/4"2.2370.6822 to 3/8"22.4356.838
2 to 1/2"24.8567.576
2 to 5/8"27.4098.354
2 to 3/4"30.0839.169

Buy SS 310 Round Bar Directly From Largest Manufacturers In Mumbai, Check Properties of Stainless Steel 310 Shaft and ASTM A276 Grade 310 Bar Stock

Mechanical Behaviour Of Stainless Steel 310 Shaft

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
7.9 g/cm31402 °C (2555 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20540 %

JIS 310 Hot Drawn Bar Chemical Composition

GradeCarbonManganeseSiliconPhospherousSulfurChromiumMolybdenumNickelIron
SS 3100.015 max2 max0.15 max0.20 max0.015 max24-260.15 max19-2154.7 min
SS 310S0.08 max2 max1.0 max0.045 max0.030 max24 – 260.75 max19 – 2153.095 min

SUS 310 Stainless Steel Rods Equivalent

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 3101.4841S31000SUS 310310S2420Ch25N20S2X15CrNi25-20
SS 310S1.4845S31008SUS 310S310S1620Ch23N18X8CrNi25-21

SS 310s Round Bar Condition

ANNAnnealed
H&THardened and tempered.
PHPrecipitation hardened.

Types Of Hot Rolled SS Uns S31000 Round Bar

Stainless Steel 310 Rod
Stainless Steel 310 Rod
Stainless Steel 310 Hex Bar
Stainless Steel 310 Hex Bar
Stainless Steel Round Bar Ss310
Stainless Steel Round Bar Ss310
Stainless Steel 310 Square Bar
Stainless Steel 310 Square Bar
310 Stainless Steel Bar
310 Stainless Steel Bar
310 Stainless Steel Hexagonal Hex Bar
310 Stainless Steel Hexagonal Hex Bar
25mm Stainless Steel 310 Bar
25mm Stainless Steel 310 Bar
Stainless Steel 310 Shaft
Stainless Steel 310 Shaft
310 Stainless Steel Rectangular Bar 8mm 16mm
310 Stainless Steel Rectangular Bar 8mm 16mm

Stainless Steel 310 Hex Bar Size

Wt per Foot of hex barSize in InchesWt per Inch
0.01801/4″2.160
0.01043/16″1.248
0.06003/8″4.920
0.02905/16″3.480
0.07401/2″8.880
0.05607/16″6.72
1.1505/8″13.80
0.09309/16″11.16
1.6603/4″19.92
1.39011/16″16.68
2.3007/8″27.60
2.60015/16″31.20
1.95013/16″23.40
3.301-1/16″39.60
2.901″34.80
4.6001-1/4″55.20
3.7001-1/8″44.40
5.6001-3/8″67.20
5.1001-5/16″61.20
6.6001-1/2″79.20
6.1001-7/16″73.20
26.533″318.36
9.0301-3/4″108.36
7.8001-5/8″93.60
18.422-1/2″221.04
11.802″141.60
10.04001-7/8″124.80
16.9202-3/8″203.04
14.9202-1/4″179.04

Stainless Steel 310 Square Bar Sizes

Size in milimeterAverage Weight
KG/FTKG/MTR
12 x 120.0301.010
10 x 100.0200.080
16 x 160.0602.000
14 x 140.0501.050
20 x 201.0003.014
17 x 170.0692.027
32 x 322.0408.000
63 x 639.05031.020
25 x 251.0504.090
42 X 424.02213.085
40 x 403.08012.060
53 X 536.07222.005
50 x 506.00019.060
56 x 567.05024.060

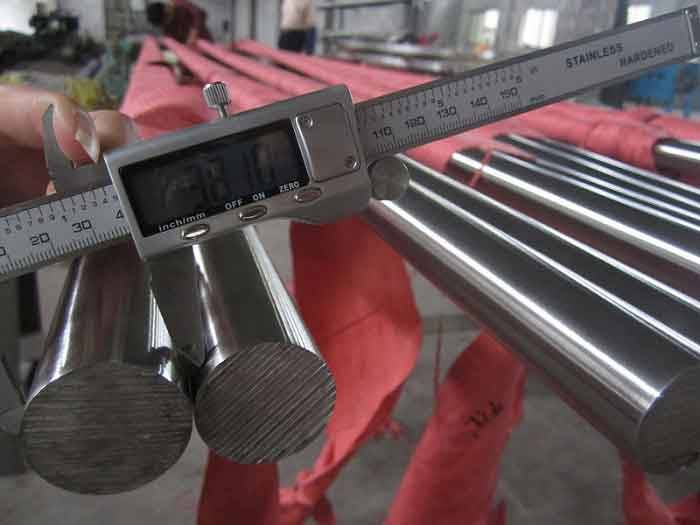

310 Stainless Steel Bar Test Certificate

  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report
High quality GOST 20Ch25N20S2 Forged Bars, SUS 310 Cold Drawn Round Bars supplier at Factory Price, Stainless Steel 310 Square Bar Sizes and Dimensions

SS 310 Cold Rolled Round Bar Dimension

Diameter or
Width
(milimeter)
Sectional Arearound bars Weight per meterPerimeter
Round
(centimeter²)
Square
(centimeter²)
Round
(kilogram)
Square
(kilogram)
Round
(centimeter)
Square
(centimeter)
5.00.200.250.150.201.572.0
5.50.240.300.190.241.782.2
6.00.280.360.220.281.882.4
7.00.380.490.300.382.202.8
8.00.500.640.390.502.513.2
9.00.640.810.500.642.833.6
100.791.000.630.733.144.0
110.951.210.750.953.464.4
121.131.440.891.133.774.8
141.541.961.211.544.405.6
162.012.561.582.015.036.4
182.543.242.002.545.657.2
203.144.002.473.146.288.0
223.804.842.983.806.918.8
254.916.253.854.917.8510.0
286.167.844.836.158.8011.2
328.0410.246.318.0410.0512.8
3610.1812.967.9910.1711.3114.4
4012.5716.009.8612.5612.5716.0
4515.9020.2512.4915.9014.1418.0
5019.6425.0015.4119.6215.7120.0
5624.6331.3619.3424.6217.5922.4
6331.1736.6924.4731.1619.7925.2
7139.5950.4131.0839.5722.3128.4
8050.2764.0039.4650.2425.1332.0

310 Stainless Steel Hollow Bar Size Table

Size in Mmkg per meterSize In MMkg per meter
20*20*2.01.1225*25*2.01.43
25*25*1.51.0620*20*2.51.35
25*25*2.51.7430*30*2.52.14
30*30*2.01.6825*25*3.02.04
30*30*3.02.5140*40*1.51.81
40*40*2.02.3150*50*1.52.28
40*40*3.03.4540*40*4.04.46
40*40*5.05.4040*40*2.52.92
50*50*2.02.9350*50*2.53.71
50*50*3.04.3960*60*3.05.34
50*50*5.06.9750*50*4.05.72
60*60*4.06.9760*60*5.08.54
60*60*6.09.4580*80*3.07.22
70*70*3.67.4670*70*5.010.11
70*70*6.312.5090*90*5.013.30
75*75*3.07.0780*80*5.011.70
80*80*3.68.5970*70*3.06.28
80*80*6.013.9090*90*3.08.01
90*90*3.69.7270*70*815.30
90*90*6.015.76100*100*4.012.00
100*100*3.08.9690*90*8.020.40
100*100*5.014.80120*120*6.322.30
100*100*6.016.19120*120*1034.20
100*100*1027.90120*120*518.00
120*120*6.021.30100*100*5.014.80
120*120*8.027.90100*100*8.022.90
120*120*1235.8120*120*12.541.60
140*140*5.021.10140*140*6.326.30
140*140*832.90140*140*1040.40
140*140*12.549.50150*150*5.022.70
150*150*6.328.30150*150*8.035.40
150*150*1043.60180*180*1053.00
150*150*1666.40180*180*6.334.20
180*180*527.40150*150*1666.40
180*180*843.00150*150*12.553.40
180*180*12.565.20200*200*635.8
200*200*530.50180*180*1681.40
200*200*6.338.2250*250*860.50
200*200*1059.30250*250*12.592.60
200*200*1691.50250*250*6.348.10
200*200*848.00250*250*1075.00
200*200*12.573.00250*250*16117.00
300*300*6.357.90400*400*16192
300*300*1057.90350*350*12.5132.00
300*300*12.5112.00300*300*16142.00
350*350*885.70350*350*10106.00
300*300*890.70350*350*16167.00
400*400*10122.00400*400*12141.00
400*400*12.5152.00300*300*873.10

Testing Of ASTM A276 SS 310 Bright Bar

  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test
  • Micro and MacroTest
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
SS 310 Bar Testing
Huge Inventory OF UNS S31008 Rod, Cold Drawn ASTM A479 Stainless Steel 310S Threaded Bar Standard, SS 310 Bar, view Polished bright Bar

ASTM Standard Of Stainless Steel 310 Bright Bar

ASTM A276This specification encompasses hot-finished or cold-finished bars, including squares, rounds, and hexagons, and hr or extruded shapes, such as tees,angles, and channels in the more commonly used types of ss.
ASTM A479This specification includes hot and cold finished ss bars, including squares, rounds, and hexagons, and hr or extruded shapes such as tees, angles, and channels.
ASTM A582This specification includes hot or cold finished bars, which are suitable for machining processes. This includes hexagons, rounds, squares from common types of ss free-machining steels.
ASTM B473This specification includes nickel alloy wire & bar, which can be produced in a stabilized-annealed condition, solution-annealed condition, or annealed condition.
ASTM A484This specification includes wrought ss bars, forgings, shapes, and billets or other except wire, semi-finished materials, for forging.

310 SS Bar Documentation

  • Commercial Invoice which includes HS Code
  • Packing List including net weight and gross weight, number of boxes, Marks and Numbers
  • Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
  • Fumigation Certificates
  • Raw Material Test Reports
  • Material Traceability Records
  • Quality Assurance Plan (QAP)
  • Heat Treatment Charts
  • Test Certificates certifying NACE MR0103, NACE MR0175
  • Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
  • Guarantee Letter
  • NABL approved Laboratory Test Reports
  • Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
  • Form A for the purposes of the Generalized System of Preferences (GSP)

ASTM A276 SS 310 Bars Stock

SUS310 Polished Flat BarsStainless Steel 310 Polished Bars
Rolled Stainless Steel 310 Flat BarsStainless Steel 310 Forged Rod
SS 310 Threaded BarsSUS310 Polished Bars
310 Stainless Steel Bright BarsSS 310 Flat Bars
Stainless Steel 310 Hexagonal BarsSUS310 T-Bars
310 Stainless Steel Square BarsSUS310 Square Bars
Stainless Steel 310 Bright BarsStainless Steel 310 Square Bars
Rolled Stainless Steel 310 Square BarsASTM A276 Type 310 Square Bars
310 Stainless Steel Rectangular BarsSUS310 Rectangular Bars
SS 310 Rectangular BarsASTM A276 Type 310 Hex Bars
SUS310 RodStainless Steel 310 Rectangular Bars
310 Stainless Steel Threaded RodStainless Steel 310 Rods
310 Stainless Steel Round Corner Square Bars310 Stainless Steel Hollow Bars
SUS310 Hollow BarsSS 310 Spring Bars
Stainless Steel 310 Hollow BarsASTM A276 Type 310 Hollow Bars
310 Stainless Steel Precision Ground StockSUS310 Round Stock
ASTM A276 Type 310 Bright BarsASTM A276 Type 310 Rectangular Bars
310 Stainless Steel Flat BarsSS 310 Hex Bars
310 Stainless Steel ShaftRolled Stainless Steel 310 Bright Bars
SS 310 Square BarsASTM A276 Type 310 Flat Bars
310 Stainless Steel Polished Bars310 Stainless Steel Hex Bars
SS 310 Polished BarsASTM A276 AISI 310 Bright Bars
Rolled Stainless Steel 310 Polished BarsASTM A276 Type 310 Polished Bars
310 Stainless Steel RodsSUS310 Threaded Bars
Rolled Stainless Steel 310 Rectangular BarsStainless Steel 310 Threaded Bars
Rolled Stainless Steel 310 Threaded BarsASTM A276 Type 310 Forged Bars
SS 310 Cold Rolled Bars310 SS Hex Bars
ASTM A276 Type 310 Flat Bars Rolled Edge310 Stainless Steel Rod
310 Stainless Steel T-BarsSS 310 Rod
Hot Rolled Stainless Steel 310 RodASTM A276 Type 310 Hexagonal Rods
310 Stainless Steel RoundsSUS310 Rounds
SS 310 Black Bars310 SS Black Bars

A Global supplier

SP Metals Is Prominent Supplier In South And North America, Europe And West Africa

Stainless Steel 310 Round Bar Manufacturers in India

Stainless Steel 310 Round Bar Manufacturers in India

310 Stainless Steel Flat Bar

310 Stainless Steel Flat Bar


Portugal, France, Philippines, South Korea, Mexico, Turkey, NY 12203 (USA), United Kingdom (UK), Dammam -KSA, Kuwait, New Zealand, Vietnam, Thailand, Canada, Indonesia, Peru, Hong Kong, Bangladesh, Jordan, Australia, Chile, Colombia, Nigeria, United States, Argentina, Singapore, Saudi Arabia (KSA), Egypt, Belgium, Romania, Malaysia, Taiwan, Malaysia, Ellington -United States

SUS 310 Stainless Steel Rods

SUS 310 Stainless Steel Rods


Singapore, Brazil, Qatar, Dubai- UAE, Czechia, South Africa, Greece, Poland, Norway, Spain, Bahrain, Jakarta -Indonesia, Kuala Lumpur, Malaysia, USA, Los Alamos -Mexico, Tehran -Iran, Iran, Italy, Russia, Jakarta, Oman, Germany, Dubai, Austria, Japan, Finland, Morocco, Europe, Netherlands, United Arab Emirates (UAE), China, Denmark Istanbul- Turkey, Sweden, South Africa
