Stainless Steel 321 Round Bar


Stainless Steel 321 Round Bar

What Is Stainless Steel 321 Round Bar?

Stainless Steel 321 Round Bar belongs to an austenitic grade. These bars have a chemical composition of chromium and nickel with additions of niobium and titanium to stabilize the bars. The superior concentration gives these bars superior corrosion resistance properties in a range of stress-induced environments. The round bars have a uniform cross-section, which can be welded to other components following standard welding procedures. These bars are designed to withstand temperatures up to 900 degrees C while being strong and robust in their functioning.

ASME SA 276 UNS S32100 Rod Vs DIN 1.4541 Flat Bar

Bars and rods are important components in the metal industry. These components have different types of features and material types that help differentiate them.

  • ASME SA 276 UNS S32100 rod is a component that possesses a uniform circular cross-section. Din 1.4541 flat bar is a metal component that possesses a uniform rectangular cross-section that is smaller than its length.
  • A rod exhibits uniform thickness throughout its cross-section. A flat bar has reduced thickness across its area of cross-section.

SS 321 Round Bar Oil And Gas Application

SS 321 round bar is a metal component having a uniform cross-sectional area. These bars are highly resistant to corrosion in different environments. Their ability to withstand high temperatures makes them an ideal candidate for utilization in oil and gas systems. Within the oil and gas industry, they are preferred in refining processes and used in high-temperature processing equipment.

Difference Between ASTM A479 SS 321 Hex Bar And AISI 321 Square Bar

ASTM A479 SS 321 hex bar and AISI 321 square bar are versatile components in this grade. These bars have diversified features, which sets them apart from each other.
  • ASTM A479 SS 321 hex bar is a 6-sided metal component. AISI 321 square bar is a four-sided bar having equal sides.
  • Hex bars offer an exceptional area to perimeter ratio in comparison to standard square bars.
  • Square bars are rigid and don’t allow for a lot of movement space. Hex bars, on the contrary, have a unique 6-sided mechanism that allows them to be shifted through compact spaces

Manufacturer of ASTM A479 Gr321 Rod, DIN 1.4541 Hex Bar

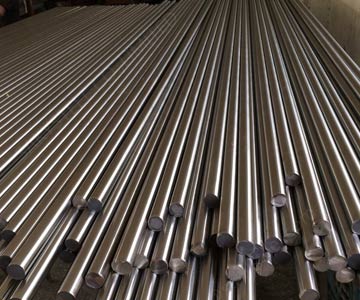

Stainless Steel 321 Round Bar

Stainless Steel 321 Round Bar

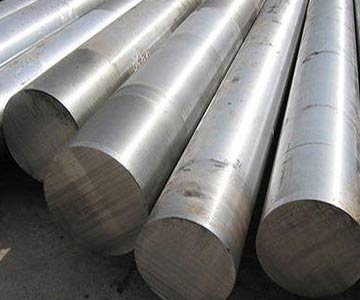

ASME SA 276 UNS S32100 Rod

ASME SA 276 UNS S32100 Rod

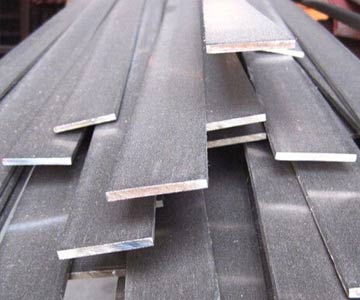

 Stainless Steel 321 Flat Bar

Stainless Steel 321 Flat Bar

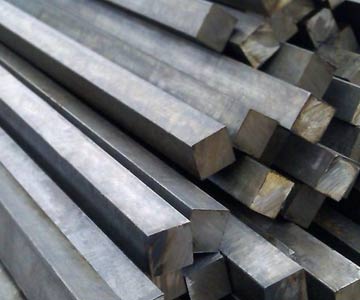

Stainless Steel 321 Square Bar

Stainless Steel 321 Square Bar

Buy 2mm, 3mm, 6mm SS 321 Round Bar at lowest price in India, Check Specification of 16mm cold rolled ASTM A276/ ASME SA 276 UNS S32100 Rod

Specification Table Of Stainless Steel 321 Round Bar

RangeRange – 3.17to 350 milimeter Dia
TechniqueHot Rolled/Forged/Peeled/Cold Drawn
Dual certified Manufacturers Dual certified Stainless Steel 321 Round Bar Manufacturer in India, accordance to certify ASME SA276 and ASTM A276 American specifications
StandardsASTM A479, A276, A582, GB/T1220-2007, GB4226-84, JISG4311-91, EN 10095-99, JIS G4318-98, GB4226-84, JIS G4303-2005, EN10088-3-2005 etc
typesASTM A276 321h ss round barss
Length3000 milimeter, 6000 milimeter or according to the customer’s requirement.
Marking
  • Nominal Pipe Sizes
  • Specification
  • Manufacturing Method (Welded / Seamless)
  • Grade
  • Pipe Schedule or Wall Thickness
  • Supplier / Manufacturer’s Name or Custom Logo - on request
  • Heat Number
Dia2.0-400 milimeter
Surfacepickled , bright, black round bars
Typerod, Round bars, square bars, hexagon bars, flat bars, angle bars, threaded barss, channel bars
Stainless Steel 321 Round Bar Manufacturers in India

Looking for Stainless Steel 321 Round Bar Supplier who offer prompt delivery in Asia? Manufacturer of 321 Stainless Steel Bar in India, call us for big discount and ready sizes, check latest price of ASME Sa 276 UNS S32100 Rod in Mumbai

321 Stainless Steel Round Bar Price List

DescriptionPrice in USPrice in India
321 stainless barUS $1400-$2600 / Ton104167.70 - 193454.30
321 ss rodUS $1.50-$5.00 / Kilogram111.61 - 372.03
321 stainless steel round barUS $2350-$2407 / Kilogram174852.93 - 179094.04
12Mm SS Rod Price Astm 321 Stainless Steel BarUS $1200-$1500 / Ton89286.60 - 111608.25
321 stainless steel thread rods/black ss barUS $1000-$2200 / Ton74405.50 - 163692.10
Ss 321 Round Bar 10mm rodUS $5.40 / Kilogram401.79

Manufacturer & Supplier Of Stainless Steel 321 Round Bar, 321 Stainless Steel Round Bar In India

Chemical Analysis Of SS 321 Round Bar

GradeMnCSiSPCrNiNTi
SS 3212.0 max0.08 max1.0 max0.030 max0.045 max17.00 – 19.009.00 – 12.000.10 max5(C+N) – 0.70 max

Well-known Manufacturer Of ASTM A479 SS 321 Hex Bar in India. For final SS 321 Bar Price List Please Call on +91 22 6636 3099.

Mechanical Properties Of Stainless Steel 321 Rod

ElongationDensityTensile StrengthMelting PointYield Strength (0.2%Offset)
35 %8.0 g/cm3Psi – 75000 , MPa – 5151457 °C (2650 °F)Psi – 30000 , MPa – 205

321 SS Flat Bar Material Equivalent

STANDARDWERKSTOFF NR.UNSJISEN
SS 3211.4541S32100SUS 321X6CrNiTi18-10

ASTM A276 Grade 321 Stainless Steel Bar Length

SS 321 Round Bar Length

Surface Finish Of ASME Sa 276 UNS S32100 Rod

Peeled and turnedP&TRough turned/peeledRT
Cold drawnCDPolishedP
Centreless groundCGHot finishedHF
Bright drawnBDSlit rolled edgeSRE
Cold finishedCFHot rolled annealed and pickledHRAP
Smooth turnedSTPeeled and reeledPR

Largest Independent Supplier of ASTM A479 SS 321 Hex Bar, View JIS 321 Hot / Cold Drawn Bar, SS 321 Rod Tolerance Chart

321 Stainless Flat Bar Tolerance Chart

Shape / SectionSize, diameter or width across flatsPermitted variation
mmmm
Round≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
+ 0 to - 0.070
+ 0 to - 0.085
+ 0 to - 0.100
+ 0 to - 0.120
+ 0 to - 0.140
Flat (thickness)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.250
+ 0 to - 0.350
Flat (width)< 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.190
+ 0 to - 0.220
+ 0 to - 0.350
+ 0 to - 1.00
+ 1.00 to - 1.00
Square and
hexagon
≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105
+ 0 to - 0.090
+ 0 to - 0.110
+ 0 to - 0.130
+ 0 to - 0.160
+ 0 to - 0.250

Marking Of AISI 321 Polished Bar

  • Rating Designation
  • Material Designation
  • "WP" in grade symbol
  • Grade
  • Schedule number or nominal wall thickness
  • Heat Code
  • Manufacturer’s Name or Symbol
321 Stainless Steel Round Bar, Aisi 321 Square Bar, Check SS 321 Round Bar Sizes, SUS 321 Bars Weight Chart

321 Stainless Steel Round Bar Sizes

US Bar Metric Japanese Canadian/ASTM
Diameter(Inch) Bars SizeDiameter (millimeter) Bars SizeDiameter (millimeter)Round Bars SizeDiameter (millimeter2)Bars Size
0.250#2556610010M
0.375#35.55.5101020015M
0.500#466131330020M
0.625#577161650025M
0.750#688191970030M
0.875#7992222100035M
1.000#810102525150045M
1.125#911112929250055M
1.250#1012123232
1.375#1114143535
1.500#1216163838
1.625#1318184141
1.750#1420204444
1.875#1522224848
2.000#1625255151
2.250#1828285757
3232
3636
4040
4444
5050

SUS 321 Bars Shapes

  • Channel Bars
  • Precision Ground Bars
  • Round Rod
  • Flat Bars
  • Hollow
  • Round
  • Blocks
  • T-Bars
  • Rings
  • Square
  • Rod
  • Rectangle
  • Forging
  • Triangle
  • Rectangular Bar
  • Threaded
  • Hex (A/F)
  • Ingot
  • Billet
  • Half Round Bars
  • I/H Bars
  • Profiles

Test And Documentation Of JIS 321 Hot Drawn Bar

  • Micro test
  • Pitting corrosion test
  • Chemical test
  • Radiography
  • PMI test
  • Macro test
  • Intergranular corrosion test
  • Ultrasonic test
  • Flattening test
  • Bucking test
  • Compression test
  • Crushing test
  • Mechanical test
  • Hardness test
  • Tensile test

Buy SS 321 Round Bar Directly From Largest Manufacturers In Mumbai, Check Length and Weight Chart Of 321 SS Bar Stock

Fast Delivery of EN X6CrNiTi18-10 Hollow Bars in India. Check UNS S32100 Rod, Check Stainless Steel 321 Forged Bar Dimension & Stock

321 SS Bar Stock

  • A479 321 Steel Polish Bars
  • ASTM A276 Stainless Steel 321 Bars
  • ASTM A276 321 Stainless Steel Rods
  • Stainless 321 Rods
  • AISI 321 Stainless Steel Forged Round Bars
  • SS UNS S32100 Round Bars
  • Stainless Steel 321 Bright Bars
  • Stainless Steel 321 Round Bars
  • SS 321 Spring Steel Bars
  • SUS 321 Stainless Steel Black Bars
  • 321 Stainless Steel Hexagon Bars
  • AISI ASTM SS 321 Round Bars
  • Cold Rolled Stainless Steel 321 Rods
  • Stainless Steel 321 Cold Drawn &amp; Polished Square Bars
  • ASME, EN, BS, ASTM, GB, SS 321 Flat Bars
  • 321 SS Threaded Bars
  • Stainless Steel 321 Cold Drawn Bars
  • SS WERKSTOFF NR. 1.4541 Round Bars
  • SS 321 Hollow Bars
  • Austenitic ASTM Bright 321 SS Bars

Color Code Of SS 321 Bright Bar

Stainless Steel 321 Round Bar Color Code

Stainless Steel 321 Bright Bar Utiliazation

  • Food processing equipment
  • Fittings
  • Screw machine products
  • Mining machinery
  • Pump
  • Valves
  • Gears
  • Shafts
  • Aircraft parts, exhaust manifolds
  • Screws
  • Fasteners
  • Bearings
  • Instruments

Condition Of Stainless Steel 321 Shaft

ANNAnnealed
H&THardened and tempered.
PHPrecipitation hardened.

Different Types Of Stainless Steel 321 Cold Rolled Bar

Stainless Steel 321 Bright Bar
Stainless Steel 321 Bright Bar
Stainless Steel 321 Rod
Stainless Steel 321 Rod
Stainless Steel 321 Square Bar
Stainless Steel 321 Square Bars
ASTM A276 Grade 321
ASTM A276 Grade 321
Stainless Steel 321 Hex Bars
Stainless Steel 321 Hex Bars
UNS S32100 Stainless Steel Rectangular Bar
UNS S32100 Stainless Steel Rectangular Bars
Stainless Steel 321 Flat Bar
Stainless Steel 321 Flat Bars
Stainless Steel 321 Shaft
Stainless Steel 321 Shaft
UNS S32100 Stainless Steel Rounds
UNS S32100 Stainless Steel Rounds

PED Certified 321 Stainless Flat Bar Manufacturers in Mumbai, India, Dimensions Of AISI 321 Hex Bar In MM.

Stainless Steel 321 Hex Bar Size Chart

Wt per Foot of hex Bars Size in Inches Wt per Inch
0.01801/4 inches2.160
0.01043/16 inches1.248
0.06003/8 inches4.920
0.02905/16 inches3.480
0.07401/2 inches8.880
0.05607/16 inches6.72
1.1505/8 inches13.80
0.09309/16 inches11.16
1.6603/4 inches19.92
1.39011/16 inches16.68
2.3007/8 inches27.60
2.60015/16 inches31.20
1.95013/16 inches23.40
3.301-1/16 inches39.60
2.901 inches34.80
4.6001-1/4 inches55.20
3.7001-1/8 inches44.40
5.6001-3/8 inches67.20
5.1001-5/16 inches61.20
6.6001-1/2 inches79.20
6.1001-7/16 inches73.20
26.533 inches318.36
9.0301-3/4 inches108.36
7.8001-5/8 inches93.60
18.422-1/2 inches221.04
11.802 inches141.60
10.04001-7/8 inches124.80
16.9202-3/8 inches203.04
14.9202-1/4 inches179.04

Check Hardness Of 321 Stainless Steel Flat Bar and DIN 1.4541 Square Bar Supplier & Manufacturers In Mumbai, India.

Sizes Of Stainless Steel 321 Square Bar

Size in milimeterAverage Weight
KG/FTKG/MTR
12 x 120.0301.010
10 x 100.0200.080
16 x 160.0602.000
14 x 140.0501.050
20 x 201.0003.014
17 x 170.0692.027
32 x 322.0408.000
63 x 639.05031.020
25 x 251.0504.090
42 X 424.02213.085
40 x 403.08012.060
53 X 536.07222.005
50 x 506.00019.060
56 x 567.05024.060

Get instant delivery Of 2mm Sus 321 Bars , Dimension Chart Of Jis 321 Hot Drawn Bar, 321 Stainless Steel Rods Manufacturer In Mumbai. India.

Dimensions Chart Of AISI 321 Round Bar

Diameter or
Width
(milimeter)
Sectional Arearound bars Weight per meterPerimeter
Round
(centimeter²)
Square
(centimeter²)
Round
(kilogram)
Square
(kilogram)
Round
(centimeter)
Square
(centimeter)
5.00.200.250.150.201.572.0
5.50.240.300.190.241.782.2
6.00.280.360.220.281.882.4
7.00.380.490.300.382.202.8
8.00.500.640.390.502.513.2
9.00.640.810.500.642.833.6
100.791.000.630.733.144.0
110.951.210.750.953.464.4
121.131.440.891.133.774.8
141.541.961.211.544.405.6
162.012.561.582.015.036.4
182.543.242.002.545.657.2
203.144.002.473.146.288.0
223.804.842.983.806.918.8
254.916.253.854.917.8510.0
286.167.844.836.158.8011.2
328.0410.246.318.0410.0512.8
3610.1812.967.9910.1711.3114.4
4012.5716.009.8612.5612.5716.0
4515.9020.2512.4915.9014.1418.0
5019.6425.0015.4119.6215.7120.0
5624.6331.3619.3424.6217.5922.4
6331.1736.6924.4731.1619.7925.2
7139.5950.4131.0839.5722.3128.4
8050.2764.0039.4650.2425.1332.0

UNS S32100 Stainless Steel Hollow Bar Sizes

Size in Mmkg per meterSize In MMkg per meter
20*20*2.01.1225*25*2.01.43
25*25*1.51.0620*20*2.51.35
25*25*2.51.7430*30*2.52.14
30*30*2.01.6825*25*3.02.04
30*30*3.02.5140*40*1.51.81
40*40*2.02.3150*50*1.52.28
40*40*3.03.4540*40*4.04.46
40*40*5.05.4040*40*2.52.92
50*50*2.02.9350*50*2.53.71
50*50*3.04.3960*60*3.05.34
50*50*5.06.9750*50*4.05.72
60*60*4.06.9760*60*5.08.54
60*60*6.09.4580*80*3.07.22
70*70*3.67.4670*70*5.010.11
70*70*6.312.5090*90*5.013.30
75*75*3.07.0780*80*5.011.70
80*80*3.68.5970*70*3.06.28
80*80*6.013.9090*90*3.08.01
90*90*3.69.7270*70*815.30
90*90*6.015.76100*100*4.012.00
100*100*3.08.9690*90*8.020.40
100*100*5.014.80120*120*6.322.30
100*100*6.016.19120*120*1034.20
100*100*1027.90120*120*518.00
120*120*6.021.30100*100*5.014.80
120*120*8.027.90100*100*8.022.90
120*120*1235.8120*120*12.541.60
140*140*5.021.10140*140*6.326.30
140*140*832.90140*140*1040.40
140*140*12.549.50150*150*5.022.70
150*150*6.328.30150*150*8.035.40
150*150*1043.60180*180*1053.00
150*150*1666.40180*180*6.334.20
180*180*527.40150*150*1666.40
180*180*843.00150*150*12.553.40
180*180*12.565.20200*200*635.8
200*200*530.50180*180*1681.40
200*200*6.338.2250*250*860.50
200*200*1059.30250*250*12.592.60
200*200*1691.50250*250*6.348.10
200*200*848.00250*250*1075.00
200*200*12.573.00250*250*16117.00
300*300*6.357.90400*400*16192
300*300*1057.90350*350*12.5132.00
300*300*12.5112.00300*300*16142.00
350*350*885.70350*350*10106.00
300*300*890.70350*350*16167.00
400*400*10122.00400*400*12141.00
400*400*12.5152.00300*300*873.10

A Global supplier

Check The Material List Supplied In Europe, Africa, Middle East And Far East Asia

Stainless Steel 321 Round Bar Manufacturers in India

Stainless Steel 321 Round Bar Manufacturers in India

ASME SA 276 UNS S32100 Rod

ASME SA 276 UNS S32100 Rod


Egypt, Argentina, Poland, United Arab Emirates (UAE), Jakarta, Finland, Australia, Qatar, Italy, Hong Kong, Malaysia, Bahrain, Thailand, Bangladesh, Istanbul- Turkey, Romania, France, Tehran -Iran, Canada, China, Ellington -United States, Sweden, Spain, Denmark Colombia, Singapore, Netherlands, Dubai, Morocco, Philippines, South Korea, Chile, Mexico, Jordan, Czechia

SS 321 Round Bar

SS 321 Round Bar


Oman, Dammam -KSA, United Kingdom (UK), Iran, Japan, Indonesia, Norway, Turkey, Portugal, Belgium, USA, Russia, Greece, Malaysia, Nigeria, Jakarta -Indonesia, New Zealand, Europe, Vietnam, United States, South Africa, NY 12203 (USA), Dubai- UAE, Malaysia, South Africa, Germany, Kuwait, Peru, Los Alamos -Mexico, Singapore, Saudi Arabia (KSA), Austria, Taiwan, Brazil, Kuala Lumpur
