What is Stainless Steel 310 Plate?
310 plate is an austenitic grade of stainless steel. These plates are heat-resistant alloys that possess excellent resistance against oxidation in mild cyclic conditions up to 2000 degrees F. They have a thickness of 6mm or above and are used in applications that require enhanced strength and stability. The superior concentration of chromium and nickel gives these pipes the strength to withstand elevated and cryogenic temperatures. Apart from this, the plates in this grade exhibit low magnetic permeability and are utilized in carburizing environments.
What is Stainless Steel 310 Sheet?
Stainless Steel 310 Sheet is a grade of metal that is utilized in building modules requiring lower durability. The sheet aims to reduce the weight of the entire application. The sheets are generally diamonded or corrugated to give them stability and strength. The corrugation process helps in adding ridges or intervals across the metal components.
ASTM A240 Type 310S Sheet Characteristics
Some of the important characteristics of the ASTM A240 Type 310S Sheet include
UNS S31000 Shim sheet vs TP 310 SS Coil
ASME SA240 Grade 310S Foil Uses
ASME SA240 Grade 310S Foil is a versatile component that can be bent or rolled around different objects to give them protection and insulation. Foils within this grade are generally utilized for cryogenic components, food processing, furnaces, petroleum refining, power generation, thermal processing, ore processing, cement plants, and so on.
Difference Between UNS S31000 Sheets and DIN 1.4301 Foil
The 310 modules can be precisely shaped in a range of products used for different applications. Foils and sheets are amongst the two most prominent grades, which can be differentiated based on their thickness.
Table of Content

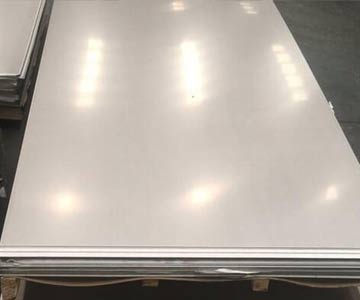

Stainless Steel 310 Plate

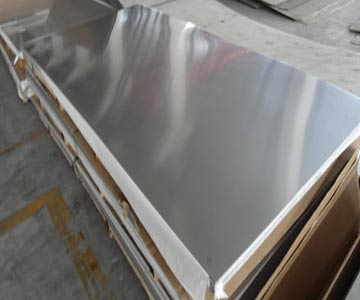

Stainless Steel 310 Sheet

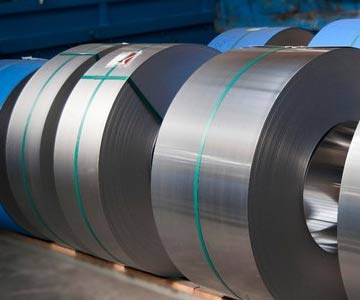

Stainless Steel 310 Coil
Stainless Steel 310 Strips
Looking for Stainless Steel 310 Plate Supplier who offer prompt delivery in Asia? Manufacturer of Stainless Steel 310 Sheets & Plates in India, call us for big discount and ready sizes, check latest price of Stainless Steel 310 Sheet in Mumbai
310 Stainless Steel Creep
| Temperature | Creep Strain (MPa) | Creep Rupture (MPa) | |||||
|---|---|---|---|---|---|---|---|
| °C | °F | 1000 H | 10000 H | 100000 H | 1000 H | 10000 H | 100000 H |
| 600 | 1112 | 120 | 100 | 40 | 200 | 140 | 80 |
| 700 | 1292 | 50 | 35 | 20 | 80 | 45 | 20 |
| 800 | 1472 | 20 | 10 | 8 | 35 | 20 | 8 |
| 900 | 1652 | 10 | 6 | 3 | 15 | 10 | 5 |
| 1000 | 1832 | 5 | 3 | 1.5 | 9 | 4 | 2 |
SS 310 Plate Chemical Composition
| Grade | Mn | C | Si | S | P | Cr | Ni | Mo | N | |
| 310S | min. | – | – | – | – | – | 24.0 | 19.0 | 0.75 | – |
| max. | 2.0 | 0.08 | 1.00 | 0.030 | 0.045 | 26.0 | 22.0 | – | ||
| 310 | min. | – | – | – | – | 24.0 | 19.0 | 0.10 | – | |
| max. | 2.0 | 0.015 | 0.15 | 0.015 | 0.020 | 26.0 | 21.0 | – | ||
Manufacturer & Supplier Of SS 310 Plate, 310 Stainless Steel Sheet In India
310 SS Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |
| at 1000C | at 5000C | |||||
| 310 | 7750 | 200 | 14.2 | 18.7 | 500 | 720 |
| 310S | 7750 | 200 | 14.2 | 18.7 | 500 | 720 |
Stainless Steel 310S Slatting Coil Sizes
| Size (in Inches) | Size (in mm) | ||
| .125" | .875" | 3.18 | 22.2 |
| .134" | 1" | 3.40 | 25.4 |
| .156" | 1.125" | 3.96 | 28.6 |
| .187" | 1.250" | 4.75 | 31.8 |
| .250" | 1.500" | 6.35 | 38.1 |
| .312" | 1.750" | 7.92 | 44.5 |
| .375" | 2" | 9.53 | 50.8 |
| .500" | 2.500" | 12.7 | 63.5 |
| .625" | 3" | 15.9 | 76.2 |
| .750" | 19.1 | ||
Stainless Steel 310 Mechanical Properties
| Grade | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Tensile Strength (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310S | 205 | 40 | 515 | 95 | 217 |
| 310 | 205 | 40 | 515 | 95 | 217 |
SS 310 Plate Specification
| Product Type | 310 Stainless Steel Sheet, 310 Stainless Steel Plate |
|---|---|
| Other Trade Name of 310 Stainless Sheet | SS 310, SUS 310, Inox 310, DIN 1.4840, UNS S31000, AISI 310, SAE 310 Sheet |
| Specification | ASTM A240 / ASME SA240 |
| Tolerances (width / thickness) |
|
| International Standard |
|
| Dimensions |
|
| Thickness | 0.1 to 100 mm Thk |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, or as required |
| Cutting Methods | Laser Cut, Plasma Cut, Waterjet Cut, Saw Cut, Shear/Guillotine |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc. |
| Hardness | Spring Hard, Soft, Hard, Half Hard, Quarter Hard |
| Manufacturing Range | Plate, Sheet, Coils, Foils, Plain Sheet, Rolling Sheet, Rolling Plate, Strip, Flats, Clad Plate, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, Flat Shim, Flat Sheet, Shim Sheet, tread plate, Checker Plate |
SS 310 Plate Price
| Description | Price in US | Price in India |
| 310 Stainless Steel Plate / Stainless Steel Sheet 310 | US $1.70-$2.20 / Kilogram | 127.64 - 165.17 |
| Cold Rolled 5mm Thickness SUS 310 2B Stainless Steel Sheet and Plate | US $3.20-$3.70 / Kilogram | 240.25 - 277.79 |
| Cold rolled 2mm 3mm 310 SS sheet 310S | US $1000-$3000 / Ton | 75079.50 - 225238.50 |
| 310stainless steel coils | US $1000-$1200 / Ton | 75079.50- 90095.40 |
Stainless Steel 310 Strips Equivalent
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | GOST | ||
| BS | En | No | Name | |||||
| 310 | S31000 | 304S31 | 58E | 1.4841 | X5CrNi18-10 | 2332 | SUS 310 | 20Ch25N20S2 |
| 310S | S31008 | 304S31 | 58E | 1.4845 | X5CrNi18-10 | 2332 | SUS 310S | 20Ch23N18 |
Stainless Steel 310 Temperature Limits
| Temperature Limit | Service |
|---|---|
| 1150°C | continuous |
| 1035°C | intermittent |
A240 Tp 310 Material Thickness
| Cold rolled Stainless Steel 310 1.4845 thin plate | 0.2-4mm |
| Hot rolled 310 SS medium plate | 4-20mm |
| Hot rolled AISI 310 thick plate | 20-60mm |
| Hot rolled ASTM A240 TP 310 extra thick plate | 60-115mm |
Stainless Steel 310 Melting Point
| Plate Type | Melting Point |
| Stainless Steel 310 Plate | 1402 °C (2555 °F) |
AISI 310 Stainless Steel Coil Finish
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Well-known Supplier Of 310 Stainless Steel Cold Rolled Plates in India. For final 310 Ss Plate Price List Please Call on +91 22 6636 3099.
Types Of Stainless Steel 310 Chequered Plate
Stainless Steel 310 Density
| Plate Type | Density |
| Stainless Steel 310 Plate | 7.9 g/cm3 |
310 Stainless Steel Strips Value Added Services
DIN 1.4841 Perforated Plate Size Chart
Plain & Polished 310 Stainless Steel Sheet
| PRODUCT | FINISH | THICKNESS MM | MAX SHEET SIZE MM |
|---|---|---|---|
| Grade 310 | Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 | |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 | |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 | |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
Circle Cutting In Ss Grade 310 Perforated Sheets Up To 1000mm Diameter
| Hole Dia mm | Hole Centres mm | O/A | Finish | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |
PED Certified SUS 310S Plate Supplier in Mumbai, India, Dimensions Of SS UNS S31000 Plates In MM.
Dimension Of A240 Tp 310 Tread Plate
| Plate Surface finish | Thickness (milimeter) | Width (max milimeter) |
|---|---|---|
| 2B – heat treated, Cold rolled, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
| 2E – heat treated, Cold rolled, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| 2D – heat treated, Cold rolled, pickled Sheet | 0.4–6.35 | 1524 |
| 2R – bright annealed plate, Cold rolled | 0.25–3.5 | 1524 |
| brushed, Polished plate | 0.5–4.0 | 1524 |
ASTM A240 Stainless Steel 310 Plate Imperial Dimensions
| Plate Surface finish | Width (max in) | Gauge (in) |
|---|---|---|
| 2D – heat treated, Cold rolled, pickled plate | 60 | 12–24 |
| 2B – heat treated, Cold rolled, skin passed Plate, pickled | 72* | 10–24 |
| Temper rolled Sheet Mexinox only | 48 | 13–29 |
| BA Mexinox only | 48 | 18–28 |
| Polished Sheet (not brushed) | 60 | 11–24 |
Buy 310 Stainless Steel Plate Directly From Largest Supplier In Mumbai, Check Weight Chart Of AISI 310 Plate
Weight Chart Of Grade 310 Stainless Steel Plate 2b Finish
| Thickness in inch | Density | Plate Weight per Unit Area |
|---|---|---|
| 1 3/4 | 0.315 lbs/in³8.72 g/centimeter³ | 0.549 lbs/in²385.9852104 kilogrameter/meter² |
| 2 | 0.315 lbs/in³8.72 g/centimeter³ | 0.627 lbs/in²440.8246392 kilogrameter/meter² |
| 2 1/4 | 0.315 lbs/in³8.72 g/centimeter³ | 0.705 lbs/in²495.664068 kilogrameter/meter² |
| 2 1/2 | 0.315 lbs/in³8.72 g/centimeter³ | 0.784 lbs/in²551.2065664 kilogrameter/meter² |
| 2 3/4 | 0.315 lbs/in³8.72 g/centimeter³ | 0.862 lbs/in²606.0459952 kilogrameter/meter² |
| 3/16 | 0.315 lbs/in³8.72 g/centimeter³ | 0.06000 lbs/in²42.184176 kilogrameter/meter² |
| 1/4 | 0.315 lbs/in³8.72 g/centimeter³ | 0.08 lbs/in²56.245568 kilogrameter/meter² |
| 3/8 | 0.315 lbs/in³8.72 g/centimeter³ | 0.121 lbs/in²85.0714216 kilogrameter/meter² |
| 1/2 | 0.315 lbs/in³8.72 g/centimeter³ | 0.161 lbs/in²113.1942056 kilogrameter/meter² |
| 5/8 | 0.315 lbs/in³8.72 g/centimeter³ | 0.196 lbs/in²137.8016416 kilogrameter/meter² |
| 3/4 | 0.315 lbs/in³8.72 g/centimeter³ | 0.235 lbs/in²165.221356 kilogrameter/meter² |
| 7/8 | 0.315 lbs/in³8.72 g/centimeter³ | 0.274 lbs/in²192.6410704 kilogrameter/meter² |
| 1 | 0.315 lbs/in³8.72 g/centimeter³ | 0.313 lbs/in²220.0607848 kilogrameter/meter² |
| 1 1/4 | 0.315 lbs/in³8.72 g/centimeter³ | 0.391 lbs/in²274.9002136 kilogrameter/meter² |
| 1 1/2 | 0.315 lbs/in³8.72 g/centimeter³ | 0.47 lbs/in²330.442712 kilogrameter/meter² |
| 3 | 0.315 lbs/in³8.72 g/centimeter³ | 0.941 lbs/in²661.5884936 kilogrameter/meter² |
Stainless Steel 310 Plates Gauge Tolerance
| NOMINAL DECIMAL | STANDARD VARIANCE FROM | |
|---|---|---|
| SHEET METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
Get instant delivery Of 20mm SS 310 Perforated Sheets , Roughness Of SS Werkstoff No 1.4841 Sheets, 310 SS Chequered Plate Supplier In Mumbai. India.
SUS 310S Plate Roughness
| Temperature °C | Exposure Time | |||
| 1,000 hours | 10,000 hours | |||
| Charpy Impact | Hardness | Charpy Impact | Hardness | |
| J | HB | J | HB | |
| Unexposed | 102 | 124 | 102 | 124 |
| 480 | 119 | 84 | 152 | |
| 565 | 65 | 119 | 39 | 174 |
| 650 | 39 | 130 | 3 | 269 |
Stainless Steel 310 Coil HSN Code
| HS Code | Description |
|---|---|
| 72191190 | S.S 310 S PLATE -WD 1.5 MTR X LG 3 MTR X12 MM THK |
| 72199090 | SS 310S PLATE 5MM X 1270 X 2500 :4 PCS |
| 72199090 | SS 310S PLATE 8 MM X 1220 X 2440 : 6 PCS |
| 72192121 | HOT ROLLED STAINLESS STEEL WIDE PLATE (HAVING >8%) 12.00MMX1500MMX6000-310S/NO1/TRIMEDGE FR.PR.SS. 600MM |
| 72192219 | S.S. 310 PLATE SIZE:10 MM THK X 1250 X 2500 |
| 72191190 | SS 310S PLATE BATCH NO RE9/168/16-17/310S-02 3MM X 1250 X 2450 : 20 PCS |
| 72192212 | . SS PLATE AS PER ASTM A240 GR. 310S SIZE: 4FT X 8FT X 3/16 THK |
| 72192212 | . SS PLATE AS PER ASTM A240 GR. 310S SIZE: 4FT X 8FT X 1/4 (6.35MM) THK |
| 72192212 | . SS PLATE AS PER ASTM A240 GR. 310S SIZE: 4FT X 8FT X 3MM THK |
| 72192212 | . SS PLATE AS PER ASTM A240 GR. 310S SIZE: 4FT X 8FT X 3MM THK |
| 72199090 | 1.5 MTR X 3 MTR X 5 MM PLATE ASTM A240 310SS |
| 72192122 | HOTROLLED STAINLESS STEEL WIDE PLATE (HAVING > 8%)16MMX1500MMX6000 -310S/NO1/MILL EDGE FR.PR.SS. 600 MM |
| 72192122 | HOTROLLED STAINLESS STEEL WIDE PLATE (HAVING > 8%)20MMX1500MMX6000 -310S/NO1/MILL EDGE FR.PR.SS. 600 MM |
| 72192212 | . HR PLATE OF SS AS PER ASTM A240 GR. 310S, SIZE: 1250 X 2500 X 6MM THK |
| 72192212 | . HR PLATE OF SS AS PER ASTM A240 GR. 310S SIZE: 1250 X 2500 X 6MM THK |
| 72192212 | . HR PLATE OF SS AS PER ASTM A240 GR. 310S SIZE: 1250 X 2500 X 10MM THK |
| 72192212 | . HR PLATE OF SS AS PER ASTM A240 GR. 310S SIZE: 1250 X 2500 X 5MM THK |
| 72192212 | . HR PLATE OF SS AS PER ASTM A240 GR. 310S, SIZE: 1250 X 2500 X 8MM THK. |
| 72192212 | . H.R PLATE OF SS MORE THAN 4.75MM THK,GR. 310S, SIZE: 4FT X 8FT X 6MM THK |
| 72199090 | SS PLATE ASTM A 240 310 S SIZE: 3 MM THKX 1.565 M X 3 MTR |
310 Stainless Steel Coefficient Of Thermal Expansion
| Property | 310 |
|---|---|
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 8.8 x 10-6 |
| Thermal Conductivity, Btu/ft hr ˚F | 8.0 |
Check Hardness Of 310 Stainless Steel Hot Rolled Plates and ASTM A240 Stainless Steel 310S Shim Sheets Supplier & Manufacturers In Mumbai, India.
ASTM A240 Grade 310 Hardness
| Hardness (HV) (max) | 225 |
Stainless Steel 310 Shim Sheet Heat Resistance
Grade 310 is a medium carbon austenitic stainless steel, for high temperature applications such as furnace parts and heat treatment equipment. It is used at temperatures up to 1150°C in continuous service, and 1035°C in intermittent service. Grade 310S is a low carbon version of grade 310.
ASTM A240 Stainless Steel 310 Shim Sheets Welding Processing
| 2 Plasma Cutting Tables | Ss 310 2B Plate can be plasma cut from 3/16 Inch thick thru 6.25Inch thick. |
| 4 Kasto Plate Saws | SS 310 Polished Plate or bar from 1/2Inch thick thru 22Inch thick SS 310 can be Kasto saw cut. |
| 4 Dynamic Waterjet Tables | ASME Sa240 SS 310 Shim Sheet can be waterjet cut from light gauge sheet metal thru 8Inch thick Stainless 310 Plate. |
| Stainless 310 Plate Leveling | In house plate leveling of coil from 13 gauge stainless sheet thru 3/8Inch Stainless 310 Plate coil, thru 78.75Inch wide (2 meter) |
| 1 plate laser | 310 Stainless Hot Rolled Plate gauges thru 1-1/8Inch thick SS 310 plate can be laser cut. |
| Gauer Processing | SS 310 sheared and edged bar can be gauer processed from 3/16Inch thick thru 5/8Inch thick up to 8Inch wide. |
| 3 Plate Shears | 310 SS Sheets thru 3/4Inch thick can be shear cut to size. |
| Machine Cutting | SS 310 rings and discs can be machine cut from 1/2Inch thick thru 12Inch thick, up to 42Inch in diameter |
Test Certificate Of SS 310 Perforated Sheets
