Stainless Steel 316 Flanges and ASTM A182 F316 Blind/ Weld Neck Flange

What is Stainless Steel 316 Flanges?

Stainless Steel 316 Flanges belong to austenitic grade. These flanges have a superior concentration of chromium, nickel, and molybdenum. The excellent composition gives these flanges enhanced corrosion and oxidation resistance. Their high tolerances allow these flanges to form a secure and tight sealing within the system. The flanges in this grade are also less prone to pitting by chlorides allowing them to be utilized in marine grade applications.

Comparision Between ASTM A182 F316 Slip On Flange and ANSI B16.5 SS 316 Socket Weld Flanges

An ASTM A182 F316 Slip On Flange is one of the most used and economical flanges having a low-profile head. These flanges are passed over pipes or tubes and welded in place using one or two filler welds. Standard slip on flanges are not preferred in high-pressure applications.
SS 316 socket weld flanges are less common flanges, which require less space compared to traditional flanges. These flanges are preferred in pipes of nominal sizes and are assembled using a single fillet weld. They can withstand high pressures in pipes of small sizes.

ASME SA182 SS 316 Weld Neck Flange Application

Weld neck flanges within this grade are preferred in applications where fluctuating temperatures and pressures are at the highest. They are also utilized in systems, which have to handle and transport hazardous and toxic fluids and gases. Most common applications within this grade include:

Water treatment plants
Petroleum refining
Chemical processing
Food and beverage systems
Pharmaceutical industry
Power generation

UNS S31600 WNRF Flanges vs DIN 1.4401 Blind Flange

Flanges are versatile components, which can be classified based on their load-bearing, faces, and temperature resistances.

The UNS S31600 WNRF flange can be recognized by a long protruding hub. Din 1.4401blind flange doesn’t have a face or hub.
WNRF flanges can withstand high pressures and temperatures systems. Blind flanges help in sealing or blocking piping ends against the vigorous flow of fluids and gases.
Blind flanges are bolted and allow for inspection and repair in the system. Weld neck flanges are butt-welded directly to the piping component.

SS 316 Flange Features

Some of the features of the versatile SS 316 flange include

Enhanced corrosion and oxidation resistance due to the presence of molybdenum
Excellent resistance against chloride pitting
Marine-grade steel
High thermal and melting point
Secure sealant
Able to transport fluids and gases at considerable speed
Resistant to failures and damage
Long service life

ASTM A182 F316 Blind Flange and UNS S31600 Weld Neck Flanges manufacturer in India

Stainless Steel 316 Threaded Flange

Stainless Steel 316 Forged Flange

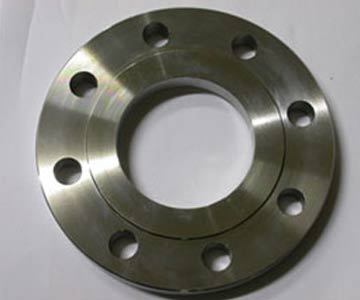

Stainless Steel 316 Socket Weld Flange

SS 316 Flange Specification

Specifications List	ASME SA182 / ASTM A182
Class / Pressure Rating	PN64 2500#, PN6, 600#, PN40, 150#, PN25, PN16, PN10, 1500#, 300#, 900#, etc.
Size in Inches	1/2 (15 Nominal Bore) to 48 (1200 Nominal Bore)
ASTM Standards	ASME/ANSI B16.48, B16.5, BS4504, B 16.47 Series B & A, EN-1092, BS 10, DIN
Manufacturer Of Top 8 Flanges Types	Lap Joint Flange/ RTJ Flange/ Threaded Flange/ Blind Flange/ Reducing Flange/Slip On Flange/ Weld Neck Flange/ Socket Weld Flange

Looking for SS 316 Flanges suppliers who offer prompt delivery in Asia? Manufacturer of Stainless Steel 316 Threaded Flange in India, call us for big discount and ready sizes, check latest price of ASME SA182 UNS S31600 Slip On Flange in Mumbai

ASTM A182 F316 Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00	67.845 min

Manufacturer & Supplier Of F316 Flange, 316 Stainless Steel Flanges In India

Why Choose Stainless Steel 316 Flanges?

UNS S31600 Equivalent ASTM

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	-	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3

316 SS Mechanical Properties

Melting Point	Density	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
1400 °C (2550 °F)	8.0 g/cm3	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

PED Certified Stainless Steel 316 Flanges Manufacturer In India, Dimensions Of Flange Inox 316 In MM.

Check ANSI / ASME B16.5 SS 316 Flange pressure rating chart and dimensions

Stainless Steel 316 Threaded Flange Pressure Ratings

ASME /ANSI B16.34	PRESSURE RATING OF 304L Flange
Temp. °F	150#	300#	400#	600#	900#	1500#	2500#
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945

316 Stainless Steel Flange Dimensions

Dimensions: ANSI/ASME B16.5, B16.28, MSS-SP-43.

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129 Flange	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Buy Stainless Steel 316 Flanges Directly From Largest Manufacturers In Mumbai, Check Length and Weight Chart Of 316 SS Slip On Flange, 316 Stainless Steel Pipe Flanges Stock

SS 316 Flange Weight

O.D. Flange	Pipe Normal Dia.		Thk. Of Flange Minimum	Dia of Raised Face	Dia. of Hub	Length Hub.Y	Thread Length	Dia. of Bolt Holes	Dia. of Bolt Circle	KG	NO of Bolts	Dia. of Bolts (inch)	LB
O	inch	dn	C	G	X	Y	T	BH	BC		BN	BD
216.00	3-1/2"	90	23.90	139.70	122.20	31.80	31.80	19.10	177.80	5.1	8	5/8"	11.2
228.50	4"	100	23.90	157.20	134.90	33.30	33.30	19.10	190.50	5.9	8	5/8"	13
254.00	5"	125	23.90	185.70	163.60	36.60	36.60	22.40	215.90	7	8	3/4"	15.4
279.50	6"	150	25.40	215.90	192.00	39.60	39.60	22.40	241.30	8.4	8	3/4"	18.5
343.00	8"	200	28.40	269.70	246.10	44.50	44.50	22.40	298.50	13	8	3/4"	28.6
406.50	10"	250	30.20	323.90	304.80	49.30	49.30	25.40	362.00	18	12	7/8"	39.5
482.50	12"	300	31.80	381.00	365.30	55.60	55.60	25.40	431.80	29	12	7/8"	64
533.50	14"	350	35.10	412.80	400.10	57.20	57.20	28.50	476.30	39	12	1"	86
597.00	16"	400	36.60	469.90	457.20	63.50	63.50	28.50	539.80	47	16	1"	103
89.00	1/2"	15	11.20	35.10	30.20	15.70	15.70	15.80	60.50	0.4	4	1/2"	0.9
98.50	3/4"	20	12.70	42.90	38.10	15.70	15.70	15.80	69.90	0.7	4	1/2"	1.5
108.00	1"	25	14.20	50.80	49.30	17.50	17.50	15.80	79.30	0.8	4	1/2"	1.8
117.50	1-1/4"	32	15.70	63.50	58.70	20.60	20.60	15.80	88.90	1.2	4	1/2"	2.6
127.00	1-1/2"	40	17.50	73.20	65.00	22.40	22.40	15.80	98.60	1.5	4	1/2"	3.3
152.50	2"	50	19.10	91.90	77.70	25.40	25.40	19.10	120.70	2.3	4	5/8"	5.1
178.00	2-1/2"	65	22.40	104.60	90.40	28.40	28.40	19.10	139.70	3.7	4	5/8"	8.1
190.50	3"	80	23.90	127.00	108.00	30.20	30.20	19.10	152.40	4.1	4	5/8"	9
635.00	18"	450	39.60	533.40	505.00	68.30	68.30	31.80	577.90	57	16	1 1/8"	126
698.50	20"	500	42.90	584.20	558.80	73.20	73.20	31.80	635.00	76	20	1 1/8"	167
813.00	24"	600	47.80	692.20	663.40	82.60	82.60	35.10	749.30	97	20	1 1/4"	214

Supplier of Class 150/ 300/ 600 316 Stainless Steel Flanges and 1.4401 Stainless Steel Socket Weld Flange with stamping & marking

Stainless Steel 316 Weld Neck Flange Marking

Flanges Type = (Blind)
Schedule = (SCH 40)
Material Designation = (ASTM A182 F304)
Name of Manufacturer = (SP Metals)
NPS = (2 Inch)
Class = (150)
Face Type = (RF)
Country Name = (Made In India)

Well-known Manufacturer Of 316 Flange in India. For final Flange 316 Price List Please Call on +91 22 6636 3099.

SS 316 Flange Price

Description	Per Unit (INR)
FLANGES STAINLESS STEEL : 1, SW RF, 600, XS/80S, SA/A182 GR.316	492
FLANGES STAINLESS STEEL : 3/4, WN RF, 600, XS/80S, SA/A182GR.316	503
FLANGE SS GR SA182 F316 ANSI B16.5 DN 20, 300#SCH 40S, WELD NECK RF	476
FLANGE STAINLESS STEEL GR SA182 F316 ANSI B16.5 DN25,150#SCH10S, WELD NECK RF	487
FLANGES SS SA182 GR F316 6WN 300 RF STD/40S 125-250 RMS	488

Stainless Steel 316 Forged Flange Measurement

R For Diameter of raised face
Q For (Minimum) diameter of bolt circle
X For Hub Diameter at base
O For Outside Diameter of flange

C For Thickness of flange
Y For Length through hub
T For (Minimum) thread length

316 Stainless Steel Flanges Stock

Stainless 316 SORF Flanges	Stainless Steel 316 WNRF Flange
Stainless Steel 316 Forged Flanges	Stainless Steel 316 BS 4504 Flanges
Stainless Steel 316 Slip on Flanges	Stainless Steel UNS S31600 Flanges
Stainless Steel 316 EN 1092-1 Flanges	Stainless Steel 316 Flanges
Stainless Steel BS 316S31 Spectacle Blind Flanges	Stainless Steel DIN 1.4436 Orifice Flange
Steel 316 Threaded Flanges	Stainless Steel 316 Long Weld Neck Flanges
SS 316 Male & Female Flanges	Steel 316 Tongue & Groove Flanges
SS 316 ASME B16.5 Flange	Stainless Steel 316 DIN Flange

Check Physical Properties Of 316 Lap Joint Flange and 316 Weld Neck Flange Supplier & Manufacturers In Mumbai, India.

Stainless Steel 316 Slip On Flange Physical Properties

DENSITY LBM/IN^3	SPECIFIC HEAT (BTU/LB/°F)	MELTING RANGE(°F)	THERMAL CONDUCTIVITY (BTU/H FT. °F)	ELECTRICAL RESISTIVITY(IN X 10^-6)	MODULUS OF ELASTICITY(PSI X 10^6)	COEFFICIENT OF THERMAL EXPANSION (IN/IN)/°F X 10^-6
at 68°F: 0.285	0.1200 at 68°F to 212°F	2500 to 2590	8.7 at 212°F	27.6 at 68°F	29	9.4 at 32 – 212°F

Stainless Steel 316 Flanges Types

SS 316 Flanges

Stainless Steel 316 Blind Flange

Stainless Steel 316 Weld Neck Flange

F316 Flange

316 Stainless Steel Flanges

316 Flange

Flange 316

Stainless Steel 316 Flanges

Stainless Steel 316 ANSI Flanges

Stainless Steel 316 Slip On Flange

316 SS ANSI Flange

316 Stainless Steel Flange

Stainless Steel 316 Pipe Flange

316 Stainless Flange

Flange Inox 316

316 Lap Joint Flange

316 Weld Neck Flange

SS 316 Plate Flange

316 Stainless Steel Lap Joint Flange

ASTM A182 F316

316 Stainless Steel Weld Customized Square Flange

ASTM ASME B16.5 A182 316 Welding Neck WN Flange, Class 900 RTJ

1.5 Inch Stainless Steel 316 Blank Flange Blind Flange

Stainless Steel Plate Flange 316

Stainless Steel 316 Flanges Suppliers In India, Check Tolerance Of Stainless 316 Flange and Stainless Steel 316 Forged Flange

Stainless Steel 316 Pipe Flange Tolerance

Stainless Steel 316 Flanges		Tolerance Table
A	O.D. (Outside Diameter)	When O.D. (Outside Diameter) is 24 inch or less: ±1/16 inch (1.6 millimeter) When O.D. (Outside Diameter) is over 24 inch: ±1/8 inch (3.2 millimeter)
D	Inside Diameter (I.D.)	10 inch and smaller: ±1/32 inch (0.8 milimeter) 12 inch thru 18 inch: +1/8 inch (3.2 milimeter) 20 inch and larger: -1/16 inch (1.6 milimeter)
B	Diameter of contact face	1/16 inch raised face: ±1/32 inch (0.8 milimeter) 1/4 inch RF (Raised Face), T/G (Tongue & Groove), (male & female), (m/f): ±1/64 inch (0.4 millimeter)
J	Diameter of hub at base	When hub base is 24 inch or smaller: ±1/16 inch (1.6 millimeter) When hub base is over 24 inch: ±1/8 inch (3.2 millimeter)
H	Diameter of hub at point of welding	5 inch and smaller: +3/32 inch (2.4 milimeter), -1/32 inch (0.8 milimeter) 6 inch and larger: +5/32 inch (4.0 milimeter), -1/32 (0.8 milimeter)
P	Drilling	Circle Bolts: ±1/16 inch (1.6 milimeter) Bolts hole spacing: ±1/32 inch (0.8 milimeter)
	Eccentricity of bolt circle with respect to facing	2 1/2 inch and smaller ±1/32 inch (0.8 milimeter) maximum 3 inch and larger ±1/16 inch (1.6 milimeter) maximum
C	Thickness	18 inch and smaller: ±1/8 inch (3.2 milimeter), -0 inch 20 inch and larger: ±3/16 inch (4.8 milimeter), -0 inch
K	Length of hub	10 inch and smaller: ±1/16 inch (1.6 milimeter) 12 inch and larger: ±1/8 inch (3.2 milimeter)

Manufacturer of SUS 316 Orifice/ Pipe/ Threaded Flange accordance to ASME B16.5, ANSI/ ASA, EN 1092-1, BS 4504 specification

Standard Of Flange Inox 316

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)	ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60 ASME B1.20.1, Pipe Threads, General Purpose ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250 ASME B16.36, Orifice Flanges ASME B31.1, Power Piping ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 ASME B31.3, Process Piping ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay) ASME B16.11, Forged Fittings, Socket Welding and Threaded ASME B16.25, Buttwelding Ends

Get instant delivery Of 20mm SS 316 Plate Flange , Torque Chart Of Stainless Steel 316 Socket Weld Flange, 316 Stainless Steel Lap Joint Flange, ASTM A182 F316 Flange Manufacturer In Mumbai. India.

Stainless Steel 316 Socket Weld Flange Torque Chart

Size in Inches	Size in Millimeter	Imperfections Max. Radial Projection
Size in Inches	Size in Millimeter	No Deeper Than the Bottom of the Serrations, millimeter	Deeper Than the Bottom of the Serrations, millimeter
1/2	15	3.0	1.5
3/4	20	3.0	1.5
1	25	3.0	1.5
1 1/4	32	3.0	1.5
1 1/2	40	3.0	1.5
2	50	3.0	1.5
2 1/2	65	3.0	1.5
3	80	4.5	1.5
3 1/2	90	6.0	3.0
4	100	6.0	3.0
5	125	6.0	3.0
6	150	6.0	3.0
8	200	8.0	4.5
10	250	8.0	4.5
12	300	8.0	4.5
14	350	8.0	4.5
16	400	10.0	4.5
18	450	12.0	6.0
20	500	12.0	6.0
24	600	12.0	6.0

Manufacturer of ASTM A182 Spectacle Blind Flange cutted from sheet and AISI 316 Forged Flange and ASME SA182 Grade F316 Slip on Flange from Blanks, check Werkstoff No 1.4401 Plate Flange Dimension and bolt Chart

ISO Certified Stainless Steel 316 Flanges Manufacturers in India, Check HSN Code and density Of 316 SS Blind Flange In MM.

SS 316 Flange Hsn Code

HSN Code	Product Description
73072100	Flanges

Density Of Stainless Steel 316 Blind Flange

Property	Minimum Value (S.I.)	Units (S.I.)
Density	7.87	Mg/m3

ASTM A182 Stainless Steel 316 Flanges Hardness

Hardness MAX, Brinell	217

Stainless Steel 316 Flanges
