Stainless Steel 321 Flanges


ASTM A182 F321 Weld Neck Flange and AWWA C207/ Class 150/ 300/ 600 SS 321 Flanges manufacturer in India

The Stainless Steel 321 grade belongs to an austenitic grade that is stabilized with titanium. Stainless Steel 321 Flanges are designed with primary constituents of chromium and nickel. These flanges help in connecting different fixtures and provide excellent stability during the flow of fluids and gases in the system. The ASTM A182 F321 Weld Neck Flange is a wrought grade that is designed with a long protruding hub. These flanges help in transferring weight from the fixture allowing movement of pressurized flow in the system. Class 150 SS 321 Slip on Flanges is designed to hold and process moderate to low pressure fluids and gases. These flanges are usually welded in place using one or more fillet welds as it is directly slid on the fixture. The AISI 321 Socket Weld Flange is commonly seen in small sizes pipes that can transmit high pressures. These flanges are inserted in a socket opening and subsequently welded using a single fillet weld. The versatile DIN 1.4541 Forged Flanges possess enhanced tensile and fatigue strength. These flanges have higher ductility and possess a finer grain structure and less surface porosity. They are available in different shapes and sizes as per customer requirements.

An SA 182 Gr F321 Blind Flange is designed without any face type or a protruding hub. This allows them to completely seal the ends of the system to terminate the flow of high pressure and elevated temperature fluids and gases. The SUS 321 Spectacle Blind Flanges are robust safety devices that are nearly identical to a blind flange; however, they have an open end with a closed face end. The open end allows for easy fluid flow, while the close end is employed to terminate the flow. These flanges are common in systems where there is repair and maintenance taking place.

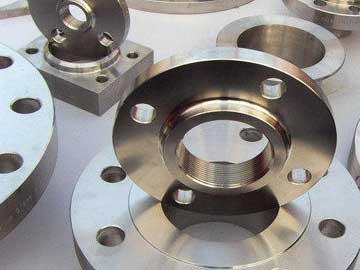

Stainless Steel 321 Flanges

Stainless Steel 321 Flanges

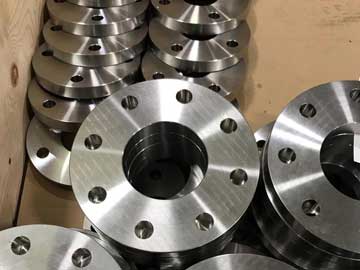

SS 321 Slip On Flanges

SS 321 Slip On Flanges

Exporter and Distributor of EN 1.4541 BLRF/ Orifice Flange in Mumbai, also Check UNS S32100 Spectacle Blind Flanges thickness, Dimension

Stainless Steel 321 Flanges

Stainless Steel 321 Flanges Specification

Specifications ASME SA182 / ASTM A182
Standards BS 10, B16.48, BS4504, EN 1092, ANSI/ASME B16.5, B 16.47 Series A & B, DIN.
Pressure Rating 1500#, PN25, 150#, 300#, PN64, 900#, 2500#, 600#, PN10, PN16, PN6, PN40
Standard Flange EN, BS, ASME, ANSI, DIN
Size Chart 1/2″ (15 NB) upto 48″ (1200NB)

SS 321 Plate Flange Price

Products Pipe Size Flange Outside Diameter Maximum Operating Pressure Number of Bolt Holes 321 Stainless Steel
STAINLESS STEEL FLANGES, DN 65 PN 16 GOST 12822 80, F321 1 in 4-1/4 in 150 psi 4 $40.31
STAINLESS STEEL FLANGES : 1 1500 WELD NECK RTF SOLID (SQUARE BEVEL END) ASME B16.5 F321 (COLOUR CODE = BLACK) 1-1/4 in 4-5/8 in 150 psi 4 $52.73
FLANGES STAINLESS STEEL SA 182 GR F321 161 300060 SF34S B16.5 WN 300LBS 2S40S RF (3PCS) 2-1/2 in 7 in 150 psi 4 $108.87
FLANGES STAINLESS STEEL GR.SA182 F321 F235ST40003.207 DN50WNRF (2PCS) 4 in 9 in 150 psi 8 $155.69

Check Price List of ASME B16.5 SS DIN 1.4541 Forged Flanges and SA 182 Gr F321 Long Weld Neck Flange Weight Chart

321 Stainless Steel Flanges Types

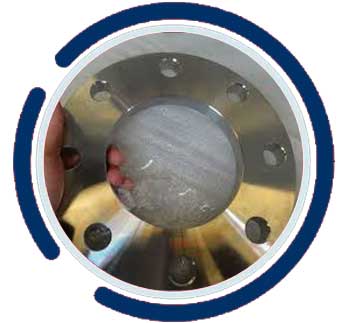

SS 321 Plate Flange

SS 321 Plate Flange

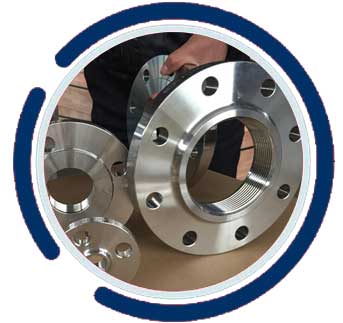

Stainless Steel F321 Forged Flange

Stainless Steel F321 Forged Flange

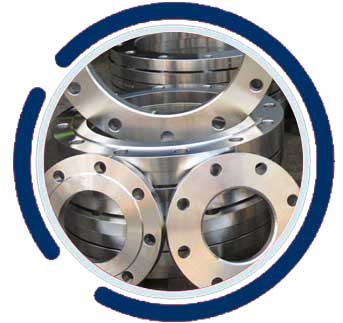

ANSI B16.5 SS 321 Slip On Flanges

ANSI B16.5 SS 321 Slip On Flanges

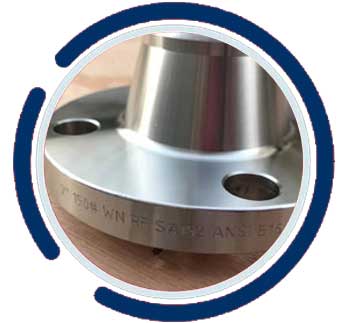

SS Grade F321 WNRF Flanges

SS Grade F321 WNRF Flanges

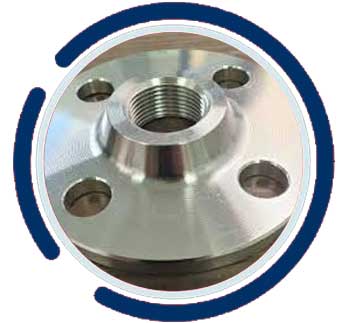

ANSI B16.5 SS F321 Screwed Flanges

ANSI B16.5 SS F321 Screwed Flanges

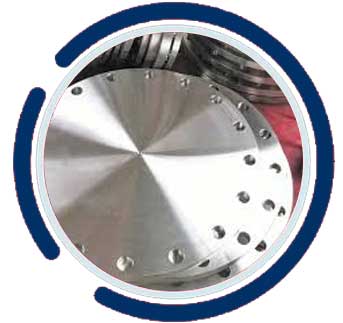

Class 150 SS DIN 1.4541 Spectacle Blind Flanges

Class 150 SS DIN 1.4541 Spectacle Blind Flanges

SS UNS S32100 Ring Type Joint Flanges

SS UNS S32100 Ring Type Joint Flanges

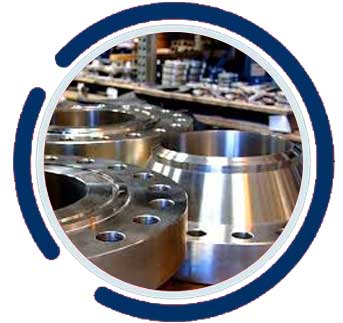

ASTM A182 SS F321 Industrial Flanges

ASTM A182 SS F321 Industrial Flanges

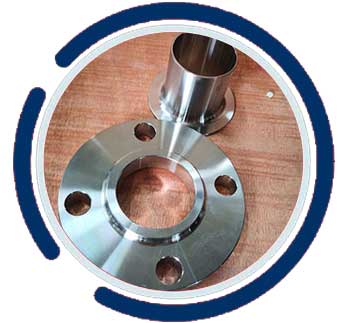

Stainless steel 321 Lap Joint Flange

Stainless steel 321 Lap Joint Flange

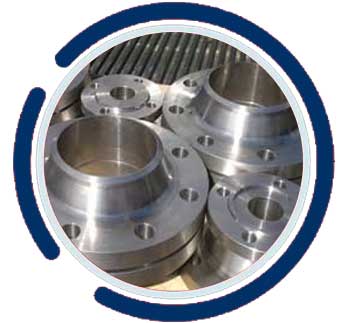

ASTM A182 Stainless Steel 321 Flanges

ASTM A182 Stainless Steel 321 Flanges

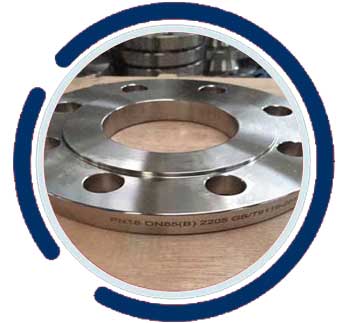

SS 321 Flat Face Flanges

SS 321 Flat Face Flanges

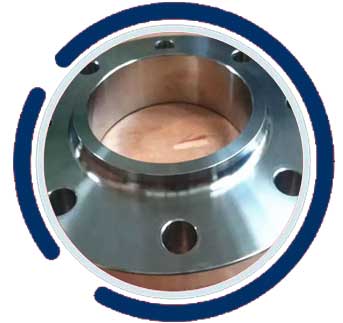

ASTM A182 SS 321 Socket Weld Flanges

ASTM A182 SS 321 Socket Weld Flanges

#150 ANSI SS UNS S32100 Pipe Flanges Chemical Composition

S C N Mn Ni Si Cr P Ti
0.030 max 0.08 max 0.10 max 2.0 max 9.00 - 12.00 1.0 max 17.00 - 19.00 0.045 max 5(C+N) – 0.70 max

SS Grade F321 WNRF Flanges Mechanical Properties

Tensile Properties Density Yield Properties Melting Point Elongational
Psi – 75000 , MPa – 515 8.0 g/cm3 Psi – 30000 , MPa – 205 1457 °C (2650 °F) 35 %
Check Pressure Rating of AISI 321 Socket Weld Flange and Manufacturer of ASTM A182 Gr F321 Blind Flange material with Spring and groove in JIS B2220, AS2129/ AS4087 Standard

Suppliers Of Stainless Steel 321 Flanges In Mumbai, India, Get Free Quote For aaa, Equivalent Grades Of SS 321 Blind Flange.

ANSI B16.5 SS F321 Screwed Flanges Equivalent

UNS WERKSTOFF NR. EN JIS
S32100 1.4541 X6CrNiTi18-10 SUS 321

SS 321 Slip On Flanges Sizes

Nominal Pipe Size Diameter of Hub at Bevel Thickness of Flange Outside Diameter of Flange Radius of Fillet Diameter of Raised Face Length Thru Hub Diameter of Hub at Base Diameter or Bore Depth of Socket
Welding Neck Slip-On Threaded Socket Lap Joint Slip-on Socket Lap Joint
H Q O r R Y Y Y X W B Z
1/2 .84 7/16 3-1/2 1/8 1-3/8 1-7/8 5/8 5/8 1-3/16 .88 .90 3/8
3/4 1.05 1/2 3-7/8 1/8 1-11/16 2-1/16 5/8 5/8 1-1/2 1.09 1.11 7/16
1 1.32 9/16 4-1/4 1/8 2 2-3/16 11/16 11/16 1-15/16 1.36 1.38 1/2
1-1/4 1.66 5/8 4-5/8 3/16 2-1/2 2-1/4 13/16 13/16 2-5/16 1.70 1.72 9/16
1-1/2 1.90 11/16 5 1/4 2-7/8 2-7/16 7/8 7/8 2-9/16 1.95 1.97 5/8
2 2.38 3/4 6 5/16 3-5/8 2-1/2 1 1 3-1/16 2.44 2.46 11/16
2-1/2 2.88 7/8 7 5/16 4-1/8 2-3/4 1-1/8 1-1/8 3-9/16 2.94 2.97 3/4
3 3.50 15/16 7-1/2 3/8 5 2-3/4 1-3/16 1-3/16 4-1/4 3.57 3.60 13/16
3-1/2 4.00 15/16 8-1/2 3/8 5-1/2 2-13/16 1-1/4 1-1/4 4-13/16 4.07 4.10 7/8
4 4.50 15/16 9 7/16 6-3/16 3 1-5/16 1-5/16 5-5/16 4.57 4.60 15/16
5 5.56 15/16 10 7/16 7.5/16 3-1/2 1-7/16 1-7/16 6-7/16 5.66 5.69 15/16
6 6.63 1 11 1/2 8-1/2 3-1/2 1-9/16 1-9/16 7-9/16 6.72 6.75 1-1/16
8 8.63 1-1/8 13-1/2 1/2 10-5/8 4 1-3/4 1-3/4 9-11/16 8.72 8.75 1-1/4
10 10.75 1-3/16 16 1/2 12-3/4 4 1-15/16 1-15/16 12 10.88 10.92 1-5/16
12 12.75 1-1/4 19 1/2 15 4-1/2 2-3/16 2-3/16 14-3/8 12.88 12.92 1-9/16
14 14.00 1-3/8 21 1/2 16-1/4 5 2-1/4 3-1/8 15-3/4 14.14 14.18 1-5/8
16 16.00 1-7/16 23-1/2 1/2 18-1/2 5 2-1/2 3-7/16 18 16.16 16.19 1-3/4
18 18.00 1-9/16 25 1/2 21 5-1/2 2-11/16 3-13/16 19-7/8 18.18 18.20 1-15/16
20 20.00 1-11/16 27-1/2 1/2 23 5-11/16 2-7/8 4-1/16 22 20.20 20.25 2-1/8
24 24.00 1-7/8 32 1/2 27-1/4 6 3-1/4 4-3/8 26-1/8 24.25 24.25 2-1/2

Manufacturer Of Stainless Steel F321 Forged Flange In India, Visit our SS 321 Plate Flange in India, Call Now to Get ANSI B16.5 SS 321 Slip On Flanges Free sample, Stockist Of SS 321 Flanges.

ASTM A182 SS 321 Socket Weld Flanges Pressure Rating

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 600# 150# 1500# 300# 2500# 400# 900#
-20 to 100 1440 275 3600 720 6000 960 2160
200 1200 230 3000 600 5000 800 1800
300 1080 205 2700 540 4500 720 1620
400 995 190 2485 495 4140 660 1490
500 930 170 2330 465 3880 620 1395
600 875 140 2185 435 3640 580 1310
650 860 125 2150 430 3580 575 1290
700 850 110 2125 425 3540 565 1275
750 830 95 2075 415 3460 555 1245
800 805 80 2015 405 3360 540 1210
850 790 65 1980 395 3300 530 1190
900 780 50 1945 390 3240 520 1165
950 765 35 1910 380 3180 510 1145
1000 640 20 1605 320 2675 430 965
1050 615 20 1545 310 2570 410 925
1100 515 20 1285 255 2145 345 770
1150 400 20 995 200 1655 265 595
1200 310 20 770 155 1285 205 465
1250 225 20 565 115 945 150 340
1300 170 20 430 85 715 115 255
1350 125 20 310 60 515 80 185
1400 95 20 240 50 400 65 145
1450 70 15 170 35 285 45 105
1500 55 10 135 25 230 35 80

Get instant delivery Of SS GOST 08Х18Н10 Socket Weld Flanges, Suppliers Of SS Grade F321 WNRF Flanges In Mumbai. India.

SS 321 Flanges Dimensions

Standard Bolt Circle Diameter Class Bolt Size Diameter Diameter of Bolt Hole Number of Bolts
ISO 7005 (DIN) Flange 55 PN6 M10 80 11 4
65 PN10 M12 95 14 4
65 PN16 M12 95 14 4
60.5 PN20 M14 90 16 4
65 PN25 M12 95 14 4
65 PN40 M12 95 14 4
AS 2129 Flange 67 Table C 13 95 14 4
67 Table D 13 95 14 4
67 Table E 13 95 14 4
67 Table F 13 95 14 4
83 Table H 16 114 17 4
83 Table J 16 114 17 4
AS4087 67 PN14 M12 95 14 4
ANSI B16.5 60 ANSI 150 13 89 16 4
67 ANSI 300 13 95 16 4
67 ANSI 600 13 95 16 4
83 ANSI 900 19 121 22 4
83 ANSI 1500 19 121 22 4
Manufacturer of EN 1092-2 PN10 321 Stainless Steel Slip On flange and SUS 321 Nippo Flanges in Mumbai, browse our range of ASME SA182 F321 WNRF Flanges and Spectacle Blinds online

Buy directly from SS UNS S32100 Pipe Flanges manufacturers in India to save cost, avoid high margins of distributors and supplier commission

Stainless Steel 321 Flanges Inventory

Stainless Steel 321 Flange SS 321 Long Weld Neck Flange
SS 321 Plate Flange Stainless Steel 321 Slip on Flange
Stainless Steel F321 Forged Flange ASTM A182 SS 321 Socket Weld Flange
ANSI B16.5 SS 321 Slip On Flange SS UNS S32100 Flange
SS GOST 08Х18Н10 Socket Weld Flange SUS 321 Pipe Flange
#150 ANSI SS UNS S32100 Pipe Flange SS 321 Flange
SS Grade F321 WNRF Flange S32100 Lap Joint Flange
ANSI B16.5 SS F321 Screwed Flange SS 321 Orifice Flange
SS UNS S32100 Socket Weld Flange 321 SS Weld Neck Flange
Class 150 SS DIN 1.4541 Spectacle Blind Flange SS 321 DIN Flange
SS UNS S32100 Ring Type Joint Flange SS 321 Spectacle Blind Flange
321 SS Flange ASME SA F321 SS 321 Blind Flange
SS 321 Slip On Flange ANSI B16.5 SS 321 Flange
ASTM A182 SS F321 Industrial Flange SS 321 weld neck Flange
321 SS Weld Neck Flange ASTM A182 F321 Forged Flange
SS UNS S32100 Pipe Flange SS 1.4541 Flange
SS 321 Lap Joint Flange 321 Steel RTJ Flange
SS 321 blind Flange ASTM A182 TP321 SS Pipe Flange
Din pn16 SS DIN 1.4878 Threaded Flange SS 321 SO Flange
SS DIN 1.4541 Spectacle Blind Flange UNS S32100 SS Flange
ASTM A182 SS 321 Flange SS WERKSTOFF NR. 1.4541 Flange
SS 1.4541 Flange SS 321 flat face Flange

PED approved ASTM A182 SS F321 Industrial Flanges suppliers in India, check dimensions and thickness chart
