Stainless Steel 316 Pipe Fittings


Large diameter ASTM A403 WP316 Elbow/Tee manufacturer in India

The 316 SS fittings are an austenitic grade of stainless steel. Stainless Steel 316 Pipe Fittings are manufactured with a superior chemical composition of 16% chromium, 10% nickel, and 2% molybdenum. These fittings are used in applications where corrosion and oxidation are of the highest degree. The SS 316 Fittings are versatile fixtures that are employed to influence the characteristics of the flow in the system. These fittings work well in marine systems and exhibit enhanced resistance to pitting and crevice corrosion. They are designed by our renowned workers with the best raw materials and latest technology.

The ASTM A403 WP316 Elbow is a fixture that is employed in changing the direction of the flow in the system. These elbows are designed in long or short radii and are generally available in 45 and 90-degree turns. They can be, however, customized as per customer requirements. AISI 316 Pipe Cap is used to terminate and close the ends of piping components. These caps protect the pipes against damage and corrosive affluents during their storage and transportation. The SA 403 Wp 316 Cross is also known as the four-way fitting. A cross has one inlet section with three outlets. These crosses may be designed either with female threaded end or solver weld sockets. They may put a little stress on the piping modules due to changes in temperatures and pressures across all the outlets. ASTM A403 Gr WP316 Reducer is employed in connecting pipes of larger diameters to smaller pipes. This helps reduce the size of the pipe in the system. The ASTM A403 Gr WP316 Reducer is a robust grade that is used in connecting pipes, tubes, valves, and flanges of different sizes. These reducers are quality-assured and can be availed as per requirements.

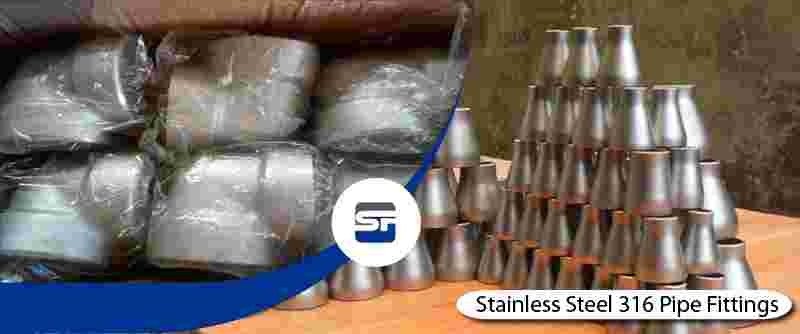

Stainless Steel 316 Pipe Fittings

Stainless Steel 316 Pipe Fittings

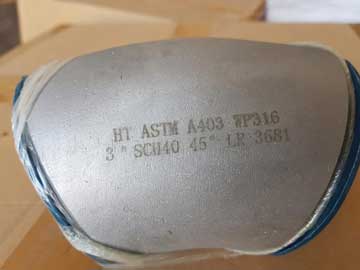

SS 316 Elbow

SS 316 Elbow

Buy Stainless Steel 316 Fittings at wholesale rate directly from 316 Stainless Steel 90 Degree Elbow Supplier in India

Stainless Steel 316 Pipe Fittings

Suppliers Of Stainless Steel 316 Buttweld Fittings In Mumbai, India, Get Free Quote For ASTM A403 WP 316 Pipe Elbow, Equivalent Grades Of SS 316 Pipe Fittings .

Stainless Steel 316 Pipe Fittings Specification

Specifications ASME SA403 / ASTM A403
Type Welded / Seamless / Fabricated
Dimensions ASME B16.28, ANSI B16.9, MSS-SP-43
Thickness SCH 5S to SCH XXS
Size 1/8” NB upto 48” NB

Manufacturer Of Stainless Steel UNS S31600 Reducer In India, Visit our ASTM A403 F316 Stainless Steel Equal Tee in India, Call Now to Get SS 316 Grade Long Stub End Free sample, Stockist Of ANSI B16.9 Stainless Steel 316 Short Radius Elbow.

316 Stainless Steel Fittings Price

Products Fitting Pipe Size Price
STAINLESS PIPE FITTING SS 316 TC LINER L=15mm T:1.65mm SIZE 1.0(2500 PCS) 1/4 in x 1/4 in $6.65
TUBE OR PIPE FITTING (FOR EXAMPLE COUPLINGS,ELBOWS,SLEEVES) OF IRON OR STEEL -SS 316 WNRF FLANGE, 3/4 X 150# S40 3/8 in x 3/8 in $8.00
SS 90 DEG B/W ELBOW T2 NO. NM013138 (STAINLESS PIPE FITTINGS)(SS316)(100 NOS) (SIZE 51 MM) 1-1/2 in x 1-1/2 in $51.04
STAINLESS PIPE FITTING SS 316 TC LINER L=15mm T:1.65mm SIZE 1.0(2500 PCS) 2 in x 2 in $58.37
PIPE FITTING STAINLESS SA 403 GR. WP316 DN 50 SCH 10S90 DEG LR ELBOWS ASME AS PER ASME B16.9 BUT WELD EN(9PCS) 4 in x 4 in $166.99

12 inch DUAL CERTIFIED Stainless Steel 316 Buttweld Fittings, AISI 316 Pipe Cap and 45/ 90/ 180 Degree A403 WP316 Elbows manufacturer in India

SS 316 Fittings Types

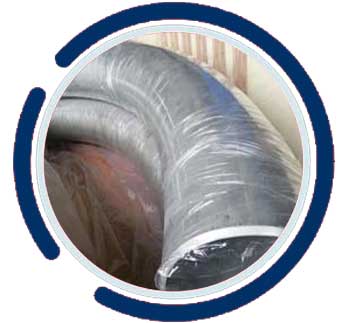

316 Stainless Steel Fittings

316 Stainless Steel Fittings

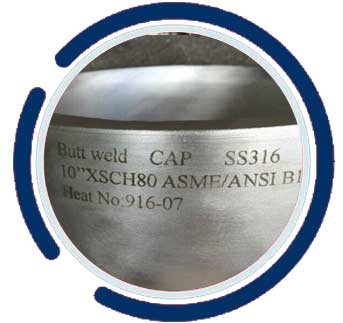

316 Stainless Steel Buttweld Cap

316 Stainless Steel Buttweld Cap

SS 316 Fittings

SS 316 Fittings

316 Stainless Steel Elbows

316 Stainless Steel Elbows

316 SS Threaded Pipe Fitting

316 SS Threaded Pipe Fitting

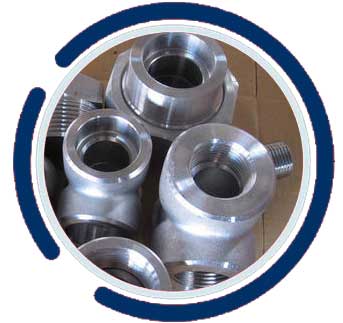

316 SS Socket Weld Fittings

316 SS Socket Weld Fittings

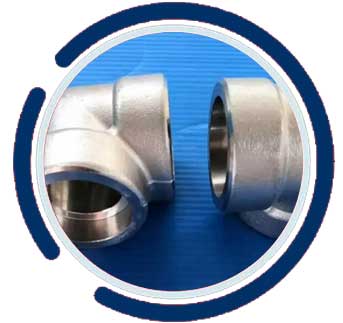

SA403 WP316 Elbow

SA403 WP316 Elbow

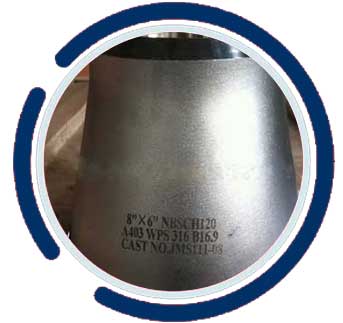

MSS SP-79 ASTM A403 WP316 Reducers

MSS SP-79 ASTM A403 WP316 Reducers

ASTM A403 Grade WP316 Nipple

ASTM A403 Grade WP316 Nipple

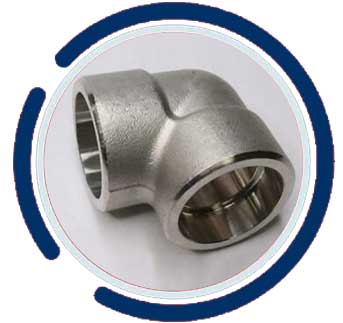

316 SS 90 Degree Elbow

316 SS 90 Degree Elbow

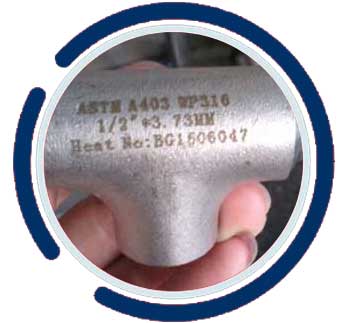

ASTM A403 WP316 Tee

ASTM A403 WP316 Tee

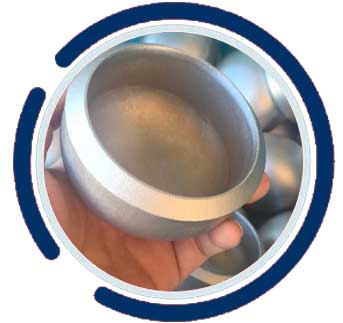

ASME SA 403 WP 316 Pipe Cap

ASME SA 403 WP 316 Pipe Cap

Get instant delivery Of Stainless Steel 316 3D Bend, Weight Chart Of SS 316 90 degree Elbow, manufacturers Of 316 Stainless Steel Cross In Mumbai. India.

Ss316 Elbow Weight Chart

DN Sch40 Sch10 Sch80
90 Degree
Elbow
45 Degree
Elbow
Equal
Tee
90 Degree
Elbow
45 Degree
Elbow
Equal
Tee
90 Degree
Elbow
45 Degree
Elbow
Equal
Tee
8 0.03 0.02 0.06 0.02 0.01 0.03 0.04 0.03 0.07
10 0.03 0.02 0.03 0.03 0.02 0.05 0.06 0.04 0.09
15 0.08 0.04 0.10 0.06 0.03 0.09 0.10 0.05 0.14
20 0.08 0.04 0.17 0.07 0.03 0.13 0.11 0.05 0.20
25 0.15 0.11 0.29 0.14 0.08 0.28 0.22 0.14 0.38
32 0.26 0.17 0.59 0.23 0.11 0.49 0.40 0.23 0.68
40 0.40 0.23 0.86 0.30 0.17 0.68 0.51 0.29 1.02
50 0.70 0.40 1.28 0.50 0.25 0.85 0.91 0.59 1.59
65 1.40 0.77 2.19 0.85 0.48 1.41 1.81 0.99 3.13
80 2.20 1.08 3.31 1.25 0.63 1.77 2.97 1.50 4.45
90 2.83 1.42 4.08 1.70 0.75 2.67 4.00 2.00 5.44
100 4.47 2.09 5.27 2.10 1.08 3.46 6.18 2.81 7.71
150 10.89 5.44 10.99 5.45 2.72 8.07 16.32 8.16 13.16
200 21.54 10.77 20.91 10.20 5.33 15.65 33.11 16.56 28.12
250 38.56 19.27 35.38 18.15 9.75 26.46 51.71 25.86 49.90
300 59.42 29.71 62.14 25.80 13.62 39.46 79.38 39.69 83.91

Buy directly from 316 SS WP 45 degree Elbow manufacturers in India to save cost, avoid high margins of distributors and supplier commission

316 Stainless Steel Tube Fittings Chemical Composition

Grade S C Mo Mn Ni Si Cr P N
316 min. 2.00 10.0 16.0
max. 0.03 0.08 3.00 2.00 14.0 0.75 18.0 0.045 0.10

SS 316 Pipe Fittings Mechanical Properties

Elongational Tensile Strength Yield Strength Hardness
Brinell max Rockwell B max
40% 515 205 217 95
Supply SA 403 Wp 316 Cross and SS316 Reducing/ Equal/ Unequal/ Lateral Tee with non-destructive testing, visual inspection, check Schedule 5s/10s/40s/80s/160s SS 316 Fittings Price in Mumbai

316 Stainless Steel Threaded Pipe Fitting Equivalent

STANDARD AFNOR WERKSTOFF NR. BS UNS GOST JIS EN
SS 316 Z7CND17‐11‐02 1.4401 / 1.4436 316S31 / 316S33 S31600 SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3

PED approved Stainless Steel 316 Grade 3d Pipe Bend manufacturers in India, check dimensions and thickness chart

316 SS Socket Weld Fittings Physical properties

Specific Heat 0-1000C (J/kg.K) Density (kg/m3) Thermal Conductivity (W/m.K) Elastic Modulus (GPa) Electrical Resistivity (n.m) Mean Coefficient of Thermal Expansion (m/m/0C)
at 100°C at 500°C 0-315°C 0-100°C 0-538°C
500 8000 16.3 21.5 193 740 16.2 15.9 17.5

ASTM A403 WP 316 Stainless Steel Pipe Fittings Sizes

ProductSize*Wall Thickness**SeamlessWelded
Elbow1/2"-24"SCH10S~XXS
8"-104"SCH5S~80S/XS
Tee1/2"-24"SCH10S~XXS
8"-104"SCH5S~80S/XS
Reducer1/2"-24"SCH10S~XXS
8"-104"SCH5S~80S/XS
Cap1/2"-80"SCH10S~SCH160
Lap Joint Stub End1/2"-24"SCH5S~80S/XS
8"-80"SCH5S~80S/XS

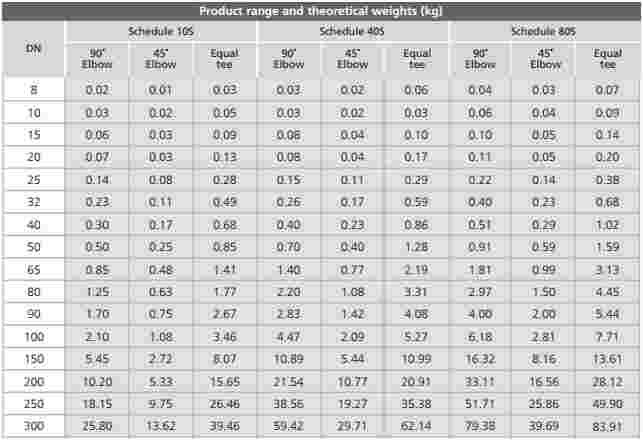

Stainless Steel 316 Buttweld Fittings Dimensions

Stainless Steel 316 Buttweld Fittings Dimensions

ASTM A403 Gr WP316 Reducer, 1.4401 Eccentric / Concentric Reducer supply with Metallographic examination and MTR, 100% radiographed. Check Ready stock of UNS S31603 Stub End

ASTM A403 WP316 Fittings Inventory

SS 316 Pipe Fittings ANSI B16.9 316 SS Elbow
SS 316 Elbow MSS SP-79 ASTM A403 WP316 Reducers
316 SS Fittings 316 SS Pipe Fittings
SS 316 Fittings ASTM A403 WP316 Elbow
ASTM A403 WP316 Tee 316 SS Pipe Fittings
Ss316 Elbow 316 SS Socket Weld Fittings
316 SS Tube Fitting A403 WP316 Fittings
SS 316 Pipe Fitting ASTM A403 WP316 Pipe Fitting
ASTM A403 WP 316 SS Pipe Fitting 316 SS Socket Weld Fitting
316 SS Elbows ASTM A403 WP316 Reducer
316 eccentric SS reducer SS 316 1/2"-4" inch pipe fitting
ansi 16.5 schedule 40 a403 wp316 pipeSS fittings tee 90SS Degree 316 SS elbow DN150 sch80
316 SS 90 Degree SanitarySS Elbow SS Stub Ends MSS SP-43 A403 WP316 1-48 inch ASME B16.9;
ANSI B16.9 316 Cushion Tee SS ASME A403 316 stainless 1/2" 48" pipe fitting
45 degree 12' 316 SS short elbow AISI 316 1-60inchSS sch40 ASME B16.9 4 way pipe fitting Butt-welding cross
ASTM A403 WP316 6 inch 90 Degree Long Radius Seamless Elbow 6SS x 4 Eccentric Reducing Tee 316 SS
SS316 Sanitary SS TriClampSS Curved Y - Bend Tee  ASTMSS B16.9 Seamless Eccentric Reducer SS316 SCH40S Size 16" x 8"
UNS S31600 ASTM A403 WP316 Buttweld Pipe Fitting 316 SS 90 Degree Elbow
316 SS Threaded Pipe Fitting SS 316 Buttweld Fitting
SS 316 Nipple ASTM A403 WP316 Elbow
Werkstoff No.1.4436 316 SS Fitting SCH40 ASME B16.9 BW SS316 Eccentric / Concentric Reducer
ASTM A403 WP316 Fittings 1.4401 SS Return Bends
SA403 WP316 Elbow ASME SA 403 WP 316 Pipe Cap
316 SS Npt Fittings ASTM A403 Gr WP316 Buttweld Fittings

Difference Between 304 SS Fittings And 316 SS Fittings

The main difference is the presence of a chemical element called molybdenum, which gives it a higher degree of resistance to oxidation and corrosion in the 316 SS fittings.
