Stainless Steel 304 Pipe Fittings


ASTM A403 WP304 Tee/Elbow and ADNOC approved Stainless Steel 304 Fittings manufacturer in India

Stainless Steel 304 Pipe Fittings

Stainless Steel 304 Pipe Fittings

Stainless Steel 304 Buttweld Fittings

Stainless Steel 304 Buttweld Fittings

BW, bevel end, plain end ASME B16.9 SA 403 WP304 Reducing/ Equal/ Unequal Tee manufacturer in India according to ASME B16.9

Stainless Steel 304 Pipe Fittings
Stainless Steel 304 Pipe Fittings Specification
Specifications ASME SA403 / ASTM A403
Thickness SCH 5S to SCH XXS
Dimensions ASME B16.28, ANSI B16.9, MSS-SP-43
Type Welded / Seamless / Fabricated
Size 1/8” NB upto 48” NB
ASME SA403 WP304 Seamless Fittings Price
Products Fitting Pipe Size Price
PIPE FITTING SA 403 WP 304 DN 50X40,SCH 40SX40S,ECCENTRIC REDUCER,,B ER30020D40S40S(3PCS) 1/4 in x 1/4 in $5.97
Butt weld pipe fitting 3/4 1 2 inch ss 304 45 90 180 degree pipe elbow 3/4 in x 3/4 in $22.07
pipe fittings SS 304 Casting 45 Degree Elbow 1/2" NPT Female 1 in x 1 in $31.51
150lb Fittings Welding Nipple 1/4"X30mm Sch20/40 Type ISO4144 & En10241 3 in x 3 in $224.43
PIPE FITTING SS 304 TC CLAMP SIZE 1 & 1.5(2500 PCS) 4 in x 4 in $182.46

Buy 304 Stainless Steel Weld Fittings and 304 SS Reducer at factory rate directly from UNS S30400 Pipe Cap manufacturers in India

SS 304 Fittings Types

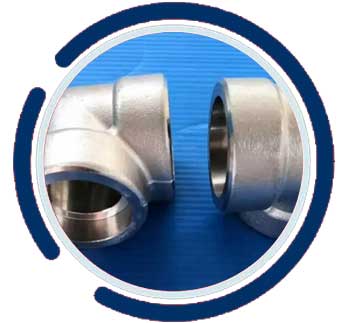

SS 304 Elbow

SS 304 Elbow

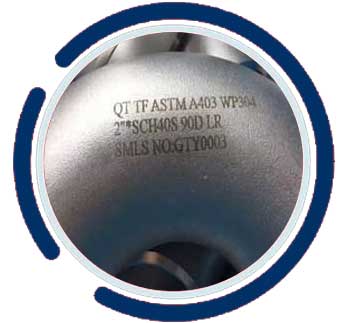

304 Stainless Steel Fittings

304 Stainless Steel Fittings

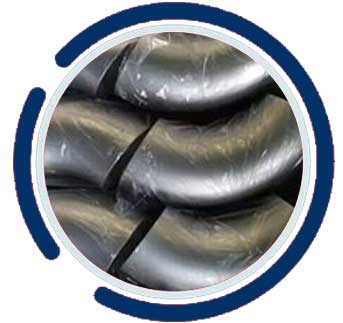

SS 304 Fittings

SS 304 Fittings

SS 304 Hex Nipple

SS 304 Hex Nipple

SS 304 Reducer

SS 304 Reducer

304 Stainless Steel Threaded Pipe Fitting

304 Stainless Steel Threaded Pipe Fitting

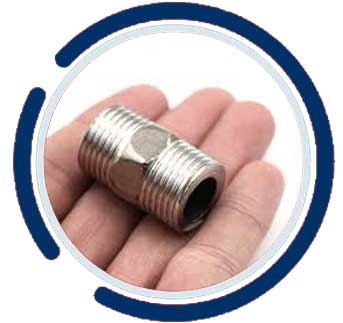

Ss304 Nipple

Ss304 Nipple

Ss 304 Tee

Ss 304 Tee

304 Stainless Steel Reducer

304 Stainless Steel Reducer

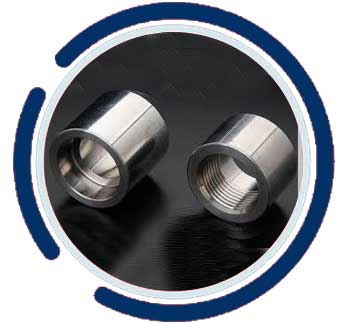

304 Stainless Steel Pipe Couplings

304 Stainless Steel Pipe Couplings

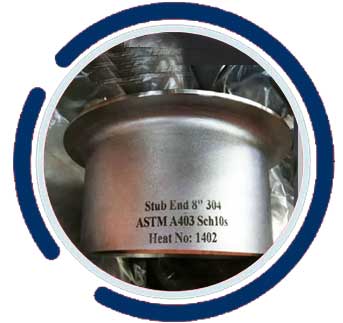

UNS S30400 Stub End

UNS S30400 Stub End

ASTM A403 WP 304 Elbow

ASTM A403 WP 304 Elbow

304 Stainless Steel Threaded Pipe Fitting Dimensions
304 Stainless Steel Threaded Pipe Fitting Dimensions
304 SS Elbow Chemical Composition
Grade S C Cr Mn Mo Si Ni P N
304 min. - - 18.0 - - - 8.0 - -
max. 0.030 0.08 20.0 2.0 0.75 10.5 0.045 0.10
Stainless Steel 304 Tube Fittings Mechanical Properties
Grade Yield Properties Tensile Properties Elongational Hardness
Brinell max Rockwell B max
304 205 515 40 201 92
Supplier of SA 403 Wp 304 Pipe Bend offers Inhouse testing facility to ensure the weld quality of SS304 Elbow and Check Weight Chart of SS 304 Buttweld Fittings and ASTM A403 WP304 Buttweld Pipe Fittings
304 Stainless Steel Reducer Equivalent
Grade Swedish SS UNS No Old British Japanese JIS Euronorm
BS En No Name
304 2332 S30400 304S31 58E SUS 304 1.4301 X5CrNi18-10
ASME B16.9 SS 304 Short Radius Elbow Physical Properties
Specific Heat 0-1000C(J/kg.K) Density (kg/m3) Thermal Conductivity(W/m.K) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Electrical Resistivity (n.m)
at 1000C at 5000C 0-3150C 0-1000C 0-5380C
500 8000 16.2 21.5 193 17.8 17.2 18.4 720
Stainless Steel 304 Buttweld Fittings Weight Chart
Stainless Steel 304 Buttweld Fittings Weight Chart
SS 304 Fittings manufacturer in India offers Hydro-tested AWWA C208 Stainless Steel 304 Buttweld Fittings for high temperature application also Check ASTM A403 WP304 material Dimension
ASTM A403 WP304 Buttweld Pipe Fittings Inventory
SS 304 Fittings UNS S30400 Stub End
Ss 304 Fittings ASTM A403 WP 304 Elbow
SS 304 Buttweld Fittings 304 SS Couplings
Ss 304 Elbow UNS S30400 Elbow
SS 304 Tube Fittings ASTM A403 WP304 Buttweld Fitting
Ss 304 Fitting 304 SS Fitting
304 SS Fittings ASME SA403 WP304 Seamless Fitting
Ss 304 Hex Nipple SS 304 Buttweld Fitting
304 SS Socket Weld Fittings ASTM A403 WP304 Buttweld Fittings
Ss 304 Reducer A403 WP304 Fitting
304 SS Threaded Fitting 304 SS Pipe Fitting
Ss304 Nipple Ss 304 Pipe Bends
304 SS Elbow ASTM A403 SS 304 Buttweld Fitting
Sa403 Wp304 UNS S30400 Fitting
304 SS Weld Fittings ASTM A403 WP 304 Pipe Elbow
Ss 304 Tee ASME B16.9 SS 304 Short Radius Elbow
304 SS Reducer 304 SS 90 degree Elbow
304 eccentric SS reducer SS 304 1/2"-4" inch pipe fitting
ansi 16.5 schedule 40 a403 wp304 pipeSS fittings tee 90SS Degree 304 SS elbow DN150 sch80
304 SS 90 Degree SanitarySS Elbow SS Stub Ends MSS SP-43 A403 WP304 1-48 inch ASME B16.9;
ANSI B16.9 304 Cushion Tee SS ASME A403 304 stainless steel 1/2" 48" pipe fitting
45 degree 12' 304 SS short elbow AISI 304 1-60inchSS sch40 ASME B16.9 4 way pipe fitting Butt-welding cross
ASTM A403 WP304 6 inch 90 Degree Long Radius Seamless Elbow 6SS x 4 Eccentric Reducing Tee 304 SS
SS304 Sanitary SS TriClampSS Curved Y - Bend Tee  ASTMSS B16.9 Seamless Eccentric Reducer SS304 SCH40S Size 16" x 8"
UNS S30400 Tees, Caps, Stub Ends and Straight Crosses
Nominal
Pipe
Size
Caps Outside
Diameter
Straight Crosses Straight Tees Stub Ends
(inches) Length
(inches)
(mm) (inches) Center to End
(inches)
Center to End
(inches)
Long Length
(inches)
Lap Diameter
(inches)
Short Length
(inches)
3/4 1 26.7 1.050 1 1/8 3 1 11/16 2
1/2 1 21.3 0.840 1 3 1 3/8 2
1 1 1/2 33.4 1.315 1 1/2 1 1/2 4 2 2
1 1/4 1 1/2 42.2 1.660 1 7/8 1 7/8 4 2 1/2 2
2 1 1/2 60.3 2.375 2 1/2 2 1/2 6 3 5/8 2 1/2
1 1/2 1 1/2 48.3 1.900 2 1/4 2 1/4 4 2 7/8 2
2 1/2 1 1/2 73.0 2.875 3 3 6 4 1/8 2 1/2
3 2 88.9 3.500 3 3/8 3 3/8 6 5 2 1/2
3 1/2 2 1/2 101.6 4.000 3 3/4 3 3/4 6 5 1/2 3
4 2 1/2 114.3 4.500 4 1/8 4 1/8 6 6 3/16 3
5 3 141.3 5.563 4 7/8 4 7/8 8 7 5/16 3
6 3 1/2 168.3 6.625 5 5/8 5 5/8 8 8 1/2 3 1/2
8 4 219.1 8.625 7 7 8 10 5/8 4
10 5 273.1 10.750 8 1/2 8 1/2 10 12 3/4 5
12 6 323.9 12.750 10 10 10 15 6
Can 304 ss fitting be used for potable water?

304 ss fittings are mainly used to commercial water well/ plumb residential and potable water plumbing installations. They are also an good choice for many other industrial/ commercial non potable water applications where high corrosion resistance is required.

SS 304 Pipe Fittings Hs Code
  • 730719 : Other Tube or Pipe Fitting, of Cast Iron
  • 730799 : Other Tube or Pipe Fitting, of Iron
  • 730793 : Butt welding Fitting, of Iron
  • 730722 : Forged elbows, bends and sleeves, of SS
  • 730711 : Tube or Pipe Fitting, Of nonmalleable cast iron
  • 730729 : Other Tube or Pipe Fitting, of SS
  • 730723 : Butt welding Fitting of SS
  • 730792 : Forged elbows, bends and sleeves, of Iron
  • 730791 : Flanges of Iron
  • 730721 : Flanges of SS
